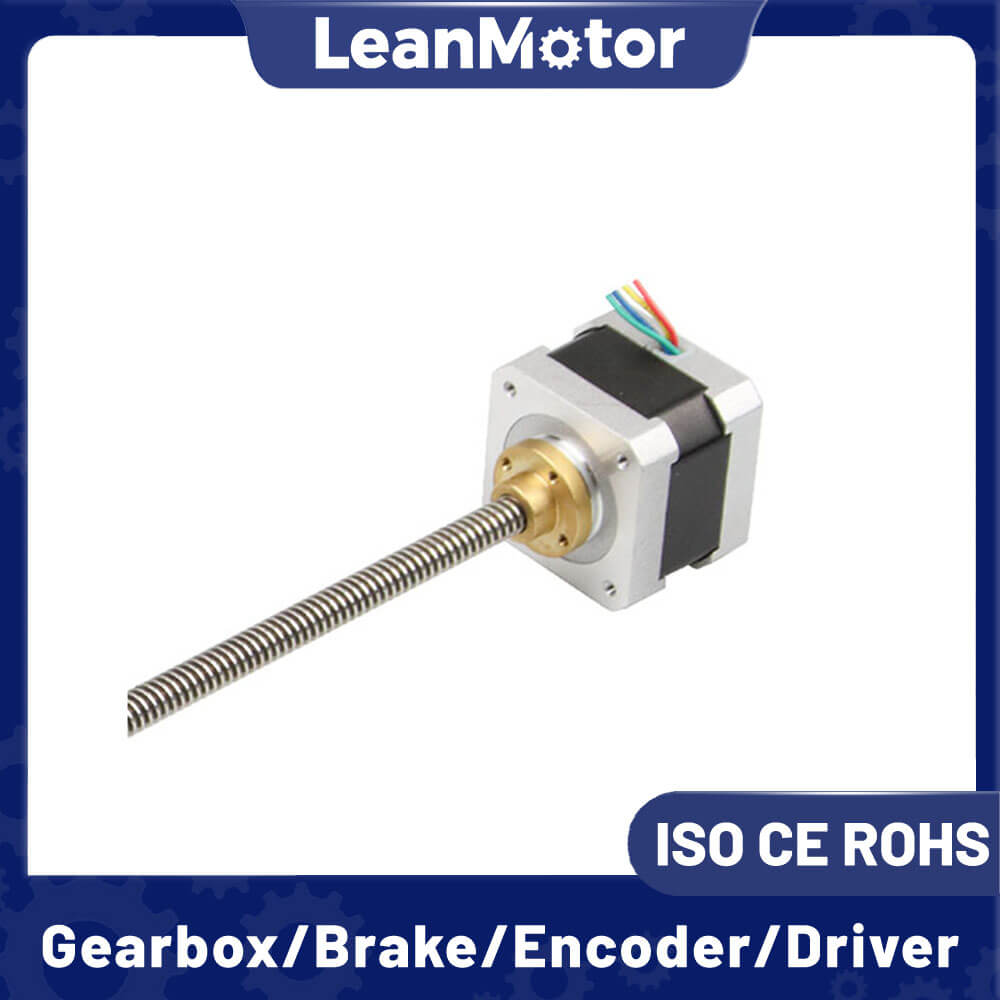

Leanmotor Nema 14 External T-type Linear Stepper Motor 1.8 Degree 35x35mm 0.5A / 1.0A 4-Wires

Type: Nema 14 External T-type Linear Stepper Motor
Current: 0.5A / 1.0A

Motor Length: 32mm / 45mm / 51mm

Customized: Connectors, Gearbox, Encoder, Brake, Lead Screw, Integrated Driver...

Availability:

Quantity:



Inquire Add to Basket

Model:
Nema 14 External T-type Linear Stepper Motor
Brand:
LEANMOTOR
Stepper Motor Kinds:
Linear Motors
Lead Screw Kinds:
External T-type Linear
Stepper Motor Size:
Nema14 (35mm)
Number of Leads:
4wires
Phase:
2 Phase
Step Angle:
1.8°
MOQ:
10 Pcs

General Specifications：

Item	Specifications
Step Angle	0.9° or 1.8°
Temperature Rise	80℃max
Ambient Temperature	-20℃~+50℃
Insulation Resistance	100 MΩ Min. ,500VDC
Dielectric Strength	500VAC for 1minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	28N (20mm from the flange)
Max. axial force	10N

1.8 Degree Nema 14 External T-type Linear Stepper Motor Electrical Specifications:

Model No.	Step Angle	Motor Length	Current	Resistance	Inductance	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	g.cm	No.	g.cm	g.cm2	Kg
LM35HST28-0504	1.8	28	0.5	20	14	1000	4	80	11	0.13
LM35HST34-1004	1.8	34	1	2.7	4.3	1400	4	100	13	0.17
LM35HST42-1004	1.8	42	1	3.8	3.5	2000	4	125	23	0.22

Note: Above only for representative products, products of special request can be made according to the customer request.

T-type Lead Screw Rod Physical Specification:

T-type Lead Screw Rod Physical Specification
Screw Diameter	Screw Lead	Screw Pitch	Travel Per Step	Screw Diameter	Screw Lead	Screw Pitch	Travel Per Step
mm	mm	mm	mm	mm	mm	mm	mm
Tr5	1	1	0.005	Tr8	0.5	0.5	0.0025
Tr5	2	1	0.01		2	2	0.01
Tr6	2	1	0.01		4	2	0.02
	4	1	0.02		8	2	0.04
	6	1	0.03		12	2	0.06
	12	2	0.06		20	2.5	0.1
