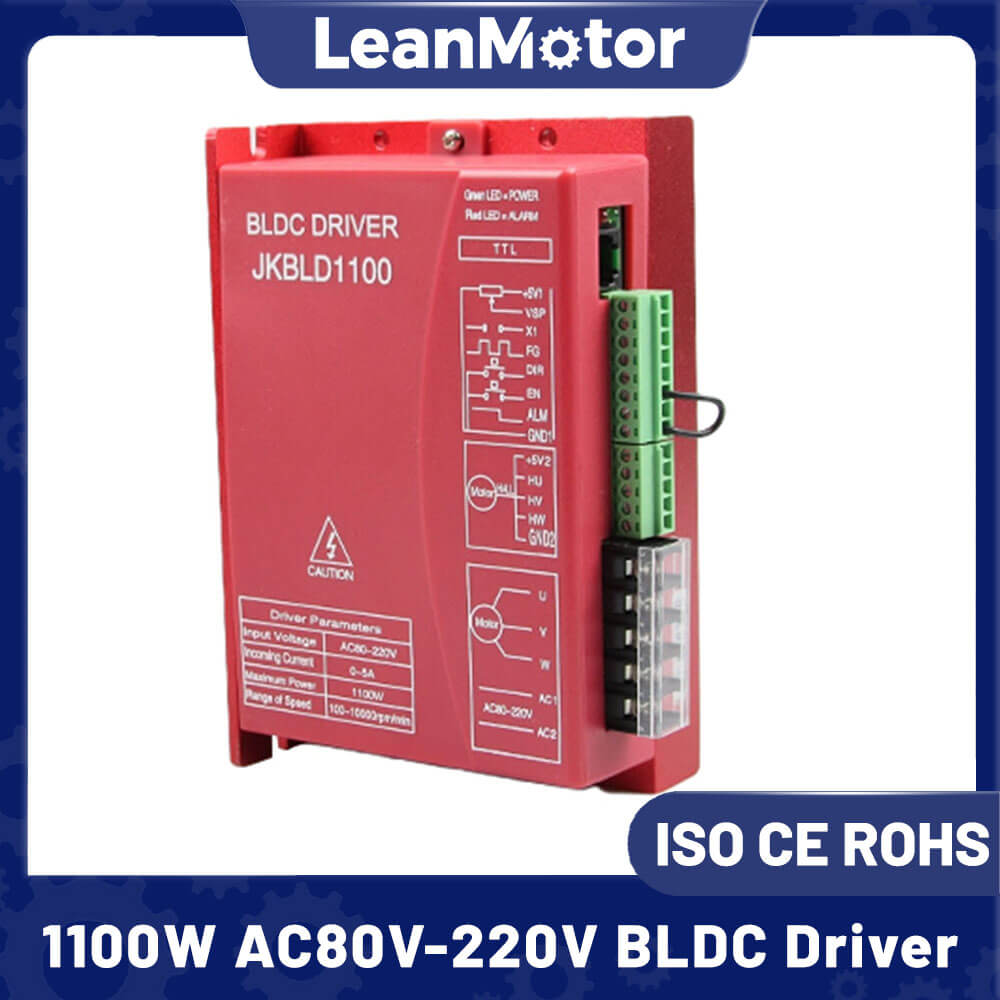

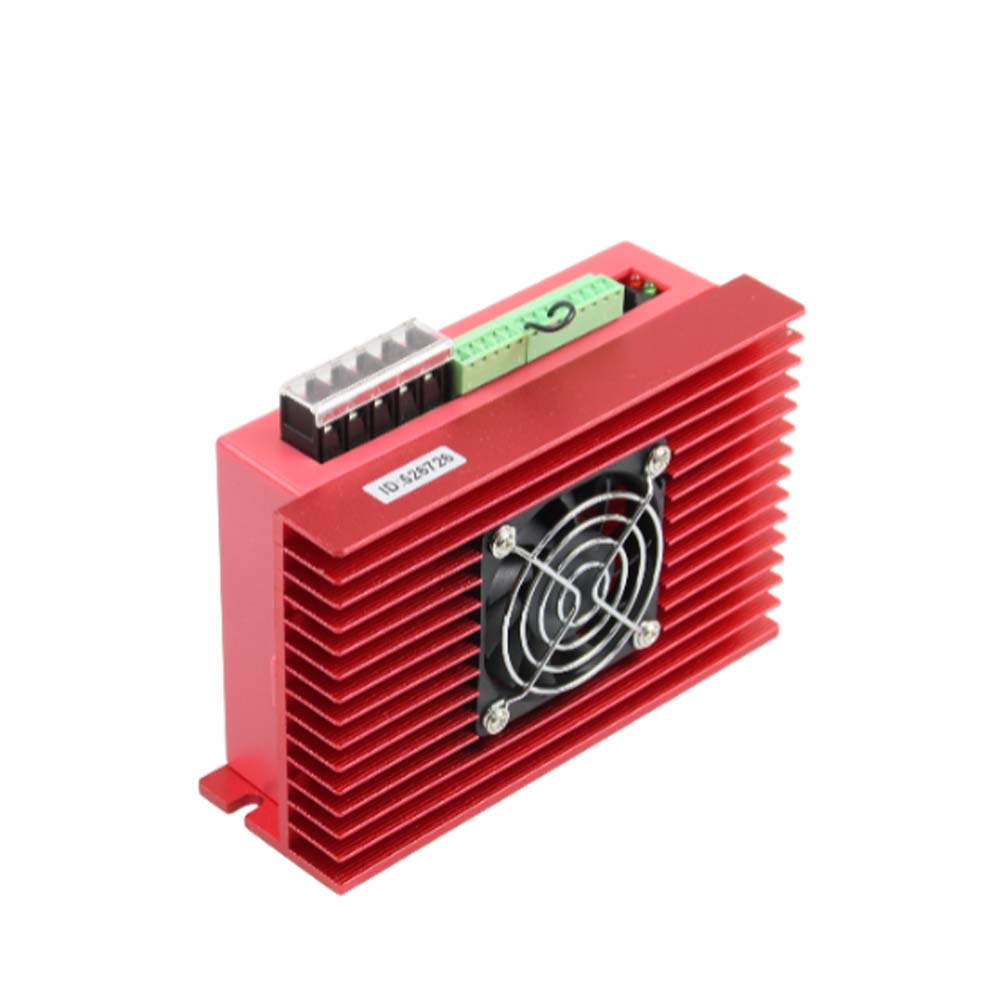

LMBLD1100 Brushless DC Motor Driver

● It can be connected with an external speed display board JKBL01, showing
the speed, set drive parameters;
● It has double speed closed current design with low speed torque and
smooth operation;
● It has high speed output with the maximum speed of 10000rpm / min;
● The speed control mode is an external PWM speed and
external potentiometer speed;
● It has have EN, DIR,X1 signal control side;
● It can output FG signals (optoelectronic isolation, gate output);
● It can output ALM signals for the user to detect (optoelectronic isolation, gate output);
● It has over-current, overvoltage, under voltage, fan control and Hall Sensor phase error, motor stalling and other protection functions;

Availability:

Quantity:



Inquire Add to Basket

Model:
LMBLD1100
Brand:
LeanMotor
MOQ:
10 Pcs

Description:

LMBLD1100 is the latest high-tech product of our company, for the field of medium power motor drive. It uses a large-scale integrated circuit to replace the original hardware, so it has higher performance of anti-jamming and fast response ability. It is suitable for all the low voltage three-phase brushless DC motors with peak current below 5A and low voltage AC80V-250V(boards show AC80V-220V) ,whether the motor driver with Hall or not. It is widely used in knitting equipment, medical equipment, food packaging machinery, electric tools and a series of electrical automation control area .

Features:

● It can be connected with an external speed display board JKBL01, showing the speed, set drive parameters;
● It has double speed closed current design with low speed torque and smooth operation;
● It has high speed output with the maximum speed of 10000rpm / min;
● The speed control mode is an external PWM speed and external potentiometer speed;
● It has have EN, DIR,X1 signal control side;
● It can output FG signals (optoelectronic isolation, gate output);
● It can output ALM signals for the user to detect (optoelectronic isolation, gate output);
● It has over-current, overvoltage, under voltage, fan control and Hall Sensor phase error, motor stalling and other protection functions;

Brushless DC Motor Driver Description：

Brand	Leanmotor
Model	LMBLD750
Driver Type	DC Brushless Motor Driver
DC / AC	DC
Suitable Motor	3-Phase DC Brushless motor
Input Voltage	18VDC - 52VDC
Output Current	Max 25A
Hall signal voltage	5V
Hall drive current	20mA
Motor speed range	0rpm - 20000rpm
External potentiometer	10kΩ
Control method	Open and closed loop control
JKBLD750 DC brushless driver is suitable for speed regulation of three-phase DC brushless motors with power below 750W and voltage 48V, and it can provide external potentiometer speed regulation, external analog voltage speed regulation, and upper computer (PLC, microcontroller, etc.) PWM speed regulation. At the same time the driver has a large torque start, fast start and braking, forward and reverse switching, manual and automatic speed control. It is suitable for DC brushless motors with voltage from 18V to 52V and power less than 750W.

Electrical Specifications

Parameter	Min	Typical	Max	Unit
Voltage Input DC	18	48	52	V
Output current	-	-	25	A
Motor speed range	0	-	20000	RPM
Hall signal voltage	-	-	5	V
Hall drive current	-	20	-	MA
External potentiometer	-	10	-	KΩ

Environmental indicators:

Heat Sinking Method	Natural cooling or forced cooling
Atmosphere	Avoid dust, oil stains, and corrosive gases
Operating Temperature	+10℃ ～ +50℃
Ambient Humidity	80% RH (non-condensing)
Vibration Resistance	5.7m/s² maximum
Storage Temperature	0℃ ～ +60℃

Port Signal Description:

Signal category	Terminal	Functional Description
Control signal	PUL+	Pulse frequency input positive pole
	PUL-	Pulse frequency input negative electrode.
	BRK	When the BRK terminal and COM terminal are disconnected or high-level input, the motor brake stops, and when short circuited or low-level input, the motor runs.
	EN	When the EN terminal and COM terminal are disconnected or high-level input, the motor slowly stops, and when short circuited or low-level input, the motor runs.
	F/R	When the F/R terminal and COM terminal are disconnected or high-level input, the motor rotates forward, and when short circuited or low-level input, the motor reverses.
	COM	Common port (OV reference level).
	SV	① External potentiometer speed setting input; ② External analog voltage input terminal ③ PWM speed setting input
	VCC	External potentiometer interface
Hall signal	REF+	Hall Sensor Signal Power Supply +
	HU	Hall Sensor signal HU.
	HV	Hall Sensor signal HV.
	HW	Hall Sensor signal HW.
	REF-	Hall Sensor Signal Power Supply -
Motor connection	W	Motor line W phase
	V	Motor line V phase
	U	Motor line U phase
Power connection	DC+	Power supply positive electrode (25-52VDC)
Power connection	DC-	Power supply negative electrode
Output signal	SPEED	Output a pulse frequency that matches the operating speed of the motor. The motor speed can be calculated using SPEED-OUT. The calculation formula is: N (rpm)=(F/P) × 60/3 F: Output pulse frequency (Hz); P: Number of motor poles; N: Motor speed
Output signal	ALM	The output signal of the motor or drive control fault signal is normally 5V, and in the event of a fault, it is 0V.
