High-speed cross-belt sorters are essential components of modern automated logistics systems, enabling accurate, efficient, and continuous parcel sorting in distribution centers, e-commerce fulfillment facilities, and intelligent warehouses. These systems rely on precisely controlled conveyor belts mounted on individual sorting carriers to transport packages toward designated destinations. As sorting speeds increase and package dimensions vary, maintaining stable belt speed, accurate positioning, and synchronized motion becomes increasingly important.
One of the most common challenges in high-speed cross-belt sorting is belt speed fluctuation. Even small variations in belt velocity can affect parcel positioning, discharge timing, sorting accuracy, and overall system throughput. In demanding applications, inconsistent belt motion may also increase mechanical vibration, accelerate belt wear, and create additional maintenance requirements.
Integrated BLDC servo motors offer an effective solution by combining a brushless DC motor, servo drive, feedback components, and motion control functions into a compact unit. This integrated architecture enables precise speed regulation, rapid dynamic response, and coordinated control of individual cross-belt carriers.
By combining closed-loop feedback, advanced current control, optimized torque output, and communication with the central sorting controller, integrated BLDC servo motors help maintain consistent belt motion under changing operating conditions.
This article examines how integrated BLDC servo motors prevent belt speed fluctuations in high-speed cross-belt sorters, the technical mechanisms behind their performance, and the key factors engineers should evaluate when selecting a motor for demanding sorting applications.

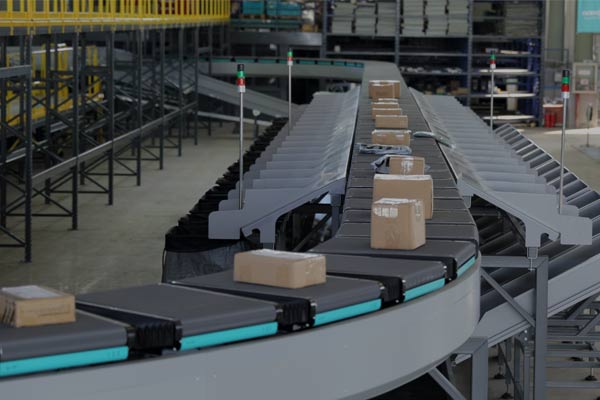

A cross-belt sorter consists of multiple carriers moving along a main conveying path. Each carrier incorporates a short conveyor belt that moves perpendicular to the primary direction of travel. When a carrier reaches its assigned discharge point, its belt moves a parcel toward the appropriate chute, conveyor, or collection area.
The main sorting system controls carrier movement, destination assignment, and discharge timing, while the individual belt drive controls the lateral movement of each package.
For reliable operation, the cross-belt drive must provide:
Stable belt speed throughout the discharge process.
Repeatable acceleration and deceleration during start-stop or speed-transition operations.
Consistent torque output under varying package loads.
Accurate synchronization with the central sorting controller.
Fast response to changing commands without excessive overshoot or oscillation.
Reliable operation during continuous high-speed sorting cycles.
When these requirements are not satisfied, the actual belt speed may deviate from the commanded value, potentially affecting parcel transfer and sorting accuracy.
Belt speed fluctuations can result from several interacting mechanical and electrical factors.
Variable package loads: Cross-belt carriers may transport parcels with significantly different weights and dimensions. A heavier package increases the torque required to accelerate the belt and its load. If the motor cannot respond quickly enough, belt speed may temporarily decrease.
Mechanical friction changes: Bearing resistance, belt tension, pulley alignment, and transmission efficiency influence the torque required to maintain a target speed. Changes in friction can cause inconsistent motor loading.
Insufficient torque reserve: A motor operating close to its available torque limit may struggle to maintain constant speed during acceleration, sudden load changes, or frequent discharge cycles.
Inadequate feedback control: Open-loop control cannot directly correct actual speed deviations using real-time measured motion. As a result, load disturbances may produce speed errors that remain uncorrected until the command changes or the disturbance disappears.
Drive response limitations: Poorly tuned speed loops, insufficient current-loop bandwidth, and inappropriate acceleration settings can lead to sluggish recovery, overshoot, or speed oscillation.
Communication delays: Delayed motion commands or inconsistent synchronization between the carrier controller and the motor drive may affect discharge timing, particularly when multiple carriers operate in a tightly coordinated system.
Understanding these causes is the first step toward selecting a motor and control architecture capable of maintaining stable belt motion.
LEANMOTOR Integrated DC servo Motors Products
 |  |  |  |
Customized Shaft Service | |||||
 |  |  |  |  |  |
|---|---|---|---|---|---|
Metal Pulleys | Plastic Pulley | Gear | Shaft Pin | Threaded Shaft | Panel Mount |
 |  |  |  |  |  |
Hollow Shaft | Lead Screw | Panel Mount | Single Flat | Dual Flat | Key Shaft |
An integrated BLDC servo motor combines a brushless DC motor with an integrated drive and associated control electronics. Depending on the model, the unit may also incorporate an encoder, communication interface, current sensing, and protection functions.
Unlike a conventional motor installation that requires a separate servo drive and multiple external connections, an integrated design places key motion-control components within a compact assembly.
A brushless DC motor uses electronic commutation instead of mechanical brushes and a commutator. The drive energizes the motor windings in a controlled sequence to generate a rotating magnetic field and produce torque.
This design offers several advantages for high-speed sorting equipment:
High efficiency: Reduced mechanical commutation losses support energy-efficient operation.
Low maintenance: The absence of mechanical brushes eliminates brush replacement and associated wear.
Fast dynamic response: Electronic commutation enables rapid adjustment of motor current and torque.
Compact construction: High power density helps reduce the space required for each carrier drive.
Reliable continuous operation: Properly selected motors can support frequent acceleration cycles and demanding duty requirements.
These characteristics make BLDC technology suitable for conveyor drives that require repeatable motion and frequent speed adjustments.
The integrated drive regulates motor current and speed according to commands from the motion controller. When an encoder or another suitable feedback device is included, the drive can compare actual motor motion with the commanded operating state.
The control system uses this information to correct deviations and maintain the desired speed.
A typical integrated BLDC servo motor includes the following functional elements:
Component | Primary Function |
|---|---|
BLDC motor | Converts electrical energy into mechanical torque |
Servo drive | Regulates motor current, torque, and speed |
Encoder or feedback sensor | Measures rotor position and supports speed estimation |
Motion controller interface | Receives speed, torque, or motion commands |
Communication interface | Exchanges commands and status information with the control system |
Protection circuitry | Monitors supported fault conditions, such as overcurrent or overtemperature |
The exact features depend on the motor model. For cross-belt applications, engineers should verify whether the integrated motor supports the required feedback resolution, control modes, communication protocol, and operating duty.
Closed-loop speed control is a critical technology for maintaining consistent belt velocity in high-speed cross-belt sorters. By continuously monitoring motor speed and comparing it with the commanded value, an integrated BLDC servo motor can detect speed deviations and automatically adjust its output to compensate for changing loads, friction, and acceleration demands. This real-time feedback mechanism helps improve belt-speed stability, parcel discharge accuracy, and overall sorting efficiency.
In a closed-loop control system, an encoder or another suitable feedback device measures the motor's actual rotational speed.
When a cross-belt conveyor encounters increased resistance or a heavier parcel, the motor may temporarily slow down. The controller detects the deviation and adjusts the torque-producing current to restore the target speed. When the load decreases, the drive reduces the torque command as necessary to prevent unwanted acceleration.
This continuous correction process enables integrated BLDC servo motors to maintain more consistent belt speed under variable load conditions, reducing the speed deviations that can affect parcel transfer timing.
Belt speed fluctuations often occur when the torque required by the conveyor changes faster than the motor can respond. In high-speed sorting applications, sudden changes in package weight, belt friction, or acceleration demand can create transient speed errors.
An integrated BLDC servo drive regulates motor current to adjust electromagnetic torque according to the control algorithm.
When the actual belt speed falls below the target, the drive can increase motor current within its operating limits to generate additional torque. This helps compensate for the disturbance and restore the required speed. Fast current regulation and appropriately tuned speed control are particularly important during frequent acceleration and parcel discharge cycles.
Encoder feedback provides the motion information needed to identify differences between commanded and actual motor speed. By measuring rotor position over time, the drive estimates rotational speed and continuously updates its control output.
For high-speed cross-belt sorters, suitable encoder resolution and feedback processing help the drive detect speed deviations and respond consistently. However, actual speed-regulation performance also depends on sampling frequency, control-loop bandwidth, electrical noise, mechanical vibration, and transmission characteristics.
Because motor feedback does not always represent the exact linear speed of the belt surface, engineers should also consider pulley slip, belt tension, transmission compliance, and mechanical wear when exceptionally accurate belt-speed control is required.
Effective closed-loop control requires properly configured current and speed loops. The current loop regulates motor current and torque response, while the speed loop adjusts the torque command to minimize the difference between the target and measured speeds.
If the speed loop responds too slowly, load disturbances may produce prolonged speed deviations. If the controller is excessively aggressive, the system may experience overshoot, oscillation, or increased mechanical vibration.
Proper servo tuning balances fast disturbance rejection with stable motor operation. Engineers should validate control-loop settings under representative package loads, acceleration profiles, and operating speeds rather than relying solely on unloaded motor tests.
Stable belt speed helps maintain predictable parcel movement during lateral transfer. If belt velocity fluctuates significantly, a parcel may reach the discharge point earlier or later than expected, potentially affecting synchronization with downstream conveyors or sorting chutes.
By compensating for load disturbances and maintaining consistent motor speed, closed-loop control improves the repeatability of discharge operations. Combined with suitable motion profiles, accurate carrier-position information, and synchronized controller commands, integrated BLDC servo motors help support reliable, high-throughput sorting.
In summary, closed-loop speed control prevents or reduces belt speed fluctuations by continuously measuring motor motion, calculating speed error, and adjusting motor torque in real time. When combined with suitable encoder feedback, adequate torque capacity, and optimized servo tuning, it provides a reliable foundation for precise belt-speed regulation in high-speed cross-belt sorting systems.
Motor speed stability depends on the ability to generate sufficient torque when the mechanical load changes.
When the load torque increases, the difference between motor torque and load torque decreases. If the motor cannot provide sufficient additional torque, acceleration falls and rotational speed may decrease.
In a BLDC motor, electromagnetic torque is closely related to the torque-producing component of phase current over the normal operating range.
The exact relationship depends on the motor's electrical model and commutation method.
By regulating motor current rapidly, the integrated drive can adjust torque in response to changing load requirements. This supports faster recovery from speed disturbances and more consistent acceleration.
Cross-belt sorters repeatedly accelerate belts, move parcels laterally, and stop or transition between operating states. These cycles create changing torque demands.
A properly sized integrated BLDC servo motor can provide the required peak torque during acceleration while maintaining adequate continuous torque during sustained operation.
Engineers should evaluate both continuous and peak torque ratings. A motor with adequate continuous torque but insufficient peak torque may still experience speed drops during rapid acceleration or sudden load changes.
Conversely, selecting a motor based only on peak torque can lead to overheating if the continuous duty requirements exceed its thermal capability.
The objective is to match the motor's torque-speed envelope to the actual sorting cycle, not simply to choose the motor with the highest rated torque.
Feedback quality directly influences how effectively a servo drive detects and corrects speed errors.
An encoder provides information about rotor position. The drive can use changes in measured position over time to estimate rotational speed.
A suitable encoder and measurement algorithm allow the drive to identify deviations between commanded and actual motion.
Higher feedback resolution can improve position measurement granularity, particularly at low speeds. However, resolution alone does not guarantee better speed regulation. Sampling rate, estimation algorithms, electrical noise, mechanical coupling, and control-loop tuning also affect performance.
During a discharge operation, the belt must move a parcel toward the designated transfer point with predictable velocity.
If belt speed varies significantly, the parcel may reach the transfer point earlier or later than expected. This can complicate coordination with the destination chute or downstream conveyor.
Encoder-based feedback helps the drive maintain the commanded motor speed and improves the repeatability of each discharge cycle.
Where precise belt displacement is required, the controller can also use position-based motion profiles rather than relying exclusively on a constant-speed command.
Motor feedback measures motor motion, not necessarily the exact linear velocity of the belt surface.
Belt slip, pulley wear, elastic deformation, backlash, and transmission compliance can cause differences between motor speed and actual belt speed.
For applications requiring especially high belt-speed accuracy, engineers should evaluate the entire mechanical transmission. Depending on the application, direct belt-speed sensing or additional system-level calibration may be necessary.
Maintaining stable speed requires more than correcting errors after they occur. A well-designed motion profile can prevent unnecessary disturbances before they develop.
Abrupt acceleration commands can create high inertial torque, belt tension changes, and mechanical vibration. These effects may cause transient speed deviations or excite resonances in the drive mechanism.
Integrated BLDC servo motors with programmable motion profiles can execute controlled acceleration and deceleration sequences, subject to the capabilities of the drive and motion controller.
A trapezoidal velocity profile typically consists of acceleration, constant-speed travel, and deceleration. An S-curve profile gradually changes acceleration, reducing abrupt transitions in jerk.
Reducing jerk can help limit mechanical shock and improve the smoothness of belt movement, particularly in lightweight carrier mechanisms.
The optimal profile depends on parcel weight, required discharge time, belt travel distance, and mechanical limitations.
For example, a lightweight parcel may tolerate a relatively aggressive acceleration profile, while a fragile or unstable package may require smoother acceleration to reduce shifting.
The control strategy should therefore balance:
Required discharge time.
Maximum permitted belt speed.
Available acceleration and torque.
Parcel stability.
Belt tension and transmission limits.
Mechanical resonance characteristics.
A well-tuned profile reduces unnecessary torque peaks and makes it easier for the speed controller to maintain consistent motion.
High-speed cross-belt sorters often contain many independently driven carriers. Each carrier must respond to commands at the correct point in the sorting sequence.
Integrated BLDC servo motors with suitable industrial communication interfaces can simplify command exchange and status monitoring.
Depending on the system architecture, a central controller may issue speed references, enable commands, operating modes, or motion profiles to individual drives.
The communication system can also return operating status, measured values, and fault information.
Common industrial communication options may include CANopen, EtherCAT, Modbus-based interfaces, or manufacturer-specific protocols. The appropriate option depends on the drive model, required update rate, network topology, and controller compatibility.
Even when a motor has excellent local speed regulation, delayed or inconsistent commands can affect the timing of the overall sorting sequence.
A suitable network and control architecture should provide predictable command updates and clear handling of communication faults.
For tightly coordinated motion, engineers should assess whether the application requires synchronized clocks, distributed motion control, deterministic cyclic communication, or time-stamped commands.
Local closed-loop control and system-level synchronization solve different problems: the servo drive regulates the motor's motion, while the supervisory control system coordinates that motion with carrier position, parcel tracking, and discharge timing.
Both are necessary for reliable high-speed sorting.
Traditional motor installations may require separate motor and drive enclosures, feedback cables, power connections, and additional control wiring.
Integrated BLDC servo motors combine several of these elements into one assembly, potentially simplifying installation on compact cross-belt carriers.
An integrated design can reduce the number of separate components and external signal connections required for each drive.
This may provide several practical advantages:
Reduced wiring complexity.
Easier installation in space-constrained carriers.
Simplified replacement of motor-drive assemblies.
Lower cabinet-space requirements in suitable architectures.
Fewer external feedback connections.
More straightforward standardization across multiple carriers.
Actual wiring savings depend on the motor's power distribution, communication topology, braking requirements, and safety architecture.
Integrated drives may provide diagnostic information such as overcurrent events, overtemperature warnings, following errors, or communication faults.
These functions depend on the selected product and its supported monitoring features.
When diagnostic data are incorporated into the warehouse control or maintenance system, technicians can identify recurring problems more efficiently.
For example, repeated overcurrent events may indicate excessive acceleration demand, mechanical binding, or an undersized motor. Repeated temperature warnings may point to inadequate cooling, excessive duty cycle, or operation beyond the recommended torque-speed envelope.
Timely diagnosis can reduce unplanned downtime and help maintain consistent sorter performance.
A motor may provide excellent speed regulation when cool but struggle if thermal conditions exceed its design limits.
Motor winding losses, drive switching losses, ambient temperature, mounting conditions, and duty cycle all influence thermal performance.
Cross-belt sorting equipment may operate for extended periods with frequent acceleration and deceleration. The resulting thermal load depends on the complete motion cycle rather than a single instantaneous torque value.
Engineers should evaluate:
Continuous torque requirements.
Peak torque magnitude and duration.
Acceleration frequency.
Average motor speed.
Ambient temperature.
Heat transfer through the mounting structure.
Cooling airflow and enclosure conditions.
An integrated drive may have less access to forced airflow than a cabinet-mounted drive. Its thermal design must therefore be evaluated in the actual installation environment.
Excessive temperature can cause a drive to reduce output, trigger protection, or shut down, depending on its control strategy.
Such behavior may interrupt belt motion or reduce available acceleration torque.
Selecting a motor with adequate thermal capacity and ensuring proper heat dissipation help maintain consistent performance during long sorting shifts.
Thermal protection is important, but it should not replace correct motor sizing or system-level thermal analysis.
Selecting the right integrated BLDC servo motor for high-speed cross-belt sorters is essential for maintaining stable belt speed, accurate parcel discharge, and reliable continuous operation. Engineers must evaluate torque, operating speed, feedback accuracy, motion response, communication compatibility, and thermal performance to ensure the motor meets the demands of automated sorting systems.
Motor torque determines the ability to accelerate the conveyor belt and maintain stable motion under changing package loads. Engineers should consider parcel weight, belt and pulley inertia, friction, transmission efficiency, and the required acceleration time.
Both continuous torque and peak torque must meet the application's requirements. Continuous torque supports sustained operation, while peak torque accommodates short acceleration periods and sudden load changes. Insufficient torque capacity can cause speed fluctuations and reduce sorting consistency.
The motor must provide the belt speed required for the target sorting throughput and parcel discharge distance. Engineers should consider pulley diameter, transmission ratio, acceleration time, and the motor's torque-speed characteristics.
Selecting a motor based only on its maximum rotational speed is insufficient. The motor must also deliver adequate torque at the required operating speed without exceeding its electrical or thermal limits.
Encoder feedback enables the integrated servo drive to monitor motor motion and correct deviations from the commanded speed. This capability is particularly important when cross-belt carriers handle parcels of different weights.
When selecting a motor, evaluate encoder resolution, speed-regulation performance, feedback processing, and control-loop response. For applications requiring highly accurate belt velocity, also consider mechanical transmission errors, belt slip, and pulley alignment.
High-speed cross-belt sorters frequently accelerate, decelerate, and change operating states. The selected motor should provide fast torque response and support suitable motion profiles to minimize speed deviations and mechanical shock.
Programmable acceleration and deceleration, effective current control, and properly tuned speed loops help improve motion stability during repeated sorting cycles.
Integrated BLDC servo motors must communicate effectively with the sorter controller. Depending on the system architecture, suitable interfaces may include CANopen, EtherCAT, or other supported industrial communication protocols.
Verify protocol compatibility, command update rates, synchronization requirements, and diagnostic capabilities before selecting the motor. Reliable communication helps coordinate individual belt drives with carrier positioning and parcel discharge sequences.
Continuous operation and frequent acceleration can increase motor and drive temperatures. Engineers should evaluate the duty cycle, ambient temperature, cooling conditions, continuous current, and peak torque duration.
The motor must also fit the carrier's available space and satisfy mounting, connector, vibration, and ingress-protection requirements. An integrated design can simplify wiring and reduce installation complexity when its mechanical and environmental specifications match the application.
Choosing an integrated BLDC servo motor for cross-belt sorters requires a comprehensive evaluation of torque, speed, feedback accuracy, dynamic response, communication, and thermal performance. Matching these characteristics to the actual sorting cycle helps maintain consistent belt velocity, improve parcel discharge repeatability, and support reliable high-throughput warehouse automation.
Even a high-performance integrated servo motor cannot compensate fully for an incorrectly designed mechanical system or poorly configured controller.
Rated power alone does not indicate whether a motor can deliver the required torque during rapid acceleration.
Two motors with similar rated power may have different torque-speed characteristics, peak torque limits, and thermal capacities.
Motor selection should therefore be based on the actual operating profile rather than power rating alone.
The motor must accelerate the inertia of the complete transmission system, including the belt, pulleys, rollers, and any gearbox.
If the equivalent inertia is underestimated, the selected motor may produce insufficient acceleration or experience excessive current demand.
Engineers should calculate or estimate reflected inertia and verify the resulting torque requirements.
An excessively aggressive speed loop can cause oscillation, while a poorly responsive loop may allow speed deviations to persist.
The appropriate tuning depends on the motor, feedback device, transmission stiffness, load inertia, and mechanical resonances.
Control-loop tuning should be validated under representative load conditions rather than optimized only for an unloaded belt.
Incorrect belt tension, pulley misalignment, worn bearings, or contamination can introduce mechanical disturbances that appear to be motor-control problems.
A complete troubleshooting process should inspect both the drive electronics and the mechanical transmission.
A motor that performs well during a brief test may not maintain the same performance during continuous operation.
Validation should include repeated acceleration cycles, different parcel weights, sustained operation, thermal stabilization, and representative communication conditions.
Testing belt speed stability is essential for verifying the performance of integrated BLDC servo motors in high-speed cross-belt sorters. By measuring speed accuracy, transient response, load adaptability, and thermal behavior, engineers can identify potential motion-control problems and ensure consistent parcel discharge under real operating conditions.
Compare the commanded belt speed with the actual measured speed during continuous operation. Use an encoder, laser speed sensor, or suitable measurement instrument to identify speed deviations under different load conditions.
Test the belt at several operating speeds and with different parcel weights. Consistent results indicate effective speed regulation, while repeated deviations may suggest insufficient torque capacity, incorrect servo tuning, or mechanical resistance.
Sudden changes in package weight or mechanical resistance can cause temporary belt speed fluctuations. To evaluate the motor's response, introduce representative load changes and monitor how quickly the belt returns to its target speed.
Key parameters include maximum speed deviation, recovery time, overshoot, and peak motor current. These measurements help determine whether the integrated servo drive can compensate for changing loads without disrupting sorting operations.
High-speed cross-belt sorters frequently accelerate and decelerate during parcel discharge cycles. Test the motor under different acceleration profiles to identify speed overshoot, vibration, and unstable transitions.
Compare the results using different ramp settings. Smooth acceleration and deceleration can reduce mechanical shock, improve belt stability, and support repeatable parcel transfer.
Run the sorter through repeated operating cycles using representative package weights and sorting speeds. Monitor belt speed, motor current, temperature, and fault events throughout the test.
Continuous testing helps reveal problems that short-duration measurements may miss, including thermal overload, recurring speed deviations, and performance degradation during sustained operation.
Motor feedback alone may not fully reflect actual belt movement. Belt slip, incorrect tension, pulley misalignment, worn bearings, and transmission backlash can all contribute to speed instability.
Inspect the complete drive mechanism and, when necessary, measure belt-surface speed directly. Comparing motor feedback with actual belt movement helps distinguish control-related issues from mechanical problems.
Practical belt speed stability testing should combine steady-state speed measurement, load-step testing, acceleration analysis, continuous operation, and mechanical inspection. These methods help engineers verify integrated BLDC servo motor performance, identify the causes of belt speed fluctuations, and improve the reliability and accuracy of high-speed cross-belt sorting systems.
When correctly selected and configured, integrated BLDC servo motors can improve cross-belt sorter performance in several ways.
More consistent belt velocity: Closed-loop regulation compensates for changes in load and mechanical resistance.
Improved discharge repeatability: Stable motor speed helps maintain predictable parcel movement during lateral transfer.
Faster dynamic response: Rapid current and torque regulation can reduce the duration of transient speed deviations.
Reduced mechanical shock: Programmable motion profiles can smooth acceleration and deceleration.
Simplified installation: Integrated motor-drive architecture can reduce separate components and external connections.
Improved diagnostic capability: Supported drive monitoring functions can help identify electrical, thermal, and motion-related faults.
Lower maintenance burden: Brushless construction eliminates brush replacement, while integrated diagnostics may simplify troubleshooting.
These benefits depend on correct motor sizing, sound mechanical design, appropriate feedback, effective tuning, and compatibility with the sorter controller.
Integrated BLDC servo motors help prevent belt speed fluctuations in high-speed cross-belt sorters by combining closed-loop speed regulation, responsive torque control, accurate motion feedback, and compact drive integration. These capabilities allow the drive to compensate for changing package loads, maintain more consistent belt velocity, and support repeatable parcel discharge.
Achieving reliable performance requires more than selecting a motor with a high speed rating. Engineers must calculate the required torque, evaluate the complete torque-speed envelope, account for transmission inertia, configure appropriate acceleration profiles, and verify feedback and communication compatibility.
Mechanical conditions and thermal performance are equally important. Belt tension, pulley alignment, bearing friction, motor cooling, and control-loop tuning can all influence the final result.
By integrating suitable BLDC servo motors into a well-engineered motion-control architecture, warehouse automation manufacturers can improve belt-speed consistency, support accurate parcel transfer, simplify installation, and maintain reliable operation in demanding high-throughput sorting environments.
Integrated BLDC servo motors help reduce belt speed fluctuations through closed-loop speed control, encoder feedback, and rapid torque adjustment. The servo drive compares actual motor speed with the commanded speed and adjusts motor current to compensate for changing package loads, friction, and acceleration demands. This helps maintain consistent belt motion and improves parcel discharge repeatability.
Belt speed stability is essential for accurate parcel transfer, predictable discharge timing, and reliable sorting performance. Excessive speed variations can cause parcels to move too early or too late, affecting synchronization with sorting chutes and downstream conveyors. Stable belt motion helps maintain throughput and reduce sorting errors.
Closed-loop speed control continuously compares commanded speed with actual motor speed using feedback from an encoder or another suitable sensor. When a load disturbance causes a speed deviation, the servo drive adjusts motor torque to restore the target speed. Properly tuned control loops improve dynamic response and reduce transient speed errors.
Encoder feedback provides rotor position information that the servo drive uses to estimate motor speed and monitor motion. This enables the controller to detect speed deviations and make corrective adjustments. Actual belt-speed accuracy also depends on feedback resolution, control algorithms, transmission efficiency, pulley alignment, and belt slip.
Engineers should evaluate continuous torque, peak torque, operating speed, acceleration requirements, load inertia, feedback accuracy, and thermal performance. Communication compatibility, installation space, and environmental protection should also be considered. Selecting a motor based on the complete sorting cycle helps ensure stable motion and reliable long-term operation.
Yes, when correctly sized and configured, integrated BLDC servo motors can compensate for changing loads through closed-loop feedback and torque control. The drive adjusts motor current to respond to increased resistance or acceleration demand. Performance depends on available torque, control-loop response, motor thermal limits, and the mechanical characteristics of the conveyor.
Suitable protocols depend on the motor drive and sorting controller. CANopen, EtherCAT, and other supported industrial communication interfaces may be appropriate. Engineers should evaluate communication cycle time, synchronization requirements, network architecture, diagnostic functions, and controller compatibility when selecting a protocol for high-speed sorting applications.
Engineers can measure steady-state speed error, transient speed deviation, recovery time, and overshoot under different load conditions. Additional tests should evaluate acceleration and deceleration, continuous operating temperature, motor current, and mechanical transmission performance. Testing under representative sorting cycles helps identify control, sizing, and mechanical issues.
Common causes include insufficient motor torque, poor servo tuning, excessive load inertia, belt slippage, incorrect belt tension, pulley misalignment, mechanical friction, and communication delays. Encoder noise and thermal limitations may also affect performance. A systematic diagnosis should examine the motor, drive settings, feedback signals, transmission, and system-level control.
Integrated BLDC servo motors offer closed-loop speed regulation, responsive torque control, compact installation, reduced external wiring, and potentially simpler maintenance. Depending on the model, they may also provide industrial communication and built-in diagnostics. These features support consistent belt motion, repeatable parcel discharge, and reliable operation in high-throughput warehouse automation.
