A brushless DC gear motor is an integrated electromechanical system that combines a brushless DC (BLDC) motor with a precision gearbox to deliver high torque, controlled speed, and superior efficiency in compact form factors. By merging electronic commutation with mechanical gear reduction, this motor type achieves performance levels that traditional brushed or AC gear motors cannot match in demanding modern applications.
We recognize brushless DC gear motors as a cornerstone technology across automation, robotics, medical equipment, electric mobility, and industrial machinery due to their long lifespan, minimal maintenance requirements, precise controllability, and excellent power density.
A brushless DC gear motor is an integrated system engineered for efficiency, precision, and durability. Its performance depends on the seamless interaction of several critical components, each designed to optimize torque output, speed control, and operational reliability. Below, we detail the core components that define the functionality and advantages of a brushless DC gear motor.
At the heart of the system lies the brushless DC motor, responsible for converting electrical energy into rotational mechanical energy. Unlike brushed motors, this unit operates without physical brushes, relying instead on electronic commutation. Key elements include:
Permanent magnet rotor, typically made from high-energy rare-earth materials
Stator windings arranged to generate a rotating magnetic field
Electronic commutation logic, ensuring precise phase switching
This design enables high efficiency, low heat generation, reduced electrical noise, and extended operational life, forming the foundation of the gear motor’s performance.
The motor controller is an essential intelligence component that governs the operation of the brushless DC motor. It manages current flow, switching sequences, and speed regulation. Its functions include:
Electronic commutation of stator windings
Speed, torque, and direction control
Protection against overcurrent, overheating, and voltage fluctuations
Advanced controllers support closed-loop feedback, allowing precise speed regulation and dynamic torque adjustment, which is especially critical in automation and motion control systems.
The gearbox transforms the high-speed, low-torque output of the BLDC motor into low-speed, high-torque mechanical power. This component defines the motor’s load-handling capability and application suitability. Common gearbox configurations include:
Planetary gears for high torque density and compact size
Spur gears for cost-effective and straightforward designs
Helical gears for smoother, quieter operation
Worm gears for high reduction ratios and self-locking features
Precision-machined gears ensure minimal backlash, high transmission efficiency, and long service life.
The output shaft delivers the final mechanical power from the gearbox to the driven load. It is engineered to withstand torsional stress, radial loads, and axial forces. Output shaft designs may include:
Solid shafts for maximum strength
Hollow shafts for weight reduction and cable routing
Keyed, splined, or flanged interfaces for secure mechanical coupling
The shaft’s design directly impacts load stability and torque transfer efficiency.
High-quality bearings support both the motor shaft and gearbox output shaft, ensuring smooth rotation and minimizing friction. Typically constructed from hardened steel or ceramic materials, bearings contribute to:
Reduced mechanical losses
Improved alignment and stability
Extended operational lifespan
The surrounding housing and structural supports maintain precise alignment between motor and gearbox components, critical for long-term reliability.
Many brushless DC gear motors incorporate feedback devices to enable precise motion control. These include:
Hall effect sensors for rotor position detection
Incremental or absolute encoders for speed and position feedback
Feedback systems allow accurate speed regulation, torque control, and positional accuracy, making these motors ideal for servo-driven applications.
The motor housing protects internal components from dust, moisture, and mechanical damage while also aiding in heat dissipation. Common housing materials include aluminum alloys and steel, chosen for their strength and thermal conductivity. Effective thermal design ensures:
Stable performance under continuous load
Reduced risk of overheating
Enhanced reliability in demanding environments
High-quality internal wiring and external connectors ensure reliable power delivery and signal transmission. Shielded cables and industrial-grade connectors reduce electromagnetic interference and simplify system integration.
Each core component of a brushless DC gear motor plays a vital role in delivering efficient, high-torque, and precisely controlled motion. The integration of an advanced BLDC motor, intelligent controller, precision gearbox, robust mechanical supports, and feedback systems results in a compact yet powerful drive solution suitable for a wide range of industrial, commercial, and high-performance applications.

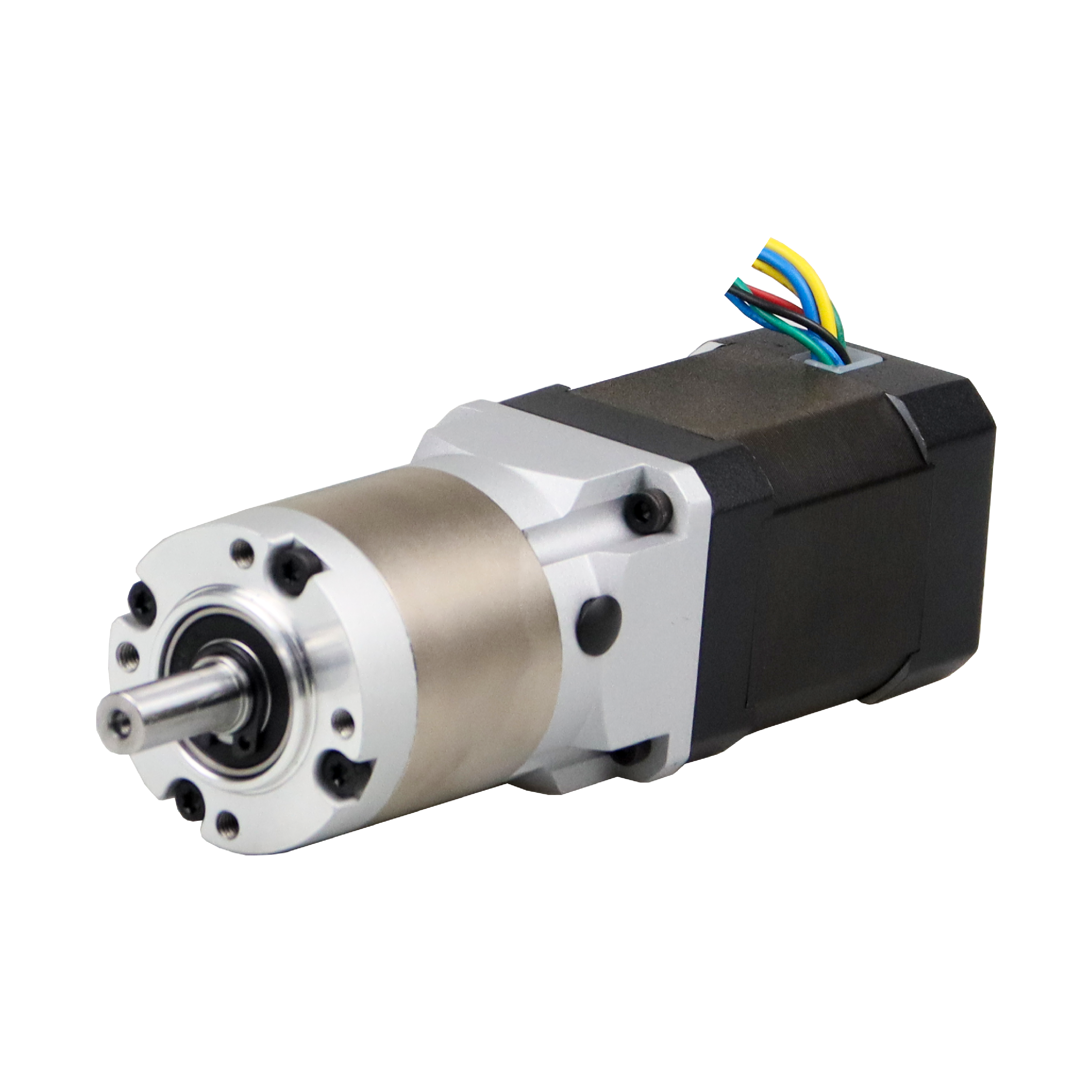

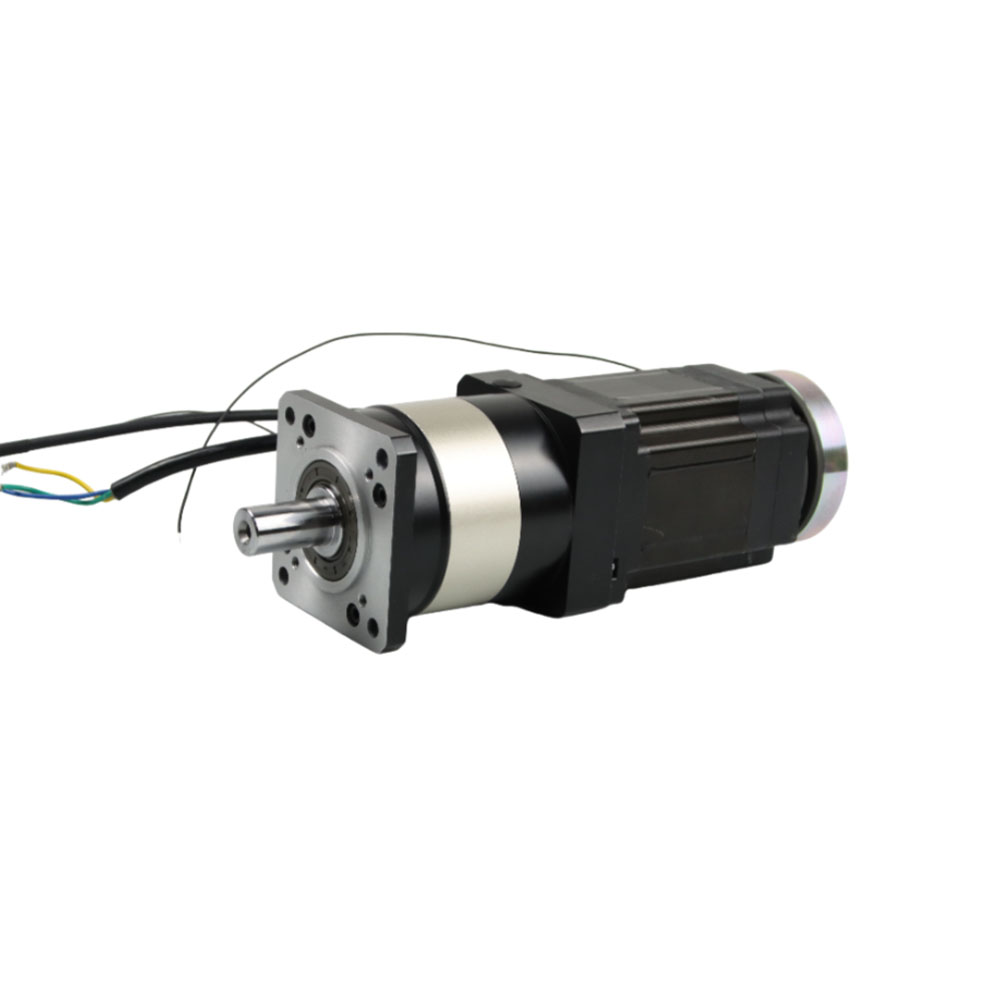

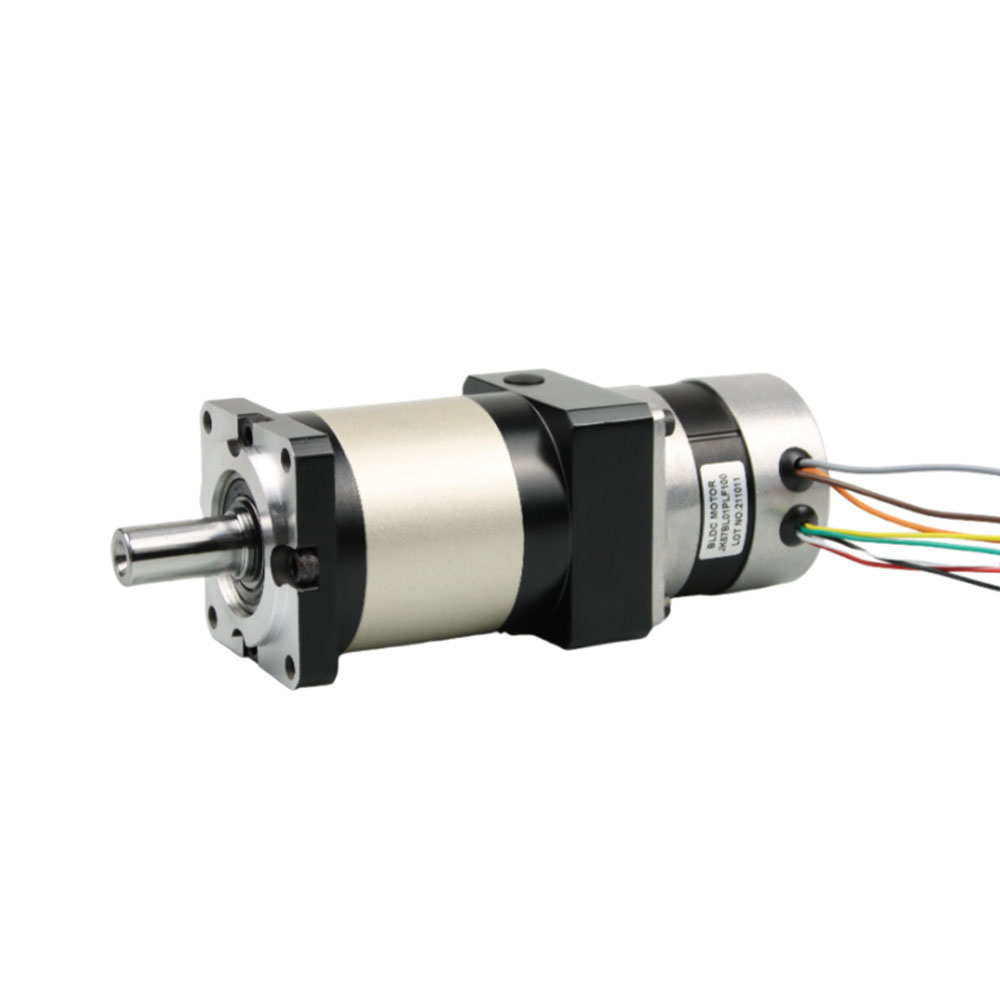

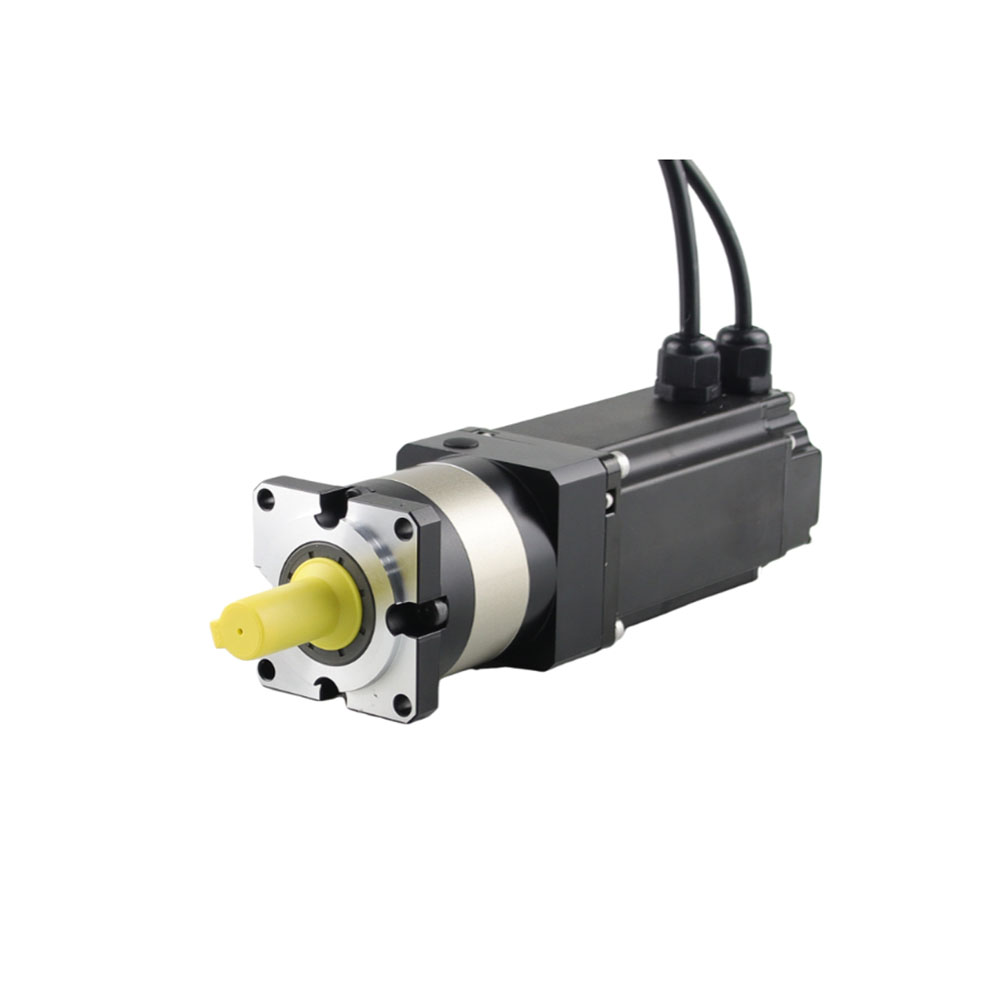

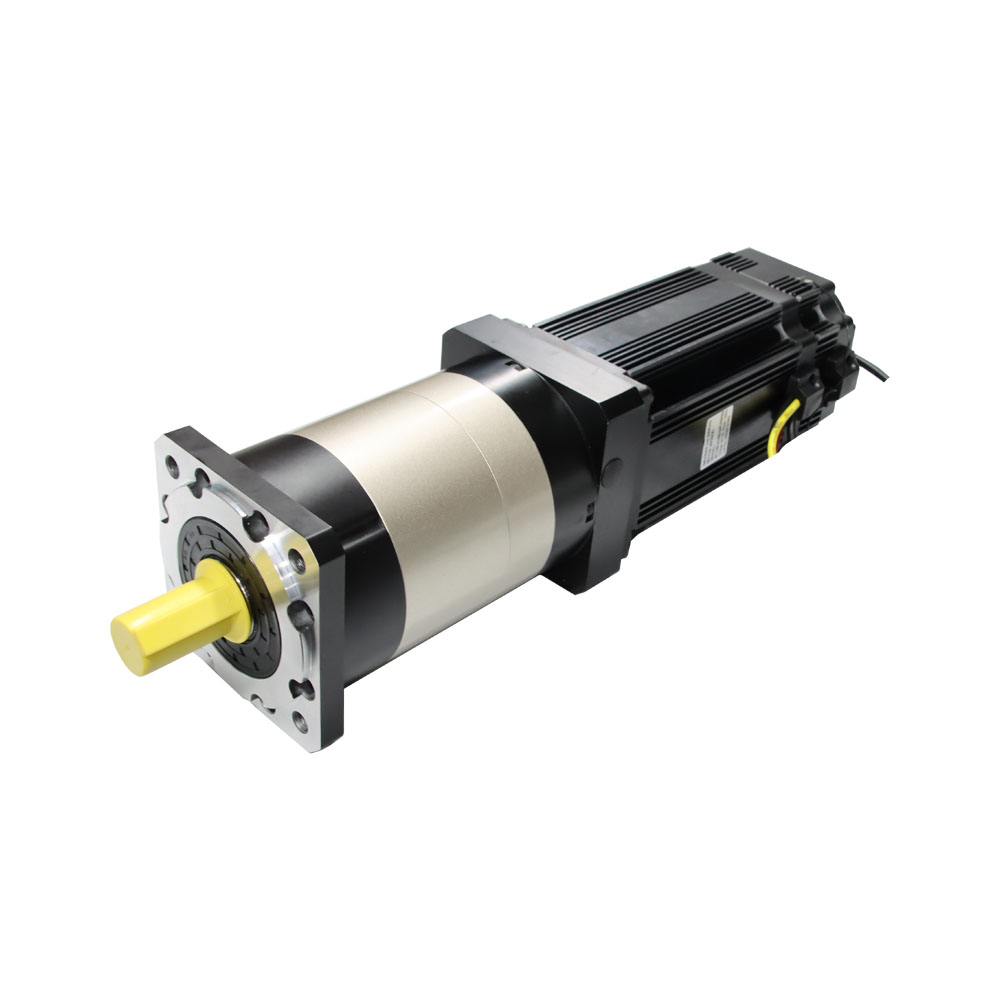

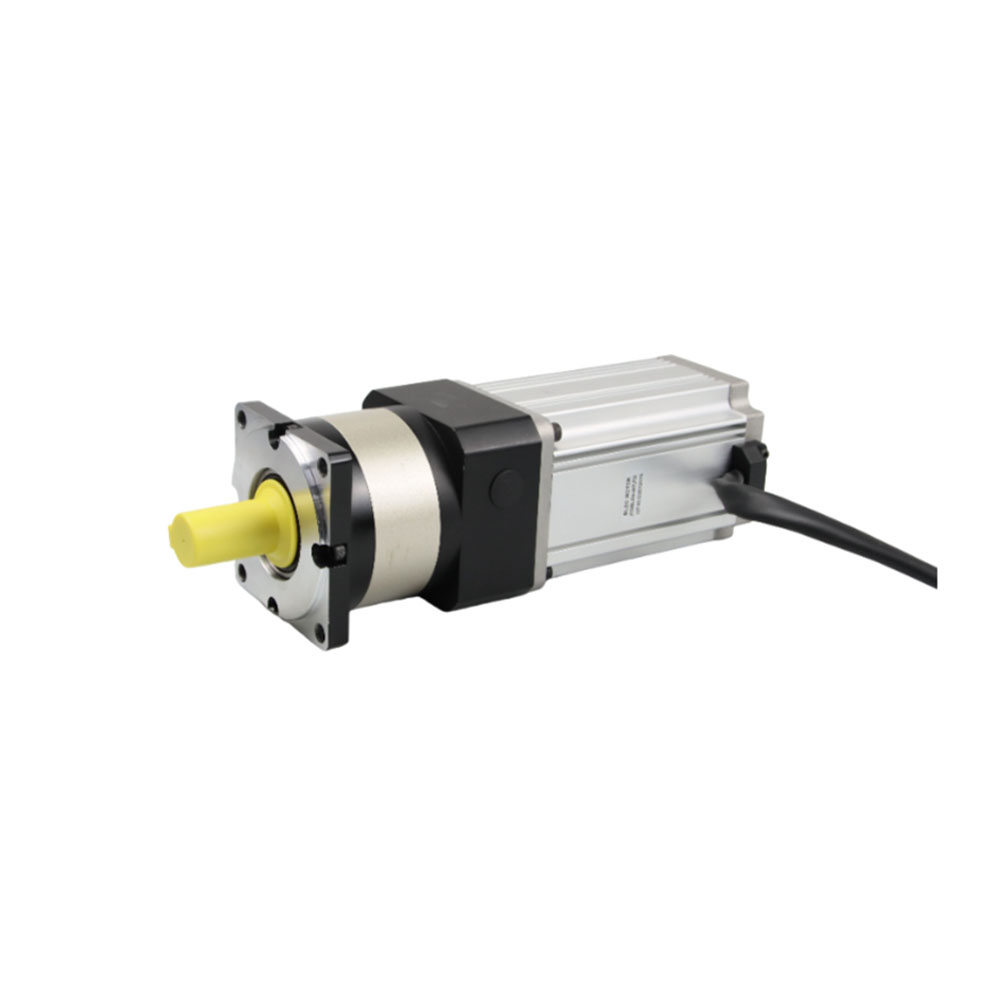

BLDC Motor with High Precision Planetary Gearbox ：
A brushless DC gear motor operates by electronically switching current through stator windings to create a rotating magnetic field. The rotor follows this field synchronously. The motor’s high-speed rotational energy then passes through the gearbox, which:
Reduces rotational speed
Increases output torque
Improves load handling capability
This combination enables stable low-speed operation, precise positioning, and consistent torque delivery even under variable loads.
BLDC motors typically achieve 85–95% efficiency, far exceeding brushed motors. When paired with an optimized gearbox, overall system efficiency remains high even at reduced speeds.
Gear reduction allows brushless DC gear motors to produce high torque at low RPM, making them ideal for applications requiring controlled motion and load holding.
The absence of brushes eliminates wear components, enabling tens of thousands of operating hours with minimal degradation.
Electronic commutation supports:
Closed-loop speed control
Torque regulation
Position feedback using encoders or Hall sensors
This makes brushless DC gear motors highly suitable for servo and motion control systems.
Optimized electromagnetic design and precision gearing result in quiet operation, essential for medical, laboratory, and indoor automation environments.
Brushless DC gear motors are available in multiple configurations, each designed to meet specific performance, space, and load requirements. The type of gearbox combined with the brushless DC motor determines torque output, efficiency, noise level, and suitability for different applications. Below are the main types of brushless DC gear motors, classified by gearbox design and functional characteristics.
Planetary brushless DC gear motors use a central sun gear surrounded by multiple planet gears enclosed within a ring gear. This configuration distributes load evenly across multiple gear teeth.
High torque density in a compact size
High efficiency and excellent power transmission
Low backlash and high positional accuracy
Strong resistance to shock and vibration
Robotics, automation systems, AGVs, CNC machinery, servo drives, and precision positioning equipment.
Spur gear brushless DC gear motors utilize straight-cut gears mounted on parallel shafts. This is one of the simplest and most cost-effective gearbox designs.
Simple construction and economical design
Moderate torque output
High mechanical efficiency
Easy maintenance and replacement
Office automation, consumer electronics, light-duty conveyors, vending machines, and small industrial devices.
Helical gear brushless DC gear motors feature angled gear teeth that engage gradually, resulting in smoother motion and quieter operation compared to spur gears.
Reduced noise and vibration
Higher load capacity than spur gears
Smooth torque transmission
Improved durability under continuous operation
Packaging equipment, medical devices, laboratory automation, and noise-sensitive industrial environments.
Worm gear brushless DC gear motors consist of a worm screw meshing with a worm wheel, providing high reduction ratios in a compact layout.
Very high gear reduction in a single stage
Self-locking capability in many designs
High torque output at low speeds
Compact and space-saving structure
Lifting systems, actuators, valve controls, positioning systems, and safety-critical mechanisms requiring load holding.
Harmonic gear brushless DC gear motors use a strain wave gearing mechanism to achieve extremely high precision and near-zero backlash.
Ultra-low backlash
High positioning accuracy
High torque capacity relative to size
Lightweight and compact design
Robotics joints, aerospace systems, medical robotics, semiconductor manufacturing, and high-precision servo systems.
Cycloidal brushless DC gear motors employ a cycloidal disc mechanism that provides high torque capacity and excellent shock resistance.
Exceptional torque output
High shock and overload resistance
Long service life
Minimal backlash under load
Heavy-duty automation, industrial robots, presses, material handling systems, and high-load positioning equipment.
Right-angle brushless DC gear motors combine a BLDC motor with a gearbox that redirects power flow at a 90-degree angle, often using bevel or worm gears.
Space-efficient installation
Flexible mounting options
Suitable for compact machinery layouts
Conveyors, packaging machines, automated doors, and compact industrial equipment.
Integrated servo brushless DC gear motors combine the motor, gearbox, encoder, and drive electronics into a single compact unit.
Simplified wiring and installation
Precise speed and position control
Reduced system footprint
Enhanced reliability
Smart factories, robotics, medical automation, and advanced motion control systems.
Each type of brushless DC gear motor is engineered to optimize performance for specific operational demands. By selecting the appropriate gearbox design and motor configuration, systems can achieve maximum efficiency, precise motion control, high torque output, and long-term reliability across a wide range of industrial and commercial applications.
Brushless DC gear motors deliver flat torque characteristics, ensuring stable output across wide speed ranges. Gear reduction shifts this curve to meet specific load requirements.
Lower losses and efficient heat dissipation improve thermal performance, allowing continuous operation under heavy loads without overheating.
High torque output in compact dimensions enables space-saving designs, especially in mobile and embedded systems.
Used in conveyors, packaging machines, and material handling systems for reliable continuous operation.
Provide precise motion, smooth acceleration, and accurate positioning essential for robotic joints and actuators.
Applied in infusion pumps, imaging systems, and surgical tools where quiet operation and reliability are critical.
Found in e-bikes, scooters, wheelchairs, and autonomous vehicles due to high efficiency and torque control.
Utilized in actuators, dampers, and smart ventilation systems to optimize energy usage.
Used in control surfaces, positioning systems, and surveillance equipment where precision and durability are non-negotiable.
| Feature | Brushless DC Gear Motor | Brushed Gear Motor |
|---|---|---|
| Efficiency | Very High | Moderate |
| Maintenance | Minimal | Frequent |
| Lifespan | Long | Shorter |
| Noise | Low | Higher |
| Control Precision | Excellent | Limited |
The performance gap clearly positions brushless DC gear motors as the superior solution for modern systems.
Selecting the right brushless DC gear motor is a critical engineering decision that directly affects system performance, reliability, efficiency, and operating cost. A well-matched motor–gearbox combination ensures optimal torque delivery, precise speed control, long service life, and stable operation under real-world conditions. The following criteria define a structured and practical approach to selecting the most suitable brushless DC gear motor for any application.
The first and most important step is understanding the mechanical load the motor must drive. This includes:
Required output torque, both continuous and peak
Load inertia, especially in start-stop or reversing applications
Static and dynamic loads, including friction and external forces
The selected motor must provide sufficient torque with an adequate safety margin while avoiding oversizing that reduces efficiency and increases cost.
Brushless DC motors typically operate at high speeds, while most applications require lower output speeds. Selecting the correct gear ratio ensures that the motor operates within its optimal efficiency range.
Key considerations include:
Desired output speed (RPM)
Acceleration and deceleration requirements
Trade-off between speed resolution and torque amplification
A properly matched gear ratio improves system responsiveness, reduces thermal stress, and maximizes motor lifespan.
Understanding how the motor will operate over time is essential. Consider:
Continuous, intermittent, or cyclic operation
Start-stop frequency
Duration of peak load conditions
Applications with high duty cycles or frequent starts require motors with robust thermal management and gearboxes designed for continuous load transmission.
The torque-speed curve of a brushless DC gear motor must align with the application’s operating range. Key parameters include:
Continuous torque rating
Peak torque capability
Speed stability under load
Ensuring the operating point remains within the motor’s safe performance envelope prevents overheating and premature wear.
Brushless DC gear motors are available in a wide range of voltage ratings. Selection should align with the available power infrastructure.
Important factors:
Rated voltage (e.g., 12 V, 24 V, 48 V, or higher)
Current capacity of the power source
Efficiency under nominal voltage
Correct voltage matching improves energy efficiency and simplifies system integration.
The gearbox design directly influences performance, noise level, and durability. Selection depends on application priorities such as torque density, compactness, and precision.
Planetary gearboxes for high torque and compact design
Helical gearboxes for smooth and quiet operation
Spur gearboxes for cost-sensitive applications
Worm gearboxes for high reduction and self-locking
Matching gearbox characteristics to operational demands ensures long-term reliability.
Applications requiring accurate positioning or smooth motion must consider backlash and repeatability.
Low-backlash gearboxes for precision motion
Encoders for closed-loop feedback
High-resolution sensors for speed and position control
Reducing backlash improves accuracy, stability, and overall system performance.
Operating environment has a significant impact on motor selection. Factors include:
Ambient temperature range
Humidity, dust, or corrosive exposure
Vibration and shock levels
Motors intended for harsh environments require sealed housings, robust bearings, and appropriate ingress protection ratings.
Heat management is critical for continuous and high-load applications. Selection should consider:
Motor efficiency and heat generation
Housing material and thermal conductivity
Natural or forced cooling options
Proper thermal design ensures stable performance and extends service life.
Mechanical integration often imposes strict limitations on motor dimensions and mounting style. Consider:
Available installation space
Shaft orientation and coupling method
Flange, foot, or custom mounting options
Compact, high-power-density motors are preferred where space is limited.
Modern systems demand precise and flexible control. Selection should account for:
Compatibility with existing motor controllers or drives
Required feedback devices such as Hall sensors or encoders
Communication protocols for advanced control systems
Integrated feedback simplifies control architecture and improves performance accuracy.
Long-term reliability is a key advantage of brushless DC gear motors. Selection should prioritize:
High-quality bearings and gears
Proven motor design
Manufacturer support and documentation
A reliable motor reduces downtime and total cost of ownership.
Initial cost should be evaluated alongside long-term operating benefits. Brushless DC gear motors often deliver superior value through:
Lower energy consumption
Reduced maintenance requirements
Longer operational lifespan
Balancing upfront investment with performance and durability ensures optimal return.
Selecting the right brushless DC gear motor requires a comprehensive evaluation of mechanical, electrical, environmental, and control-related factors. By carefully matching torque, speed, gearbox type, duty cycle, and operating conditions, systems achieve maximum efficiency, precision, and long-term reliability. A properly selected brushless DC gear motor not only meets current performance needs but also supports future scalability and operational stability.
Effective integration and precise control are essential to fully realize the performance advantages of a brushless DC gear motor. Proper system-level planning ensures stable operation, accurate motion control, high efficiency, and long-term reliability. The following considerations address the key technical aspects involved in integrating and controlling brushless DC gear motors in modern applications.
A brushless DC gear motor requires a compatible electronic motor controller to perform commutation and regulate speed and torque. Controller selection must align with:
Motor voltage and current ratings
Continuous and peak torque requirements
Commutation method (Hall sensor-based or sensorless)
Advanced drives provide programmable parameters, enabling optimized acceleration profiles, torque limits, and protective functions.
Brushless DC gear motors support multiple control modes, each suitable for different application requirements:
Speed control for constant rotational velocity
Torque control for force-regulated applications
Position control for precise motion and indexing
Selecting the appropriate control strategy improves responsiveness, reduces mechanical stress, and enhances overall system performance.
Accurate feedback is critical for closed-loop control. Common feedback devices include:
Hall effect sensors for rotor position detection
Incremental encoders for speed and relative position
Absolute encoders for precise positioning without homing
Feedback integration enables real-time correction of speed, torque, and position, ensuring consistent output under varying load conditions.
Modern brushless DC gear motor systems often integrate into larger automation or control networks. Common communication protocols include:
CANopen
EtherCAT
Modbus
RS-485
These interfaces support diagnostics, parameter tuning, synchronized motion, and remote monitoring, enhancing system intelligence and scalability.
Reliable power delivery is fundamental to stable motor operation. Key considerations include:
Adequate voltage regulation and current capacity
Proper cable sizing to minimize voltage drop
Shielded wiring to reduce electromagnetic interference
Power quality directly impacts efficiency, torque stability, and controller lifespan.
Thermal performance must be considered at both motor and system levels. Integration strategies include:
Allowing sufficient airflow around the motor housing
Using thermally conductive mounting surfaces
Implementing temperature monitoring via sensors
Effective thermal management prevents derating, maintains efficiency, and extends component life.
Accurate mechanical integration minimizes stress and wear. Key aspects include:
Precise shaft alignment to prevent bearing overload
Proper coupling selection to absorb misalignment
Rigid mounting to maintain gearbox alignment
Mechanical stability directly influences efficiency, noise levels, and service life.
Control parameters significantly affect acoustic and vibration performance. Optimized integration includes:
Smooth acceleration and deceleration profiles
Current and torque ripple reduction
Gearbox selection matched to noise requirements
Careful tuning ensures smooth, quiet operation, especially in sensitive environments.
Integrated safety features are critical in industrial and automated systems. Control systems should support:
Overcurrent and overvoltage protection
Thermal shutdown and fault detection
Emergency stop and controlled braking
These functions protect both equipment and personnel while maintaining compliance with safety standards.
Fine-tuning control parameters enhances motor behavior. Configuration typically includes:
Speed and torque limits
PID control tuning
Acceleration and deceleration ramps
Proper software setup ensures stable control, fast response, and minimal mechanical stress.
Advanced control systems enable condition monitoring through:
Temperature and current tracking
Fault logging and error codes
Operating hour counters
These diagnostics support predictive maintenance strategies, reducing downtime and extending system reliability.
Integration planning should consider future upgrades. Modular controllers, standardized interfaces, and flexible firmware allow systems to adapt to evolving performance requirements without major redesign.
Successful integration and control of a brushless DC gear motor depend on careful alignment of electrical, mechanical, and software elements. By addressing controller compatibility, feedback integration, power management, thermal control, and system communication, applications achieve precise motion, high efficiency, and long-term operational stability. Thoughtful integration transforms the brushless DC gear motor from a component into a fully optimized motion solution.
Ongoing developments include:
Higher efficiency magnetic materials
Integrated smart drives
AI-based predictive maintenance
Improved gearbox materials for reduced wear
These innovations continue to expand the capabilities and applications of brushless DC gear motors across industries.
A brushless DC gear motor represents a powerful fusion of advanced motor technology and mechanical precision, delivering unmatched efficiency, durability, and controllability. Its ability to provide high torque at controlled speeds, combined with low maintenance and long service life, makes it a preferred choice for modern engineering solutions across industrial, commercial, and consumer markets.
By leveraging the strengths of electronic commutation and optimized gear reduction, brushless DC gear motors set the benchmark for reliable and high-performance motion systems.
