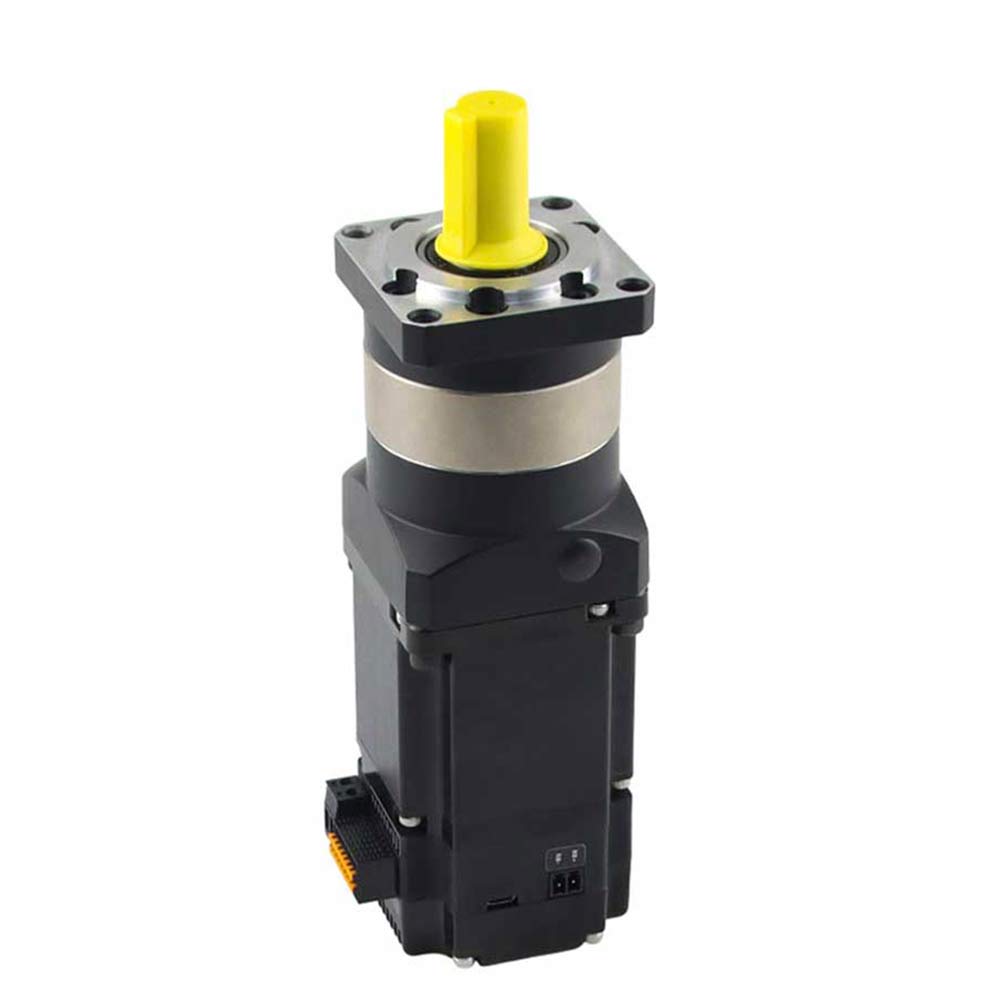

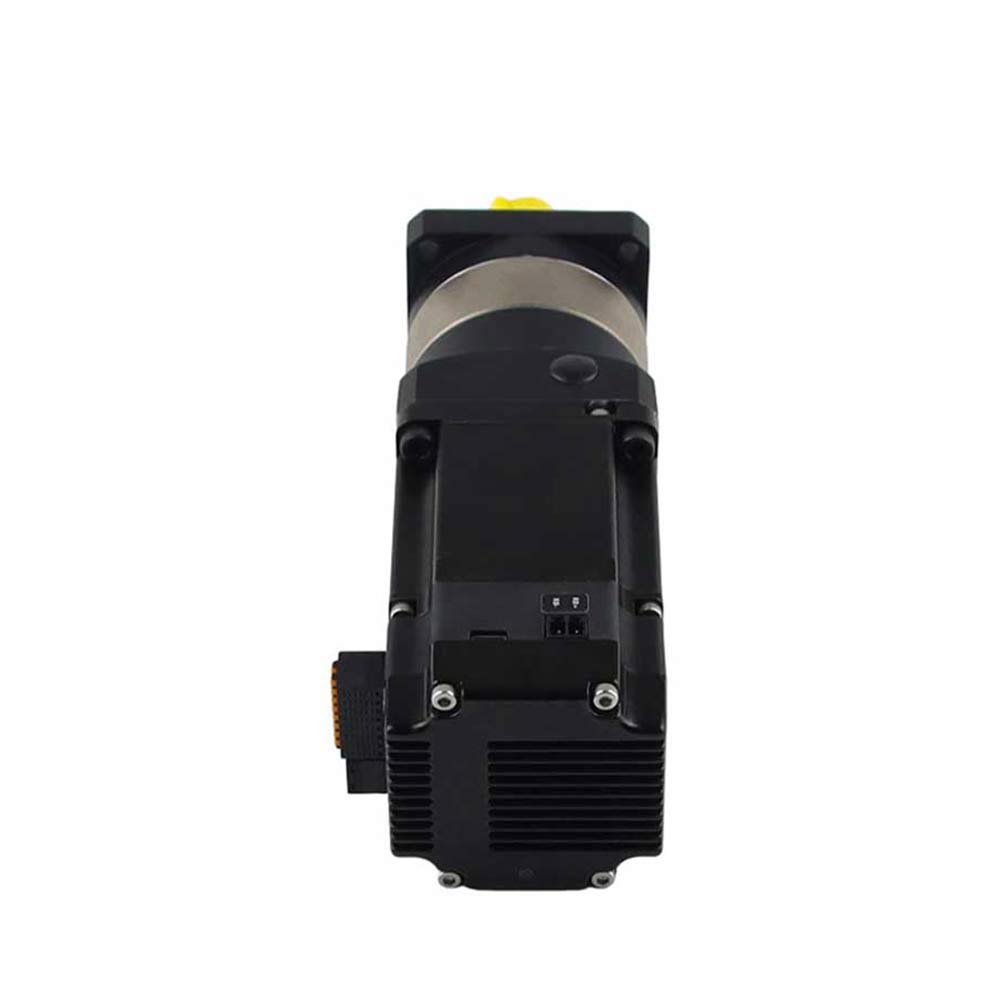

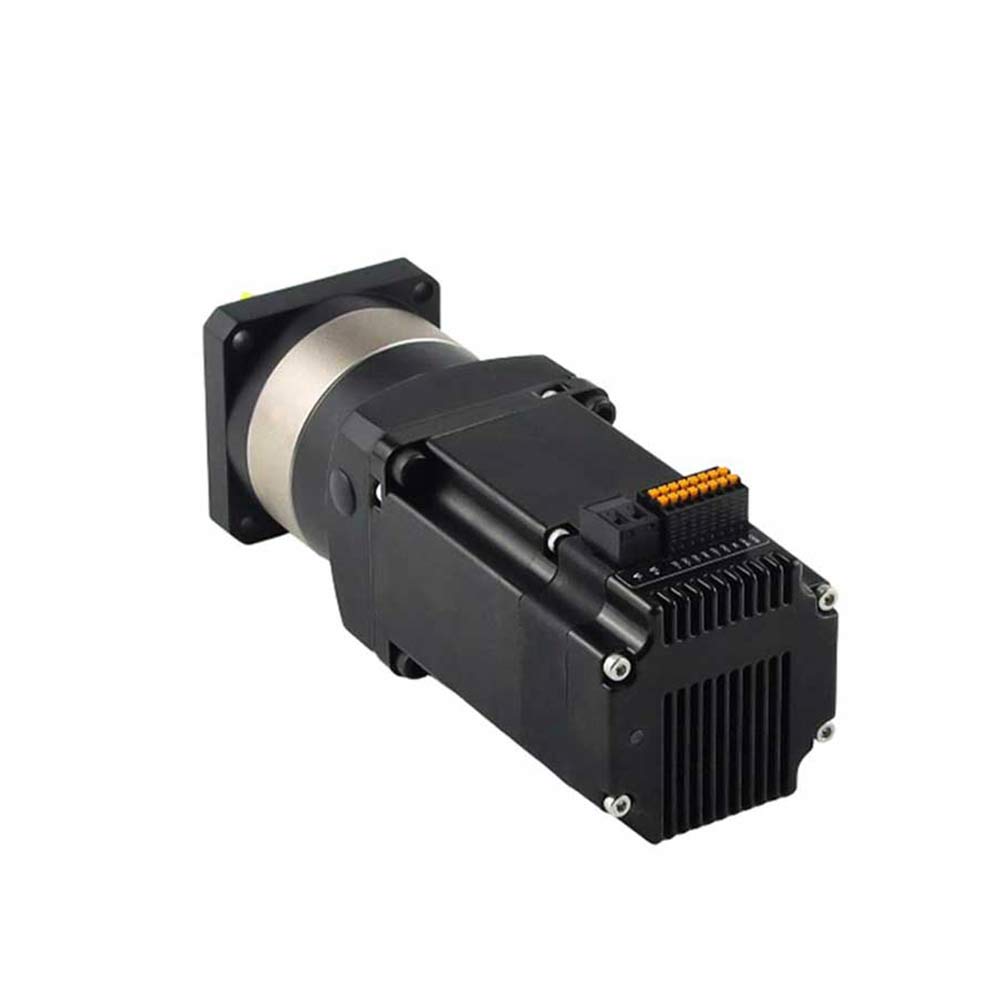

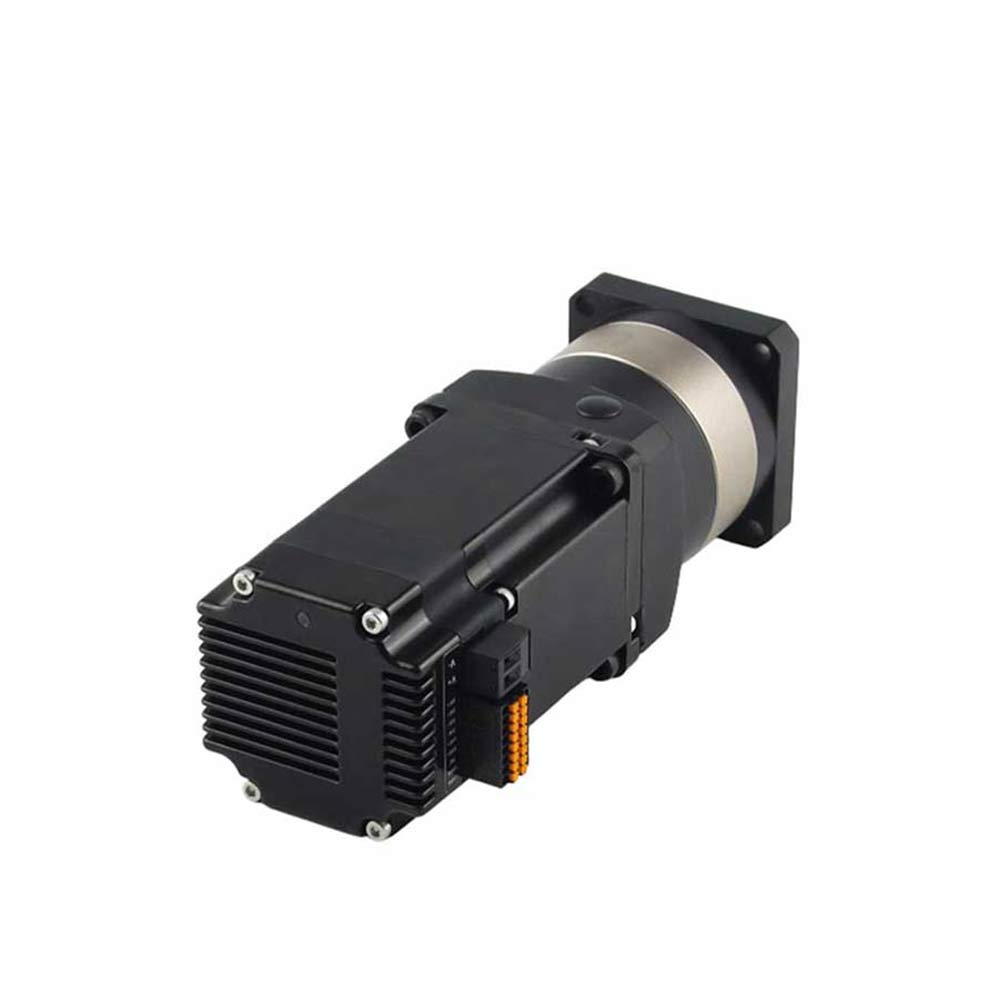

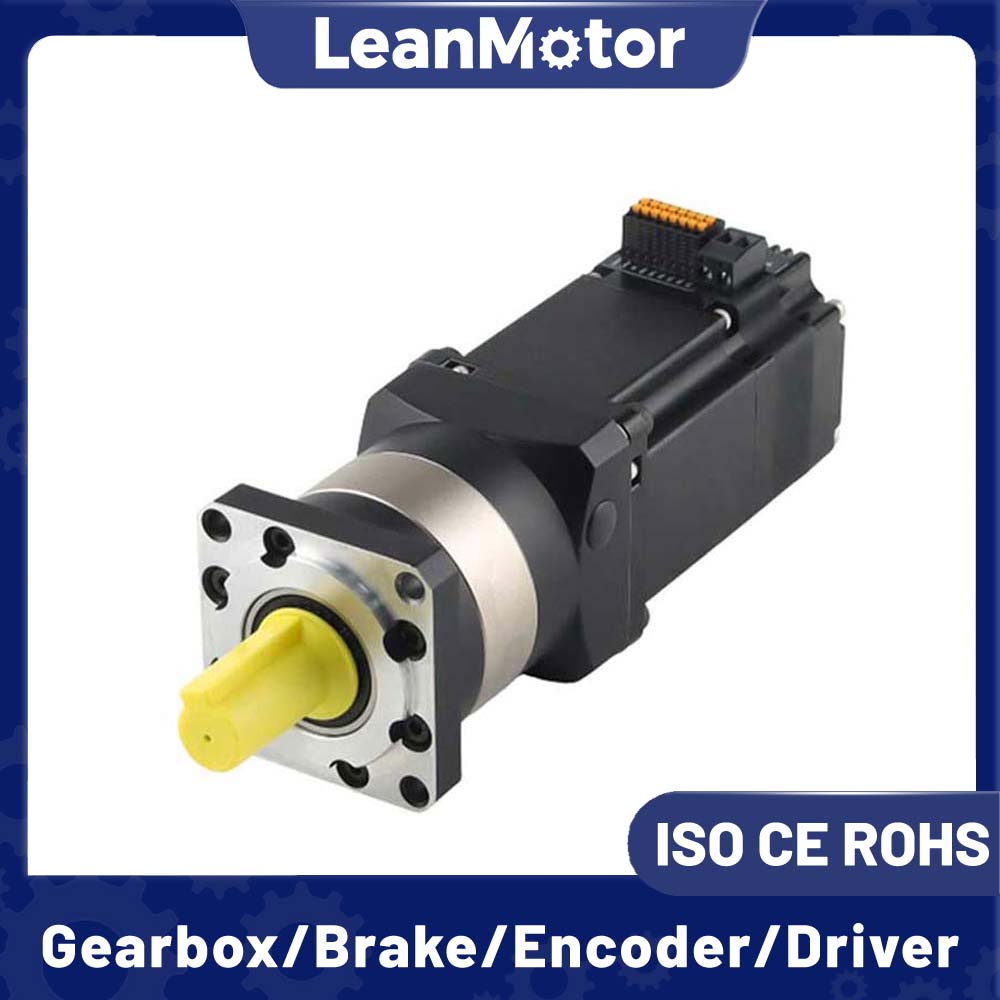

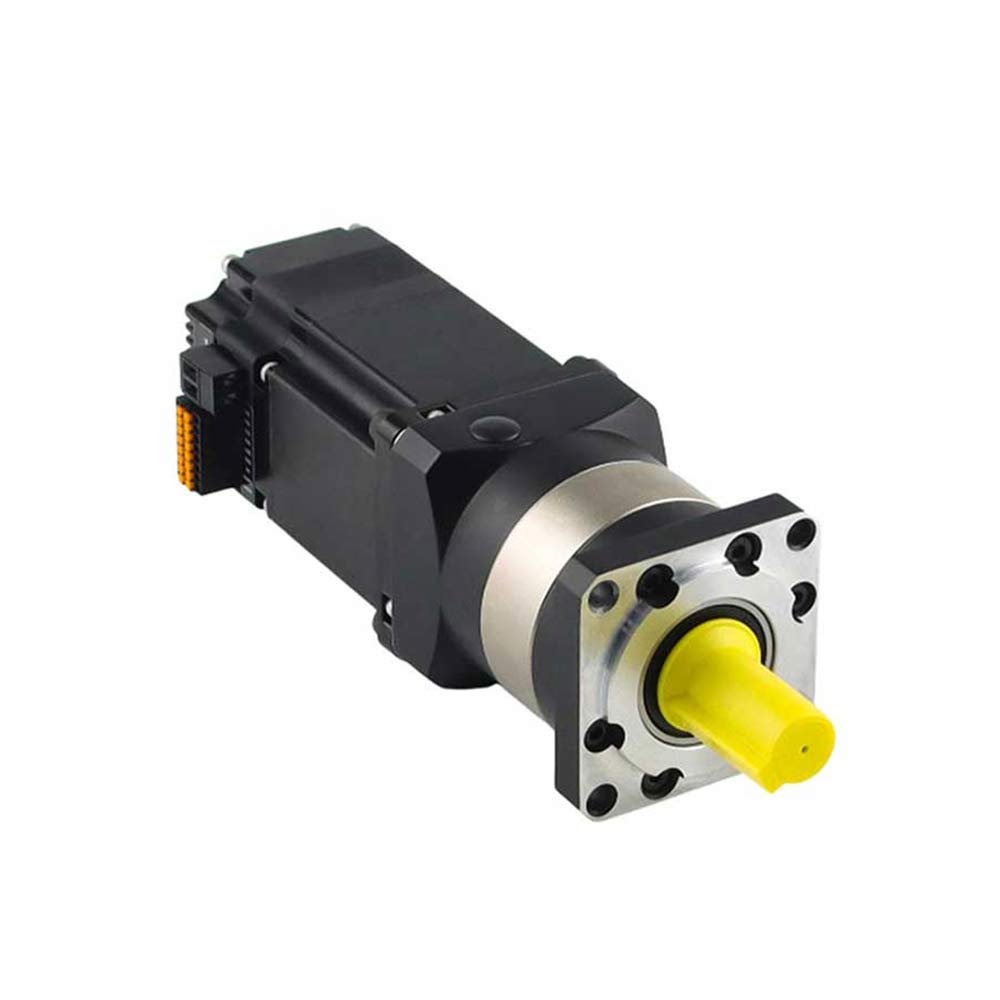

Leanmotor LMIDC80 V2 Series Planetary Geared Integrated BLDC Dc Servo Motor with Pulse / RS485 / CANopen Control

Type: LMIDC80 V2 Series Planetary Geared Integrated BLDC Dc Servo Motor

Motor Length: 143.5mm

Power：750W

Rated voltage：48V

Availability:

Quantity:



Inquire Add to Basket

Model:
LMIDC80 V2 Series Planetary Geared Integrated BLDC Dc Servo Motor
Brand:
LeanMotor
Phase:
3 Phase
Rated Voltage:
24V, 36V, 48V
MOQ:
10 Pcs

Electrical Specifications:

odel No.	Power	Rated Voltage	Current	Rated Speed	Rated Torque	Rotor inertia	Encoder	Weight	Length
	W	VDC	A	Rpm	N.m	kg.cm²	/	kg	mm
LMIDC80-P148A1	750	48	20	3000	2.4	2.42	17bit single turn absolute encoder Pluse Type RS485 CANopen	2.15	standard 143.5 with brake 180
LMIDC80-R148A1
LMIDC80-C148A1

V2 Series Integrated Drivers I/O port：

/		Pluse		CANopen		RS485
Ports	Pin	Port Name	Description	Port Name		Description
CN1	1	PUL+	Pluse Signal	DI1+		Digital input 1
	2	PUL-		DI1-
	3	DIR+	Direction Signal	DI2+		Digital input 2
	4	DIR-		DI2-
	5	ENA+	Enable Signal	DI3+		Digital input 3
	6	ENA-		DI3-
	7	BRK+	Brake Signal	DI4+		Digital input 4
	8	BRK-		DI4-
	9	ALM+	Alarm Signal	DO1+		Digital output 1
	10	ALM-		DO1-
	11	READY+	Ready Signal	DO2+		Digital output 2
	12	READY-		DO2-
	13	NC	undefined	NC		undefined
	14	NC	undefined	NC		undefined
	15	NC	undefined	CANL	Low-level CAN bus	485A	RS485 active terminal
	16	NC	undefined	CANH	High-level CAN bus	485B	RS485 negative terminal
	17	/	/	CANL	Low-level CAN bus	485A	RS485 active terminal
	18	/	/	CANH	High-level CAN bus	485B	RS485 negative terminal
CN2	1	V-	Power Connection	V-		Power Connection
	2	V+		V+
CN3	3	RB+	Discharge resistor	RB+		Discharge resistor
	4	RB-		RB-

Integrated Driver DIP Switches：

Pin	Port Name	Description
1	SW1	Subdivide Settings	Slave address setting
2	SW2
3	SW3
4	SW4
5	SW5	Setting of motor rotation direction	RS485 communication baud rate setting	CAN communication baud rate setting

Integrated Driver Subdivide Settings：

Subdivide	SW1	SW2	SW3	SW4
200	OFF	OFF	OFF	OFF
400	ON	OFF	OFF	OFF
800	OFF	ON	OFF	OFF
1600	ON	ON	OFF	OFF
3200	OFF	OFF	ON	OFF
6400	ON	OFF	ON	OFF
12800	OFF	ON	ON	OFF
25600	ON	ON	ON	OFF
1000	OFF	OFF	OFF	ON
2000	ON	OFF	OFF	ON
4000	OFF	ON	OFF	ON
5000	ON	ON	OFF	ON
8000	OFF	OFF	ON	ON
10000	ON	OFF	ON	ON
20000	OFF	ON	ON	ON
25000	ON	ON	ON	ON

Setting of Motor Rotation Direction：

The user can set the motor rotation direction via SW5, which works together with the DIR control signal. Changing SW5 setting or DIR control signal can change the current motor rotation direction.

Directions	SW5	DIR
CW	OFF	Low Level
CCW	ON	Low Level
CCW	OFF	High Level or Suspended
CW	ON	High Level or Suspended

bldc motor with integrated controller integrated bldc motor controller integrated bldc motor driver integrated servo motor servo motor integrated driver integrated servo motor for robots integrated motor driver nema 34 integrated motor ethercat integrated servo motor driver integrated dc motor

Model	/	PRF/PRL85-L1					PRF/PRL85-L2
Gear Ratio		3	4	5	7	10	15	20	25	30	40	50	70	100
Rated Torque	N.m	96	122	122	95	56	96	122	122	96	122	122	95	56
Max Torque	N.m	144	183	183	143	84	144	183	183	144	183	183	143	144
Motor Diameter	mm	80
Motor Shaft Diameter	mm	14
Motor flange	mm	70
Front cover hole spacing	mm	63.6/69.6
Front cover pitch circle	mm	80
Mounting hole	/	M6
Gearbox Length	mm	150.5					177
Back Lash	arcmin	≤8-16 arcmin					≤8-20 arcmin
Efficiency	%	≥96					≥94
Rated Input Speed	Rpm	3500
Max Input Speed	Rpm	6000
Average Life Span	H	20000
Noise	dB	≤60
Work Temp.	℃	-20 to +80
Lubricating grease	/	Fully Synthetic Grease
