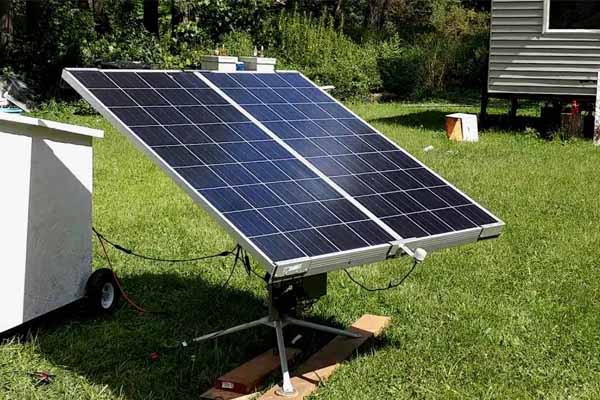

Solar tracking systems are designed to maximize energy output by continuously adjusting the position of solar panels according to the movement of the sun. Compared with fixed solar installations, tracking systems can significantly improve solar energy capture by maintaining an optimal angle of incidence throughout the day. However, because solar trackers are commonly installed outdoors, they must operate under challenging environmental conditions, including rain, humidity, dust, temperature fluctuations, and long-term exposure to sunlight.
In these demanding environments, the reliability of the motion control system directly affects the efficiency and lifespan of the entire solar tracking solution. Waterproof stepper motors have become an important component in modern solar tracking systems because they provide accurate positioning, stable operation, and enhanced protection against environmental damage.
By combining precise step control with robust waterproof protection, waterproof stepper motors help solar trackers maintain consistent performance, reduce maintenance requirements, and improve the overall reliability of renewable energy systems.
A solar tracking system requires a motor-driven mechanism to rotate photovoltaic panels and follow the sun’s trajectory. The motor must provide controlled movement, accurate positioning, and sufficient torque to handle the weight and resistance of solar panels.
Stepper motors are widely used in solar tracking applications because they can move in precise incremental steps without requiring complex feedback systems. Each electrical pulse sent to the motor controller corresponds to a specific angular movement, allowing the tracking system to accurately adjust the solar panel position.
Typical solar tracking applications include:
Single-axis solar trackers that rotate panels from east to west during the day
Dual-axis solar trackers that adjust both horizontal and vertical angles
Small-scale solar tracking systems for residential and commercial installations
Large photovoltaic power plants requiring reliable outdoor motion control
However, traditional stepper motors may face challenges when exposed to outdoor environments. Moisture penetration, dust accumulation, and corrosion can gradually reduce motor performance. This is where waterproof stepper motors provide a significant advantage.
Customized Shaft Service | |||||
 |  |  |  |  |  |
|---|---|---|---|---|---|
Metal Pulleys | Plastic Pulley | Gear | Shaft Pin | Threaded Shaft | Panel Mount |
 |  |  |  |  |  |
Hollow Shaft | Lead Screw | Panel Mount | Single Flat | Dual Flat | Key Shaft |
Customized Motor Service | ||||
 |  |  |  |  |
|---|---|---|---|---|
Cables | Covers | Shaft | Lead Screw Rod | Encoders |
 |  |  |  |  |
Brakes | Gearboxes | Linear Module | Integrated Drivers | Worm Gearbox |
Solar tracking systems are typically installed in outdoor environments where they are exposed to unpredictable weather conditions throughout their operating life. Unlike indoor automation equipment, solar trackers must continue functioning under rain, humidity, dust, temperature changes, and other environmental challenges. Since the motor is the core component responsible for adjusting the position of solar panels, protecting it from environmental damage is essential for maintaining long-term system reliability.
Waterproof protection plays a critical role in ensuring that solar tracking motors operate consistently, accurately, and efficiently over many years. Without proper protection, moisture and contaminants can gradually damage electrical components, reduce mechanical performance, and increase maintenance costs.
Rain exposure is one of the most common challenges for outdoor solar tracking systems. Water entering a motor housing can cause problems such as:
Electrical short circuits
Insulation failures
Internal corrosion
Reduced motor efficiency
Premature component failure
A waterproof stepper motor uses sealed housing structures, protected cable connections, and improved insulation designs to prevent water from reaching sensitive internal components. This allows the motor to maintain stable operation even in areas with frequent rainfall or high humidity.
For solar trackers installed in regions with heavy precipitation, waterproof protection helps reduce the risk of unexpected downtime and extends the service life of the tracking system.
Solar tracking systems are often installed in open environments such as deserts, agricultural fields, and remote solar farms. These locations may expose motors to dust, sand, and airborne particles.
Without adequate sealing, dust accumulation inside a motor can lead to:
Increased friction
Bearing wear
Reduced movement accuracy
Higher operating temperatures
Waterproof motors with proper IP protection ratings also provide dust resistance, helping prevent external particles from affecting internal mechanical and electrical parts.
This is particularly important for large-scale solar farms where thousands of tracking units must operate reliably with minimal maintenance.
The primary purpose of a solar tracker is to keep photovoltaic panels aligned with the sun to maximize energy generation. Any reduction in motor performance can directly affect tracking accuracy.
Environmental damage may cause:
Irregular motor movement
Positioning errors
Reduced torque output
Unstable operation
A waterproof stepper motor helps maintain consistent performance by protecting the internal structure from moisture and contamination. As a result, the solar tracking mechanism can continue delivering precise positioning throughout daily and seasonal movements.
Solar tracking systems are often installed in remote areas where maintenance access can be difficult and expensive. Frequent motor inspections or replacements can significantly increase operational costs.
Waterproof protection reduces maintenance requirements by:
Preventing corrosion damage
Extending motor lifespan
Reducing failure frequency
Improving overall system availability
For commercial solar installations, improved reliability means higher energy production and better return on investment over the system’s lifetime.
Solar energy systems are designed for long service periods, often exceeding 20 years. Therefore, every component must withstand continuous outdoor exposure.
A waterproof stepper motor is designed to handle challenging conditions such as:
Continuous sunlight exposure
Seasonal weather changes
High humidity environments
Temperature fluctuations
Dusty operating locations
By providing reliable protection, waterproof motors help ensure that solar tracking systems remain operational and efficient throughout their expected lifespan.
Different solar tracking environments require different levels of protection. The appropriate IP rating should be selected according to actual installation conditions.
Common choices include:

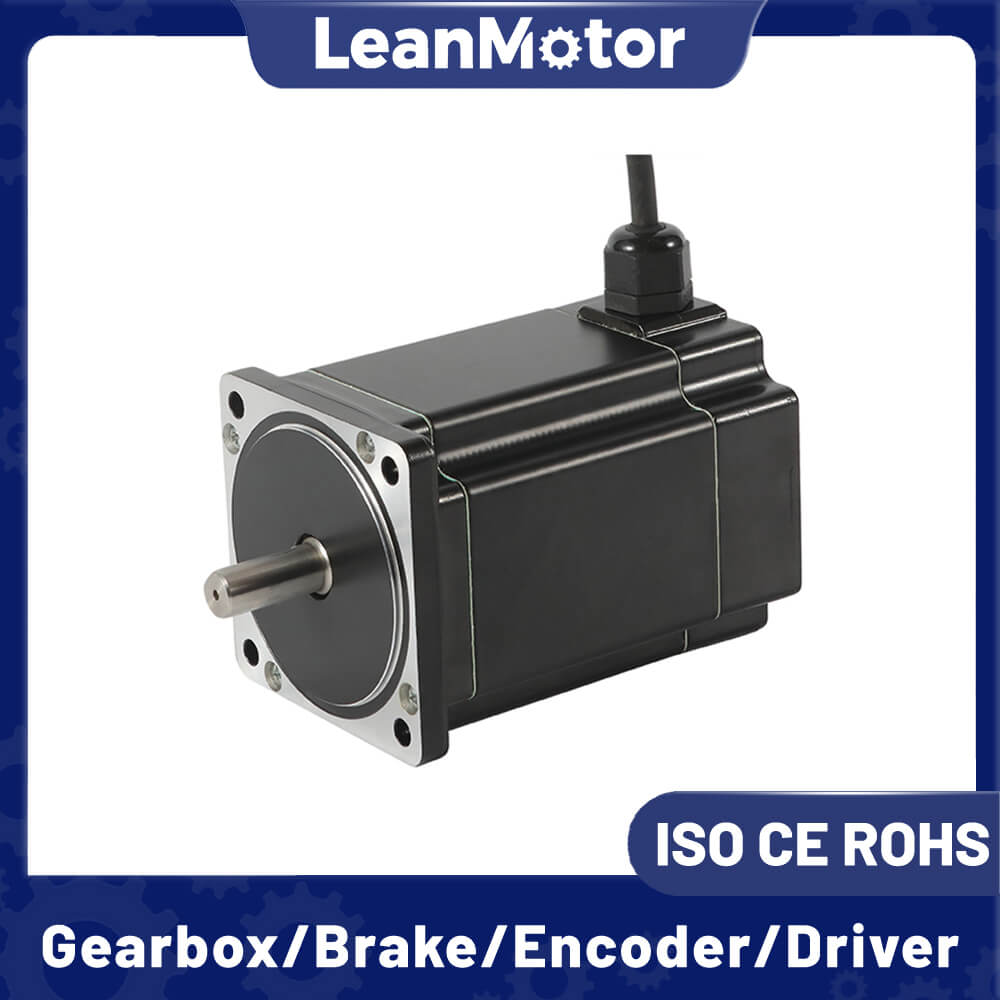

IP65 stepper motors: Suitable for outdoor environments requiring protection against dust and water spray
IP66 stepper motors: Designed for stronger water exposure conditions
IP67 stepper motors: Suitable for applications requiring higher protection against temporary water immersion
Selecting the correct waterproof protection level ensures that the motor can handle the specific environmental challenges of the solar tracking application.
Waterproof protection is essential for solar tracking applications because it improves reliability, maintains positioning accuracy, reduces maintenance needs, and extends motor service life. By protecting stepper motors from water, dust, and harsh outdoor conditions, waterproof motor solutions help solar tracking systems operate more efficiently and consistently, supporting higher energy output and long-term renewable energy performance.
One of the biggest challenges for outdoor solar tracking systems is continuous exposure to water. Rain, condensation, and high humidity can negatively affect motor components over time.
Waterproof stepper motors are designed with higher protection levels, such as IP-rated sealing structures, which help prevent water intrusion.
Depending on the application requirements, motors with different IP protection levels can be selected:
IP65 stepper motors: Protected against dust and low-pressure water jets
IP66 stepper motors: Suitable for stronger water exposure
IP67 stepper motors: Can withstand temporary water immersion
For solar trackers installed in coastal areas, agricultural fields, or regions with frequent rainfall, waterproof motor protection helps maintain long-term operational stability.
Solar tracking systems are often installed in locations where environmental conditions are unpredictable. These may include deserts with high dust levels, coastal regions with salt spray, and areas with extreme temperature changes.
A waterproof stepper motor provides better protection against:
Dust particles
Sand contamination
Moisture
Salt corrosion
Outdoor pollutants
The sealed structure reduces the chance of contaminants reaching internal electrical and mechanical components.
As a result, solar tracker manufacturers can achieve longer service intervals and reduce unexpected equipment failures.
The efficiency of a solar tracker depends heavily on positioning accuracy. Even small tracking errors can reduce the amount of sunlight received by photovoltaic panels.
Stepper motors provide precise motion control because:
Each pulse represents a defined movement
Position changes are repeatable
Speed can be accurately controlled
Low-speed operation remains stable
When combined with waterproof protection, the motor can maintain this precision even after years of outdoor operation.
This is especially important for:
Utility-scale solar farms
High-efficiency photovoltaic systems
Dual-axis tracking platforms
A reliable motor ensures that solar panels remain aligned with the sun, maximizing energy production.
Maintenance costs are a major concern for large-scale solar installations. Solar farms may contain thousands of tracking units, making frequent motor replacement or inspection expensive.
Waterproof stepper motors help reduce maintenance requirements by improving resistance against environmental damage.
Benefits include:
Longer operating lifespan
Fewer corrosion-related failures
Reduced downtime
Lower replacement frequency
For remote solar installations where maintenance access is difficult, reliable waterproof motors can significantly improve system economics.
Solar tracking systems are exposed to daily temperature cycles. Motors may experience:
High daytime temperatures
Cold nighttime conditions
Seasonal temperature variations
High-quality waterproof stepper motors are designed with materials and structures that support stable operation across a wide temperature range.
Reliable thermal performance helps prevent:
Motor insulation degradation
Mechanical expansion issues
Torque reduction
Unexpected shutdowns
This makes waterproof stepper motors suitable for different climates and geographical locations.
Selecting the right waterproof stepper motor for a solar tracking system is essential for achieving reliable operation, accurate positioning, and long-term performance in outdoor environments. Solar trackers must continuously adjust the angle of photovoltaic panels while facing challenges such as rain, dust, wind loads, temperature changes, and long-term exposure to harsh conditions.
A suitable waterproof stepper motor should not only provide environmental protection but also deliver the required torque, precision, efficiency, and durability for the specific solar tracking application. The following key features should be carefully evaluated when choosing a motor for solar tracker systems.
The IP protection rating is one of the most important factors when selecting a waterproof stepper motor for outdoor solar applications. It indicates the motor’s ability to resist solid particles and water penetration.
Solar trackers installed outdoors generally require motors with higher IP protection levels to ensure stable operation under changing weather conditions.
Common waterproof protection levels include:
IP65 stepper motors: Protected against dust and low-pressure water spray, suitable for general outdoor solar tracking applications.
IP66 stepper motors: Provides stronger protection against powerful water jets and is suitable for areas with heavy rainfall.
IP67 stepper motors: Offers protection against temporary water immersion, ideal for demanding environments.
Choosing the correct IP rating helps prevent moisture damage, corrosion, and electrical failures, improving the overall reliability of the solar tracking system.
Solar panels and tracking structures can create significant mechanical loads, especially when exposed to wind, vibration, and outdoor conditions. The stepper motor must provide sufficient torque to move and hold the solar panels accurately.
Important torque considerations include:
Solar panel weight
Tracker structure design
Gear reduction ratio
Wind resistance
Mechanical friction
Installation angle
A motor with insufficient torque may cause positioning errors, missed steps, or unstable movement. A properly selected waterproof stepper motor ensures smooth operation while maintaining accurate solar panel alignment.
Solar trackers often need to maintain a fixed position for extended periods, especially during periods of stable sunlight conditions. Holding torque determines the motor’s ability to resist external forces while stationary.
A higher holding torque helps:
Maintain panel positioning
Resist wind disturbance
Reduce unnecessary movement
Improve tracking accuracy
For large photovoltaic tracking systems, strong holding torque is particularly important because even small position deviations can affect energy generation efficiency.
The main purpose of a solar tracker is to optimize solar energy collection by maintaining the correct panel orientation. Therefore, motor positioning accuracy directly affects system performance.
Stepper motors are widely used in solar tracking because they provide:
Precise incremental movement
Repeatable positioning
Accurate angle adjustment
Stable low-speed operation
When combined with waterproof protection, the motor can maintain consistent positioning performance even in outdoor environments.
Factors affecting positioning accuracy include:
Step angle
Microstepping capability
Gearbox precision
Mechanical backlash
Controller performance
Selecting a motor with suitable accuracy ensures efficient solar tracking throughout the day.
Solar tracking systems are exposed to different climates, from extremely hot deserts to cold outdoor environments. The motor must operate reliably across the expected temperature range.
A suitable waterproof stepper motor should consider:
Ambient temperature
Heat generated during operation
Motor insulation performance
Material expansion and contraction
A wide operating temperature range helps prevent:
Reduced torque output
Insulation damage
Mechanical failures
Unexpected shutdowns
This is especially important for solar farms located in regions with significant seasonal temperature changes.
Outdoor solar tracking systems may be exposed to moisture, salt spray, and corrosive environments. In coastal or industrial areas, corrosion resistance becomes a critical selection factor.
High-quality waterproof stepper motors often use:
Corrosion-resistant metal housing
Protective surface treatments
Sealed connectors
Durable external materials
These design features help protect the motor structure and extend service life in harsh environments.
Solar tracking systems are designed to improve energy output, so the motor itself should operate efficiently. A highly efficient waterproof stepper motor reduces unnecessary power consumption while maintaining reliable movement.
Energy-efficient motor features include:
Optimized winding design
Low standby power consumption
Efficient driver compatibility
Smooth motion control
For large solar installations with thousands of motors, improved efficiency can contribute to significant energy savings over time.
The physical size of the motor must match the design requirements of the solar tracking mechanism.
Important considerations include:
Motor diameter and length
Mounting dimensions
Shaft design
Weight limitations
Connection method
A compact waterproof stepper motor can simplify system integration while maintaining sufficient performance.
Proper mechanical compatibility helps reduce installation complexity and improves overall system reliability.
Solar trackers are expected to operate continuously for many years. Therefore, motor reliability is a key factor in reducing downtime and maintenance costs.
Reliable waterproof stepper motors should provide:
Stable long-term operation
Durable bearings
Strong internal insulation
Protection against environmental damage
Consistent performance over time
A dependable motor helps solar tracking systems achieve higher availability and better return on investment.
Modern solar tracking systems often use automated controllers, sensors, and smart monitoring platforms. The selected stepper motor should be compatible with the overall control system.
Considerations include:
Driver compatibility
Voltage requirements
Current rating
Communication system compatibility
Control accuracy
Good compatibility allows smoother integration and more efficient operation of the complete solar tracking solution.
Choosing the right waterproof stepper motor for solar trackers requires careful consideration of protection rating, torque, accuracy, temperature resistance, corrosion protection, efficiency, and long-term reliability.
A properly selected motor can help solar tracking systems maintain precise positioning, withstand harsh outdoor conditions, reduce maintenance requirements, and improve overall energy generation efficiency. By focusing on these key features, engineers and system designers can build more durable and reliable solar tracking solutions for long-term renewable energy applications.
Traditional motors may work well in indoor automation environments, but outdoor solar tracking requires additional protection.
Feature | Traditional Stepper Motor | Waterproof Stepper Motor |
|---|---|---|
Outdoor Protection | Limited | Strong environmental protection |
Water Resistance | Low | High IP-rated protection |
Dust Resistance | Basic | Enhanced sealing |
Maintenance Needs | Higher | Lower |
Long-Term Reliability | Environment dependent | Designed for outdoor operation |
Solar Tracking Suitability | Limited applications | Ideal for outdoor trackers |
For renewable energy systems expected to operate for many years, waterproof stepper motors provide a more dependable solution.
Waterproof stepper motors are commonly used in:
Photovoltaic solar trackers
Solar concentrator systems
Solar monitoring platforms
Renewable energy automation equipment
Remote solar power installations
Their ability to provide precise movement while resisting environmental challenges makes them suitable for modern solar energy infrastructure.
As solar energy continues to expand, tracking systems are becoming more intelligent and efficient. Future solar tracking solutions will require motors with:
Higher energy efficiency
Better environmental protection
Smarter control compatibility
Longer service life
More compact designs
Advanced waterproof stepper motors will continue to support these trends by providing reliable motion control for increasingly automated renewable energy systems.
Waterproof stepper motors improve the reliability of solar tracking systems by combining precise motion control with strong environmental protection. Their ability to resist water, dust, corrosion, and temperature changes makes them an ideal choice for outdoor photovoltaic applications.
By maintaining accurate solar panel positioning, reducing maintenance requirements, and extending system lifespan, waterproof stepper motors help solar tracking systems achieve higher efficiency and greater long-term value.
For solar manufacturers and system integrators, selecting a reliable waterproof stepper motor is an important step toward building durable, efficient, and low-maintenance renewable energy solutions.
LeanMotor Answer:
Waterproof stepper motors are important for solar tracking systems because they provide reliable motion control while protecting internal components from rain, humidity, dust, and other outdoor environmental factors. Since solar trackers operate outdoors for long periods, waterproof protection helps prevent moisture damage, corrosion, and electrical failures, ensuring stable and accurate solar panel positioning.
LeanMotor Answer:
Waterproof stepper motors improve solar tracker reliability by reducing the impact of harsh outdoor conditions on motor performance. Their sealed structure helps prevent water and dust from entering the motor, while maintaining consistent torque, precise movement, and long-term operational stability. This reduces unexpected failures and extends the service life of solar tracking systems.
LeanMotor Answer:
The recommended IP rating depends on the installation environment. For most outdoor solar tracking applications, IP65 or higher protection is commonly required. IP65 stepper motors provide protection against dust and water spray, while IP66 and IP67 ratings offer stronger protection for areas exposed to heavy rain, moisture, or more demanding environmental conditions.
LeanMotor Answer:
Yes. Waterproof stepper motors are designed for outdoor applications where they may encounter rain, dust, temperature fluctuations, and other environmental challenges. With sealed housing, protective components, and durable materials, these motors can maintain stable performance in demanding solar tracking environments.
LeanMotor Answer:
Waterproof stepper motors help maintain solar tracking accuracy by ensuring consistent and precise movement over time. Their protection against moisture and contaminants prevents internal damage that could cause positioning errors, unstable operation, or reduced torque output. This allows solar panels to maintain the correct angle for improved energy capture.
LeanMotor Answer:
Yes. Waterproof stepper motors can reduce maintenance requirements by protecting key internal components from water, dust, and corrosion. This helps minimize motor failures, reduce replacement frequency, and lower maintenance costs, especially for large solar farms where equipment accessibility may be limited.
LeanMotor Answer:
When selecting waterproof stepper motors for solar trackers, important factors include IP protection rating, torque capacity, holding torque, positioning accuracy, operating temperature range, corrosion resistance, motor size, and compatibility with the control system. Choosing the correct motor specifications ensures reliable operation under specific application conditions.
LeanMotor Answer:
Yes. Waterproof stepper motors are suitable for large-scale solar farms because they provide reliable outdoor operation, accurate positioning, and reduced maintenance needs. Their durability makes them suitable for applications where thousands of tracking units must operate continuously for many years.
LeanMotor Answer:
Waterproof stepper motors are designed to operate under changing temperature conditions commonly found in outdoor solar installations. Proper insulation, durable materials, and optimized designs help maintain stable performance during temperature variations, preventing issues such as reduced torque, overheating, or mechanical failure.
LeanMotor Answer:
Waterproof stepper motors provide better protection and reliability compared with standard motors in outdoor solar tracking applications. They combine precise step control with enhanced resistance to water, dust, and environmental damage, helping solar trackers achieve longer service life, lower maintenance requirements, and more consistent energy production.
