AC Servo Motor Vs DC Servo Motor: Which Solution Is Better for Your Application?

In modern industrial automation, robotics, CNC equipment, and precision motion systems, servo motors play a critical role in achieving accurate position control, high-speed operation, and reliable torque output. Among the most commonly used solutions are AC servo motors and DC servo motors.

Although both motor types are designed for precise motion control, they differ significantly in terms of structure, performance, maintenance requirements, efficiency, and application suitability. Choosing between an AC Servo Motor vs DC Servo Motor depends on factors such as operating environment, required accuracy, speed range, power requirements, and system design goals.

This article provides a detailed comparison of AC servo motors and DC servo motors to help engineers, equipment manufacturers, and automation professionals determine which solution is better for their specific applications.

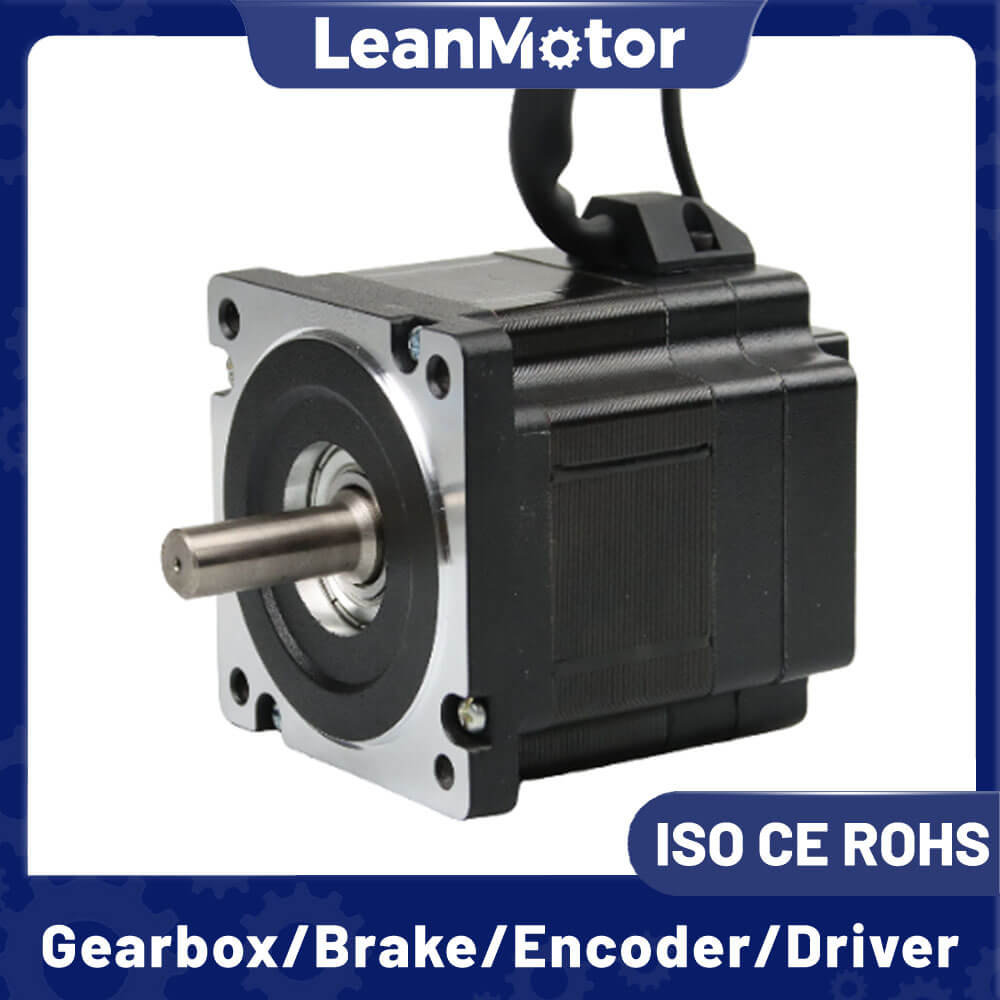

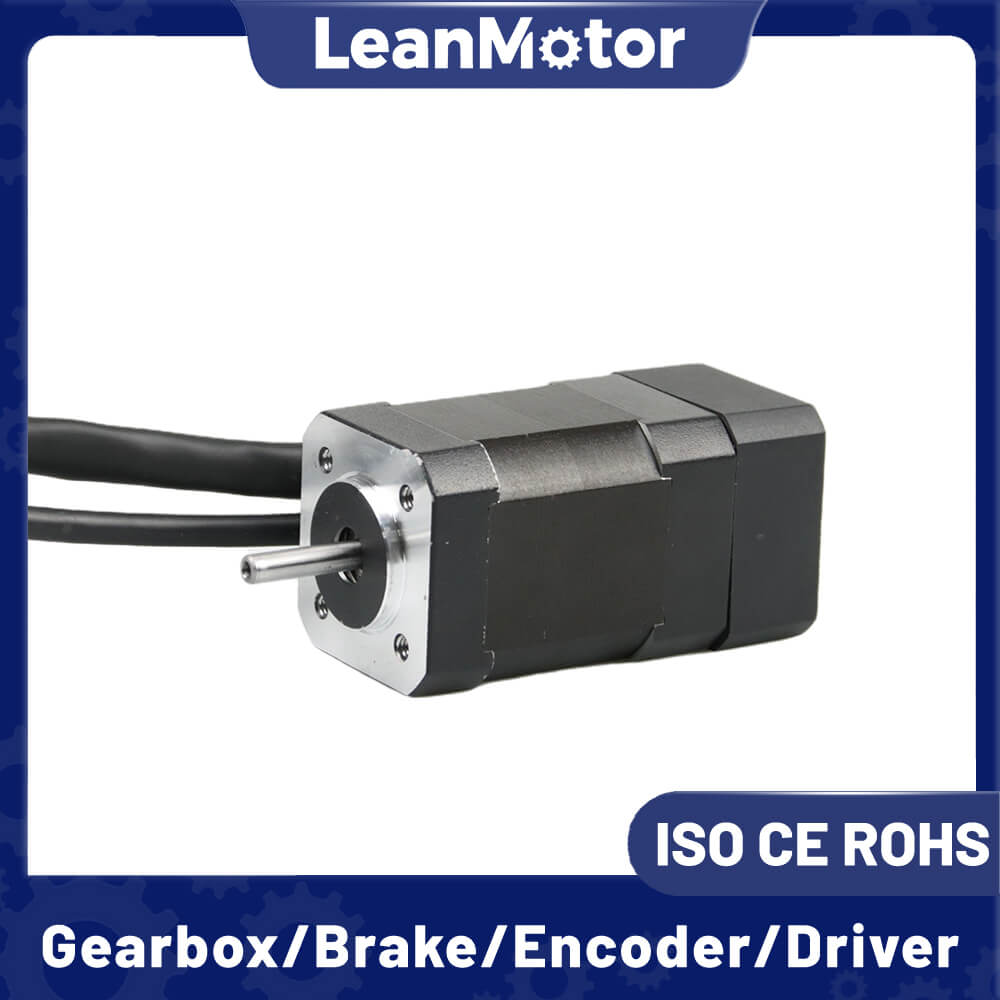

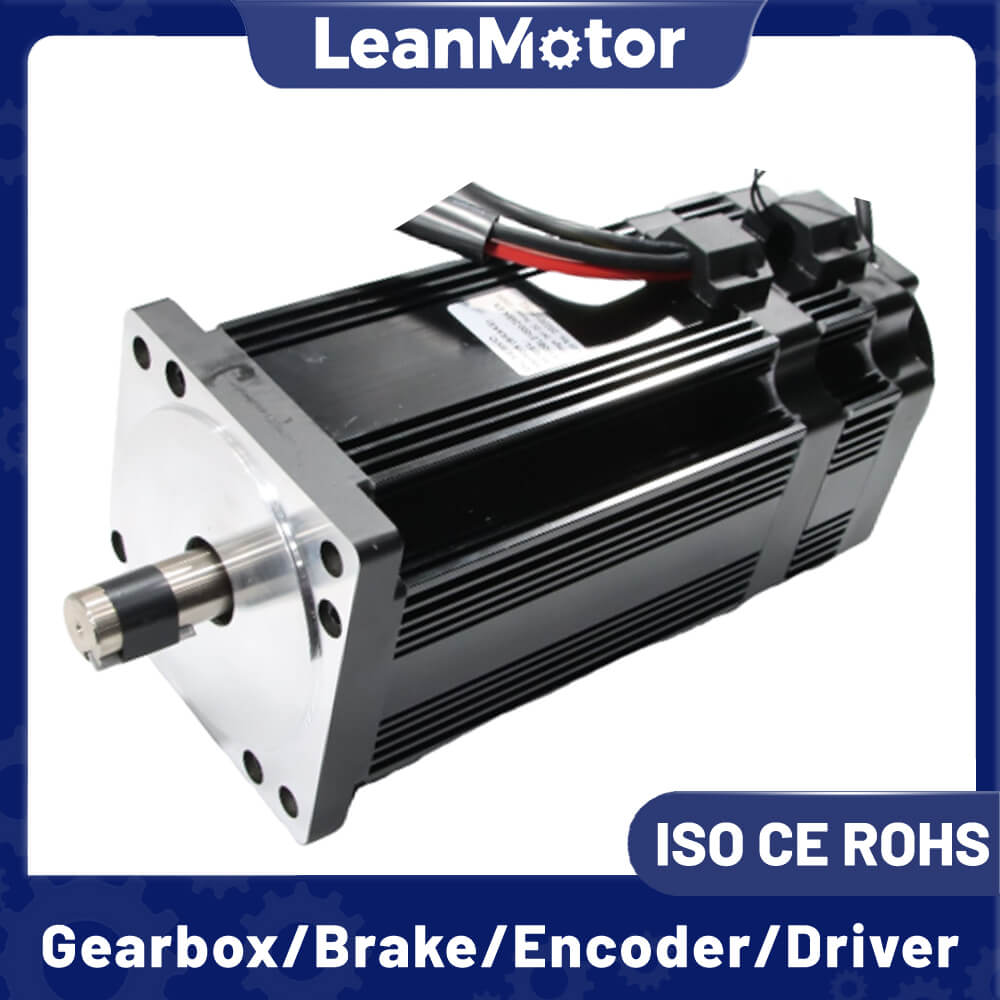

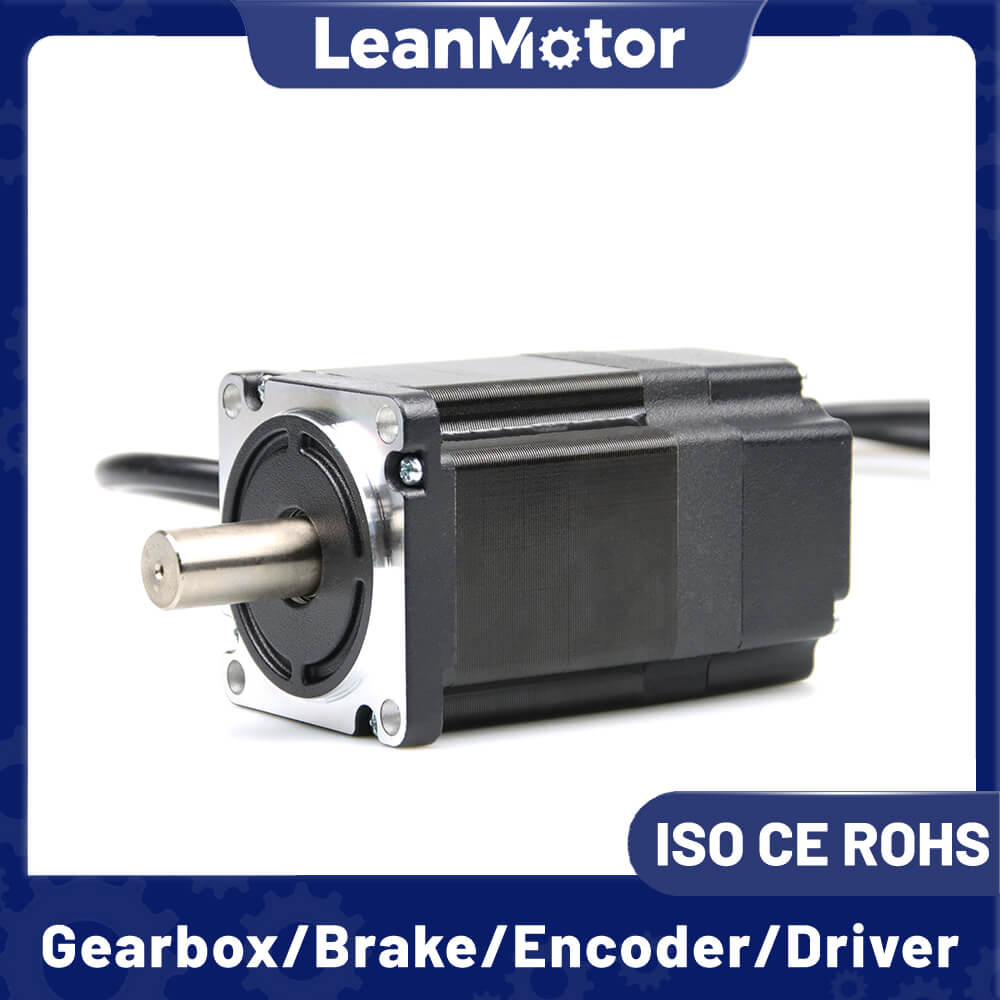

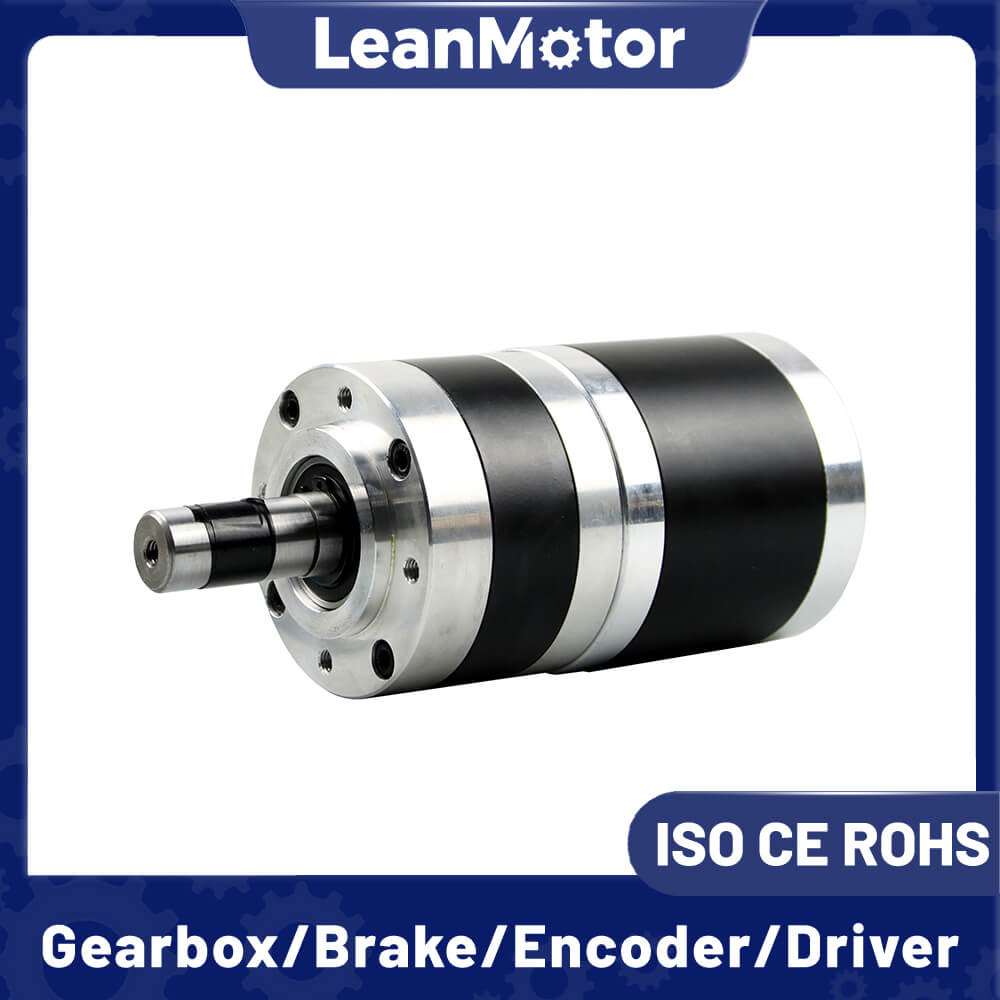

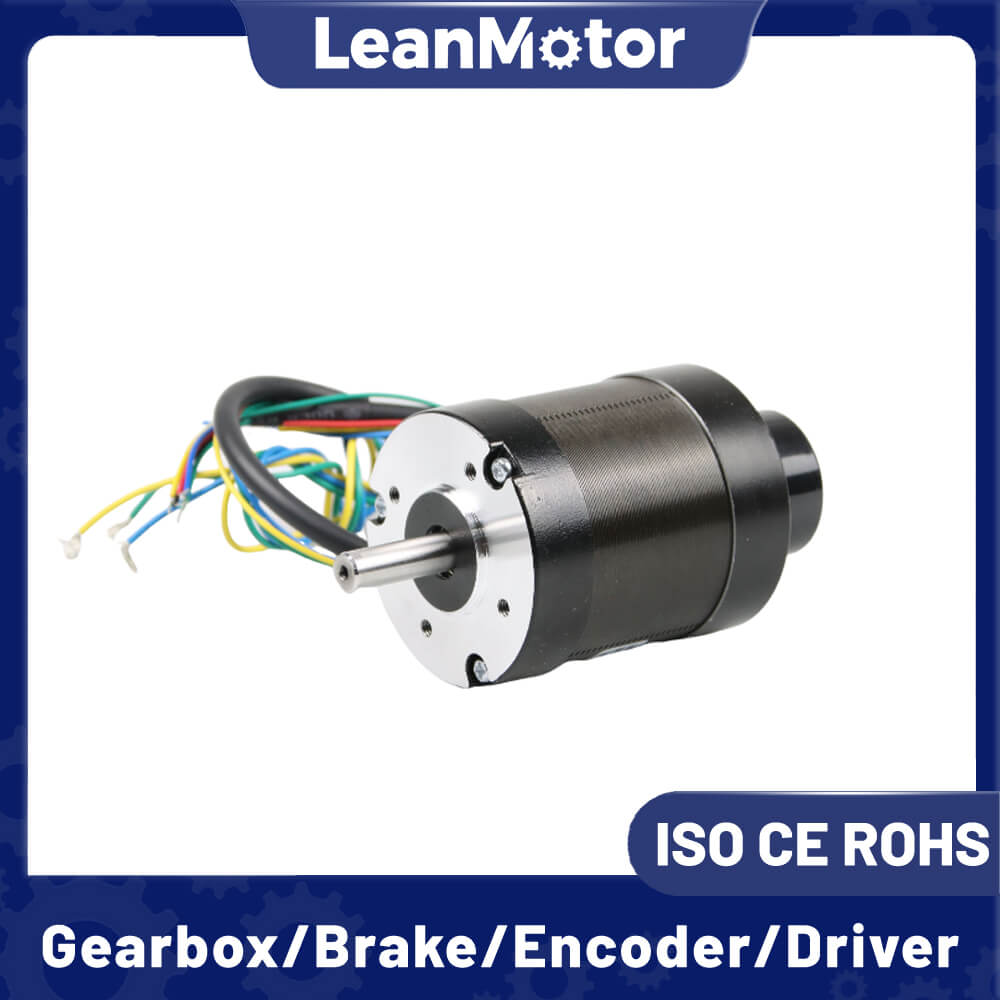

LeanMotor Brushless DC Servo Motor

LEANMOTOR Customized Service

What Is an AC Servo Motor?

An AC servo motor is a high-performance electric motor that uses alternating current power and a closed-loop control system to achieve accurate motion control. It typically consists of:

• AC servo motor body

• Encoder or feedback sensor

• Servo drive

• Motion controller

The encoder continuously monitors the motor position and sends feedback signals to the controller. The servo drive adjusts voltage and current output according to the feedback information, allowing the motor to maintain precise speed, position, and torque control.

Most modern AC servo motors use permanent magnet synchronous motor (PMSM) technology, offering high efficiency, excellent dynamic response, and stable operation.

Key Features of AC Servo Motors

• High-speed performance

• High torque density

• Excellent energy efficiency

• Low maintenance requirements

• Compact structure

• Strong overload capability

• Suitable for continuous industrial operation

Because of these advantages, AC servo motors have become the preferred choice in many advanced automation systems.

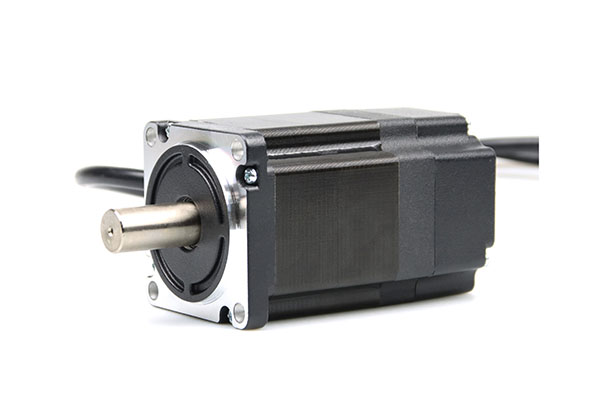

What Is a DC Servo Motor?

A DC servo motor is a servo-controlled motor powered by direct current. It uses a feedback mechanism to control speed, position, and torque, similar to AC servo systems.

Traditional DC servo motors usually include:

• DC motor

• Brushes and commutator

• Encoder or feedback device

• Servo controller

The motor speed and torque are controlled by adjusting the supplied DC voltage. Due to their simple control characteristics and excellent low-speed performance, DC servo motors were widely used in early automation systems.

Key Features of DC Servo Motors

• Simple speed control

• High starting torque

• Good low-speed regulation

• Easy implementation

• Suitable for certain precision applications

However, traditional brushed DC servo motors have limitations related to maintenance, heat generation, and long-term reliability.

AC Servo Motor vs DC Servo Motor: Main Differences

1. Motor Structure Comparison

The biggest difference between AC and DC servo motors is their internal construction.

AC Servo Motor Structure

AC servo motors are generally brushless designs. The rotor usually contains permanent magnets, while the stator contains windings that generate a rotating magnetic field.

Advantages:

• No brush wear

• Longer service life

• Less maintenance

• Better reliability in harsh environments

DC Servo Motor Structure

Traditional DC servo motors use brushes and a commutator to transfer electrical power.

Advantages:

• Simple design

• Easy control method

Limitations:

• Brushes wear over time

• Requires regular maintenance

• Generates electrical noise

• Limited high-speed performance

For applications requiring long operating hours and minimal downtime, AC servo motors usually provide better reliability.

2. Performance Comparison

Speed Capability

AC servo motors typically provide higher operating speeds compared with traditional DC servo motors.

High-speed AC servo motors are commonly used in:

• CNC machines

• Packaging equipment

• Semiconductor equipment

• Robotic systems

DC servo motors may perform well at lower speeds but are generally less suitable for high-speed continuous operation.

Torque Performance

Both AC and DC servo motors can provide excellent torque control.

However:

• DC servo motors offer strong starting torque characteristics.

• AC servo motors provide better torque stability across a wider speed range.

For applications requiring rapid acceleration, deceleration, and frequent direction changes, AC servo motors are usually preferred.

3. Efficiency and Energy Consumption

Energy efficiency is an important factor in modern industrial equipment.

AC Servo Motor Efficiency

AC servo motors typically achieve higher efficiency because:

• Brushless operation reduces mechanical losses

• Advanced control algorithms optimize power usage

• Heat generation is reduced

DC Servo Motor Efficiency

DC servo motors may experience additional losses due to:

• Brush friction

• Electrical resistance

• Heat generated by commutation

For energy-conscious applications, AC servo motors generally provide better long-term operating efficiency.

4. Maintenance Requirements

Maintenance is one of the most important differences between AC and DC servo motors.

Because AC servo motors do not use brushes, they are ideal for industries where equipment downtime must be minimized.

Typical applications include:

• Automated production lines

• Medical equipment

• Industrial robots

• Precision assembly systems

5. Control System Comparison

Both motor types use feedback control, but modern AC servo systems provide more advanced control capabilities.

AC Servo Control Advantages

Modern AC servo drives support:

• Position control

• Speed control

• Torque control

• Real-time feedback

• Network communication

• Advanced motion profiles

Many AC servo systems support industrial communication protocols such as:

• EtherCAT

• CANopen

• Modbus

• Industrial Ethernet

DC Servo Control Advantages

DC servo systems are relatively simple and can be easier to configure in basic applications.

However, they may lack the advanced integration capabilities required by modern smart factories.

AC Servo Motor vs DC Servo Motor: Advantages Comparison

Quick Summary

• AC Servo Motor: Best for applications requiring high precision, high speed, high efficiency, and long-term reliability.

• DC Servo Motor: Suitable for applications requiring simple control, lower cost, and compatibility with existing systems.

AC Servo Motor vs DC Servo Motor: Application Comparison

Choosing between an AC servo motor and a DC servo motor depends largely on the specific requirements of the application, including motion accuracy, operating speed, duty cycle, maintenance requirements, and environmental conditions. Although both technologies provide precise motion control, they are optimized for different industrial needs.

The following comparison highlights the most common applications and explains why each servo motor technology is selected.

Applications Suitable for AC Servo Motors

1. Industrial Robots and Robotic Automation Systems

Industrial robots require extremely precise positioning, fast response times, and reliable operation under continuous workloads. AC servo motors are widely used in robotic joints, robotic arms, and automated handling systems because they provide:

• High positioning accuracy

• Fast acceleration and deceleration

• Excellent torque control

• Smooth motion performance

• Long service life with minimal maintenance

In applications such as:

• Welding robots

• Assembly robots

• Pick-and-place robots

• Collaborative robots (Cobots)

AC servo motors allow precise control of each movement axis, improving production efficiency and product consistency.

2. CNC Machines and Precision Manufacturing Equipment

CNC machines require accurate control of tool movement, spindle operation, and multi-axis synchronization. AC servo motors are commonly used in:

• CNC milling machines

• CNC turning machines

• Grinding machines

• Laser cutting equipment

• Engraving machines

The advantages of AC servo motors in CNC applications include:

• High-resolution feedback control

• Excellent repeatability

• Stable operation at high speeds

• Accurate position adjustment

Compared with traditional DC servo solutions,C servo systems provide better performance for modern high-speed machining processes where precision directly affects product quality.

3. Packaging and Automation Machinery

Packaging equipment often requires rapid, repetitive, and synchronized movements. Examples include:

• Filling machines

• Labeling machines

• Cartoning machines

• Sealing machines

• Sorting systems

AC servo motors are ideal for these applications because they can quickly adjust:

• Speed

• Position

• Timing

• Torque output

This enables packaging machines to achieve:

• Higher production speed

• Improved packaging accuracy

• Reduced material waste

• More stable operation

In high-volume manufacturing environments, the low maintenance characteristics of AC servo motors provide significant advantages.

Applications Suitable for DC Servo Motors

Although AC servo motors dominate many modern industrial applications, DC servo motors still have value in specific systems where their characteristics provide advantages.

1. Legacy Industrial Equipment

Many older automation systems were originally designed around DC servo technology.

In these cases, replacing the entire control system may be expensive, so DC servo motors remain practical for:

• Existing production lines

• Older CNC equipment

• Industrial retrofit projects

Their compatibility with existing DC drive systems can reduce upgrade costs.

2. Battery-Powered and Mobile Applications

DC servo motors are naturally suitable for applications using direct current power sources, such as:

• Mobile robots

• Small automated vehicles

• Portable equipment

• Battery-operated systems

They can connect directly with DC power supplies, making system design simpler.

3. Low-Speed Precision Applications

DC servo motors have strong low-speed control characteristics and can perform well in applications requiring smooth movement at lower speeds.

Examples include:

• Laboratory instruments

• Small positioning systems

• Testing equipment

• Educational automation devices

Their simple control structure can be beneficial when advanced communication features are not required.

AC Servo Motor vs DC Servo Motor Application Comparison Table

Conclusion: Choosing Between AC Servo Motor and DC Servo Motor

Both AC servo motors and DC servo motors have important roles in motion control applications. DC servo motors remain suitable for specific environments where simple control, low-speed operation, or existing system compatibility are required.

However, for modern industrial applications such as robotics, CNC machinery, automation equipment, semiconductor manufacturing, and smart factories, AC servo motors provide superior performance, reliability, and scalability.

Selecting the right servo motor depends on the application’s requirements for precision, speed, efficiency, maintenance, and future expansion capability.

Which Servo Motor Should You Choose?

Selecting the right servo motor is a critical decision for any automation, robotics, or motion control system. The choice between an AC servo motor and a DC servo motor depends on several factors, including application requirements, performance expectations, operating environment, maintenance needs, and long-term system goals.

While both motor types can provide accurate position, speed, and torque control, modern industrial applications increasingly favor AC servo motors because of their higher efficiency, improved reliability, and advanced control capabilities. However, DC servo motors can still be a practical solution for specific applications where simple control, low-speed performance, or existing system compatibility are priorities.

Understanding the key selection factors will help engineers choose the most suitable servo motor solution.

Choose an AC Servo Motor When You Need High Performance and Reliability

An AC servo motor is typically the preferred choice for advanced automation systems that require high precision, fast response, and continuous operation.

You should consider an AC servo motor if your application requires:

1. High Positioning Accuracy

Applications such as:

• CNC machines

• Robotic arms

• Semiconductor equipment

• Precision assembly systems

require extremely accurate movement control.

AC servo motors use high-resolution encoders and advanced servo algorithms to provide:

• Precise positioning

• Excellent repeatability

• Minimal positioning errors

• Smooth motion control

For systems where accuracy directly affects product quality, AC servo motors offer significant advantages.

2. High-Speed Operation and Fast Dynamic Response

Many modern machines require rapid acceleration, deceleration, and frequent changes in movement direction.

Examples include:

• Packaging machines

• Pick-and-place systems

• Automated production lines

AC servo motors provide:

• Faster response times

• Higher rotational speeds

• Better acceleration performance

• Stable torque output

This makes them ideal for high-speed manufacturing environments.

3. Continuous Industrial Operation

Factories often require equipment to run for long periods with minimal downtime.

AC servo motors are designed for demanding industrial environments because they feature:

• Brushless construction

• Lower mechanical wear

• Reduced maintenance requirements

• Longer operating life

For 24/7 production systems, AC servo motors can significantly improve equipment reliability.

4. Smart Automation and Network Integration

Modern factories rely on intelligent control systems and industrial communication networks.

Many AC servo systems support:

• EtherCAT communication

• CANopen networks

• Modbus protocols

• Real-time motion control

This makes AC servo motors easier to integrate into:

• Smart manufacturing systems

• Automated production lines

• Industry 4.0 applications

Choose a DC Servo Motor When Simplicity and Compatibility Matter

Although AC servo motors are widely used in modern automation, DC servo motors still provide advantages in certain applications.

A DC servo motor may be suitable when:

1. The System Already Uses DC Power

DC servo motors can be a practical option for equipment powered by direct current sources, including:

• Battery-powered systems

• Mobile equipment

• Portable automation devices

They can simplify system design without requiring additional power conversion components.

2. Low-Speed Control Is More Important Than High-Speed Performance

DC servo motors provide excellent control characteristics at lower speeds.

They can be suitable for:

• Laboratory equipment

• Testing machines

• Small positioning systems

• Educational automation devices

For applications that do not require extreme speed or advanced networking, DC servo motors can provide reliable performance.

3. Existing Machinery Requires Replacement Compatibility

Many older industrial systems were built around DC servo technology.

In retrofit projects, replacing a failed DC servo motor with another compatible model may be more cost-effective than redesigning the entire control system.

Key Factors to Consider Before Selecting a Servo Motor

1. Required Torque and Load Characteristics

The motor must provide enough torque to handle the application load.

Consider:

• Continuous torque requirements

• Peak torque requirements

• Acceleration torque

• Load inertia

Heavy-duty automation systems may require high-performance AC servo motors with optimized torque output.

2. Speed Requirements

Different applications require different speed ranges.

Choose based on:

• Maximum operating speed

• Acceleration time

• Movement frequency

High-speed applications generally benefit from AC servo technology.

3. Accuracy and Repeatability Requirements

Precision applications should prioritize:

• Encoder resolution

• Position control capability

• Feedback accuracy

AC servo motors typically provide stronger performance for demanding precision tasks.

4. Operating Environment

The working environment also affects motor selection.

Consider:

• Temperature

• Dust exposure

• Moisture

• Continuous operating hours

For harsh industrial environments, brushless AC servo motors usually provide better durability.

For long-term industrial use, AC servo motors often provide better overall value.

AC Servo Motor vs DC Servo Motor: Quick Selection Guide

Final Recommendation

Choosing between an AC servo motor and a DC servo motor depends on your application requirements.

For most modern industrial applications requiring high accuracy, high speed, low maintenance, and reliable long-term operation, an AC servo motor is usually the better solution.

For simpler systems, existing DC-based equipment, or applications where cost and compatibility are the main priorities, a DC servo motor can still be an effective choice.

The best servo motor is the one that matches your machine’s specific requirements for performance, efficiency, reliability, and future scalability.

Future Trend: AC Servo Motors Continue to Dominate Industrial Automation

With the development of Industry 4.0, smart manufacturing, and intelligent robotics, the demand for high-performance motion control systems continues to grow.

Future servo motor technologies will focus on:

• Higher power density

• Smaller motor size

• Integrated servo drives

• Smart diagnostics

• IoT connectivity

• Improved energy efficiency

As automation systems become more complex, AC servo motors are expected to play an increasingly important role in next-generation industrial equipment.

Conclusion: AC Servo Motor or DC Servo Motor?

Both AC servo motors and DC servo motors have their own advantages. DC servo motors remain useful in specific applications where simple control and existing compatibility are priorities.

However, for modern automation equipment requiring high accuracy, high efficiency, reliability, and intelligent control, AC servo motors provide a more advanced and future-ready solution.

When selecting a servo motor, engineers should evaluate application requirements including speed, torque, accuracy, maintenance needs, and operating environment to determine the most suitable motor technology.
