Motor Length: 83mm / 113mm / 143mm /173mm
Rated voltage：310V
| Quantity: | |
|---|---|

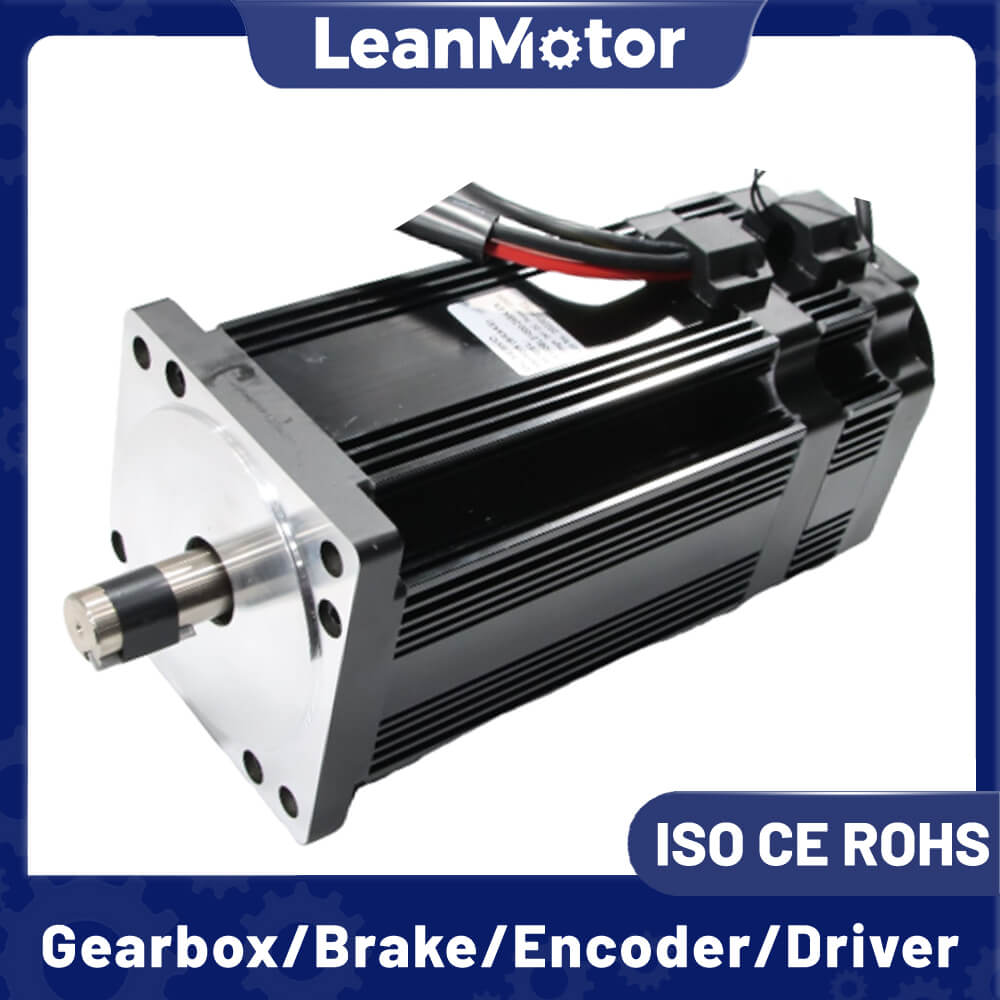

Nema 42 110BLS Brushless BLDC DC Servo Motor with Encoder
LeanMotor
Nema 42(110mm)
3 Phase
310V
10 Pcs
General Specifications | |
| Item | Specification |
| Winding type | Star |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm@450g |
| End play | 0.08mm@450g |
| Max.radial force | 300N@20mm from the flange |
| Max. axial force | 70N |
| Insulation class | Class B |
| Dielectric Strength | 1200VDC for one minute |
| Insulation Resistance | 100MΩ Min., 500VDC |
| Model No. | Rated voltage | Motor Length | Rated Current | No Load Current | Back E.M.F | Rated power | Torque Constant | Rated torque | Rated speed | Weight |
| VDC | (L)mm | A | A | V/Krpm | KW | N.m/A | N.m | Rpm | kg | |
| LM110BLS50 | 310 | 134 | 2.7 | 0.5 | 91.1 | 0.75 | 0.87 | 2.38 | 3000 | 4.2 |
| LM110BLS75 | 310 | 159 | 3.7 | 0.6 | 91.1 | 1.03 | 0.87 | 3.3 | 3000 | 5.7 |
| LM110BLS100 | 310 | 184 | 5.6 | 1.5 | 91.1 | 1.57 | 0.87 | 5 | 3000 | 7.0 |
| LM110BLS125 | 310 | 209 | 7.7 | 1.0 | 88.6 | 2.07 | 0.845 | 6.6 | 3000 | 9.5 |
| Bldc Motors Wires | Hall Sensor Wires | ||||||
| U | V | W | +5VDC | GND | Hu | Hv | Hw |
| Yellow | Green | Blue | Red | Black | Yello | Green | Blue |
General Specifications | |
| Item | Specification |
| Winding type | Star |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm@450g |
| End play | 0.08mm@450g |
| Max.radial force | 300N@20mm from the flange |
| Max. axial force | 70N |
| Insulation class | Class B |
| Dielectric Strength | 1200VDC for one minute |
| Insulation Resistance | 100MΩ Min., 500VDC |
| Model No. | Rated voltage | Motor Length | Rated Current | No Load Current | Back E.M.F | Rated power | Torque Constant | Rated torque | Rated speed | Weight |
| VDC | (L)mm | A | A | V/Krpm | KW | N.m/A | N.m | Rpm | kg | |
| LM110BLS50 | 310 | 134 | 2.7 | 0.5 | 91.1 | 0.75 | 0.87 | 2.38 | 3000 | 4.2 |
| LM110BLS75 | 310 | 159 | 3.7 | 0.6 | 91.1 | 1.03 | 0.87 | 3.3 | 3000 | 5.7 |
| LM110BLS100 | 310 | 184 | 5.6 | 1.5 | 91.1 | 1.57 | 0.87 | 5 | 3000 | 7.0 |
| LM110BLS125 | 310 | 209 | 7.7 | 1.0 | 88.6 | 2.07 | 0.845 | 6.6 | 3000 | 9.5 |
| Bldc Motors Wires | Hall Sensor Wires | ||||||
| U | V | W | +5VDC | GND | Hu | Hv | Hw |
| Yellow | Green | Blue | Red | Black | Yello | Green | Blue |
