Motor Length: 47mm / 67mm / 87mm / 107mm
Rated voltage：36V
| Quantity: | |
|---|---|

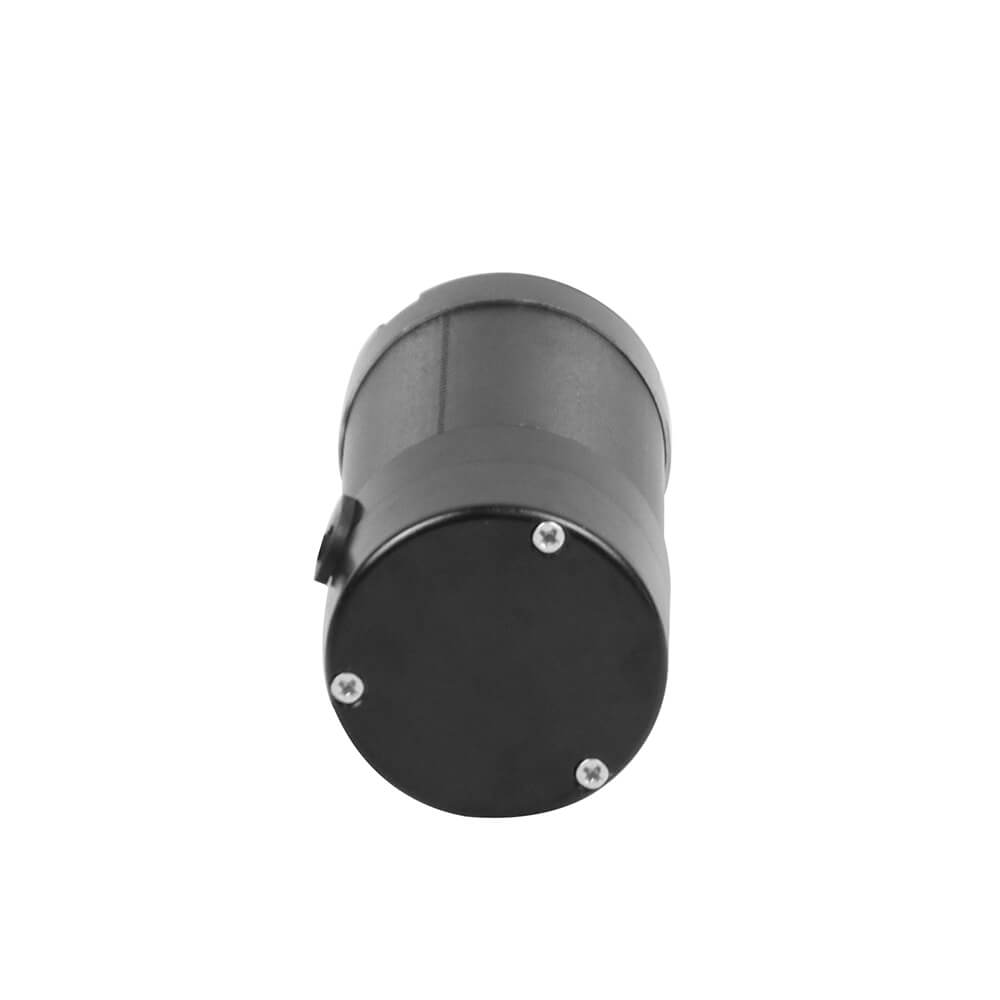

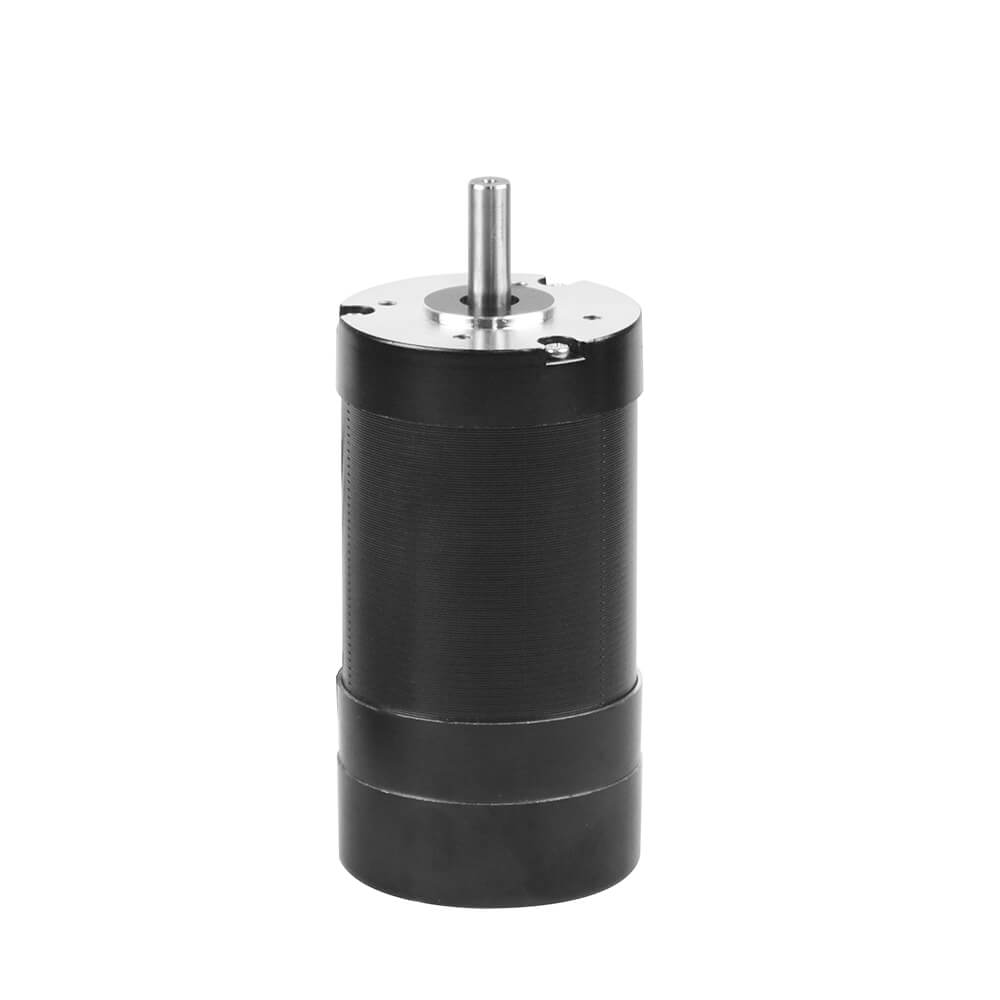

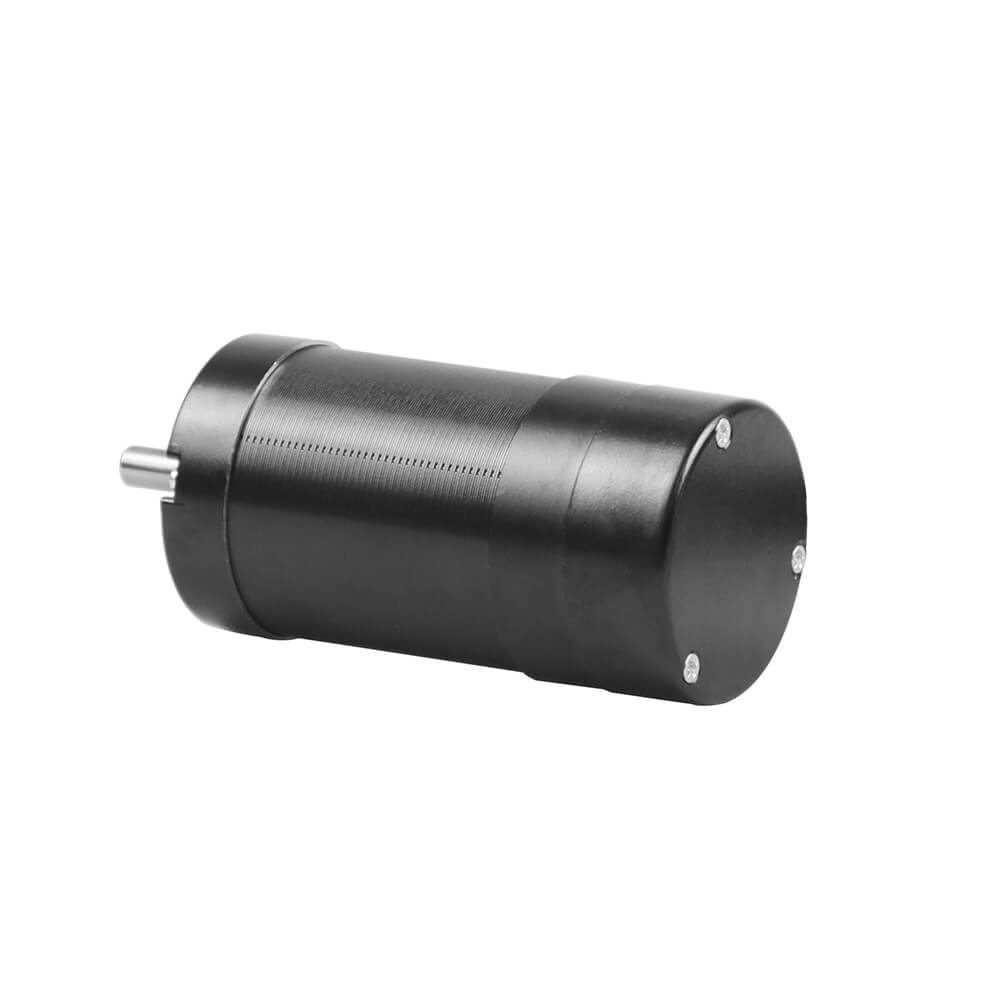

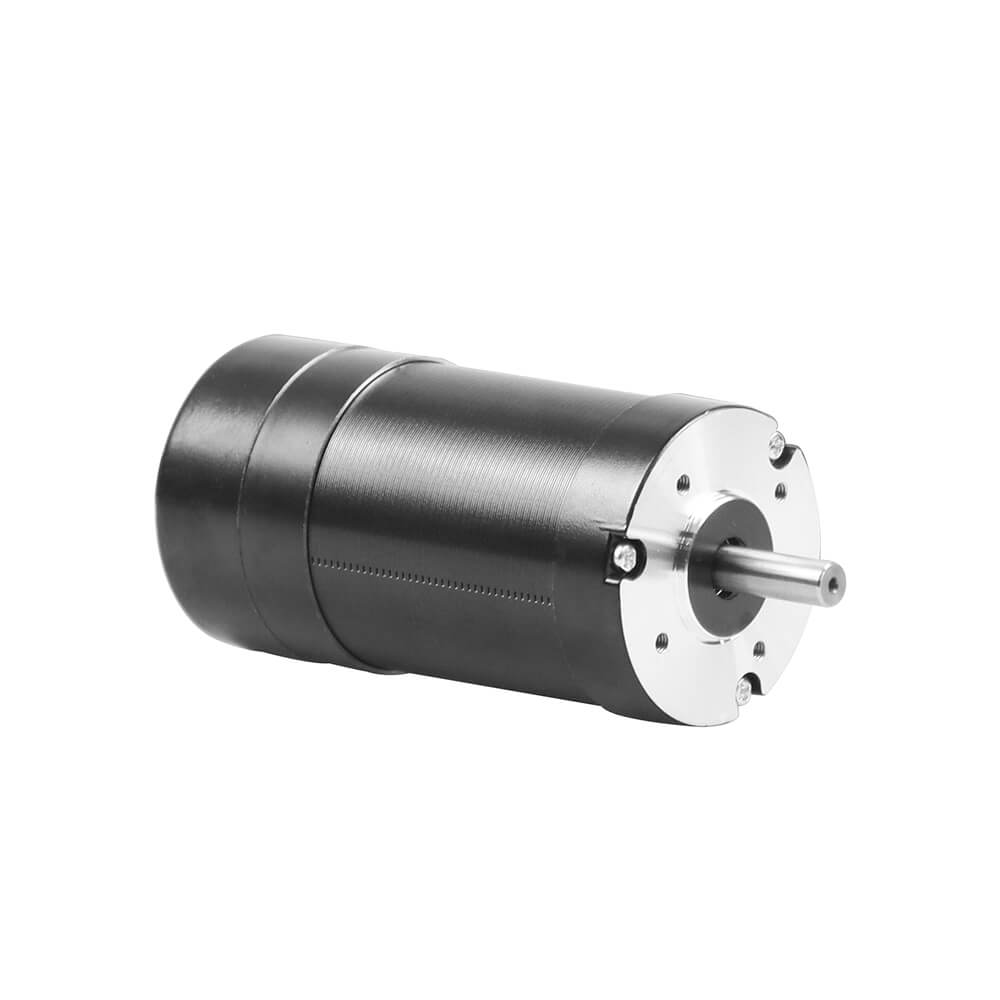

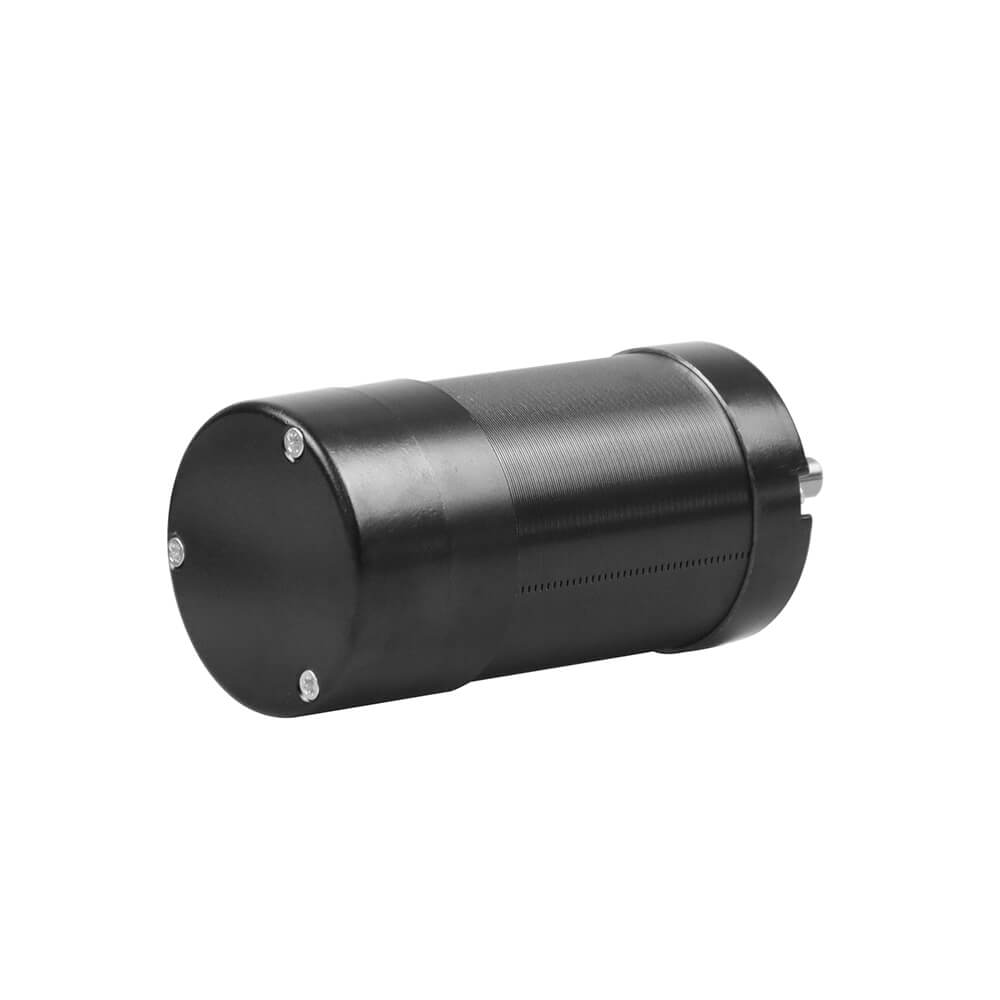

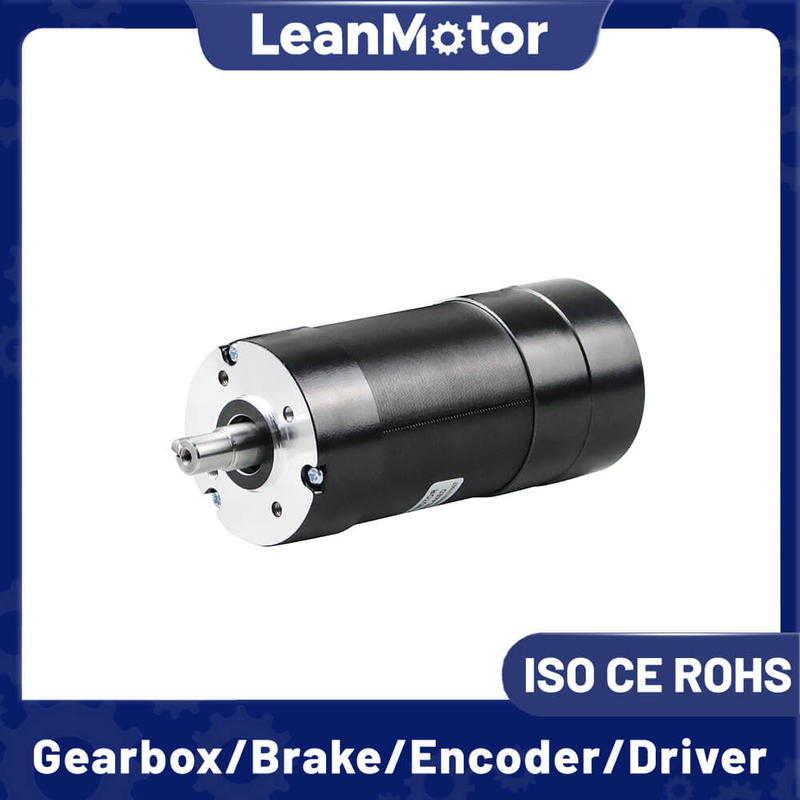

Nema 23 57BLS Square Head Brushless BLDC DC Servo Motor with Encoder
LeanMotor
Nema 23 (57mm)
3 Phase
24V, 36V
10 Pcs
General Specifications | |
| Item | Specification |
| Winding type | Star |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm@450g |
| End play | 0.08mm@450g |
| Max.radial force | 75N@20mm from the flange |
| Max. axial force | 15N |
| Insulation class | Class B |
| Dielectric Strength | 500VDC for one minute |
| Insulation Resistance | 100MΩ Min., 500VDC |
| Model No. | Rated voltage | Motor Length | Current | Rated power | Rotor Inertia | Rated torque | Rated speed | Weight |
| VDC | (L)mm | A | W | g.cm² | N.m | Rpm | kg | |

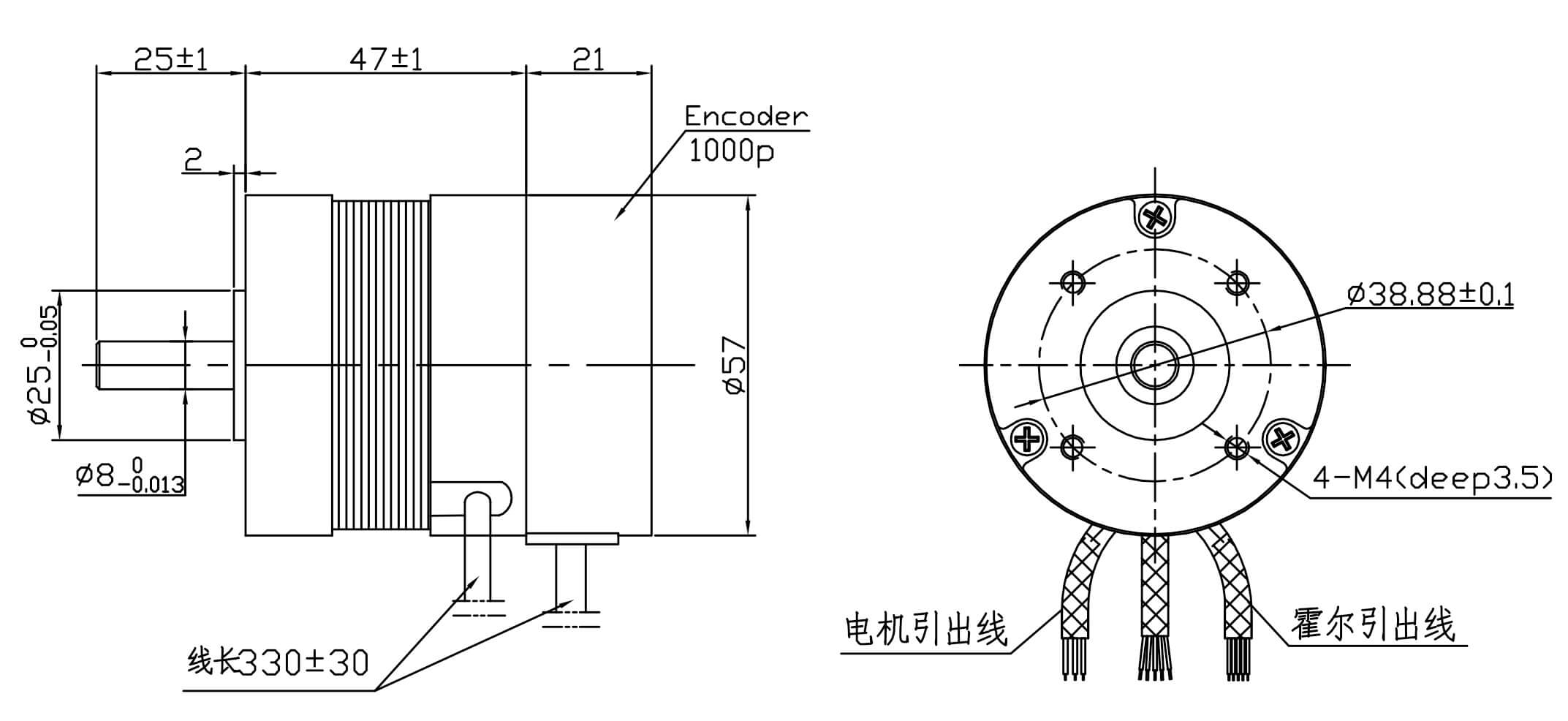

| LM57BLS47-X005ED | 36 | 47 | 2.0 | 26 | 75 | 0.33 | 4000 | 0.44 |
| LM57BLS67-X010ED | 36 | 67 | 3.6 | 52.5 | 119 | 0.66 | 4000 | 0.75 |
| LM57BLS87-X014ED | 36 | 87 | 5.3 | 77.5 | 173 | 1.0 | 4000 | 1.0 |
| LM57BLS107-X022ED | 36 | 107 | 6.8 | 105 | 230 | 1.32 | 4000 | 1.25 |
| Bldc Motors Wires | Hall Sensor Wires | ||||||
| U | V | W | +5VDC | GND | Hu | Hv | Hw |
| Yellow | Green | Blue | Red | Black | Yello | Green | Blue |
| Vcc-Encoder Voltage (+5V) | EGND-Encoder Grand（0V) | EA-Encoder A phase input | EB-Encoder B phase input | EZ-Encoder Z phase input |
| RED | BLACK | GREEN | BLUE | YELLOW |
General Specifications | |
| Item | Specification |
| Winding type | Star |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm@450g |
| End play | 0.08mm@450g |
| Max.radial force | 75N@20mm from the flange |
| Max. axial force | 15N |
| Insulation class | Class B |
| Dielectric Strength | 500VDC for one minute |
| Insulation Resistance | 100MΩ Min., 500VDC |
| Model No. | Rated voltage | Motor Length | Current | Rated power | Rotor Inertia | Rated torque | Rated speed | Weight |
| VDC | (L)mm | A | W | g.cm² | N.m | Rpm | kg | |
| LM57BLS47-X005ED | 36 | 47 | 2.0 | 26 | 75 | 0.33 | 4000 | 0.44 |
| LM57BLS67-X010ED | 36 | 67 | 3.6 | 52.5 | 119 | 0.66 | 4000 | 0.75 |
| LM57BLS87-X014ED | 36 | 87 | 5.3 | 77.5 | 173 | 1.0 | 4000 | 1.0 |
| LM57BLS107-X022ED | 36 | 107 | 6.8 | 105 | 230 | 1.32 | 4000 | 1.25 |
| Bldc Motors Wires | Hall Sensor Wires | ||||||
| U | V | W | +5VDC | GND | Hu | Hv | Hw |
| Yellow | Green | Blue | Red | Black | Yello | Green | Blue |
| Vcc-Encoder Voltage (+5V) | EGND-Encoder Grand（0V) | EA-Encoder A phase input | EB-Encoder B phase input | EZ-Encoder Z phase input |
| RED | BLACK | GREEN | BLUE | YELLOW |
