Current: 1.33A - 1.7A
Motor Length: 34mm - 60mm
Customized: Connectors, Gearbox, Encoder, Brake, Lead Screw, Integrated Driver...
| Quantity: | |
|---|---|

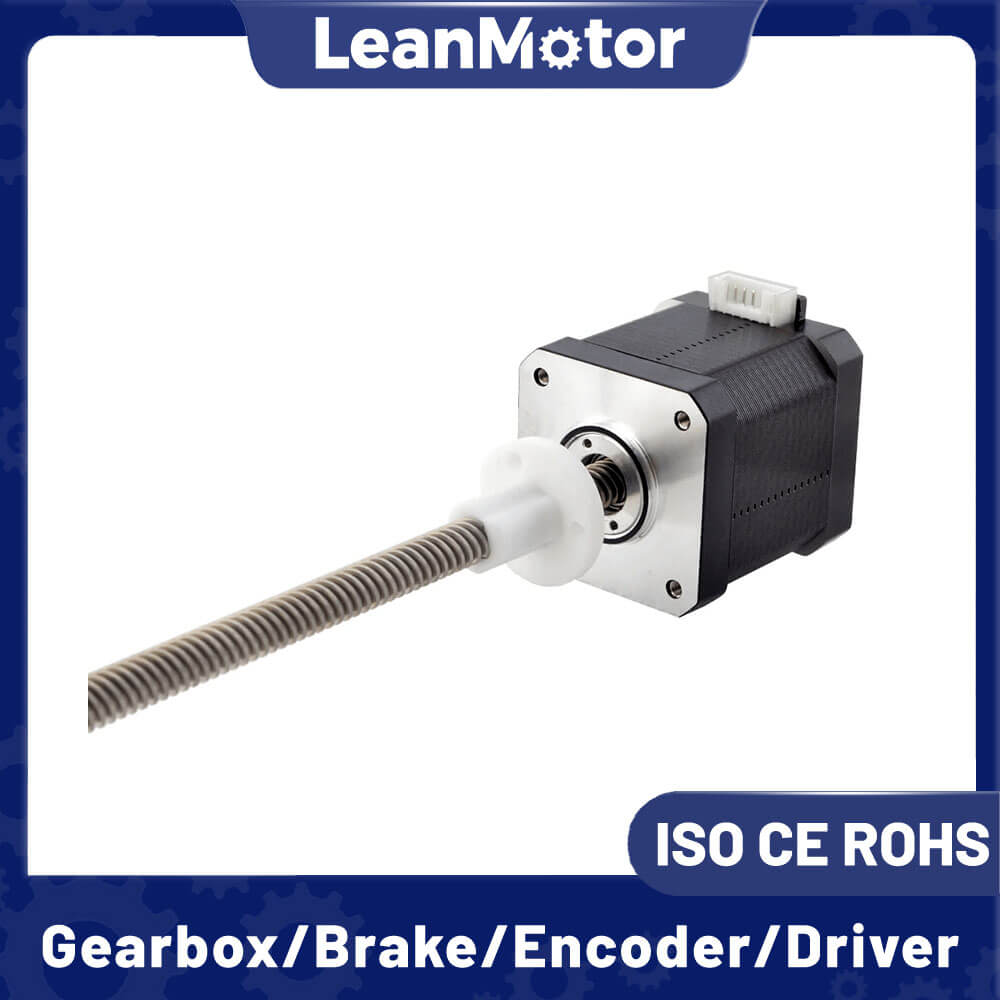

Nema 17 External T-type Linear Stepper Motor
LEANMOTOR
Linear Motors
External T-type Linear
Nema17 (42mm)
4wires
2 Phase
1.8°
10 Pcs
General Specifications：
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | Kg.cm | No. | g.cm | g.cm2 | Kg | |
| LM42HST34-1334 | 1.8 | 34 | 1.33 | 2.1 | 2.5 | 2.6 | 4 | 120 | 34 | 0.22 |
| LM42HST40-1704 | 1.8 | 40 | 1.7 | 1.5 | 2.3 | 4.2 | 4 | 150 | 54 | 0.28 |
| LM42HST48-1684 | 1.8 | 48 | 1.68 | 1.65 | 2.8 | 5.5 | 4 | 260 | 68 | 0.38 |
| LM42HST60-1704 | 1.8 | 60 | 1.7 | 3 | 6.2 | 7.3 | 4 | 280 | 102 | 0.55 |
Note: Above only for representative products, products of special request can be made according to the customer request.
| T-type Lead Screw Rod Physical Specification | |||||||
| Screw Diameter | Screw Lead | Screw Pitch | Travel Per Step | Screw Diameter | Screw Lead | Screw Pitch | Travel Per Step |
| mm | mm | mm | mm | mm | mm | mm | mm |
| Tr5 | 1 | 1 | 0.005 | Tr8 | 8 | 2 | 0.04 |
| 2 | 1 | 0.01 | 10 | 2 | 0.05 | ||
| Tr6 | 2 | 1 | 0.01 | 12 | 2 | 0.06 | |
| 4 | 1 | 0.02 | 14 | 2 | 0.07 | ||
| 6 | 1 | 0.03 | Tr10 | 2 | 2 | 0.01 | |
| 12 | 2 | 0.06 | 3 | 1.5 | 0.015 | ||
| Tr8 | 1 | 1 | 0.005 | 4 | 2 | 0.02 | |
| 2 | 2 | 0.01 | 8 | 2 | 0.04 | ||
| 3 | 1.5 | 0.015 | 10 | 2 | 0.05 | ||
| 4 | 2 | 0.02 | 12 | 2 | 0.06 | ||
