Motor Length: 34mm / 40mm / 48mm /60mm
| Quantity: | |
|---|---|

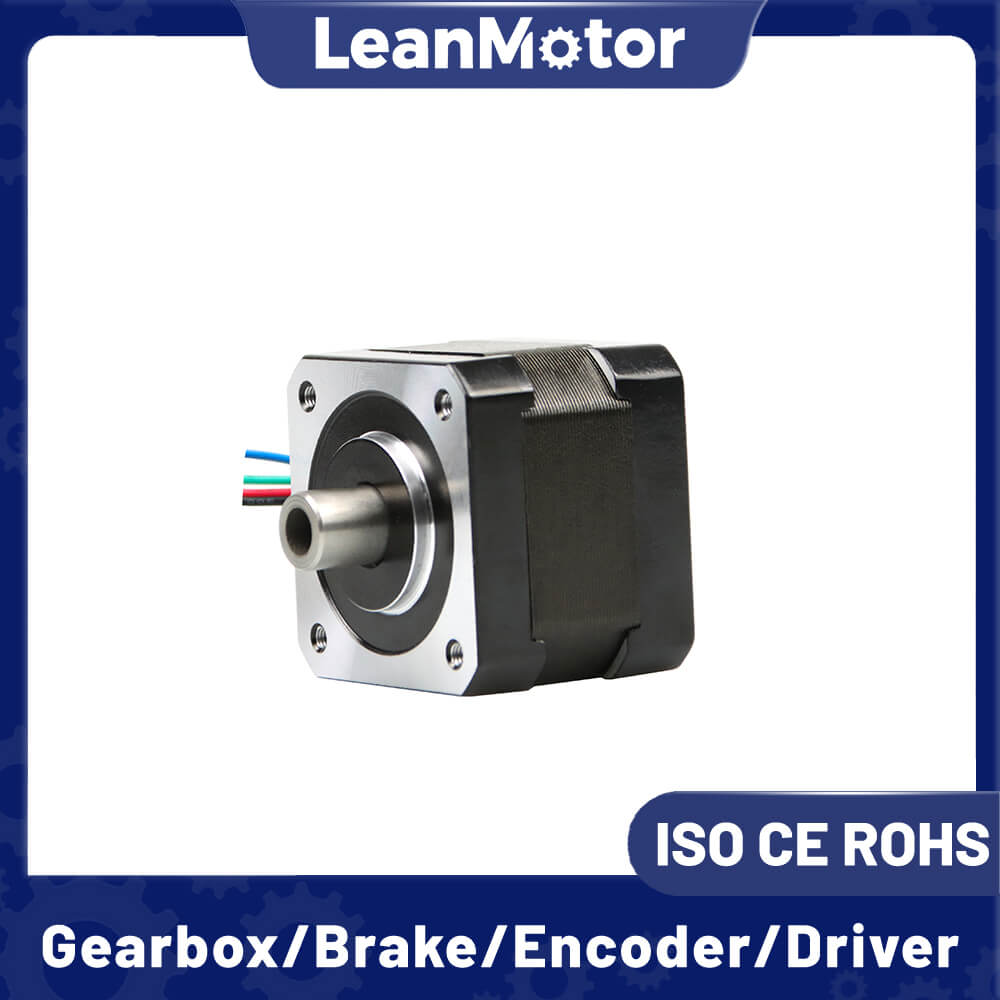

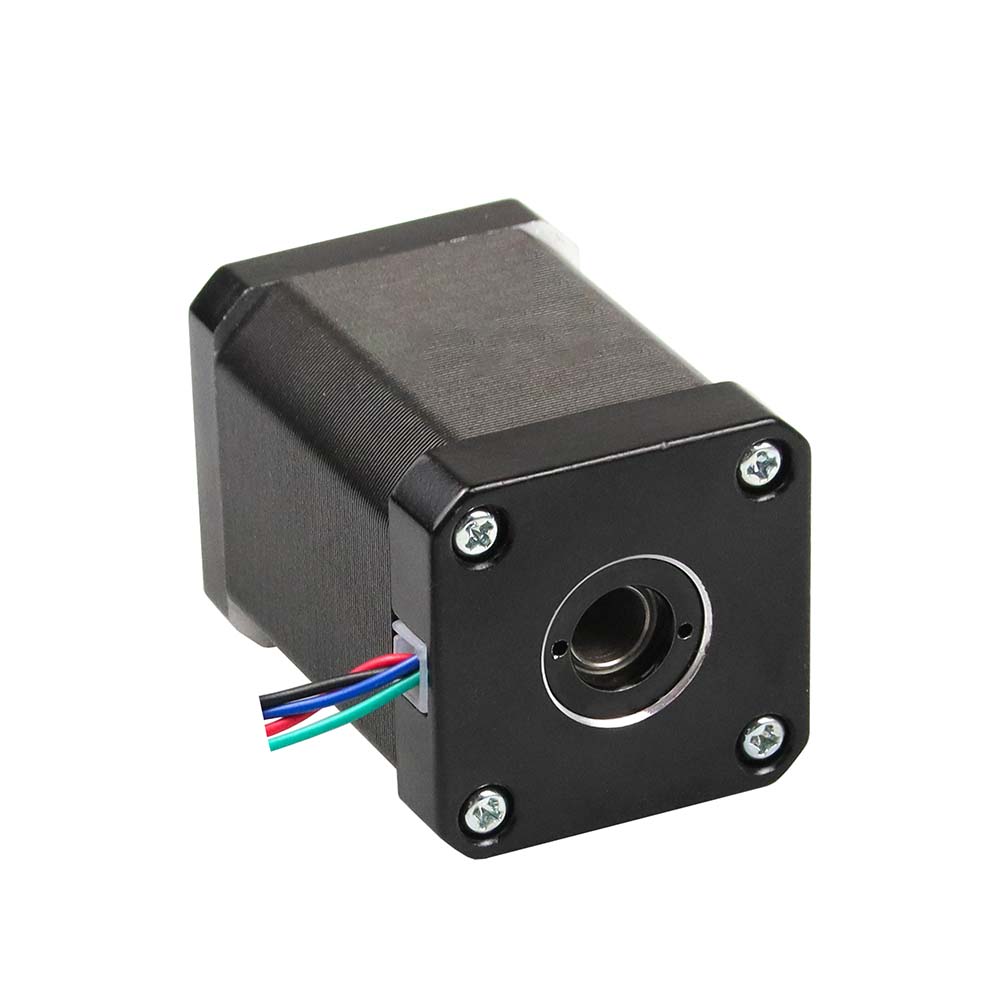

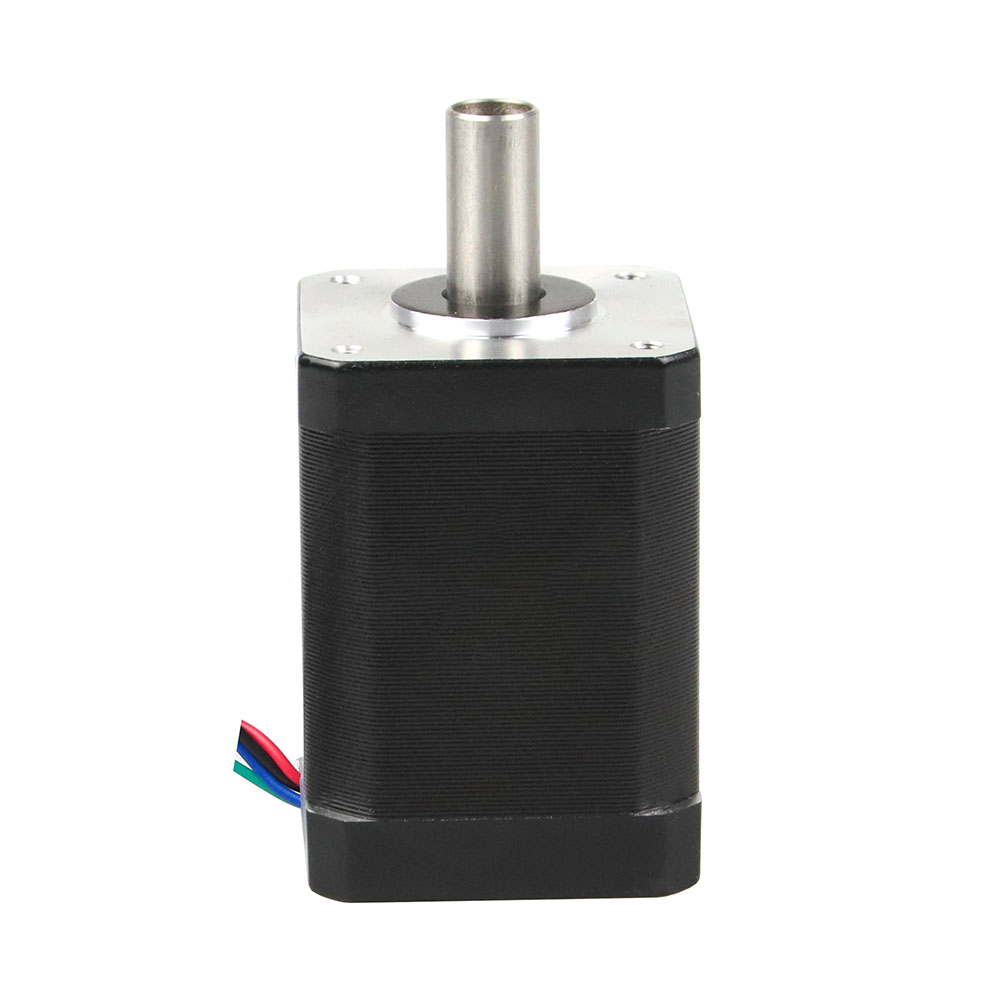

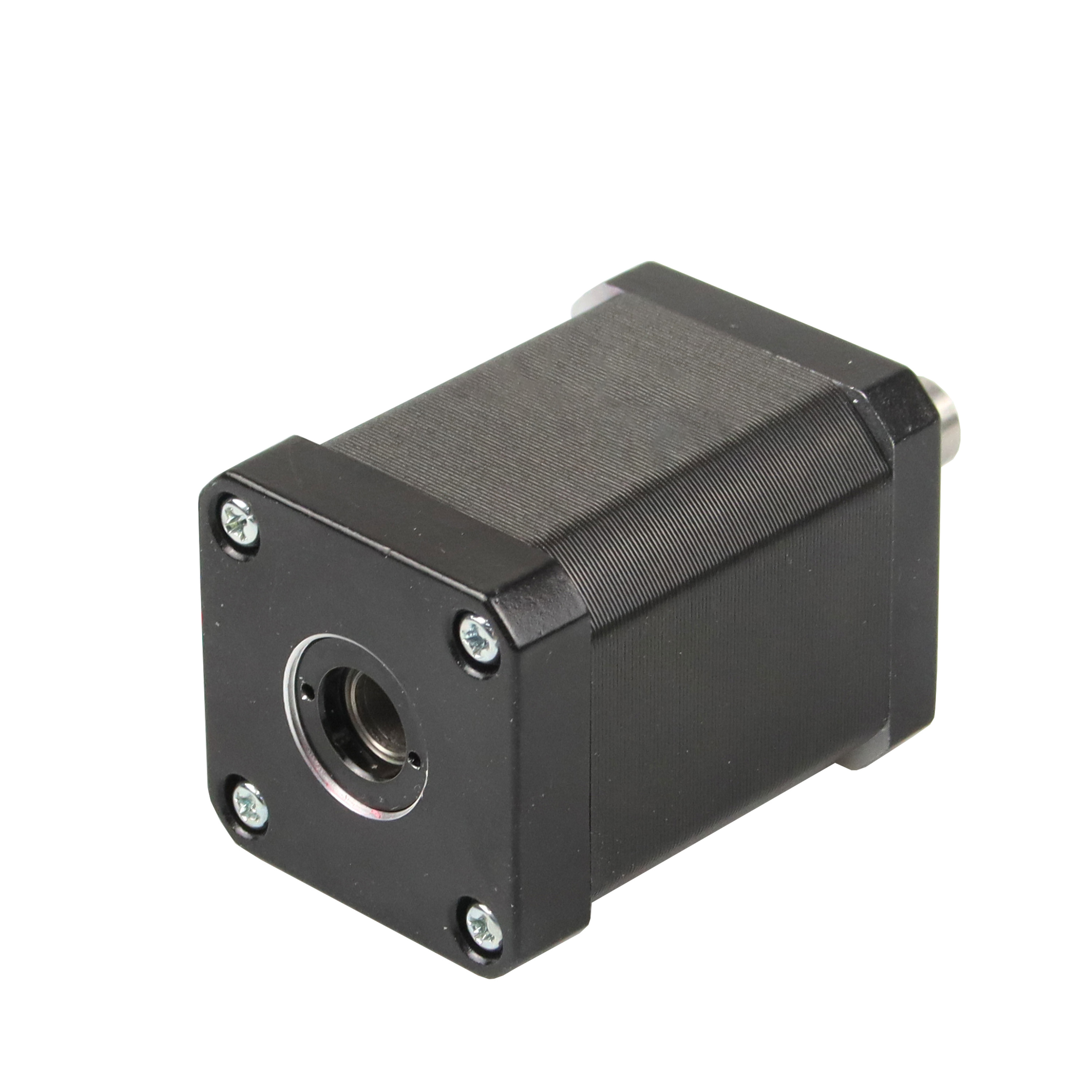

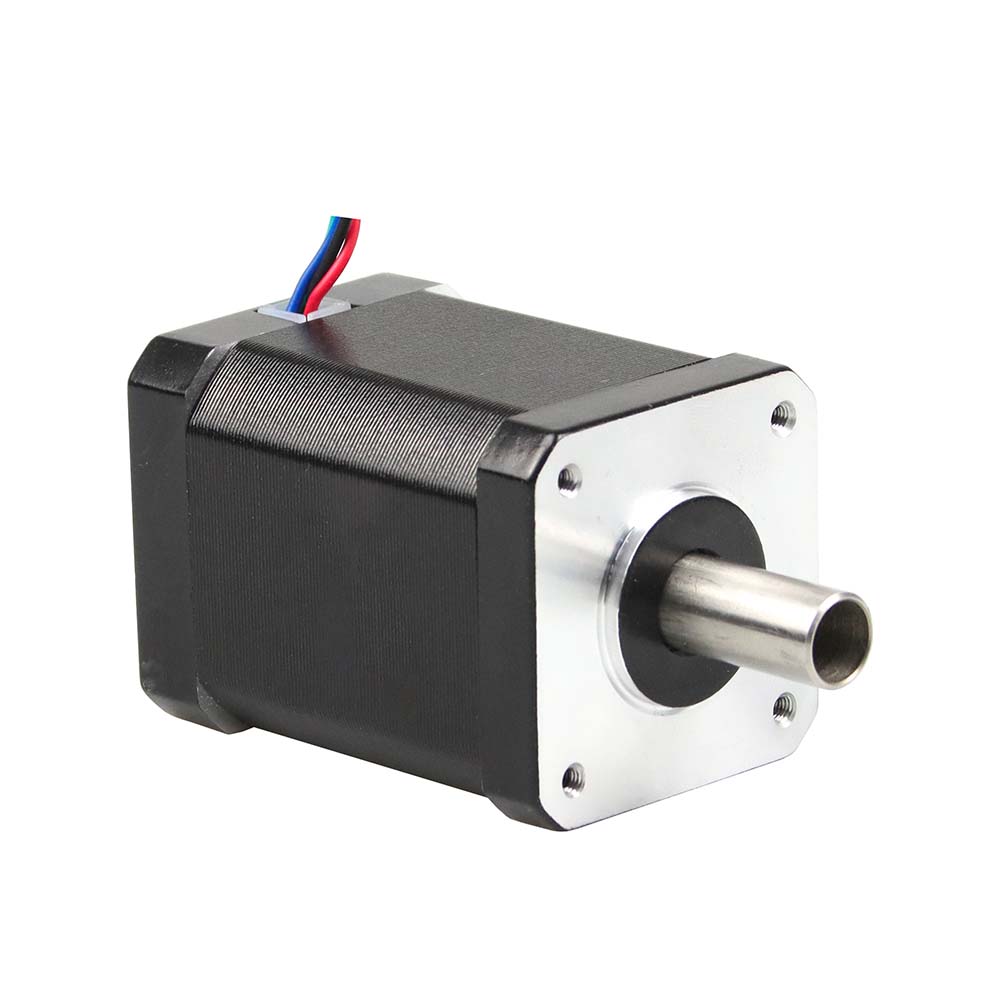

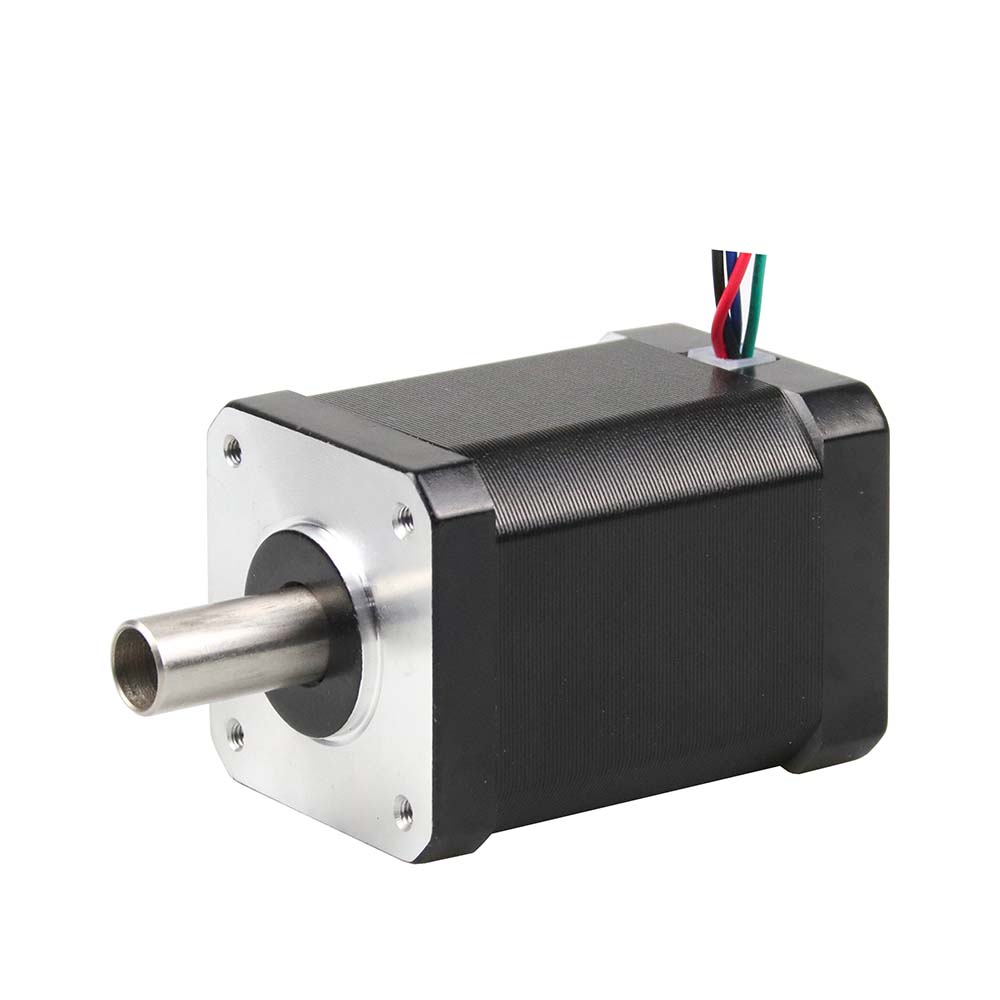

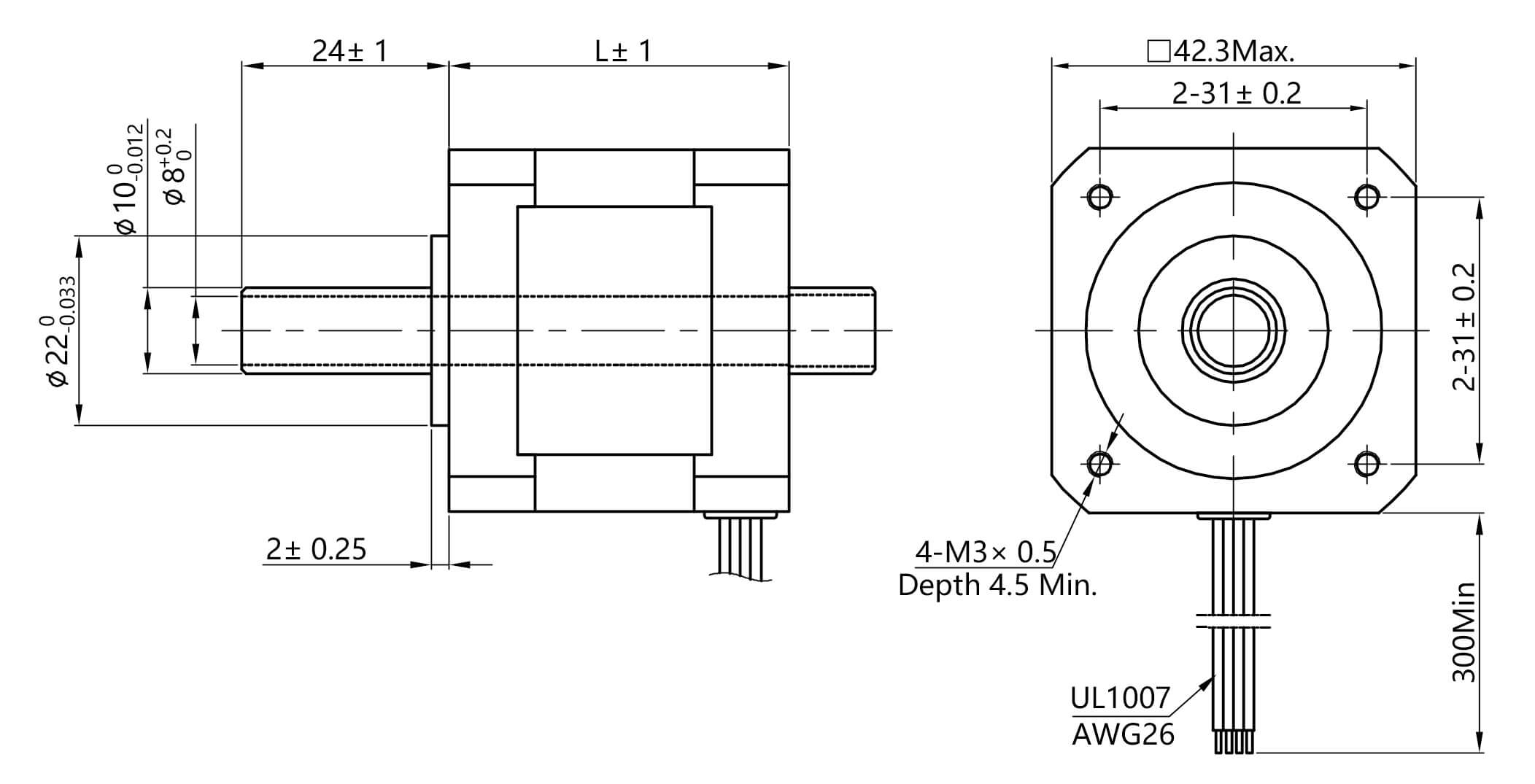

Nema 17 Hollow Shaft Stepper Motor
LEANMOTOR
Hollow Shaft Motors
Nema17 (42mm)
4wires
2 Phase
1.8°
10 Pcs
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm² | kg | |
| LM42HSH34-0604 | 1.8 | 34 | 1.33 | 2.1 | 2.5 | 1000 | 4 | 11 | 0.22 |
| LM42HSH40-0604 | 1.8 | 40 | 1.7 | 1.5 | 2.3 | 1400 | 4 | 13 | 0.28 |
| LM42HSH48-0604 | 1.8 | 48 | 1.68 | 1.65 | 2.8 | 2000 | 4 | 23 | 0.38 |
| LM42HSH60-0604 | 1.8 | 60 | 1.7 | 3 | 6.2 | 2000 | 4 | 23 | 0.55 |
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm² | kg | |
| LM42HSH34-0604 | 1.8 | 34 | 1.33 | 2.1 | 2.5 | 1000 | 4 | 11 | 0.22 |
| LM42HSH40-0604 | 1.8 | 40 | 1.7 | 1.5 | 2.3 | 1400 | 4 | 13 | 0.28 |
| LM42HSH48-0604 | 1.8 | 48 | 1.68 | 1.65 | 2.8 | 2000 | 4 | 23 | 0.38 |
| LM42HSH60-0604 | 1.8 | 60 | 1.7 | 3 | 6.2 | 2000 | 4 | 23 | 0.55 |
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
