LMHSD57
LeanMotor
10 Pcs

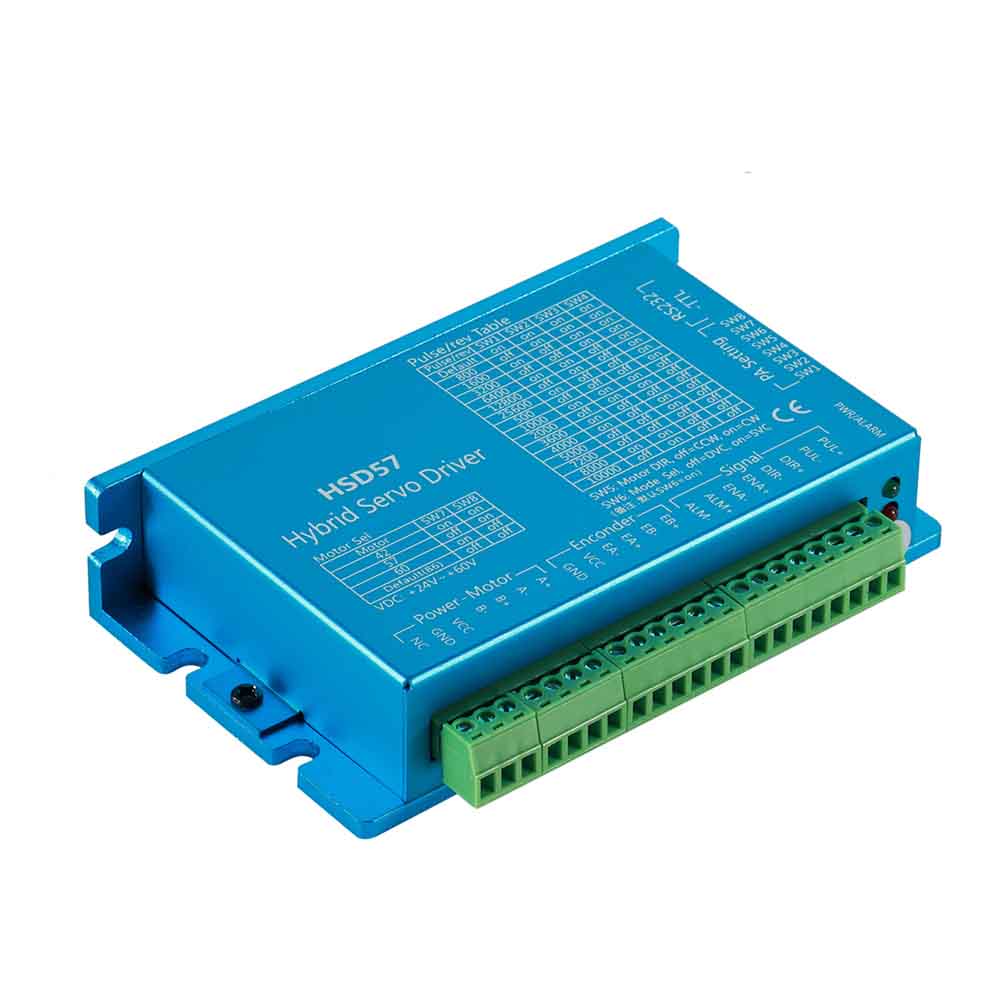

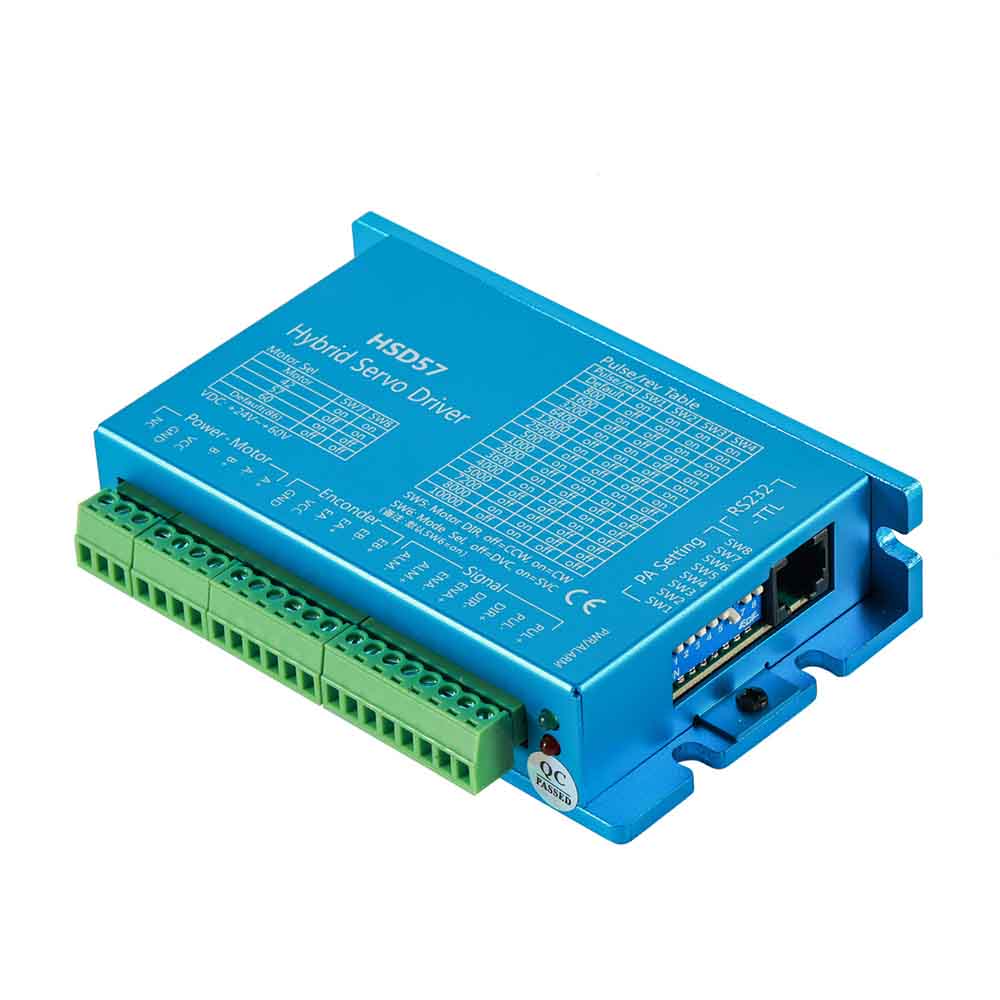

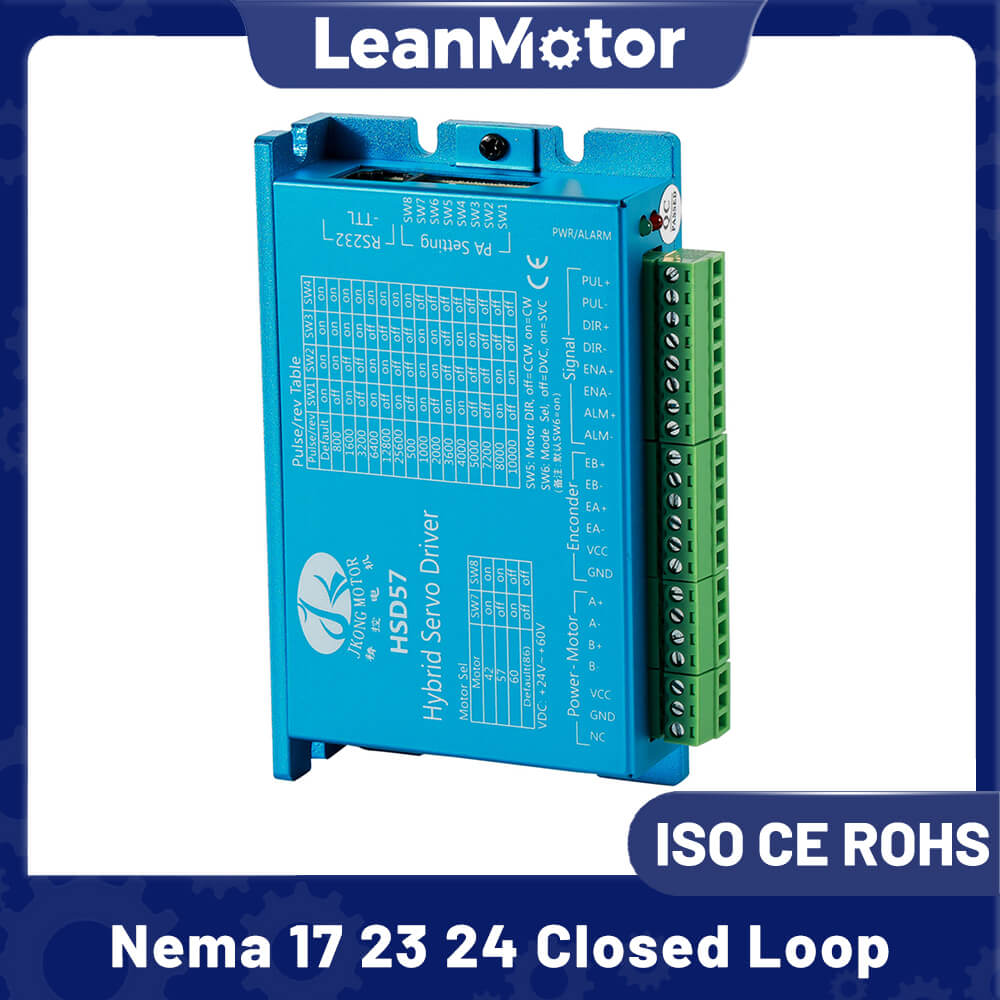

LM-HSD57 is one of the models in Jkongmotor series easy servo drives which can take 20-80 VDC operating voltage and output 0.1 -10A continuous load-based current. It is capable of driving NEMA 17, 23, 24 and 34 easy servo motors (stepper motors with encoders) with the position loop closed in real time. Based on latest DSP technology and adopting Novo's advanced control algorithm, LM-HSD57 easy servo drive applies servo control on easy servo motors. When adopted with an easy servo motor, it combines features of both open loop steppers & brushless servo systems, and offers many unique advances features for excellent motion control system performance. When an LM-HSD57 easy servo drive is implemented with a novo SC series easy servo motor, there is No Configuration Needed for almost all applications. The output resolution from LM-HSD57 with the output resolution defaulted to output resolution of 2,000 pulses per resolution (equal to 10 microstep in 2-phase stepper systems). Via DIP switches, a user can also easily change the output resolution to one of 15 output resolutions 400 to 51,200 (equal to 2-256 microstep in 2-phase stepper systems). With novo configuration software, ProTuner, an
advanced user can also set custom settings of resolution, current & position loop parameters, idle current
percentage, etc.
l Step and direction control
l Closed position loop for no loss of movement synchronization
l Operating voltage: 20-80 VDC
l Load based output current of 0.1 - 10 A
l High torque at starting and low speed
l No torque reservation
l High stiffness at standstill
l Significantly reduced motor heating
l Smooth motor movement and extra low motor noise
l Quick response, no delay and zero settling time
l No loss of steps; no hunting; no overshooting
l Plug-and-play and no tuning
With many unique advanced features, LM-HSD57 easy servo systems are ideal for many industries to
upgrade stepper performance or replace brushless servo systems in many applications.LeanMotor OEM clients have successfully implemented LM-HSD57 driven easy servo systems in applications such as small-to-large size CNC routers, CNC mills, plasmas, large-scale laser cutters / engravers, labeling equipments, robotics, gemstone processing machines, pick & place machines, X-Y tables.
