How Do Planetary Gearboxes Improve Precision Compared to Worm Gear Systems?

Modern industrial automation increasingly depends on high-precision motion control systems capable of delivering stable torque, accurate positioning, smooth low-speed operation, and long-term reliability. In applications ranging from semiconductor automation and CNC machinery to AGV robots and laboratory equipment, the gearbox plays a critical role in determining overall system precision.

Among the most widely used solutions, planetary geared stepper motors and worm geared stepper motors remain two of the most common choices. While both technologies are valuable in industrial automation, planetary gearbox systems consistently provide superior performance in applications requiring low backlash, higher efficiency, faster response, and accurate positioning.

Based on the motion control characteristics and gearbox configurations offered in LeanMotor’s planetary geared stepper motor and worm geared stepper motor product series, the differences in precision performance become even more apparent.

Understanding Planetary Geared Stepper Motors

A planetary geared stepper motor combines:

• A precision stepper motor

• A planetary gearbox reduction system

• Multiple planetary gears for balanced torque transmission

LeanMotor planetary geared stepper motors are designed to provide:

• High torque output

• Compact structure

• Low backlash

• Stable transmission accuracy

• High transmission efficiency

• Excellent repeatability

The planetary gear mechanism distributes force evenly across multiple gears, allowing the motor system to maintain highly stable rotational movement even under varying load conditions.

This structure makes planetary gearbox motors ideal for:

• Robotics

• Semiconductor equipment

• CNC positioning systems

• Medical automation

• Precision inspection systems

• AGV and AMR robots

Understanding Worm Geared Stepper Motors

Worm geared stepper motors integrate:

• A stepper motor

• A worm shaft

• A worm wheel reduction system

LeanMotor worm geared stepper motors are commonly used in:

• Conveyor systems

• Valve control

• Lifting mechanisms

• Packaging equipment

• Low-speed drive systems

Worm gearboxes are valued for:

• High reduction ratios

• Self-locking capability

• Compact right-angle output structure

• Cost-effective torque multiplication

However, due to the sliding contact design between the worm shaft and worm wheel, worm gear systems naturally introduce higher friction, greater heat generation, and larger backlash compared to planetary gear systems.

These factors directly influence precision performance.

LeanMotor Geared Stepper Motors

Why Planetary Gearboxes Provide Better Precision Than Worm Gear Systems

1. Lower Backlash Delivers More Accurate Positioning

One of the biggest performance advantages of LeanMotor planetary geared stepper motors is their low backlash design.

Planetary Gearbox Precision Advantage

Planetary gear systems are engineered with tightly meshed gears and balanced internal load distribution. This significantly minimizes gear clearance.

The result is:

• More precise positioning

• Reduced lost motion

• Better directional repeatability

• Smoother motion reversal

LeanMotor planetary gearboxes are particularly suitable for systems requiring:

• Accurate indexing

• Repetitive positioning

• High-resolution motion control

Worm Gearbox Limitation

Worm gear systems naturally require more clearance between gear surfaces to reduce friction and avoid excessive wear.

This creates:

• Higher backlash

• Positioning deviation

• Reduced repeatability

• Slower response during directional changes

For applications such as robotic arm positioning or semiconductor wafer handling, even small backlash errors can significantly impact system performance.

2. Higher Efficiency Improves Motion Stability

LeanMotor planetary geared stepper motors offer significantly higher transmission efficiency than worm gear systems.

Planetary Gear Efficiency

Planetary gearboxes use rolling gear engagement, resulting in:

• Lower friction

• Reduced energy loss

• Stable speed output

• Better torque consistency

Typical planetary gearbox efficiency can reach:

• 90%–97%

This enables:

• Faster acceleration

• More responsive servo-like performance:

• Faster acceleration

• More responsive servo-like performance

• Improved dynamic motion control

Worm Gear Efficiency

Worm gearboxes rely on sliding friction between the worm shaft and gear teeth.

This causes:

• Higher heat generation

• Reduced energy efficiency

• Increased mechanical wear

• Greater power consumption

Typical worm gearbox efficiency often falls between:

• 50%–85%

As operating temperatures rise, positioning consistency can gradually decline.

3. Better Torque Density in Compact Spaces

LeanMotor planetary geared stepper motors provide extremely high torque output relative to their compact size.

Because multiple planet gears share the load simultaneously, planetary systems achieve:

• Higher torque density

• Smaller installation footprint

• Improved load balance

• Reduced shaft stress

This is especially important in compact automation equipment such as:

• Collaborative robots

• Portable medical systems

• Semiconductor transfer modules

• Automated optical inspection machines

Worm gear systems can also generate high torque, but they generally require:

• Larger housing dimensions

• Higher thermal management

• Slower operating speeds

4. Improved Repeatability for Automation Systems

Precision automation requires not only accurate positioning once, but the ability to repeat that position consistently over millions of cycles.

LeanMotor planetary gearbox systems excel in repeatability because they maintain:

• Stable tooth engagement

• Low wear rates

• Balanced force distribution

• Reduced vibration

This makes them ideal for:

• Pick-and-place automation

• Electronic assembly equipment

• Precision dosing systems

• Laboratory robotics

Worm gear systems experience more gradual wear due to constant sliding contact, which can increase backlash over time and reduce repeatability.

5. Faster Dynamic Response Enhances Precision Control

Modern automation equipment requires rapid start-stop motion with minimal delay.

Planetary gearboxes provide:

• High torsional stiffness

• Faster acceleration response

• Reduced elastic deformation

• Better synchronization with stepper motors

This allows LeanMotor planetary geared stepper motors to deliver:

• Smoother microstepping performance

• Better high-speed stability

• More precise low-speed motion

Worm geared systems typically respond slower because of:

• Greater friction resistance

• Mechanical lag

• Higher rotational inertia

In high-speed indexing applications, planetary systems provide noticeably better responsiveness.

6. Reduced Heat Generation Maintains Long-Term Accuracy

Thermal stability is essential for maintaining positioning accuracy.

LeanMotor planetary gearbox systems generate less heat because of their high-efficiency rolling contact structure.

Benefits include:

• Stable dimensional accuracy

• Reduced thermal expansion

• Longer lubricant life

• Improved bearing durability

Worm gear systems generate significantly more heat due to sliding friction, especially during continuous operation.

Excessive heat can cause:

• Lubrication degradation

• Gear wear

• Increased backlash

• Reduced positioning precision

For continuous-duty industrial automation, planetary systems provide more stable long-term performance.

Leanmotor Customized Service

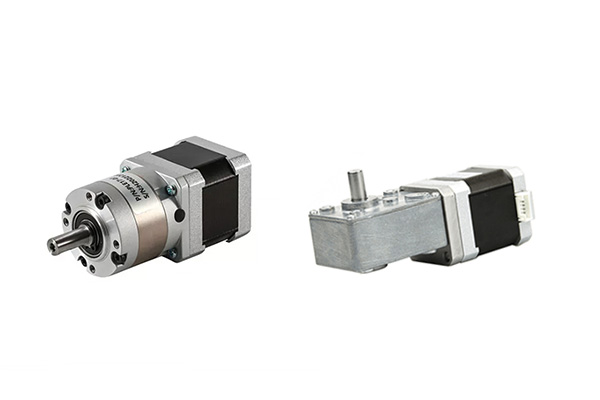

Planetary Gearbox vs Worm Gearbox

Planetary gearboxes are ideal for applications requiring high precision, fast response, and efficient motion control, while worm gearboxes are better suited for low-speed, high-torque, and self-locking applications.

Applications Where Planetary Gearboxes Clearly Outperform Worm Gears

Semiconductor Equipment

LeanMotor planetary geared stepper motors are highly suitable for:

• Wafer handling

• Precision stage movement

• Inspection positioning systems

Their low backlash and stable torque characteristics support micron-level positioning accuracy.

Robotics and Automation

Robotic joints require:

• Fast response

• Smooth interpolation

• Accurate angular positioning

Planetary gearboxes improve robotic precision by delivering:

• High torque in compact spaces

• Stable rotational movement

• Excellent repeatability

Medical and Laboratory Equipment

Medical automation systems require:

• Quiet operation

• Smooth low-speed control

• Reliable precision

Planetary gearbox systems support:

• Diagnostic analyzers

• Surgical robots

• Fluid dispensing systems

• Laboratory automation

AGV and AMR Mobile Robots

Autonomous mobile robots depend on:

• Precise speed control

• Compact drive systems

• Efficient battery usage

LeanMotor planetary geared stepper motors improve:

• Navigation precision

• Energy efficiency

• Dynamic movement control

When Worm Geared Stepper Motors Are Still a Good Choice

Although planetary gearboxes offer higher precision and efficiency, worm geared stepper motors remain an excellent solution for many industrial applications. Their unique gearbox structure provides strong low-speed torque output and natural self-locking capability, making them highly practical in systems where holding force and simple motion control are important.

Worm geared stepper motors are commonly used in:

• Conveyor systems

• Lifting platforms

• Valve control equipment

• Packaging machinery

• Material handling systems

One major advantage of worm gear systems is their self-locking performance, which helps prevent reverse movement when power is off. This is especially useful in vertical load applications where additional braking systems may not be necessary.

They are also suitable for:

• Low-speed operation

• High reduction ratio requirements

• Cost-sensitive automation equipment

• Space-limited right-angle drive systems

LeanMotor worm geared stepper motors provide stable torque output, compact installation, and reliable performance for industrial applications that do not require ultra-low backlash or extremely high positioning accuracy.

For simple automation tasks focused on torque, load holding, and economical operation, worm geared stepper motors remain a dependable and efficient choice.

Planetary Gearboxes and the Future of Precision Motion Control

As industrial automation advances toward smarter and faster production systems, the demand for high-precision motion control continues to grow. Industries such as robotics, semiconductor manufacturing, medical automation, CNC machinery, and AGV/AMR robotics increasingly require motion systems with:

• Low backlash

• High positioning accuracy

• Fast dynamic response

• Compact structure

• Energy-efficient operation

Planetary gearboxes have become a preferred solution because they combine high torque density, excellent efficiency, and stable transmission accuracy in a compact design.

Compared to traditional worm gear systems, planetary gearboxes provide:

• Higher transmission efficiency

• Lower heat generation

• Better repeatability

• Reduced vibration

• Faster acceleration and deceleration response

These advantages make planetary geared stepper motors ideal for advanced automation systems that require reliable and accurate motion control over long operating cycles.

LeanMotor planetary geared stepper motors are widely suitable for:

• Robotic joints

• Semiconductor handling equipment

• Precision positioning systems

• Laboratory automation

• Intelligent mobile robots

As Industry 4.0 and intelligent manufacturing continue expanding, planetary gearbox technology will remain a key component in achieving efficient, compact, and highly precise motion control solutions.

Conclusion

Compared to worm gear systems, planetary geared stepper motors provide significantly better precision, efficiency, repeatability, and dynamic performance.

LeanMotor planetary gearbox solutions deliver:

• Lower backlash

• Higher transmission efficiency

• Better servo responsiveness

• Reduced heat generation

• Higher torque density

• Improved long-term positioning stability

While worm geared stepper motors remain valuable for self-locking and low-speed torque applications, planetary gearbox systems are the superior solution for advanced automation industries requiring high-precision motion control.

As automation technology continues evolving toward smarter, faster, and more accurate systems, planetary geared stepper motors will remain a core component in precision industrial motion applications.

LeanMotor planetary geared stepper motors help manufacturers achieve compact, efficient, and highly accurate motion control for modern industrial automation systems.
