Motor Length: 78mm / 99mm / 120mm /141mm
Rated voltage：48V
| Quantity: | |
|---|---|

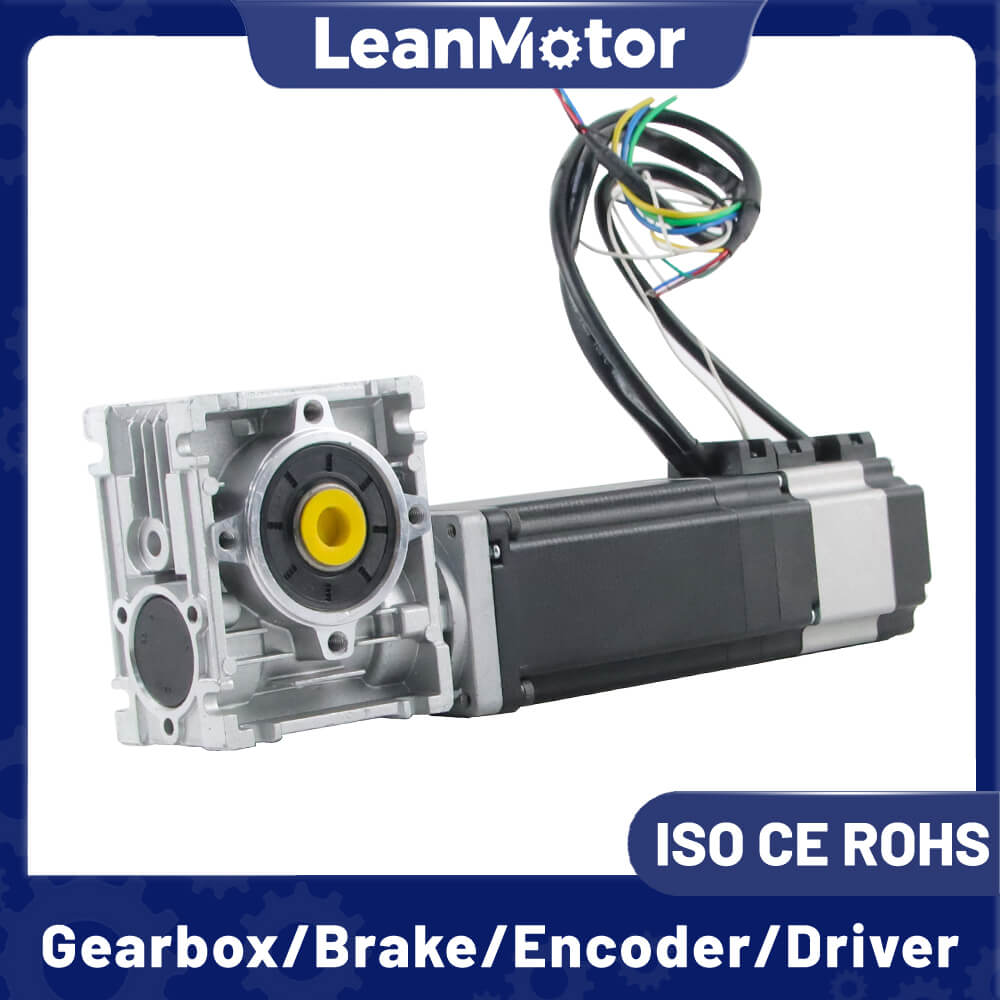

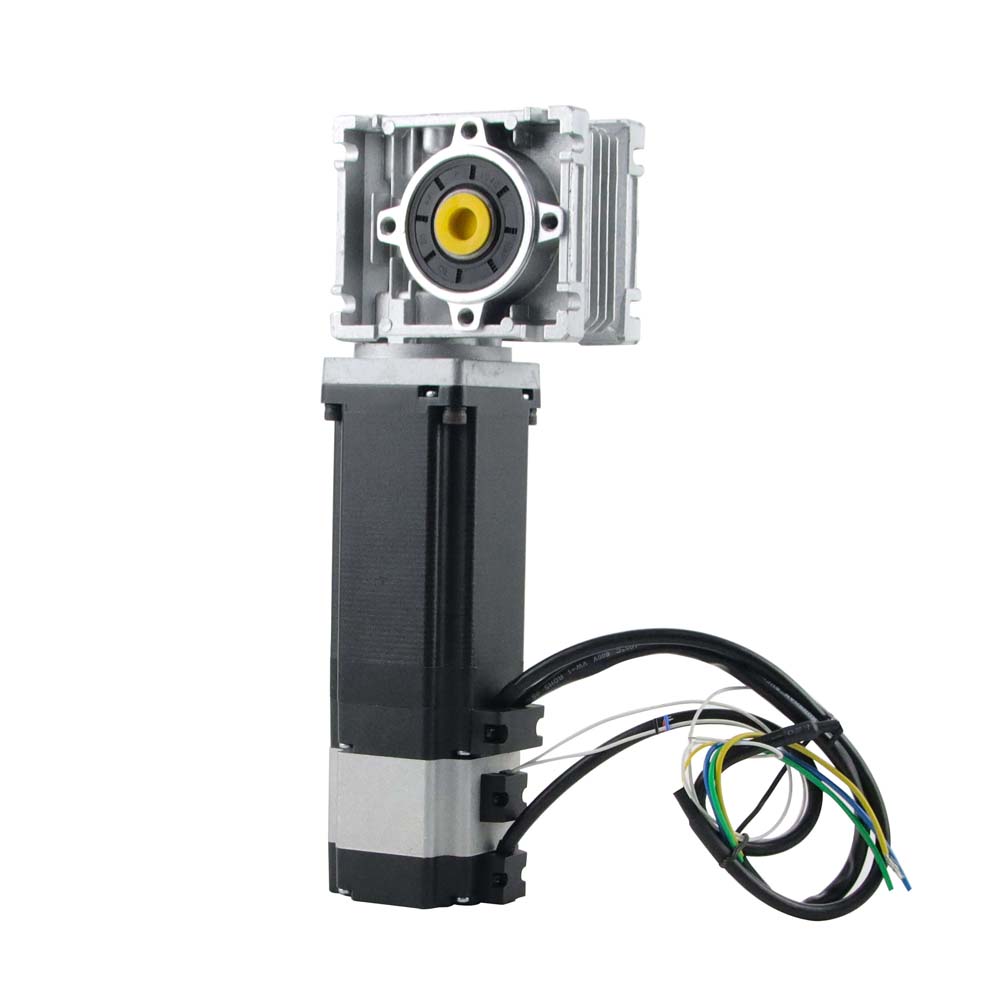

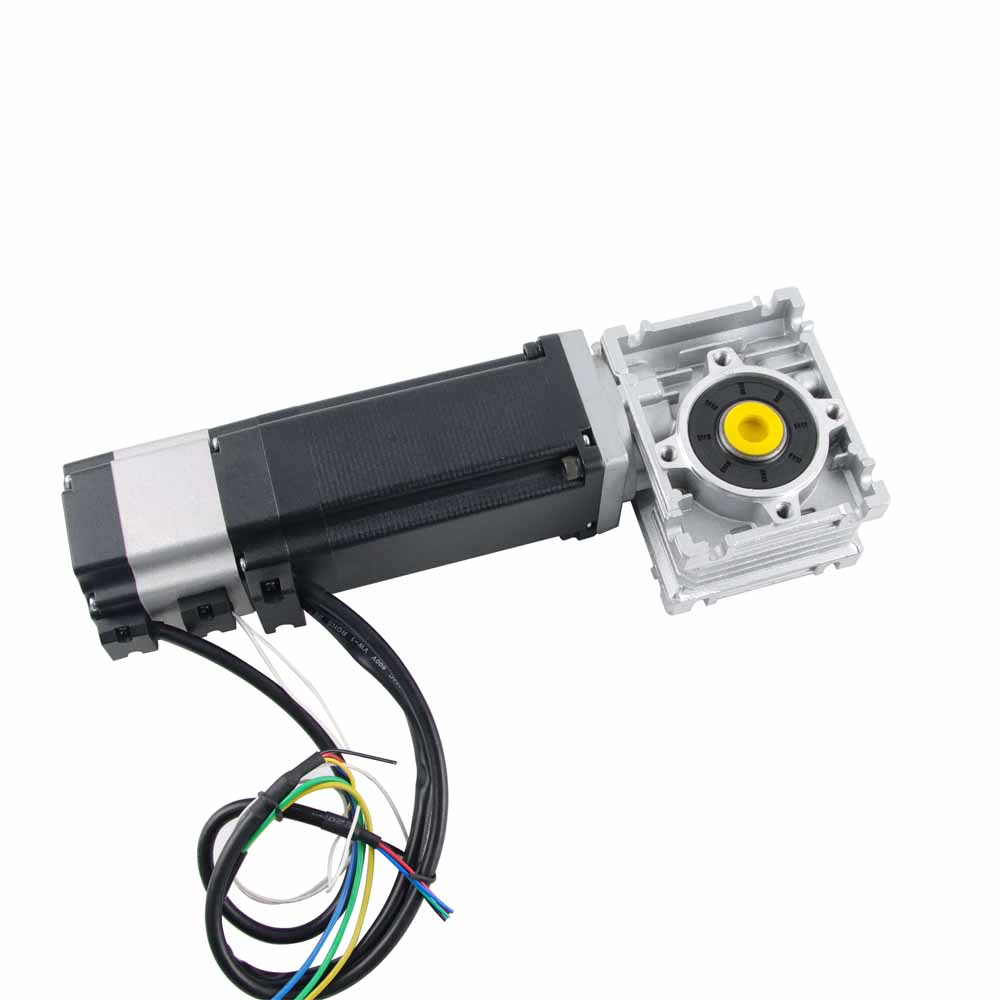

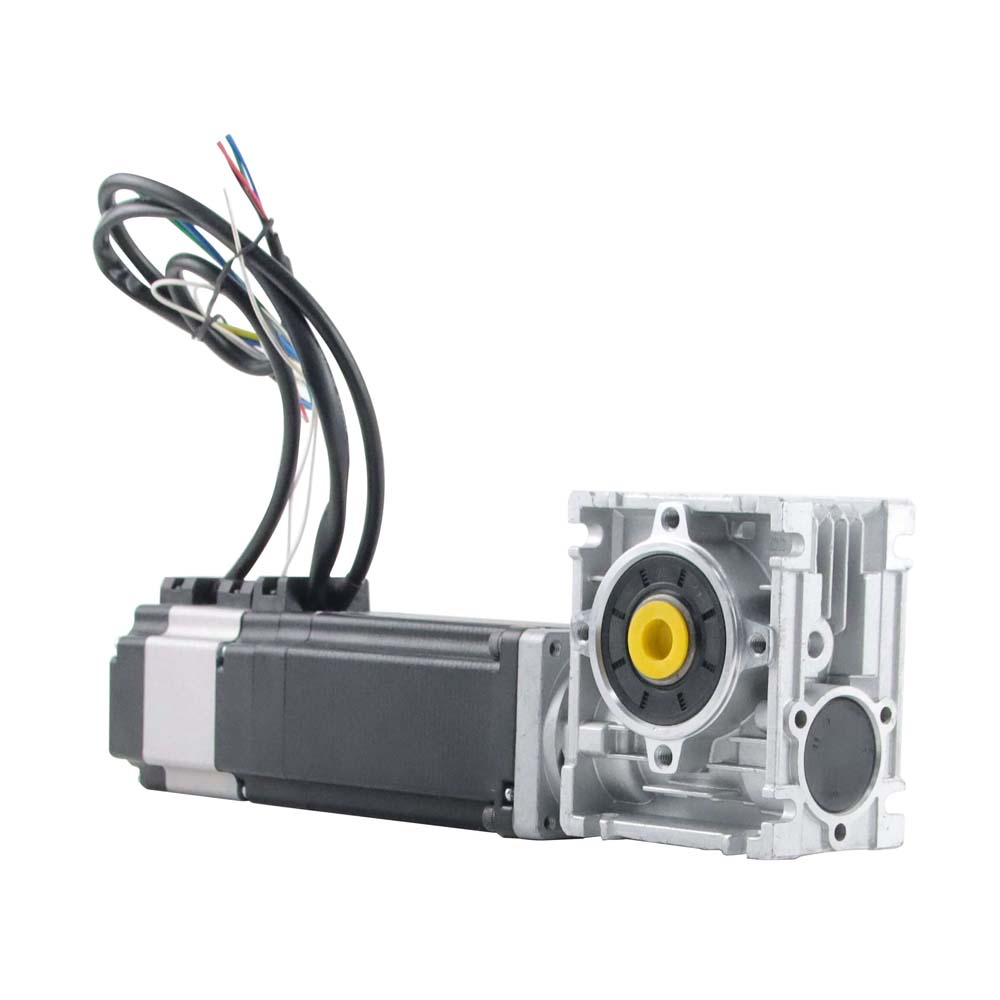

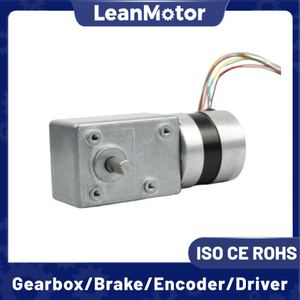

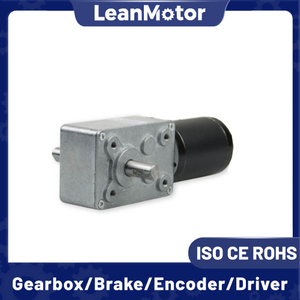

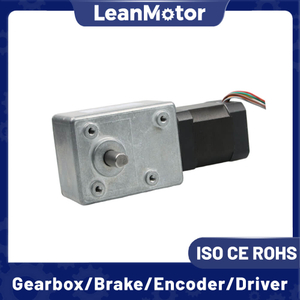

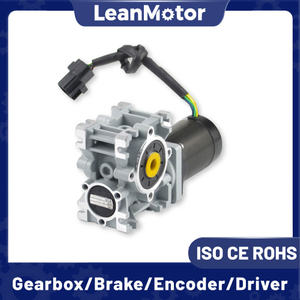

Nema 24 60BLS Worm Geared BLDC Motor
LeanMotor
Nema 24(60mm)
3 Phase
48V
10 Pcs
General Specifications | |
| Item | Specification |
| Winding type | Star |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm@450g |
| End play | 0.08mm@450g |
| Max.radial force | 115N@10mm from the flange |
| Max. axial force | 45N |
| Insulation class | Class B |
| Dielectric Strength | 500VDC for one minute |
| Insulation Resistance | 100MΩ Min., 500VDC |
| Model No. | Rated voltage | Motor Length | Current | Rated power | Rotor Inertia | Rated torque | Rated speed | Weight |
| VDC | (L)mm | A | W | Kg.cm² | N.m | Rpm | kg | |
| LM60BLS005 | 48 | 78 | 8.4 | 94 | 0.24 | 0.3 | 3000 | 0.85 |
| LM60BLS01 | 48 | 99 | 15.6 | 188 | 0.48 | 0.6 | 3000 | 1.25 |
| LM60BLS02 | 48 | 120 | 22.5 | 283 | 0.72 | 0.9 | 3000 | 1.65 |
| LM60BLS03 | 48 | 141 | 28.5 | 377 | 0.96 | 1.2 | 3000 | 2.05 |
| Bldc Motors Wires | Hall Sensor Wires | ||||||
| U | V | W | +5VDC | GND | Hu | Hv | Hw |
| Yellow | Green | Blue | Red | Black | Yello | Green | Blue |
General Specifications | |
| Item | Specification |
| Winding type | Star |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm@450g |
| End play | 0.08mm@450g |
| Max.radial force | 115N@10mm from the flange |
| Max. axial force | 45N |
| Insulation class | Class B |
| Dielectric Strength | 500VDC for one minute |
| Insulation Resistance | 100MΩ Min., 500VDC |
| Model No. | Rated voltage | Motor Length | Current | Rated power | Rotor Inertia | Rated torque | Rated speed | Weight |
| VDC | (L)mm | A | W | Kg.cm² | N.m | Rpm | kg | |
| LM60BLS005 | 48 | 78 | 8.4 | 94 | 0.24 | 0.3 | 3000 | 0.85 |
| LM60BLS01 | 48 | 99 | 15.6 | 188 | 0.48 | 0.6 | 3000 | 1.25 |
| LM60BLS02 | 48 | 120 | 22.5 | 283 | 0.72 | 0.9 | 3000 | 1.65 |
| LM60BLS03 | 48 | 141 | 28.5 | 377 | 0.96 | 1.2 | 3000 | 2.05 |
| Bldc Motors Wires | Hall Sensor Wires | ||||||
| U | V | W | +5VDC | GND | Hu | Hv | Hw |
| Yellow | Green | Blue | Red | Black | Yello | Green | Blue |
