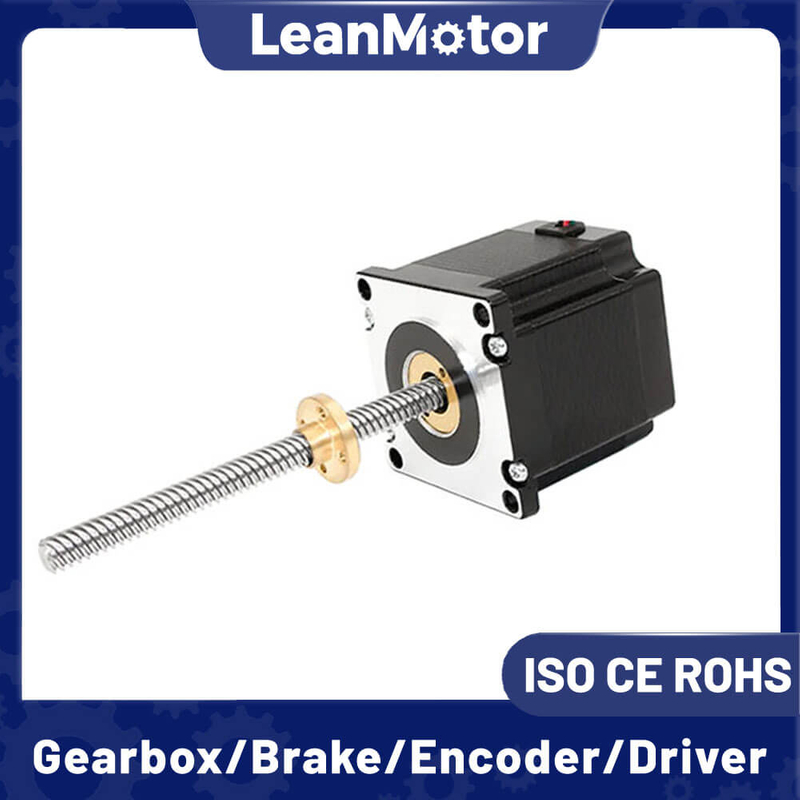

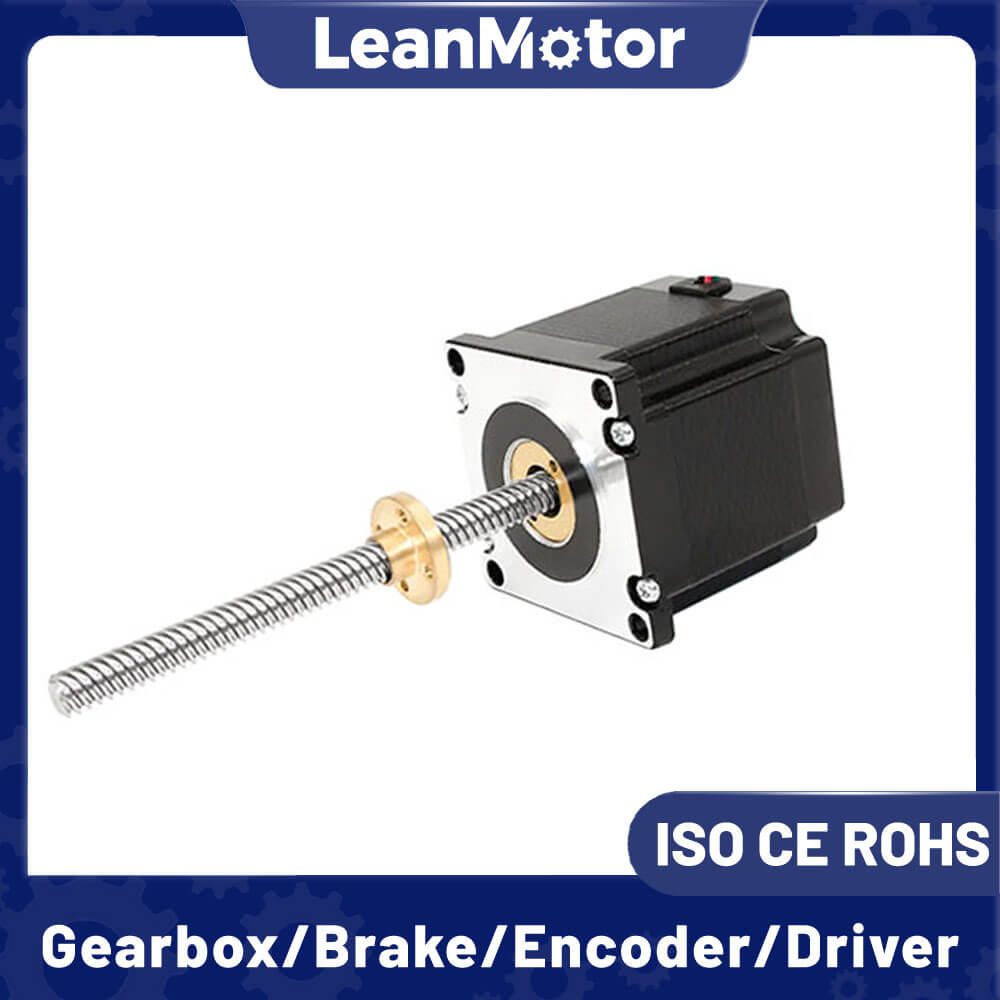

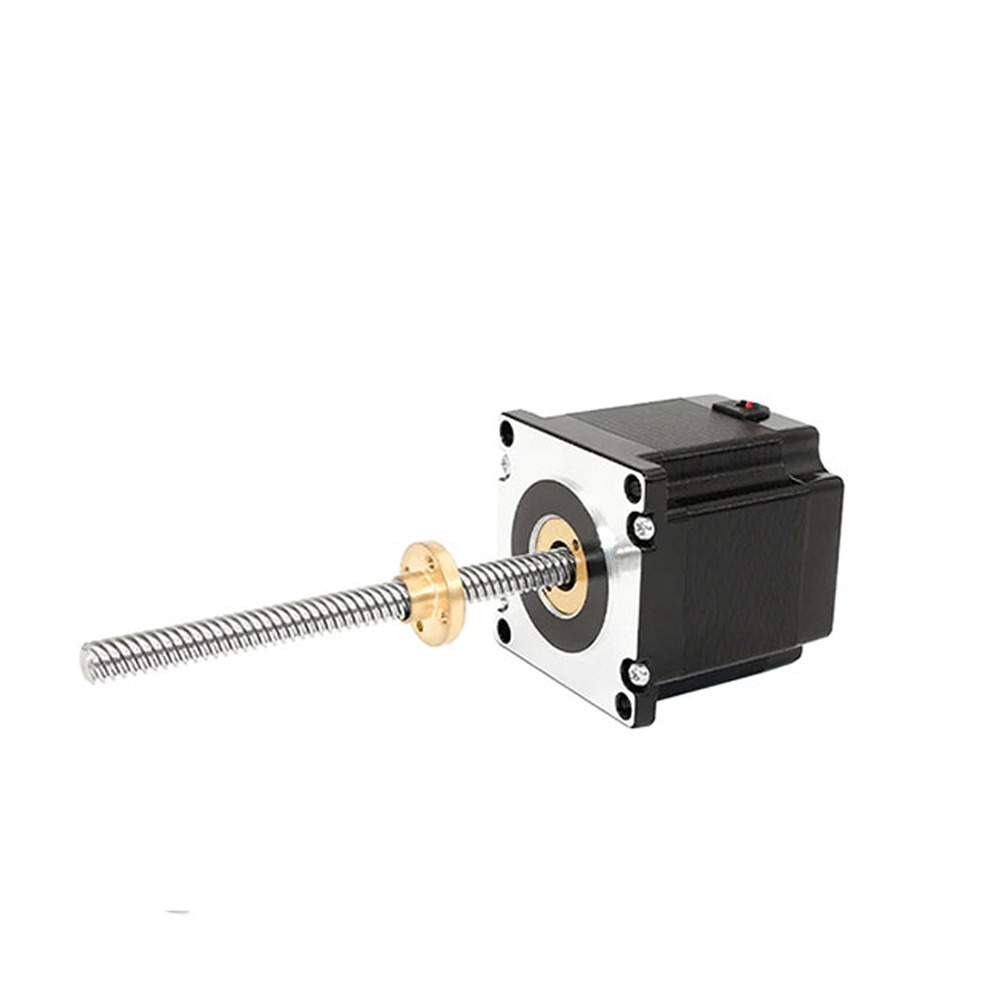

LeanMotor Nema 23 External T-type Linear Stepper Motor 1.8 Degree 57x57mm 2.8A / 3.0A 4-Wires

Type: Nema 23 External T-type Linear Stepper Motor

Current: 2.8A - 3.0A

Motor Length: 41mm - 112mm

Customized: Connectors, Gearbox, Encoder, Brake, Lead Screw, Integrated Driver...

Availability:

Quantity:



Inquire Add to Basket

Model:
Nema 23 External T-type Linear Stepper Motor
Brand:
LEANMOTOR
Stepper Motor Kinds:
Linear Motors
Lead Screw Kinds:
External T-type Linear
Stepper Motor Size:
Nema23 (57mm)
Number of Leads:
4wires
Phase:
2 Phase
Step Angle:
1.8°
MOQ:
10 Pcs

General Specifications：

Item	Specifications
Step Angle	1.8°
Temperature Rise	80℃max
Ambient Temperature	-20℃~+50℃
Insulation Resistance	100 MΩ Min. ,500VDC
Dielectric Strength	500VAC for 1minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	75N (20mm from the flange)
Max. axial force	15N

1.8 Degree Nema 23 57mm External T-type Linear Stepper Motor Electrical Specifications:

Model No.	Step Angle	Motor Length	Current	Resistance	Inductance	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	N.m	No.	g.cm	g.cm2	Kg
LM57HST41-2804	1.8	41	2.8	0.7	1.4	0.55	4	250	150	0.47
LM57HST51-2804	1.8	51	2.8	0.83	2.2	1.01	4	300	230	0.59
LM57HST56-2804	1.8	56	2.8	0.9	2.5	1.2	4	350	280	0.68
LM57HST76-2804	1.8	76	2.8	1.1	3.6	1.89	4	600	440	1.1
LM57HST82-3004	1.8	82	3	1.2	4	2.1	4	1000	600	1.1
LM57HST100-3004	1.8	100	3	0.75	3	2.8	4	1100	700	1.3
JK57HST112-3004	1.8	112	3	1.6	7.5	3	4	1200	800	1.4

Note: Above only for representative products, products of special request can be made according to the customer request.

External Lead Screw Rod Physical Specification:

T-type Lead Screw Rod Physical Specification
Screw Diameter	Screw Lead	Screw Pitch	Travel Per Step	Screw Diameter	Screw Lead	Screw Pitch	Travel Per Step
mm	mm	mm	mm	mm	mm	mm	mm
Tr8	0.5	0.5	0.0025	Tr9.525	0.635	0.635	0.003175
	2	2	0.01		1.27	1.27	0.00635
	4	2	0.02		1.5875	1.5875	0.0079375
	8	2	0.04		2.54	2.54	0.0127
	12	2	0.06		5.08	2.54	0.0254
	20	2.5	0.1		6.35	3.175	0.03175
Tr10	2	2	0.01		10.16	1.12	0.0508
	4	2	0.02		12.7	3.175	0.0635
	10	2	0.05		25.4	3.175	0.127
	12	3	0.06

Wires Connection:

A+	A-	B+	B-
Black	Green	Red	Blue
