Current: 2.8A - 4.2A
Motor Length: 41mm - 112mm
Customized: Connectors, Gearbox, Encoder, Brake, Lead Screw, Integrated Driver...
| Quantity: | |
|---|---|

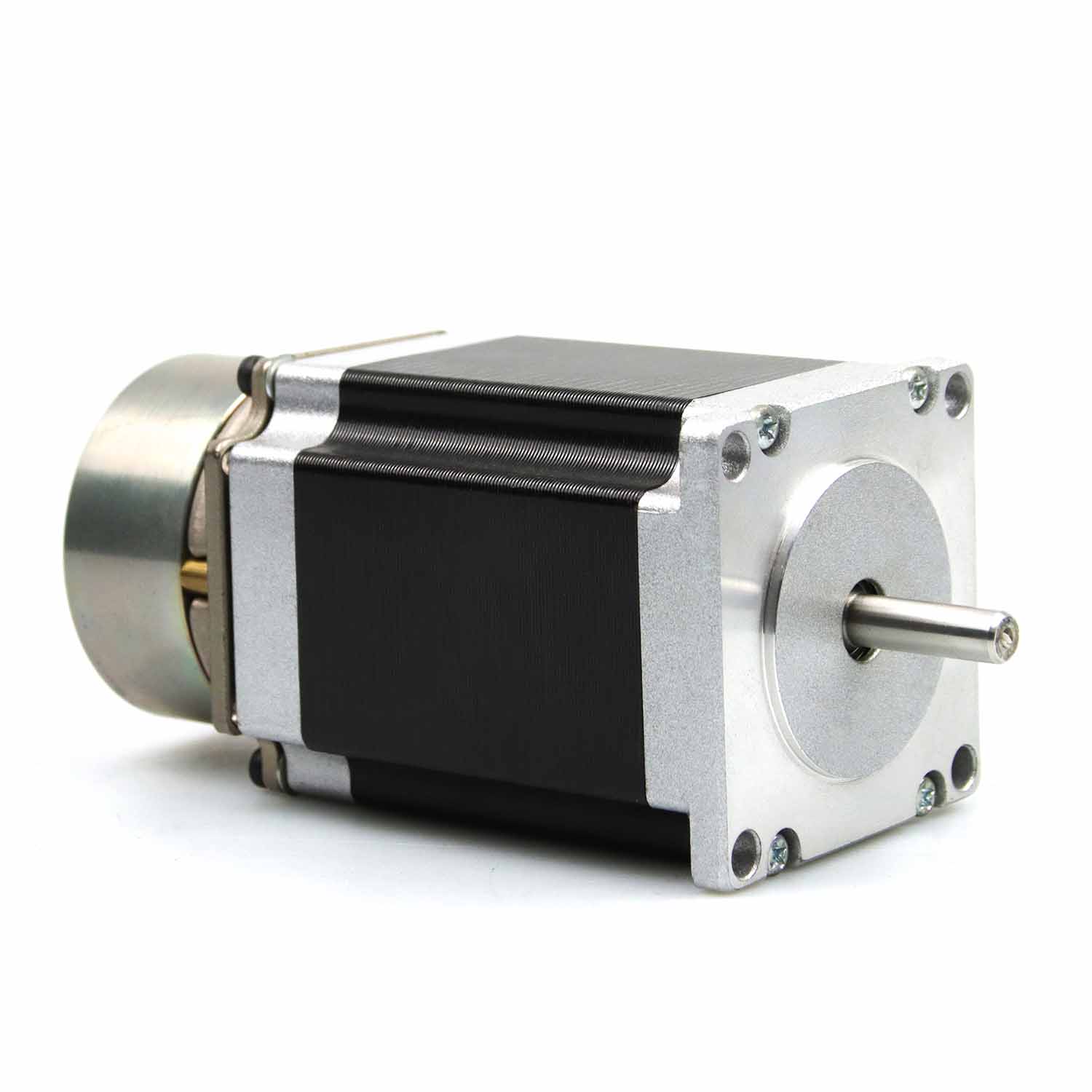

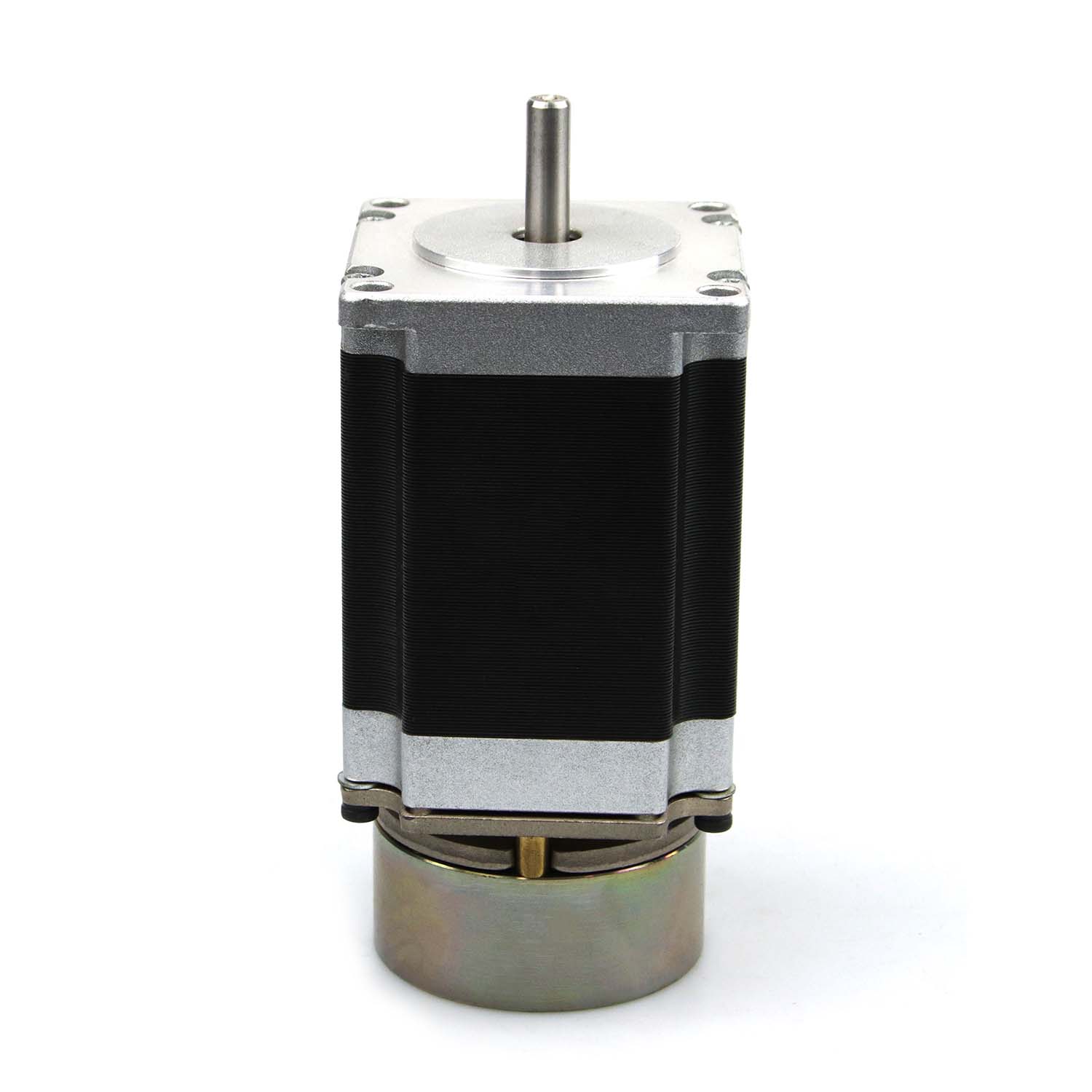

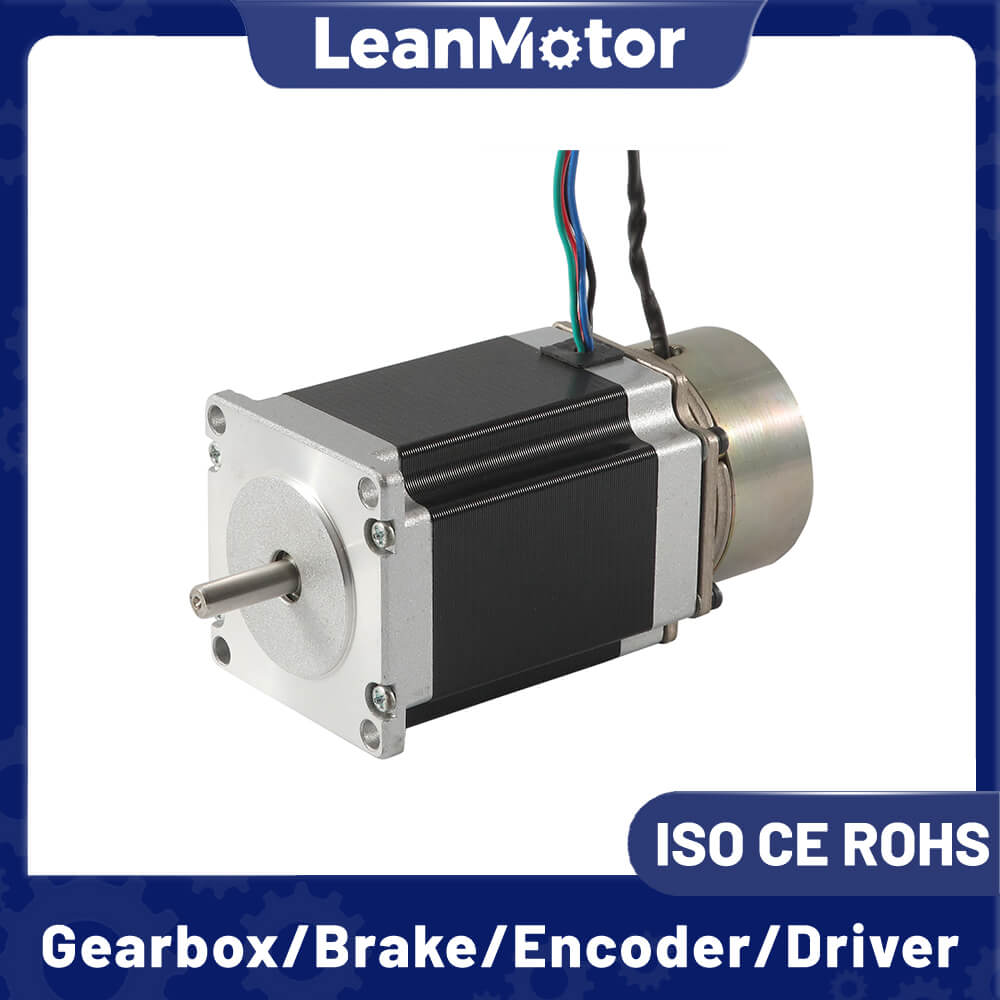

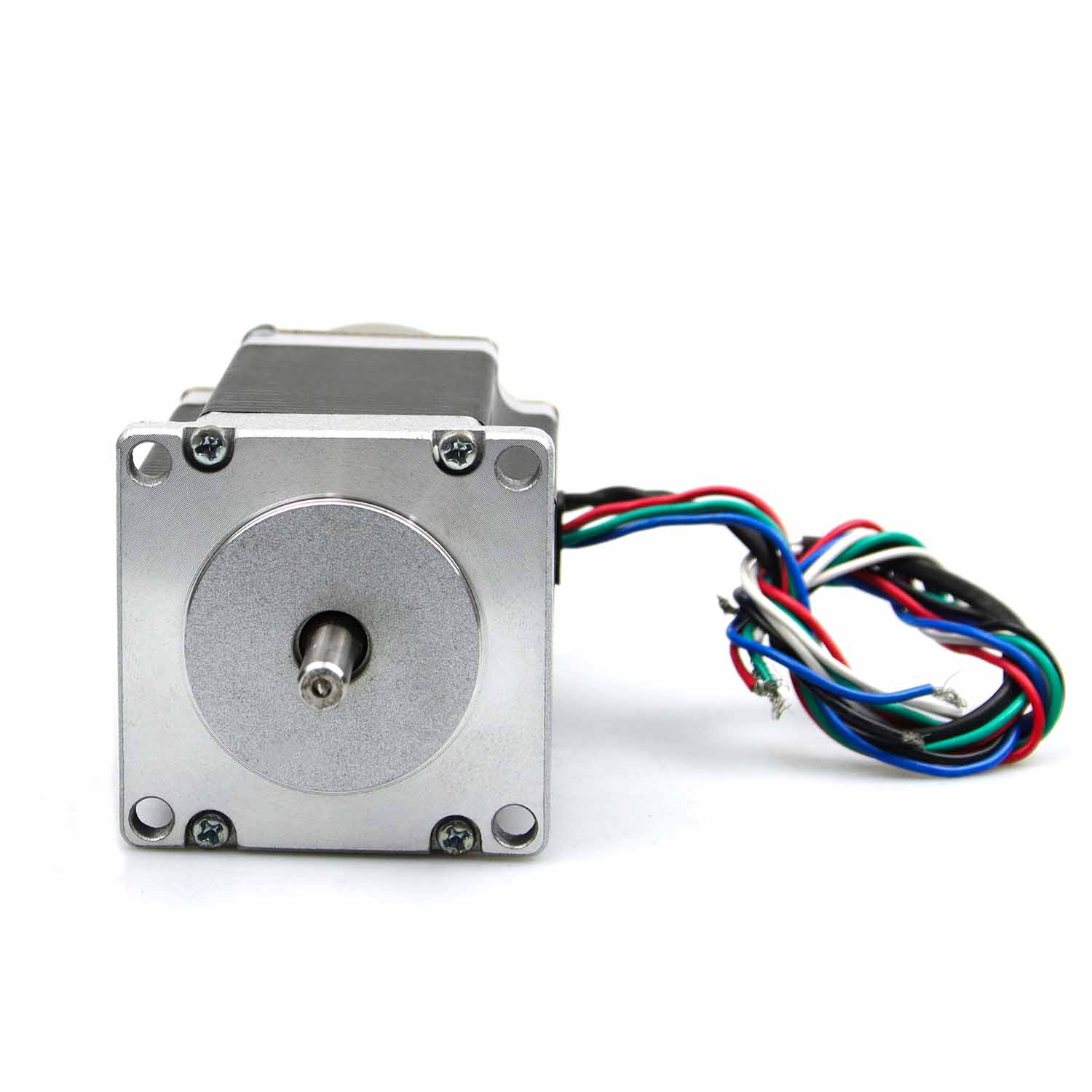

Nema 23 Hybrid Stepper Motor with Brake
LeanMotor
Open Loop Motors
Nema23 (57mm)
4wires
2 Phase
1.8°
10 Pcs
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm2 | Kg | |
| LM57HS41-2804BK2.0 | 1.8 | 41 | 2.8 | 0.7 | 1.4 | 0.55 | 4 | 250 | 150 | 0.47 |
| LM57HS51-2804BK2.0 | 1.8 | 51 | 2.8 | 0.83 | 2.2 | 1.01 | 4 | 300 | 230 | 0.59 |
| LM57HS56-2804BK2.0 | 1.8 | 56 | 2.8 | 0.9 | 2.5 | 1.2 | 4 | 350 | 280 | 0.68 |
| LM57HS64-2804BK2.0 | 1.8 | 64 | 2.8 | 0.8 | 2.3 | 1.0 | 4 | 400 | 300 | 0.75 |
| LM57HS76-2804BK2.0 | 1.8 | 76 | 2.8 | 1.1 | 3.6 | 1.89 | 4 | 600 | 440 | 1.1 |
| LM57HS82-3004BK2.0 | 1.8 | 82 | 3.0 | 1.2 | 4 | 2.1 | 4 | 1000 | 600 | 1.2 |
| LM57HS100-4204BK2.0 | 1.8 | 100 | 4.2 | 0.75 | 3 | 3.0 | 4 | 1100 | 700 | 1.3 |
| LM57HS112-4204BK2.0 | 1.8 | 112 | 4.2 | 0.9 | 3.8 | 3.1 | 4 | 1200 | 800 | 1.4 |
Note: Above only for representative products, products of special request can be made according to the customer request.
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm2 | Kg | |
| LM57HS41-2804BK2.0 | 1.8 | 41 | 2.8 | 0.7 | 1.4 | 0.55 | 4 | 250 | 150 | 0.47 |
| LM57HS51-2804BK2.0 | 1.8 | 51 | 2.8 | 0.83 | 2.2 | 1.01 | 4 | 300 | 230 | 0.59 |
| LM57HS56-2804BK2.0 | 1.8 | 56 | 2.8 | 0.9 | 2.5 | 1.2 | 4 | 350 | 280 | 0.68 |
| LM57HS64-2804BK2.0 | 1.8 | 64 | 2.8 | 0.8 | 2.3 | 1.0 | 4 | 400 | 300 | 0.75 |
| LM57HS76-2804BK2.0 | 1.8 | 76 | 2.8 | 1.1 | 3.6 | 1.89 | 4 | 600 | 440 | 1.1 |
| LM57HS82-3004BK2.0 | 1.8 | 82 | 3.0 | 1.2 | 4 | 2.1 | 4 | 1000 | 600 | 1.2 |
| LM57HS100-4204BK2.0 | 1.8 | 100 | 4.2 | 0.75 | 3 | 3.0 | 4 | 1100 | 700 | 1.3 |
| LM57HS112-4204BK2.0 | 1.8 | 112 | 4.2 | 0.9 | 3.8 | 3.1 | 4 | 1200 | 800 | 1.4 |
Note: Above only for representative products, products of special request can be made according to the customer request.
