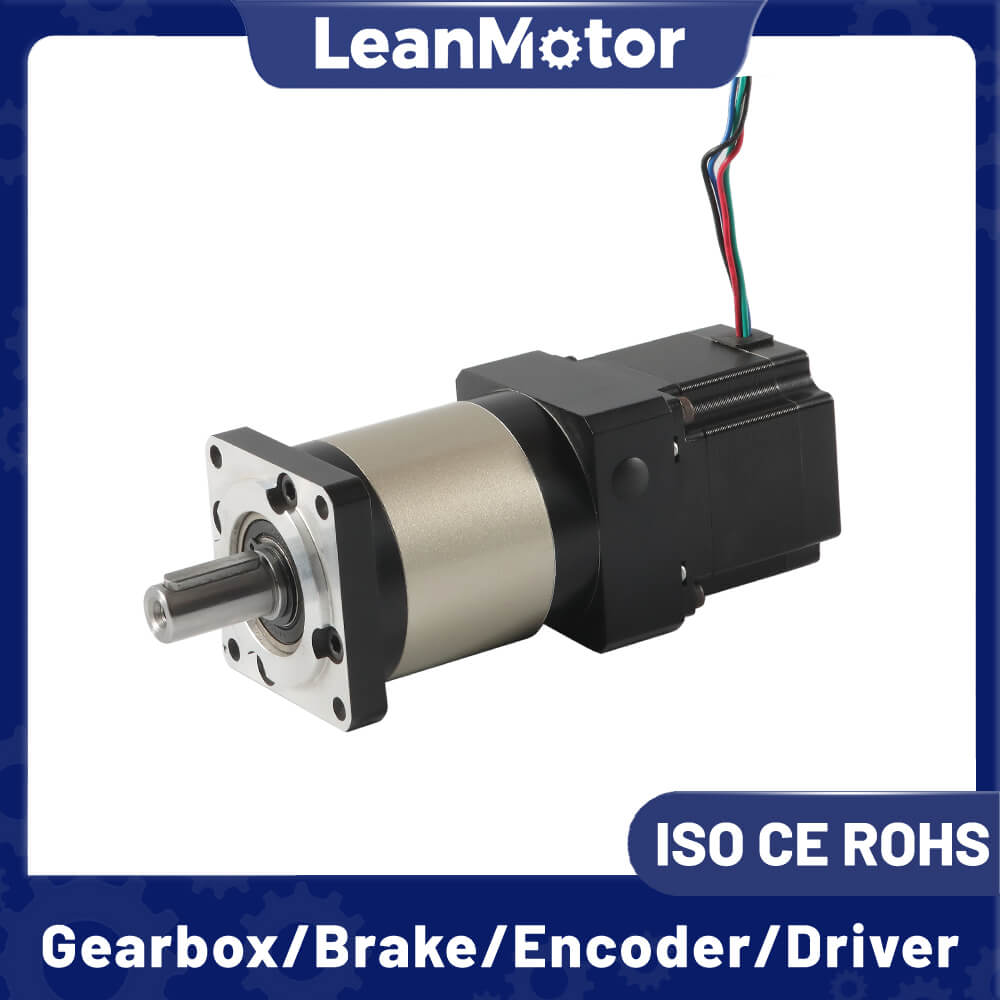

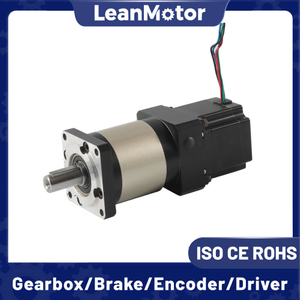

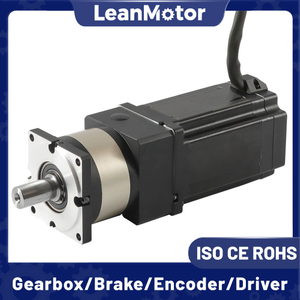

Leanmotor Nema 23 Geared Stepper Motor with HPS60 Series High Precision Planetary Gearbox 0.9 Or 1.2 Or 1.8 Degree 57x57mm 4 Wires / 6 Wires

nema 23 stepper motor with gearbox

Share to:

Leanmotor Nema 23 Geared Stepper Motor with HPS60 Series High Precision Planetary Gearbox 0.9 Or 1.2 Or 1.8 Degree 57x57mm 4 Wires / 6 Wires

Type: Nema23 High Precision Planetary Geared Stepper Motor

Current: 0.4-4A

Resistance: 0.7 -30Ω

Rated Torque: 180-720 g.cm

Availability:

Quantity:



Inquire Add to Basket

Model:
Nema23 Geared Stepper Motor with HPS60 Series High Precision Planetary Gearbox
Brand:
LeanMotor
Stepper Motor Kinds:
Gearbox Motors
Stepper Motor Size:
Nema23 (57mm)
Number of Leads:
4wires, 6wires
Phase:
2 Phase, 3 Phase
Step Angle:
0.9°, 1.2°, 1.8°
MOQ:
10 Pcs

General Specifications：

Item	Specifications
Step Angle	1.8° or 0.9° or 1.2°
Temperature Rise	80℃max
Ambient Temperature	-20℃~+50℃
Insulation Resistance	100 MΩ Min. ,500VDC
Dielectric Strength	500VAC for 1minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	75N (20mm from the flange)
Max. axial force	15N

0.9 Degree Nema 23 57mm Stepping Motor Electrical Specifications:

Model No.	Step Angle	Motor Length	Current	Resistance	Inductance	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	kg.cm	No.	g.cm	g.cm2	Kg
LM57HM41-1006	0.9	41	1	5.7	8	3.9	6	210	120	0.45
LM57HM41-2804	0.9	41	2.8	0.7	2.2	5	4	210	120	0.45
LM57HM51-2006	0.9	51	2	1.6	2.2	7.2	6	380	280	0.68
LM57HM56-1006	0.9	56	1	7.4	17.5	9	6	400	300	0.7
LM57HM56-2006	0.9	56	2	1.8	4.5	9	6	400	300	0.7
LM57HM56-2804	0.9	56	2.8	0.9	3.3	12	4	400	300	0.7
LM57HM76-1006	0.9	76	1	8.6	23	13.5	6	680	480	1
LM57HM76-2006	0.9	76	2	3	7	13.5	6	680	480	1
LM57HM76-2804	0.9	76	2.8	1.15	5.6	18	4	680	480	1

Note: Above only for representative products, products of special request can be made according to the customer request.

1.8 Degree Nema 23 57mm Stepping Motor Electrical Specifications:

Model No.	Step Angle	Motor Length	Current	Resistance	Inductance	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	N.m	No.	g.cm	g.cm2	Kg
LM57HS41-1006	1.8	41	1	7.1	8	0.48	6	250	150	0.47
LM57HS41-2008	1.8	41	2	1.4	1.4	0.39	8	250	150	0.47
LM57HS41-2804	1.8	41	2.8	0.7	1.4	0.55	4	250	150	0.47
LM57HS51-1006	1.8	51	1	6.6	8.2	0.72	6	300	230	0.59
LM57HS51-2008	1.8	51	2	1.8	2.7	0.9	8	300	230	0.59
LM57HS51-2804	1.8	51	2.8	0.83	2.2	1.01	4	300	230	0.59
LM57HS56-2006	1.8	56	2	1.8	2.5	0.9	6	350	280	0.68
LM57HS56-2108	1.8	56	2.1	1.8	2.5	1	8	350	280	0.68
LM57HS56-2804	1.8	56	2.8	0.9	2.5	1.2	4	350	280	0.68
LM57HS64-2804	1.8	64	2.8	0.8	2.3	1	4	400	300	0.75
LM57HS76-2804	1.8	76	2.8	1.1	3.6	1.89	4	600	440	1.1
LM57HS76-3006	1.8	76	3	1	1.6	1.35	6	600	440	1.1
LM57HS76-3008	1.8	76	3	1	1.8	1.5	8	600	440	1.1
LM57HS82-3004	1.8	82	3	1.2	4	2.1	4	1000	600	1.2
LM57HS82-4008	1.8	82	4	0.8	1.8	2	8	1000	600	1.2
LM57HS82-4204	1.8	82	4.2	0.7	2.5	2.2	4	1000	600	1.2
JK57HS100-4204	1.8	100	4.2	0.75	3	3	4	1100	700	1.3
LM57HS112-3004	1.8	112	3	1.6	7.5	3	4	1200	800	1.4
LM57HS112-4204	1.8	112	4.2	0.9	3.8	3.1	4	1200	800	1.4

Note: Above only for representative products, products of special request can be made according to the customer request.

1.8 Degree Nema 23 57HY Round Stepping Motor Electrical Specifications:

Model No.	Step Angle	Motor Length	Current	Resistance	Inductance	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	kg.cm	No.	g.cm	g.cm2	Kg
LM57HY41-0406	1.8	41	0.4	30	30	2.88	6	180	57	0.54
LM57HY41-1564	1.8	41	1.56	1.8	3.6	4	4	180	57	0.54
LM57HY51-0426	1.8	51	0.42	29	36	4.97	6	350	110	0.6
LM57HY51-2804	1.8	51	2.8	0.85	2.1	6.9	4	350	110	0.6
LM57HY56-0606	1.8	56	0.6	20	32	6	6	420	135	0.65
LM57HY56-2004	1.8	56	2	3	7	8	4	420	135	0.65
LM57HY76-1506	1.8	76	1.5	3.6	6	9	6	720	200	0.95
LM57HY76-4004	1.8	76	4	0.88	2.6	14	4	720	200	0.95

Note: Above only for representative products, products of special request can be made according to the customer request.

1.2 Degree Nema 23 3 Phase Stepping Motor Electrical Specifications:

Model No.	Step Angle	Motor Length	Current	Resistance	Inductance	Holding Torque	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	kg.cm	g.cm	g.cm2	Kg
LM57H3P42-5206	1.2	42	5.2	1.3	1.4	4.5	210	110	0.45
LM57H3P56-5606	1.2	56	5.6	0.7	0.7	9	400	300	0.75
LM57H3P79-5206	1.2	79	5.2	0.9	1.5	15	680	480	1.1

Note: Above only for representative products, products of special request can be made according to the customer request.

Wires Connection:

Bipolar:

A+	A-	B+	B-
Black	Green	Red	Blue

Unipolar:

A+	O+	A-	B+	O-	B-
Black	Yellow	Green	Red	White	Blue
