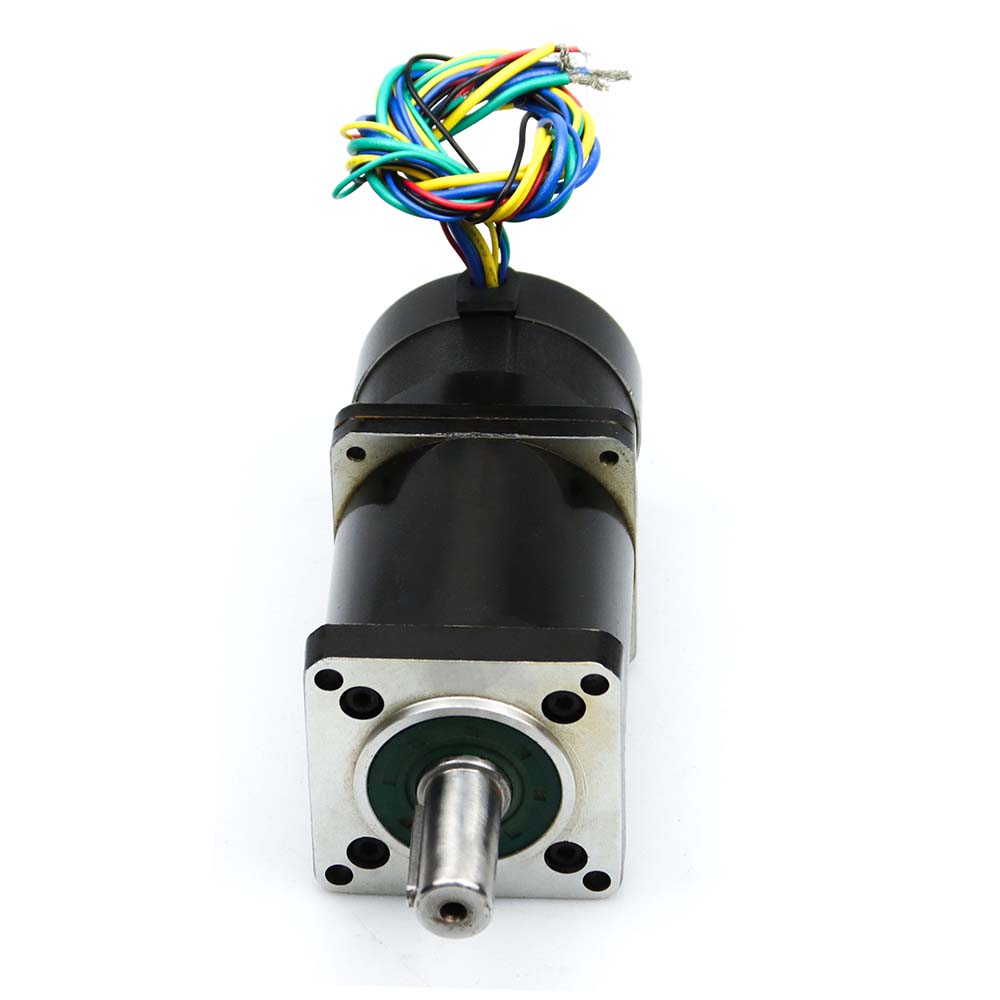

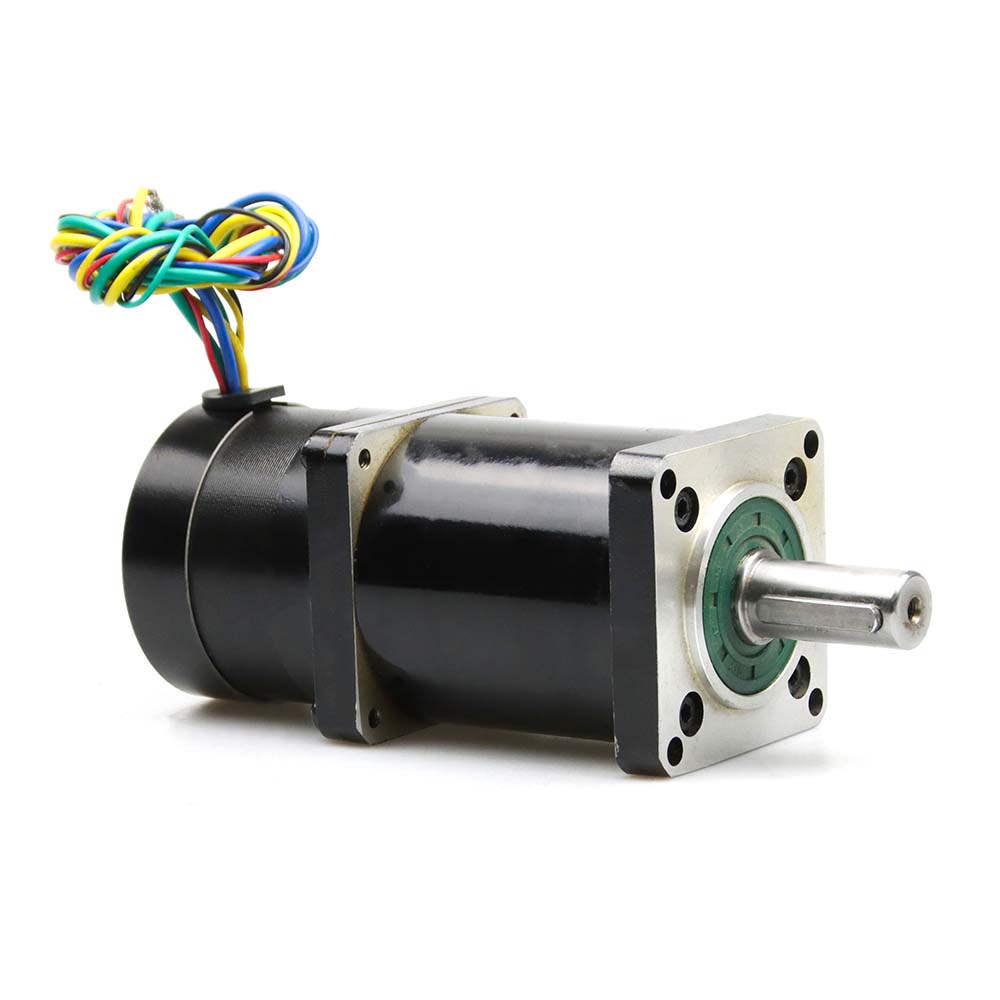

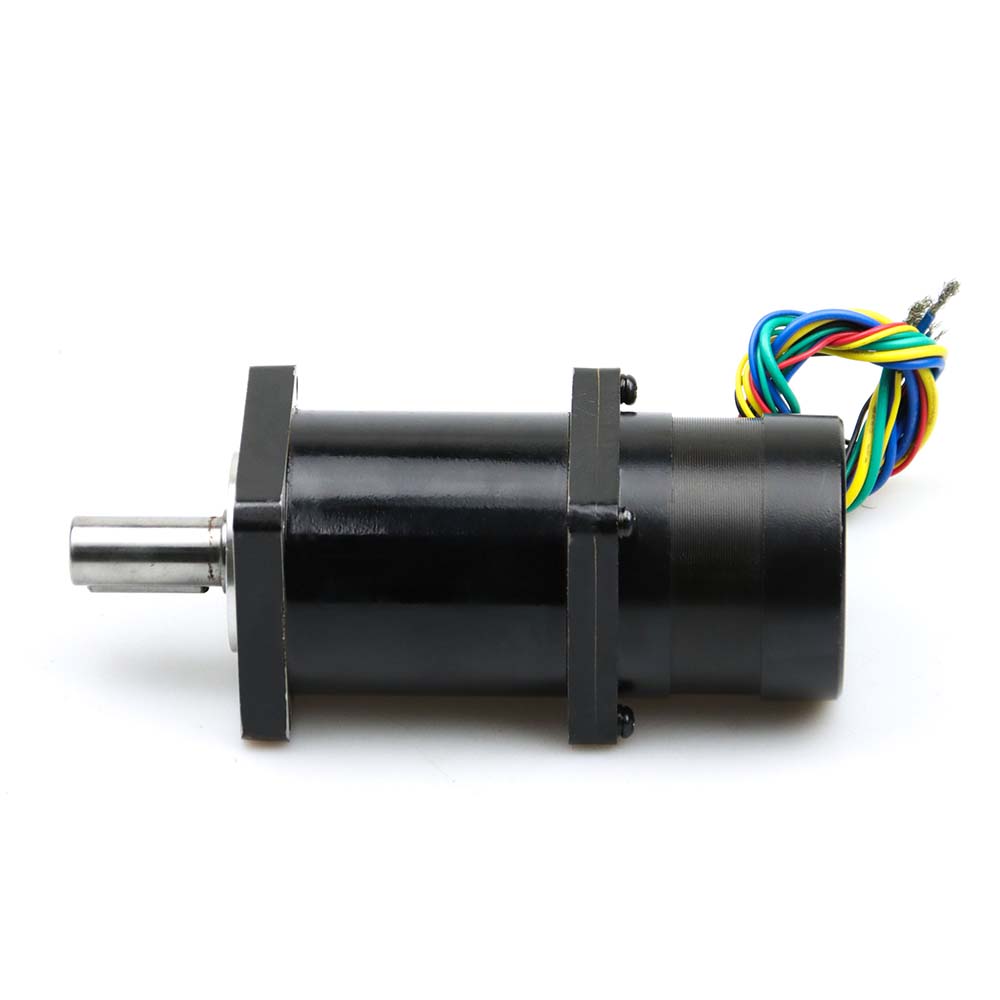

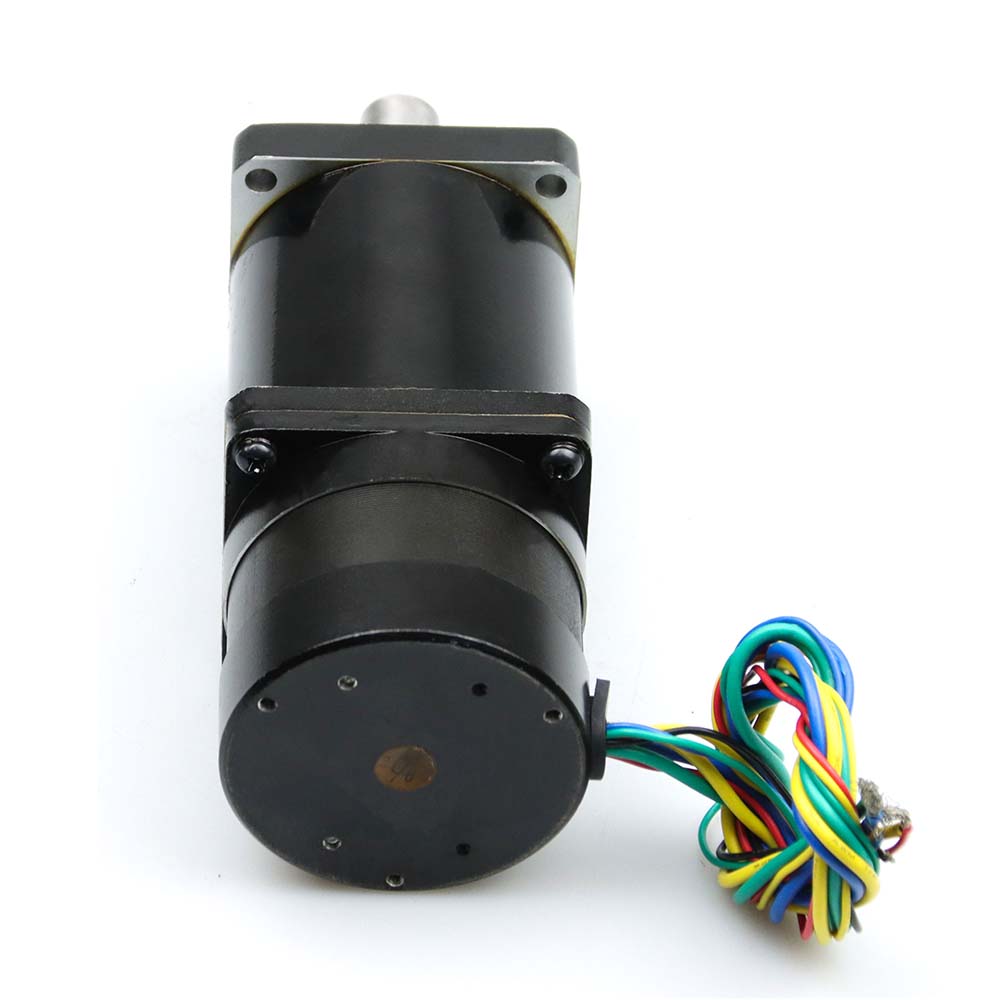

Leanmotor Nema 23 57BLS Geared Square Head BLDC Motor with Common Planetary Gearbox 57x57mm 36V 3 Phase

36v bldc motor controller

Share to:

Leanmotor Nema 23 57BLS Geared Square Head BLDC Motor with Common Planetary Gearbox 57x57mm 36V 3 Phase

Type: Nema 23 57BLS Common Planetary Geared Square Head BLDC Motor

Motor Length: 37mm / 47mm / 67mm / 87mm /107mm

Rated voltage：36V

Availability:

Quantity:



Inquire Add to Basket

Model:
Nema 23 57BLS Common Planetary Geared Square Head BLDC Motor
Brand:
LeanMotor
Bldc Motor Size:
Nema 23 (57mm)
Phase:
3 Phase
Rated Voltage:
36V
MOQ:
10 Pcs

Nema 23 57BLF 57mm Brushless Dc Motor General Specifications:

General Specifications
Item	Specification
Winding type	Star
Hall effect angle	120 degree electrical angle
Shaft run out	0.025mm
Radial play	0.02mm@450g
End play	0.08mm@450g
Max.radial force	75N@10mm from the flange
Max. axial force	10N
Insulation class	Class B
Dielectric Strength	500VDC for one minute
Insulation Resistance	100MΩ Min., 500VDC

Electrical Specifications:

Model No.	Rated voltage	Motor Length	Current	Rated power	Rotor Inertia	Rated torque	Rated speed	Weight
Model No.	VDC	(L)mm	A	W	g.cm²	N.m	Rpm	kg
LM57BLF005	36	37	3.5	23	30	0.055	4000	0.33
LM57BLF01	36	47	6.8	46	75	0.11	4000	0.44
LM57BLF02	36	67	11.5	92	119	0.22	4000	0.75
LM57BLF03	36	87	15.5	138	173	0.33	4000	1
LM57BLF04	36	107	20.5	184	230	0.44	4000	1.25

Wires Connection:

Bldc Motors Wires			Hall Sensor Wires
U	V	W	+5VDC	GND	Hu	Hv	Hw
Yellow	Green	Blue	Red	Black	Yello	Green	Blue
