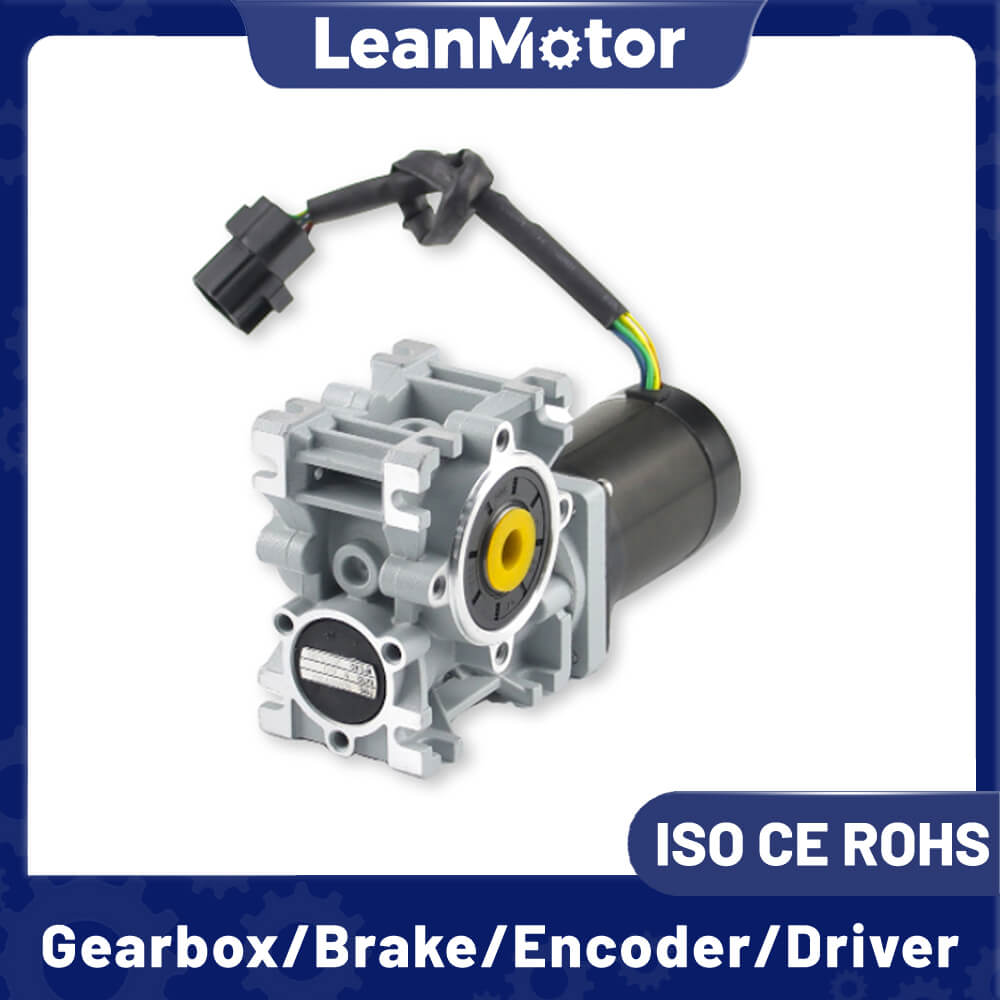

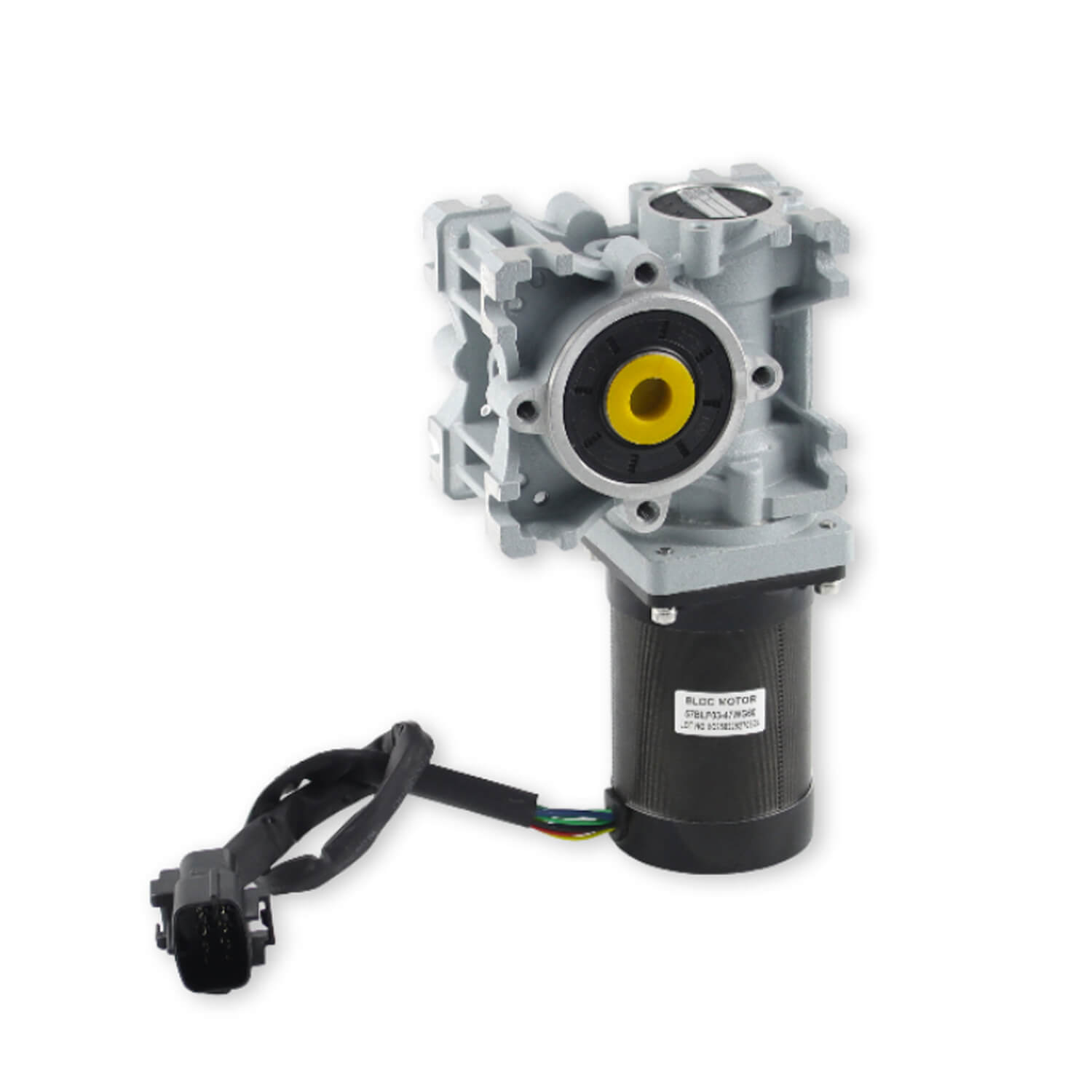

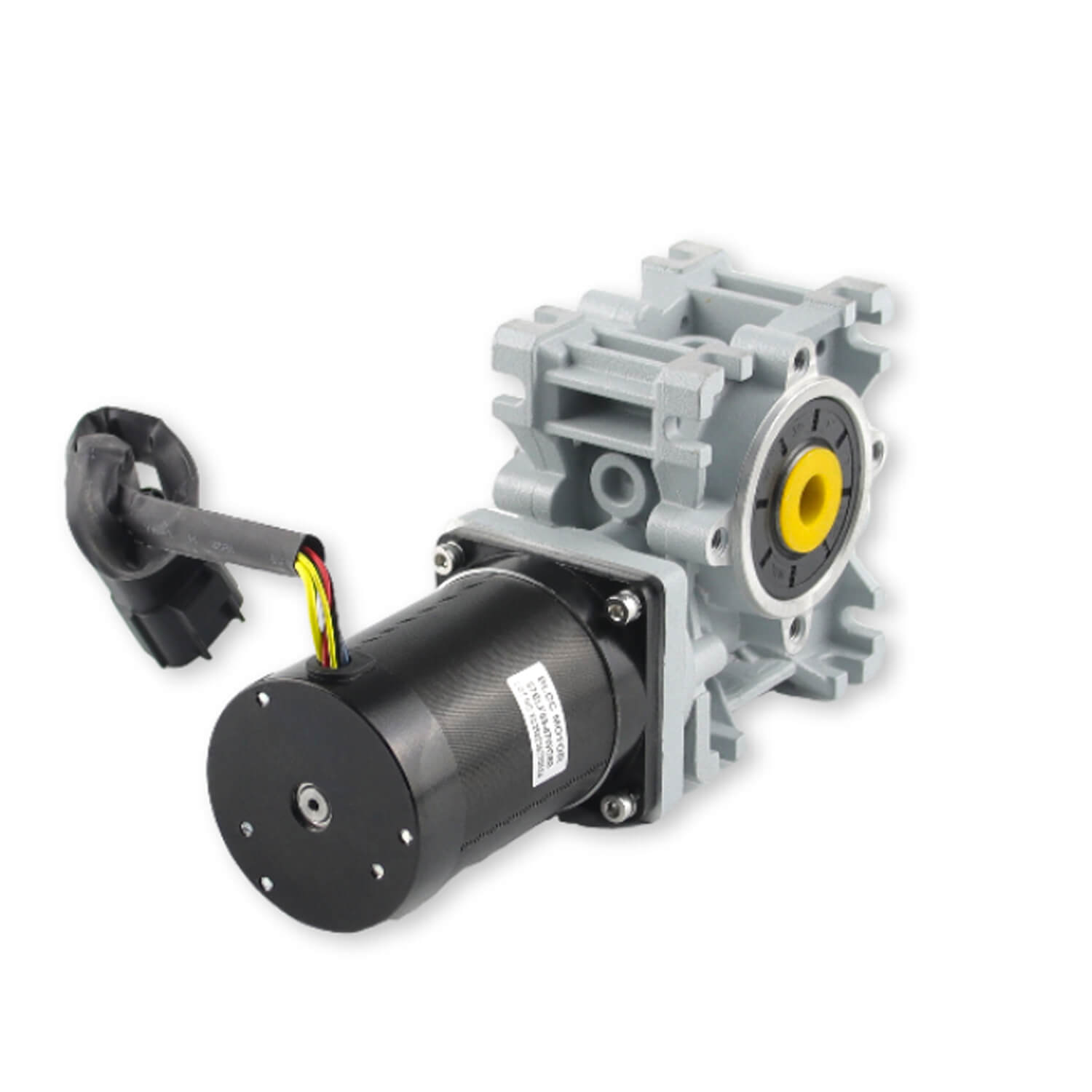

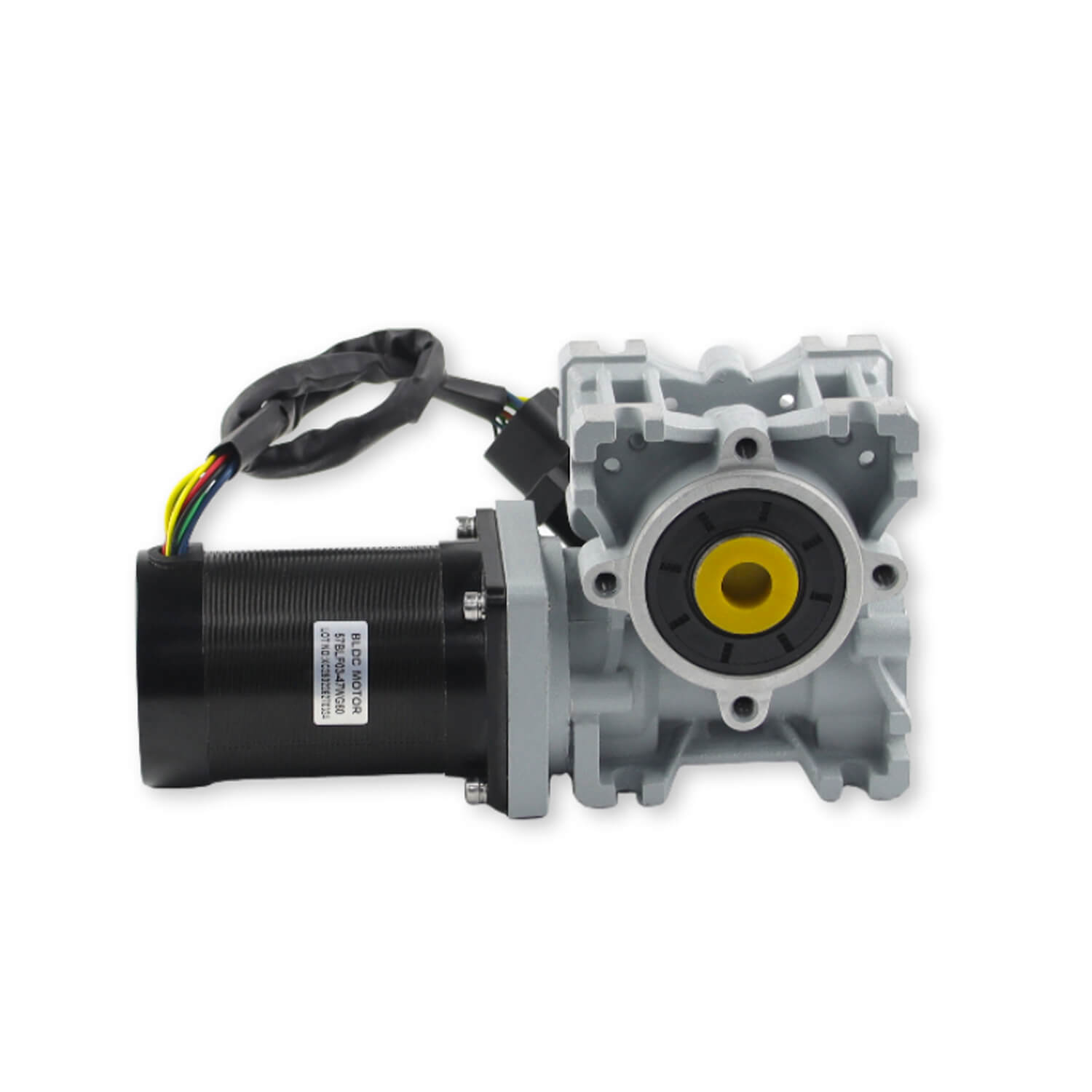

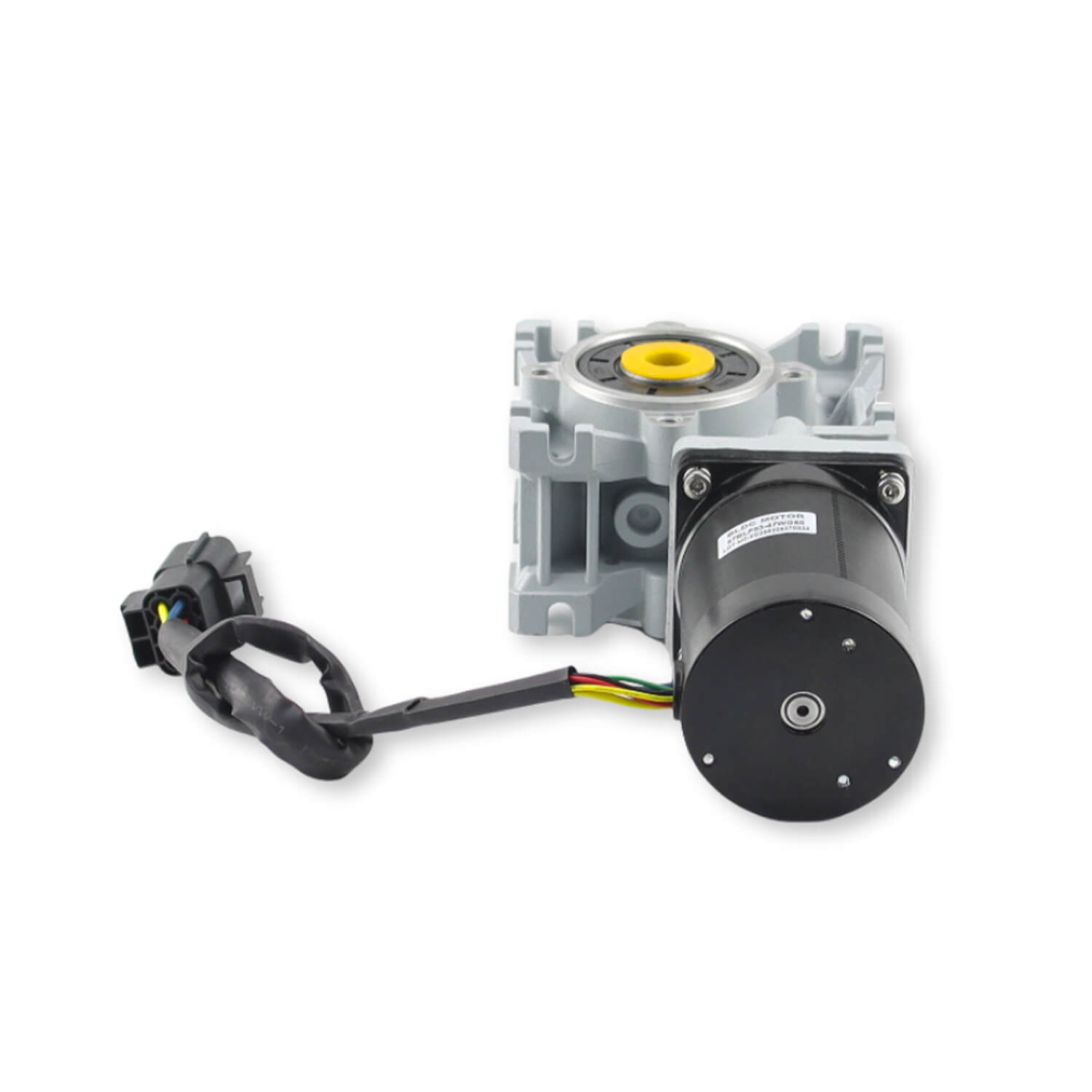

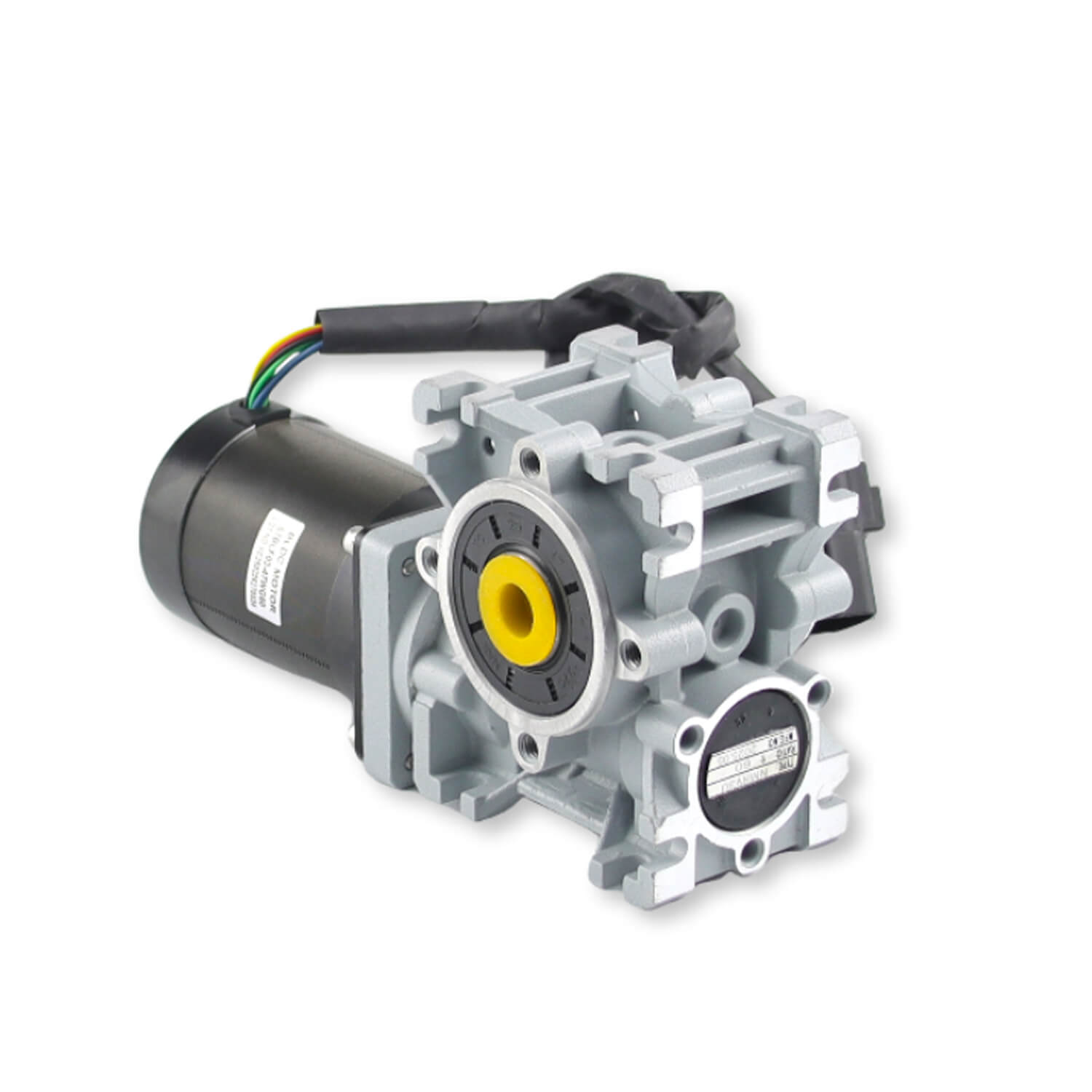

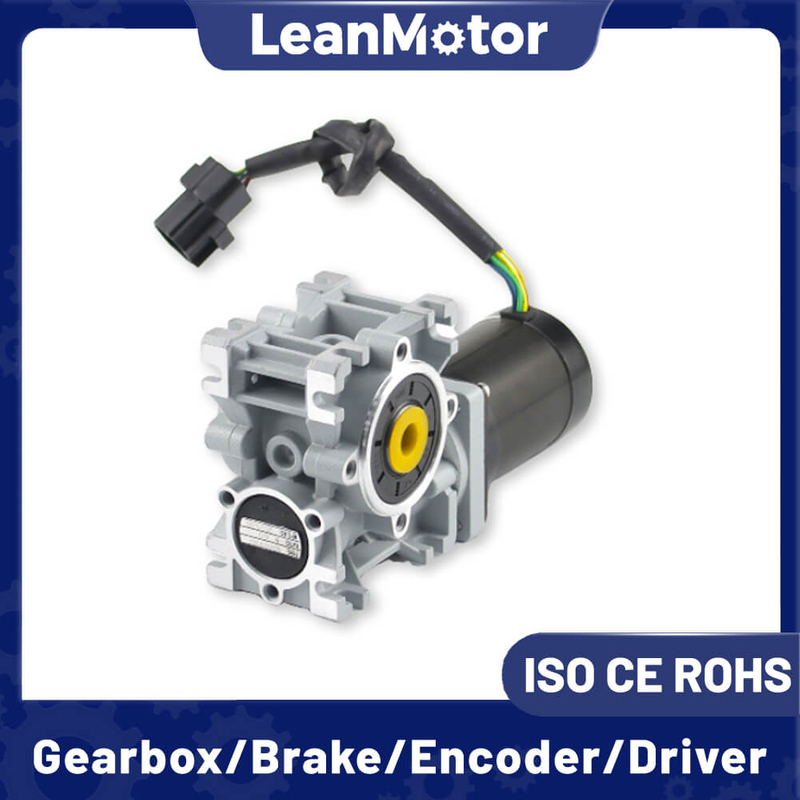

Leanmotor Nema 23 57BLS Geared Brushless BLDC DC Motor with Worm Gearbox 57x57mm 36V 3 Phase

Type: Nema 23 57BLS Worm Geared Brushless BLDC DC Motor
Motor Length: 37mm / 47mm / 67mm / 87mm /107mm

Rated voltage：36V
Availability:
Quantity:
Inquire Add to Basket

  • Nema 23 57BLS Worm Geared BLDC Motor

  • LeanMotor

  • Nema 23 (57mm)

  • 3 Phase

  • 36V

  • 10 Pcs

Nema 23 57BLS 57mm Brushless Dc Motor General Specifications:

General Specifications

ItemSpecification
Winding typeStar
Hall effect angle120 degree electrical angle
Shaft run out0.025mm
Radial play0.02mm@450g
End play0.08mm@450g
Max.radial force75N@10mm from the flange
Max. axial force10N
Insulation classClass B
Dielectric Strength500VDC for one minute
Insulation Resistance100MΩ Min., 500VDC


Electrical Specifications:

Model No.Rated voltageMotor LengthCurrentRated powerRotor InertiaRated torqueRated speedWeight
VDC(L)mmAWg.cm²N.m

Rpm

kg
LM57BLS00536373.523300.05540000.33
LM57BLS0136476.846750.1140000.44
LM57BLS02366711.592119
0.2240000.75
LM57BLS03368715.51381730.3340001
LM57BLS043610720.51842300.4440001.25



Wires Connection:

Bldc Motors WiresHall Sensor Wires
UVW+5VDC
GNDHu
HvHw
YellowGreenBlueRedBlackYello
GreenBlue


Nema23 36V Bldc Motor Dimension:

brushless dc motor suppliers


Hybrid Stepper Motor Optional Parts：

Connectors, Gearbox, Encoder, Brake, Integrated Driver...


Customized Service:

Metal Pulleys

Metal Pulleys

plastic pulley

Plastic Pulley

gear

Gear

shaft pin

Shaft Pin

threaded shaft

Threaded Shaft

panel mount

Panel Mount

Hollow shaft

Hollow Shaft

lead screw

Lead Screw

panel mount

Panel Mount

single flat

Single Flat

dual flat

Dual Flat

key shaft

Key Shaft


Hybrid Stepper Motor Customized Service:

stepper motor





Cables

stepper motorsCovers
stepper motorShaft
lead screw stepper motorLead Screw Rod
closed loop stepper motorEncoders
brake stepper motor Brakes
Gared Stepper motor Gearboxes
linear guideLinear Module
Integrated stepper motor Integrated Drivers
stepper motor with worm gearboxWorm Gearbox


Nema17 24V Bldc Motor Dimension:


Suitable Drivers Manual:
