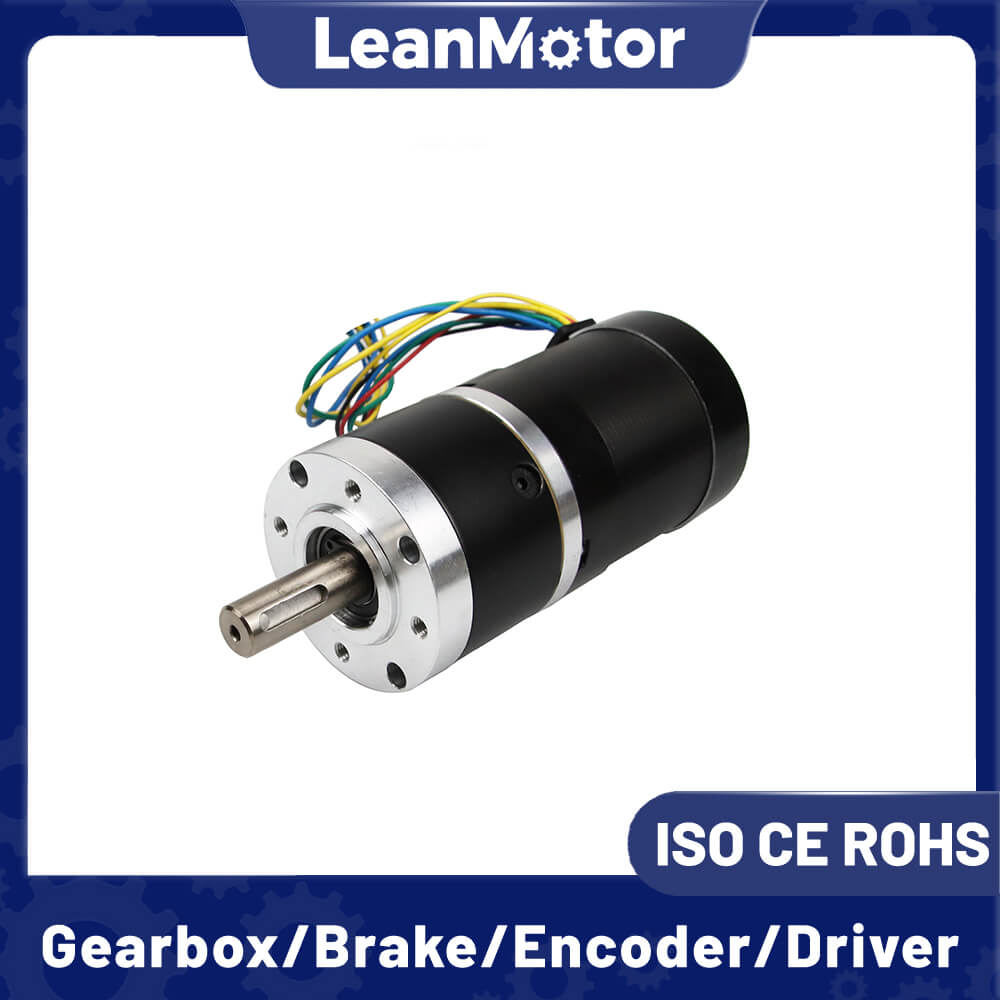

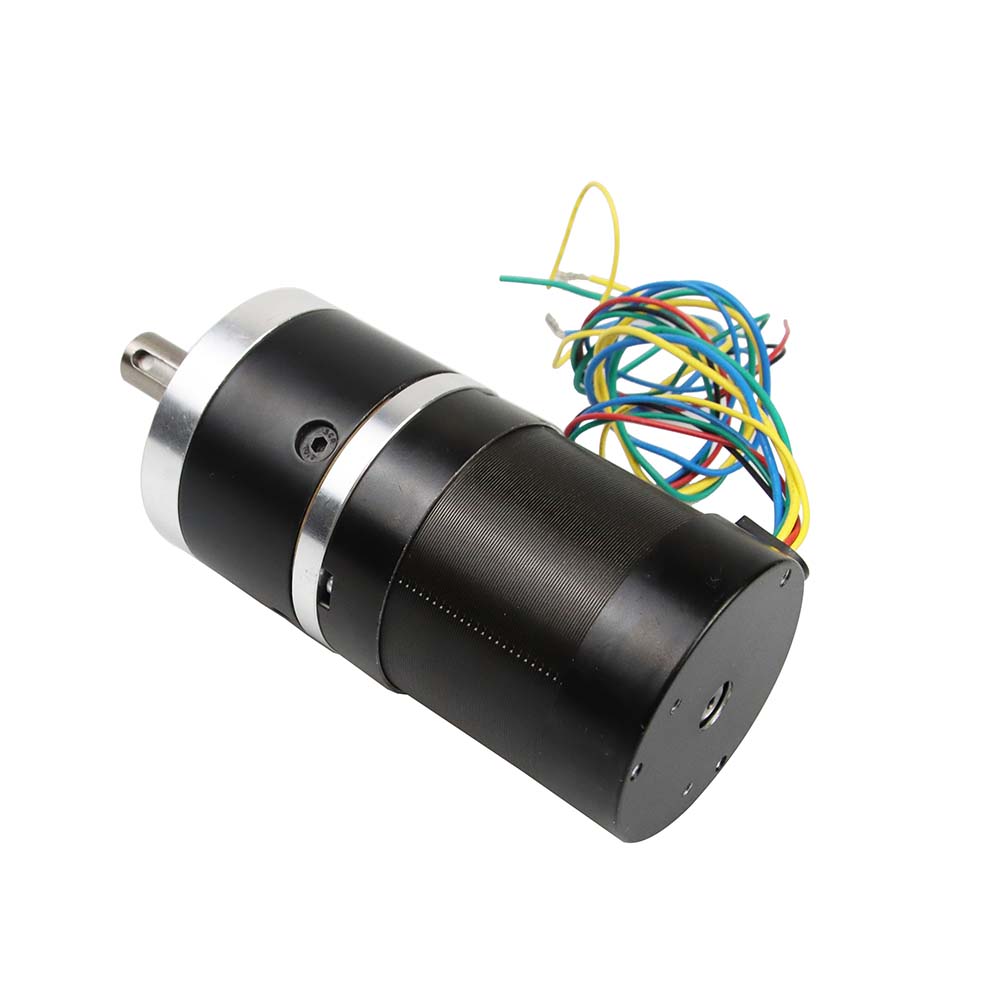

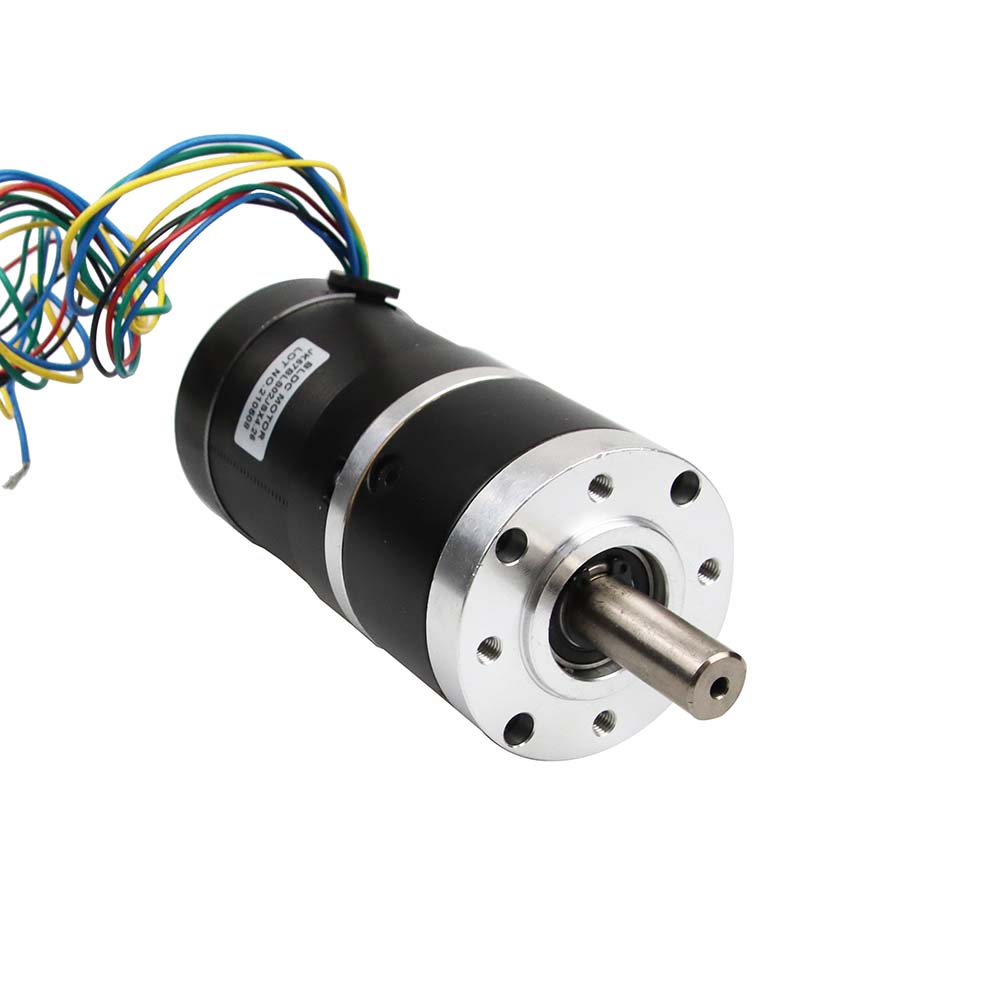

Nema 23 57BLS Common Planetary Geared Round Head BLDC Motor
LeanMotor
Nema 23 (57mm)
3 Phase
36V
10 Pcs
General Specifications | |
| Item | Specification |
| Winding type | Star |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm@450g |
| End play | 0.08mm@450g |
| Max.radial force | 75N@10mm from the flange |
| Max. axial force | 10N |
| Insulation class | Class B |
| Dielectric Strength | 500VDC for one minute |
| Insulation Resistance | 100MΩ Min., 500VDC |

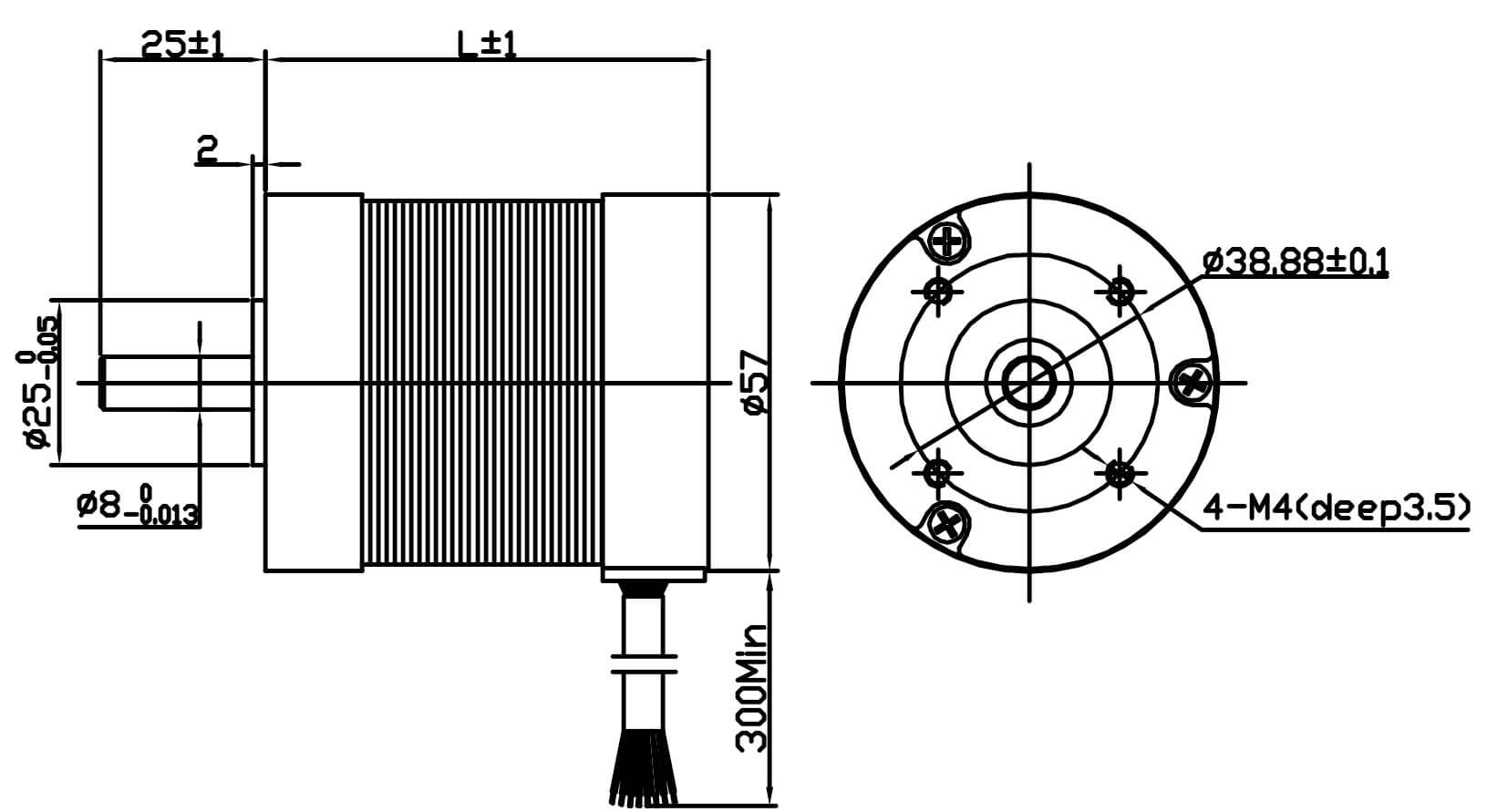

| Model No. | Rated voltage | Motor Length | Current | Rated power | Rotor Inertia | Rated torque | Rated speed | Weight |
| VDC | (L)mm | A | W | g.cm² | N.m | Rpm | kg | |
| LM57BLS005 | 36 | 37 | 3.5 | 23 | 30 | 0.055 | 4000 | 0.33 |
| LM57BLS01 | 36 | 47 | 6.8 | 46 | 75 | 0.11 | 4000 | 0.44 |
| LM57BLS02 | 36 | 67 | 11.5 | 92 | 119 | 0.22 | 4000 | 0.75 |
| LM57BLS03 | 36 | 87 | 15.5 | 138 | 173 | 0.33 | 4000 | 1 |
| LM57BLS04 | 36 | 107 | 20.5 | 184 | 230 | 0.44 | 4000 | 1.25 |
| Bldc Motors Wires | Hall Sensor Wires | ||||||
| U | V | W | +5VDC | GND | Hu | Hv | Hw |
| Yellow | Green | Blue | Red | Black | Yello | Green | Blue |
