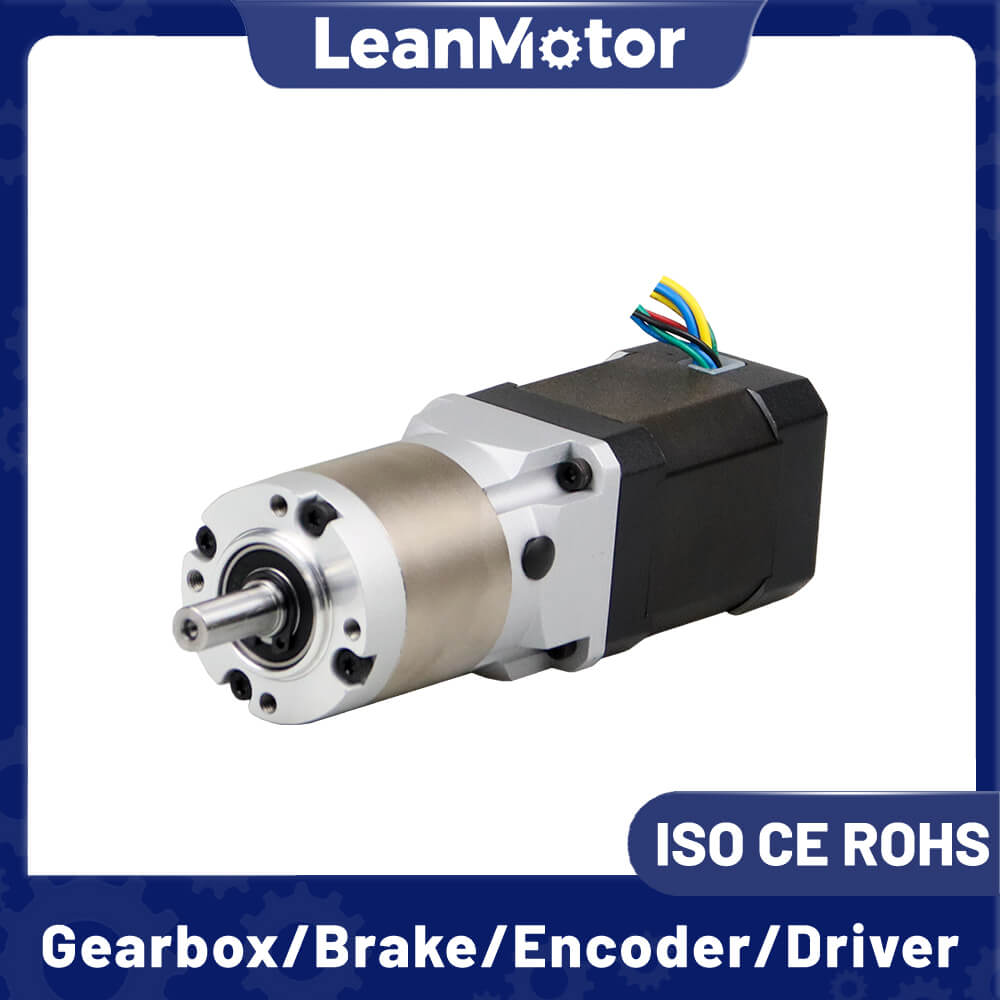

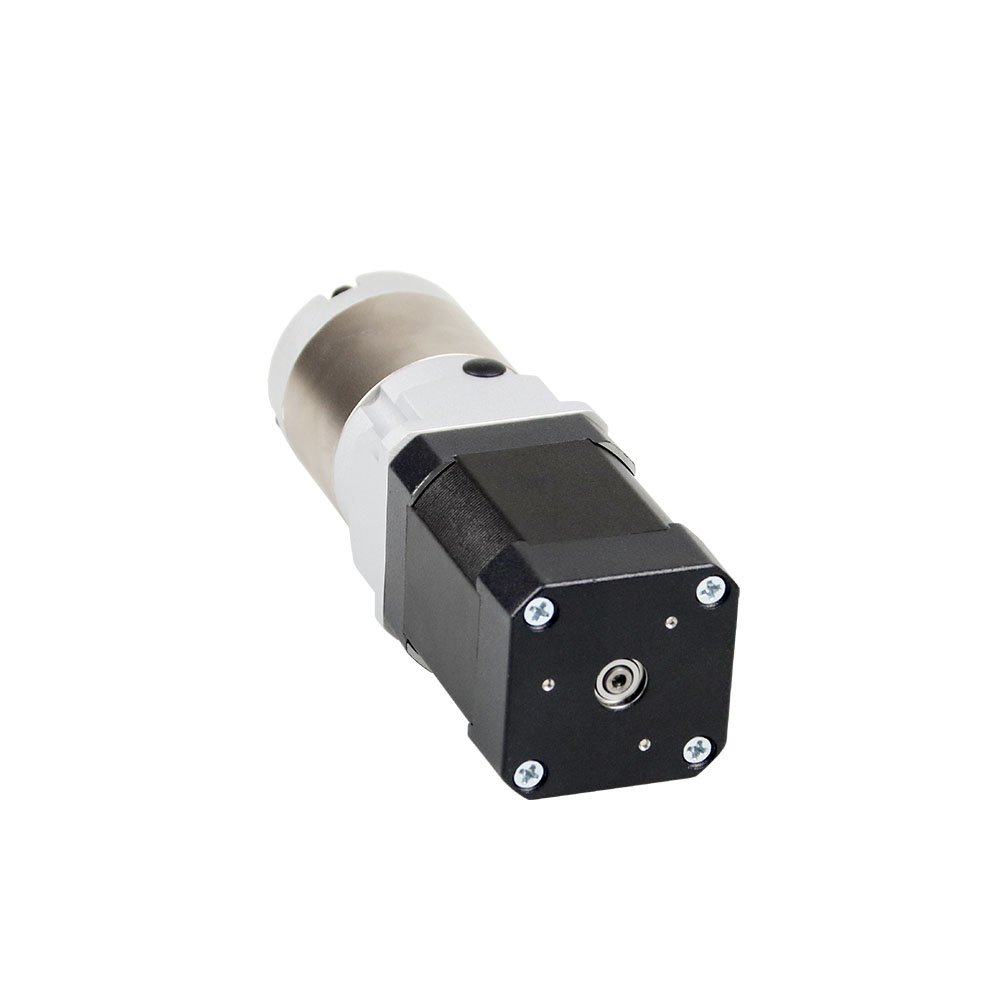

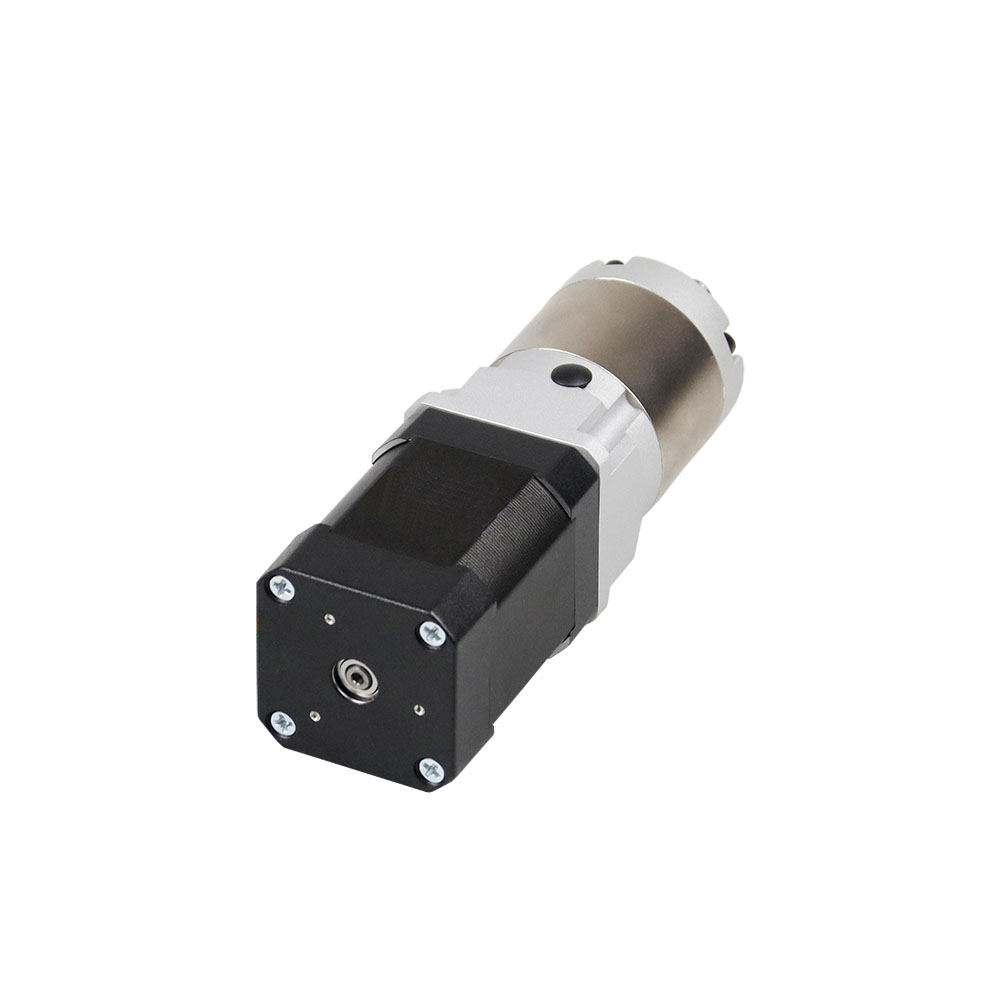

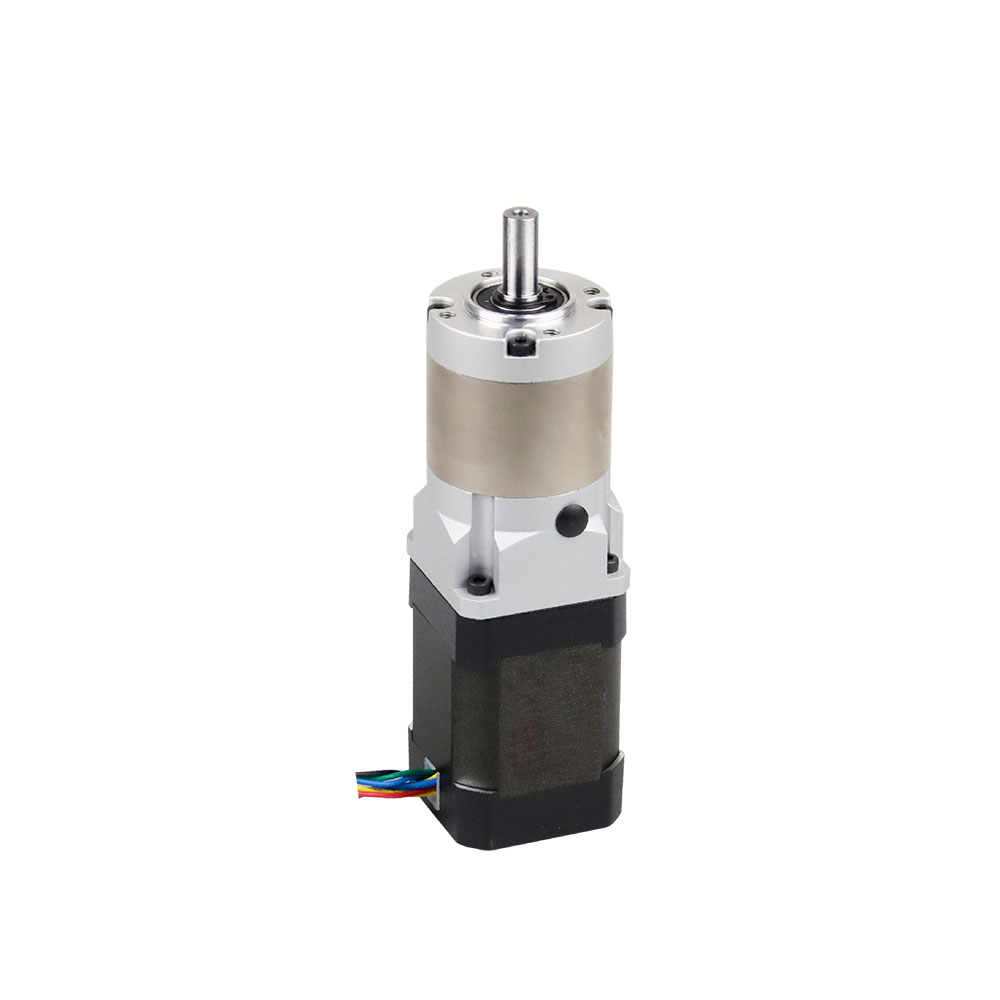

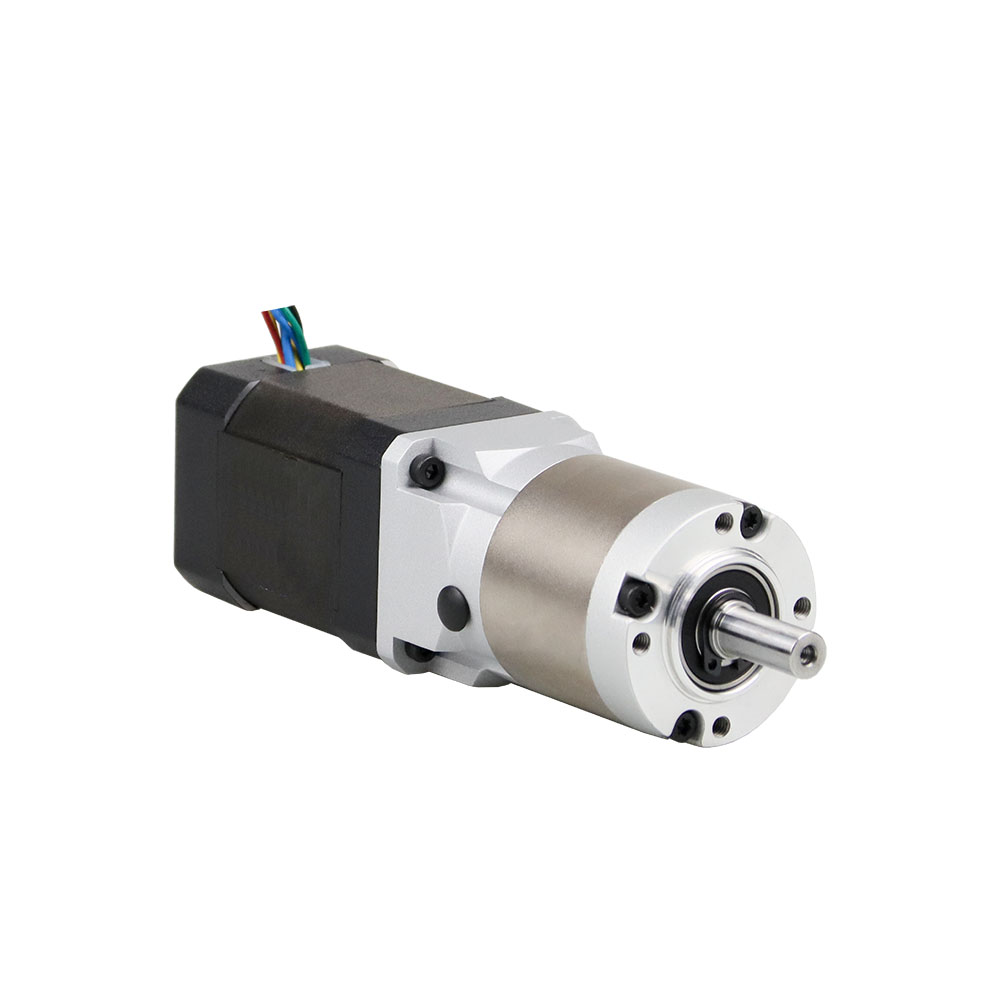

Leanmotor Nema 17 42BLS Geared Round Head BLDC Motor with High Precision Planetary Gearbox 42x42mm 3 Phase

Leanmotor Nema 17 42BLS Geared Round Head BLDC Motor with High Precision Planetary Gearbox 42x42mm 3 Phase

Share to:

Leanmotor Nema 17 42BLS Geared Round Head BLDC Motor with High Precision Planetary Gearbox 42x42mm 3 Phase

Type: Nema 17 42BLS High Precision Planetary Geared Round Head BLDC Motor

Motor Length: 41mm / 61mm / 81mm /100mm

Rated voltage：24V

Availability:

Quantity:



Inquire Add to Basket

Model:
Nema 17 42BLS High Precision Planetary Geared Round Head BLDC Motor
Brand:
LeanMotor
Bldc Motor Size:
33mm
Phase:
3 Phase
Rated Voltage:
24V
MOQ:
10 Pcs

Nema 17 42BLS 42mm Brushless Dc Motor General Specifications:

General Specifications
Item	Specification
Winding type	Star
Hall effect angle	120 degree electrical angle
Shaft run out	0.025mm
Radial play	0.02mm@450g
End play	0.08mm@450g
Max.radial force	15N@10mm from the flange
Max. axial force	10N
Insulation class	Class B
Dielectric Strength	500VDC for one minute
Insulation Resistance	100MΩ Min., 500VDC

Electrical Specifications:

Model No.	Rated voltage	Motor Length	Current	Rated power	Rotor Inertia	Rated torque	Rated speed	Weight
Model No.	VDC	(L)mm	A	W	g.cm²	N.m	Rpm	kg
LM42BLS01	24	41	5.4	26	24	0.0625	4000	0.3
LM42BLS02	24	61	10.6	52.5	48	0.125	4000	0.45
LM42BLS03	24	81	15.5	77.5	72	0.185	4000	0.65
LM42BLS04	24	100	20	105	96	0.25	4000	0.8

Wires Connection:

Bldc Motors Wires			Hall Sensor Wires
U	V	W	+5VDC	GND	Hu	Hv	Hw
Yellow	Green	Blue	Red	Black	Yello	Green	Blue

Previous:

Next:

42mm bldc motor brushless motor bldc electric motor bldc nema 17 bldc electric motor rc bldc motor bldc servo motor 3 phase bldc motor bldc brushless motor high torque bldc motor bldc motor manufacturer

Product Category

Related Products

brushless dc motor hall sensor

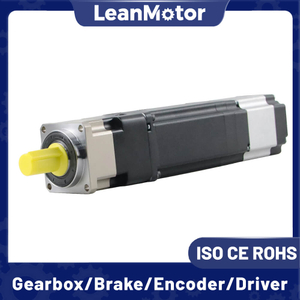

Leanmotor Nema 24 60BLS Square Head Geared BLDC Motor with High Precision Planetary Gearbox 60x60mm 48V 3 Phase
