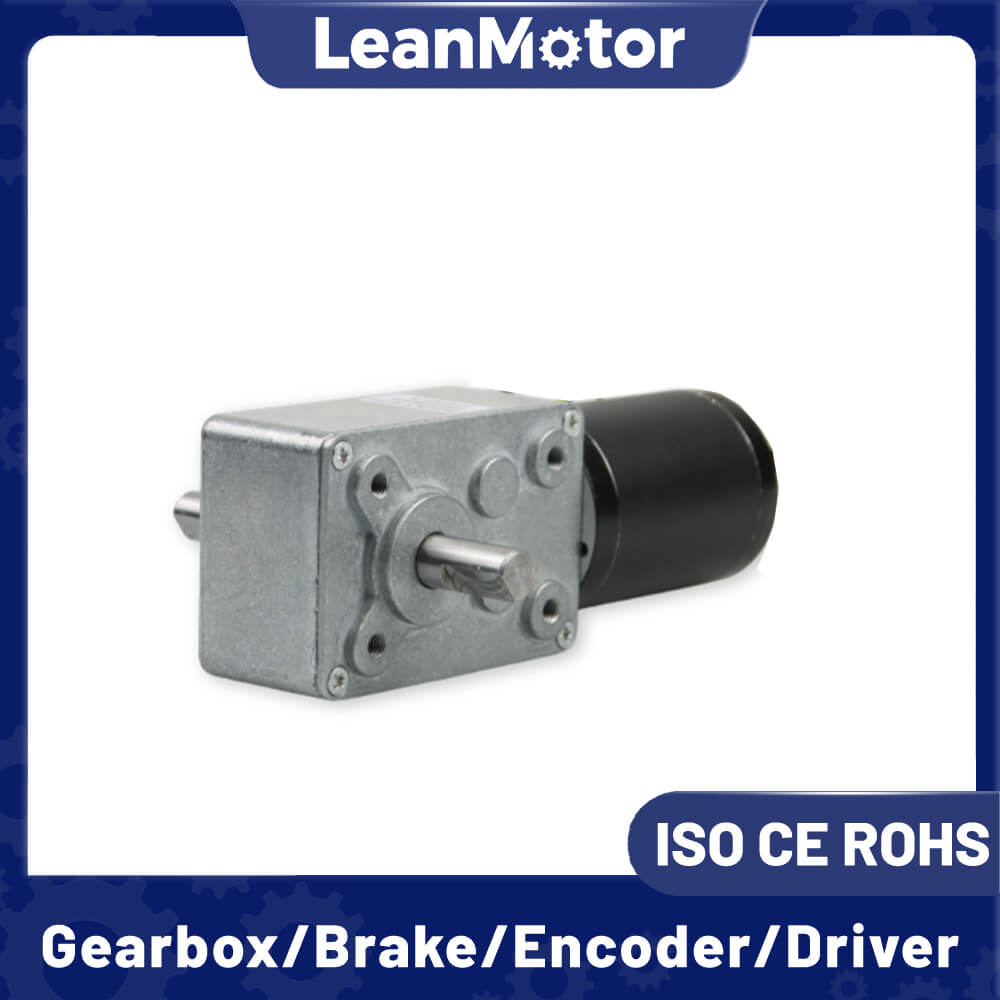

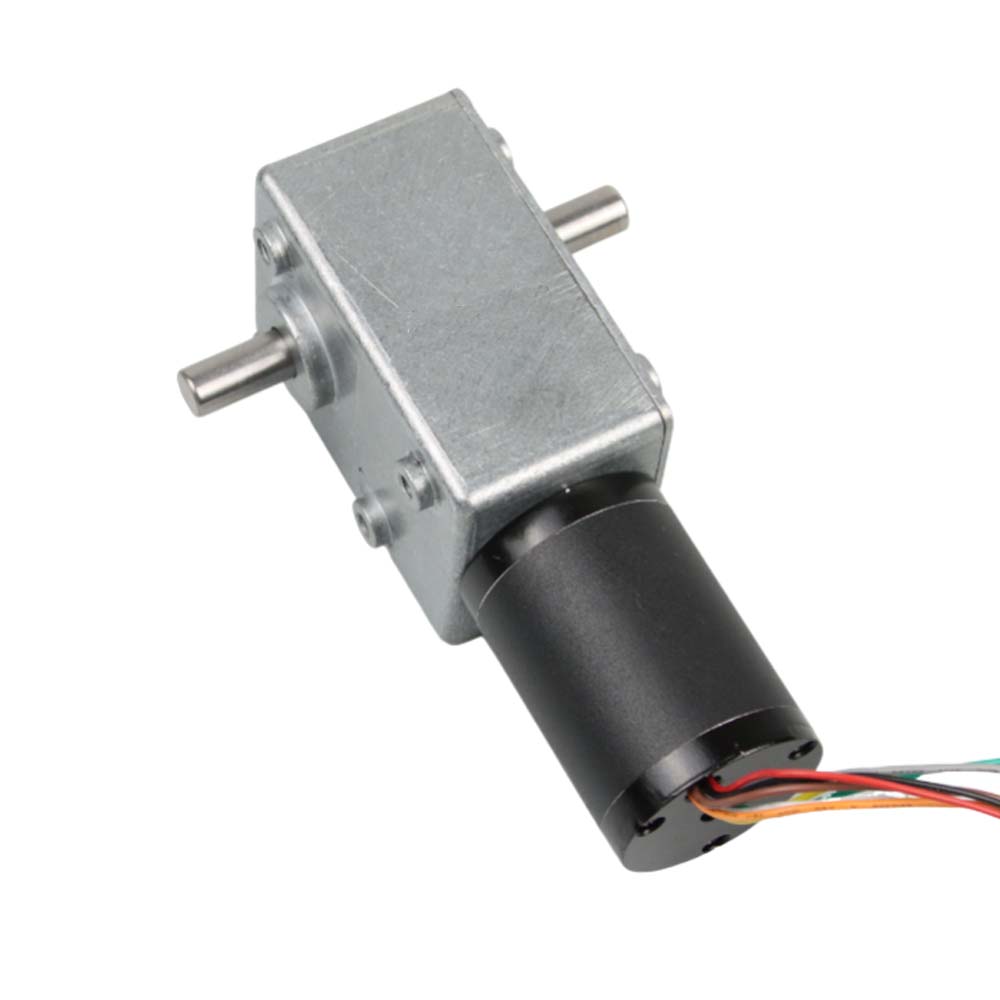

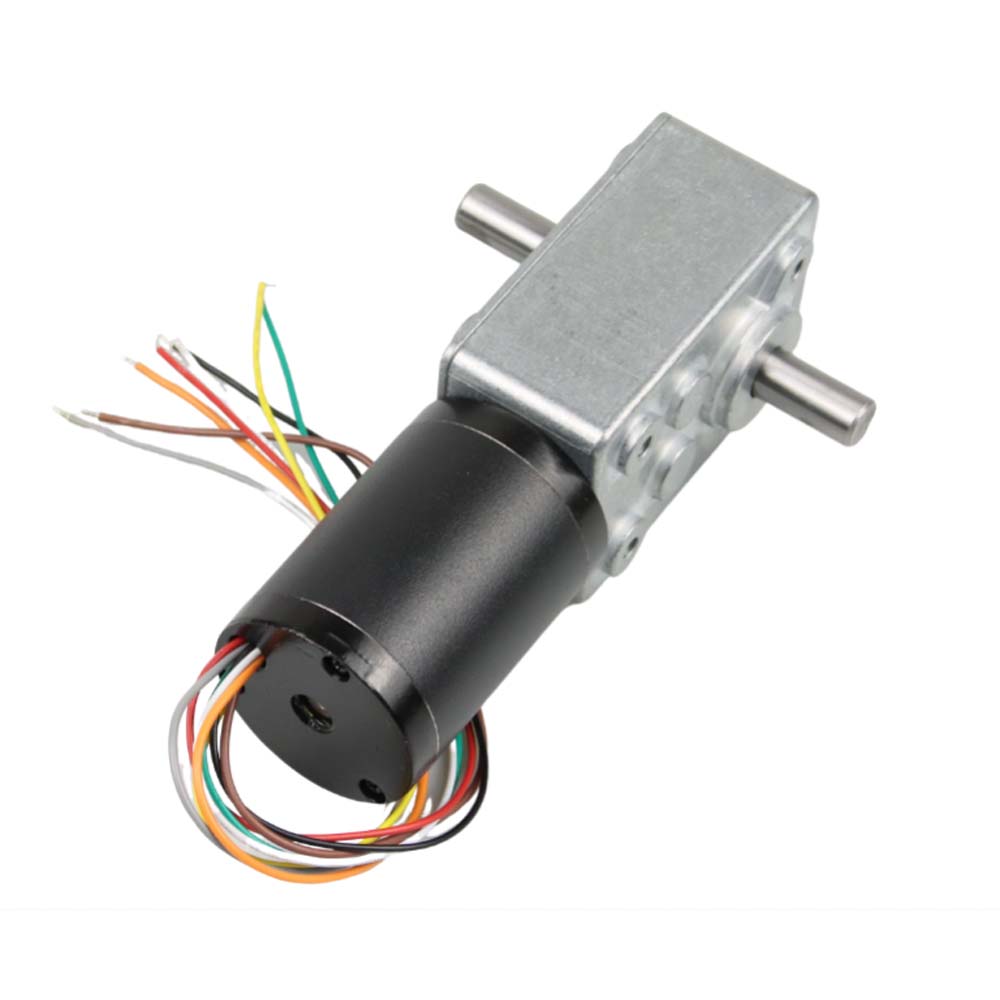

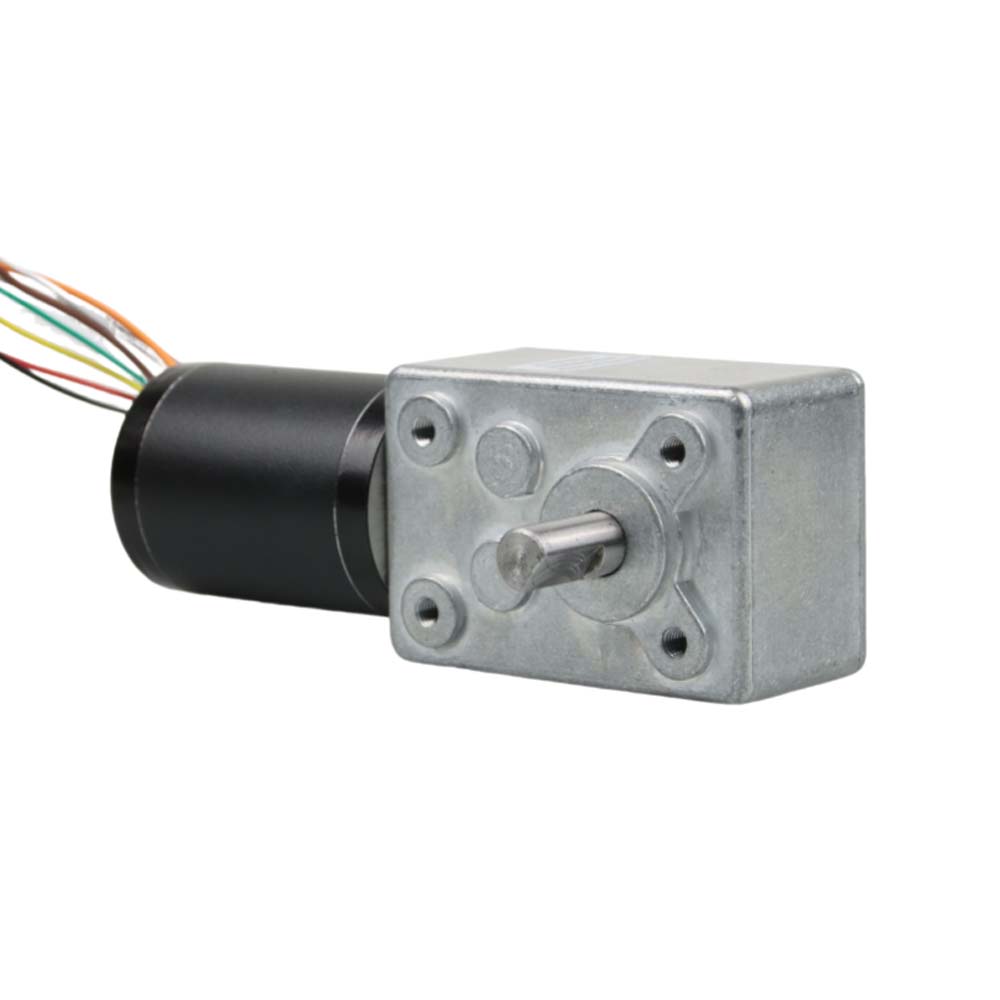

Leanmotor Nema 17 42BL Round Head Geared Brushless BLDC DC Motor with Worm Gearbox 42x42mm 3 Phase

Type: Nema 17 42BL Round Head Worm Geared Brushless DC Motor

Motor Length: 30mm / 60mm / 85mm /93mm

Rated voltage：24V / 36V

Availability:
Quantity:
Inquire Add to Basket

  • Nema 17 42BL Round Head Geared BLDC Motor with Worm Gearbox

  • LeanMotor

  • Nema 17(42mm)

  • 3 Phase

  • 24V, 36V

  • 10 Pcs

Nema 17 42BL 42mm Brushless Dc Motor General Specifications:

General Specifications

ItemSpecification
Winding typeStar
Hall effect angle120 degree electrical angle
Shaft run out0.025mm
Radial play0.02mm@450g
End play0.08mm@450g
Max.radial force15N@10mm from the flange
Max. axial force10N
Insulation classClass B
Dielectric Strength500VDC for one minute
Insulation Resistance100MΩ Min., 500VDC


Electrical Specifications:

Model No.Rated voltageMotor LengthCurrentRated powerRotor InertiaRated torqueRated speedWeight
VDC(L)mmAWg.cm²mN.m

Rpm

kg
LM42BL3024301.56.515.61835000.25
LM42BL6036605.032338040000.35
LM42BL8524
857.56284
15040000.7
LM42BL93249310769411563000.8


Wires Connection:

Bldc Motors WiresHall Sensor Wires
UVW+5VDC
GNDHu
HvHw
YellowGreenBlueRedBlackYello
GreenBlue


Nema17 24V Round Bldc Motor Dimension:

42mm brushless dc motor


Hybrid Stepper Motor Optional Parts：

Connectors, Gearbox, Encoder, Brake, Integrated Driver...


Customized Service:

Metal Pulleys

Metal Pulleys

plastic pulley

Plastic Pulley

gear

Gear

shaft pin

Shaft Pin

threaded shaft

Threaded Shaft

panel mount

Panel Mount

Hollow shaft

Hollow Shaft

lead screw

Lead Screw

panel mount

Panel Mount

single flat

Single Flat

dual flat

Dual Flat

key shaft

Key Shaft


Hybrid Stepper Motor Customized Service:

stepper motor





Cables

stepper motorsCovers
stepper motorShaft
lead screw stepper motorLead Screw Rod
closed loop stepper motorEncoders
brake stepper motor Brakes
Gared Stepper motor Gearboxes
linear guideLinear Module
Integrated stepper motor Integrated Drivers
stepper motor with worm gearboxWorm Gearbox


Nema17 24V Round Bldc Motor Dimension:


Suitable Drivers Manual:
