Current: 0.67A
Motor Length: 32mm / 45mm / 51mm
| Quantity: | |
|---|---|

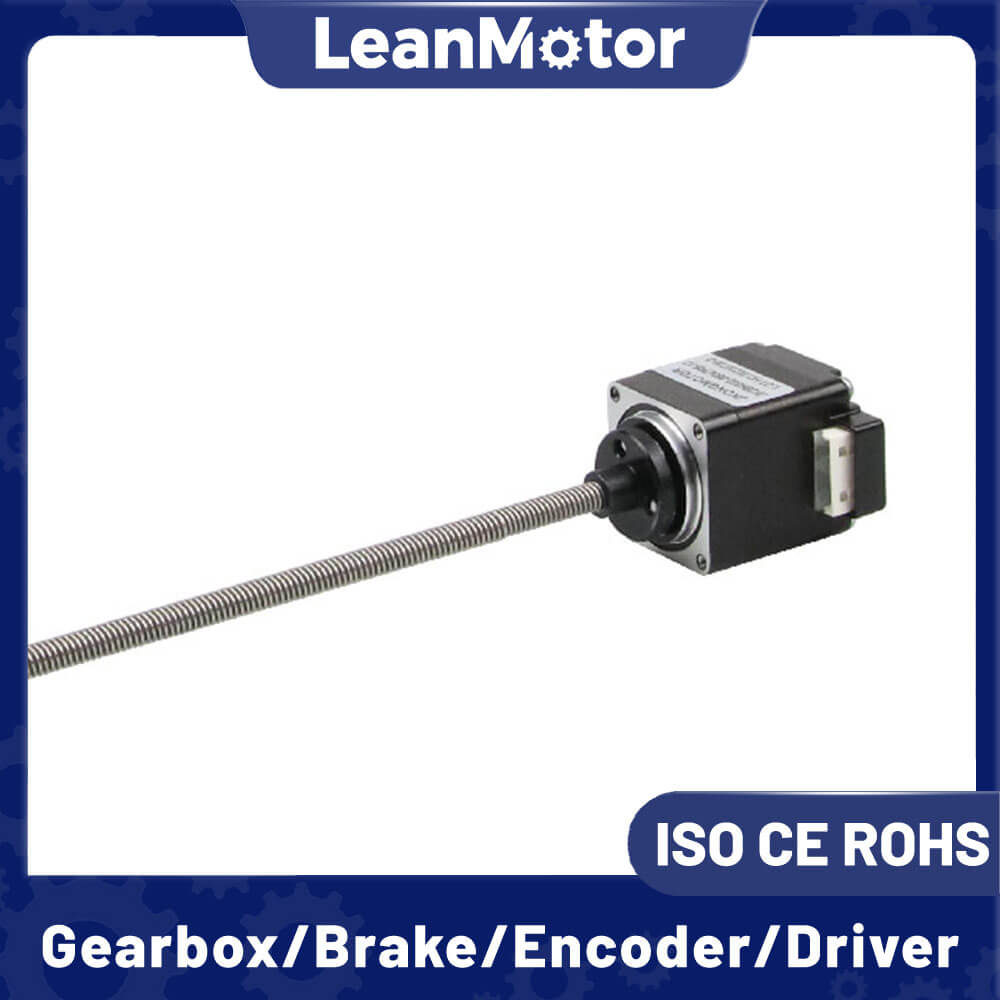

Nema 11 External T-type Linear Stepper Motor
LEANMOTOR
Linear Motors
External T-type Linear
Nema11 (28mm)
4wires
2 Phase
1.8°
10 Pcs
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm2 | Kg | |
| LM28HST32-0674 | 1.8 | 32 | 0.67 | 5.6 | 3.4 | 600 | 4 | 9 | 0.11 |
| LM28HST45-0674 | 1.8 | 45 | 0.67 | 6.8 | 4.9 | 950 | 4 | 12 | 0.14 |
| LM28HST51-0674 | 1.8 | 51 | 0.67 | 9.2 | 7.2 | 1200 | 4 | 18 | 0.2 |
Note: Above only for representative products, products of special request can be made according to the customer request.
| Screw Rod Physical Specification： | |||||||
| Screw Diameter | Screw Lead | Screw Pitch | Travel Per Step | Screw Diameter | Screw Lead | Screw Pitch | Travel Per Step |
| mm | mm | mm | mm | mm | mm | mm | mm |
| Tr4.77 | 0.635 | 0.635 | 0.003 | Tr6 | 4 | 1 | 0.02 |
| 1.27 | 1.27 | 0.006 | 6 | 1 | 0.03 | ||
| 2.54 | 1.27 | 0.013 | 12 | 1.5 | 0.06 | ||
| 5.08 | 1.27 | 0.025 | Tr6.35 | 1.27 | 1.27 | 0.006 | |
| 10.16 | 1.27 | 0.051 | 1.5875 | 1.5875 | 0.008 | ||
| Tr5 | 1 | 1 | 0.005 | 3.175 | 1.5875 | 0.016 | |
| 2 | 1 | 0.01 | 6.35 | 1.5875 | 0.032 | ||
| 4 | 1 | 0.02 | 12.7 | 1.5875 | 0.064 | ||
| 8 | 1 | 0.04 | Tr8 | 2 | 2 | 0.01 | |
| Tr5.56 | 0.6096 | 0.6096 | 0.003 | 4 | 2 | 0.02 | |
| 4.8768 | 1.2192 | 0.024 | 8 | 2 | 0.04 | ||
| Tr6 | 1 | 1 | 0.005 | 12 | 2 | 0.06 | |
