Stepper motors are a cornerstone of modern motion-control systems, delivering precise and repeatable positioning across industrial automation, robotics, 3D printing, CNC machinery, and consumer electronics. A question that often arises among engineers, makers, and automation professionals is: Do stepper motors have gears?
In this comprehensive guide, we clarify gear integration in stepper motor systems, explain why gears are used, explore types of gear solutions, and provide engineering-level insights to help you make the best choice for your application.
A stepper motor is a type of brushless DC motor designed to move in precisely controlled, discrete steps. Unlike conventional motors that rotate continuously when powered, stepper motors advance in fixed angular increments, making them ideal for applications requiring accurate position control, repeatable motion, and precise speed regulation.
At the heart of a stepper motor's function is its electromagnetic coil arrangement. The motor's internal stator contains multiple coils that are energized in a specific sequence. This creates a rotating magnetic field that “pulls” the rotor—typically outfitted with permanent magnets or soft iron teeth—into alignment one step at a time. Each pulse of electricity equals one step forward.
Open-loop control
Stepper motors operate without requiring position feedback, yet maintain high positional accuracy within their designed torque and speed limits.
High torque at low speed
Stepper motors produce strong holding torque and deliver controlled motion even at slow speeds, making them suitable for stationary loads and incremental motion tasks.
Precise positioning and repeatability
With fixed step angles (commonly 1.8° per step or 200 steps per revolution), stepper motors achieve excellent repeatability crucial for automation and robotics.
Speed controlled by pulse frequency
The rotational speed is directly proportional to the rate of input pulses, enabling smooth acceleration and deceleration profiles.
Because of their high precision and reliability, stepper motors are used in:
CNC machinery
3D printers and laser engravers
Industrial automation equipment
Camera control mechanisms and optical devices
Medical dosing and lab automation systems
Stepper motors strike a balance between simplicity, accuracy, and cost-effectiveness. They bridge the gap between inexpensive DC motors and more complex servo systems, making them a popular choice where predictable movement and fine control are required, without the need for feedback encoders or advanced control electronics.

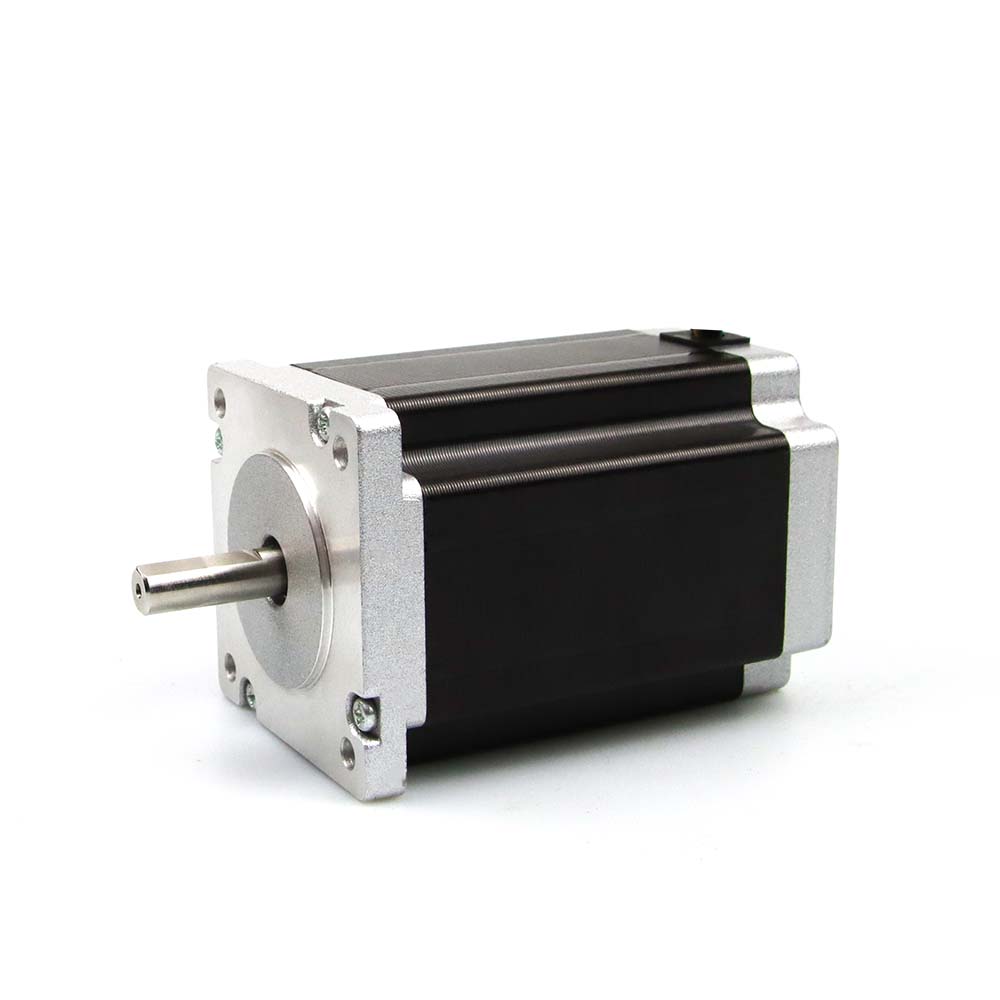

Most standard stepper motors do not come with built-in gears. A typical stepper motor has a rotor directly connected to the output shaft, delivering motion in precise steps without mechanical reduction. This design supports simple control, strong holding torque, and dependable accuracy — perfect for many automation and positioning systems.
However, gears are sometimes integrated into stepper motor assemblies when applications require greater torque, finer resolution, or slower output motion than a direct-drive motor can provide. These units are known as geared stepper motors.
Direct connection between rotor and shaft
Lower mechanical complexity
Ideal for fast or moderate-load applications
Common in 3D printers, CNC gantries, plotters, and automation rails
These motors perform best when the mechanical load is reasonable and high-speed motion is desired.
Include an integrated gearbox on the motor output shaft
Provide mechanical torque multiplication
Reduce output speed while increasing precision
Used in heavier-load or micro-positioning applications
Gearboxes used may be planetary, spur, or worm gear systems, tailored to specific performance goals such as torque amplification, backlash reduction, or holding force.
Stepper motors aren't universally shipped with gearboxes because:
Many applications don't need the extra torque or resolution
Gears add cost, size, and mechanical wear points
Direct-drive motion often provides smoother and faster response
Avoiding gears reduces backlash and maintenance requirements
For most motion-control tasks, a standard stepper delivers more than enough torque and accuracy — especially when paired with microstepping or closed-loop drivers.
Default stepper motors = no gears
Geared stepper versions exist and are used when necessary for torque, accuracy, or controlled speed
Choosing between them depends on your system's load, precision, and speed requirements
Adding gears transforms performance capabilities. Benefits include:
Gear reduction multiplies torque, making it ideal for:
Heavy-load positioning systems
Industrial automation arms
Conveyor drives
Automated valve controls
Gear reduction increases step resolution.
For example, a standard 200-step stepper paired with a 5:1 gearbox results in 1000 steps per output revolution.
This allows:
Finer motion control
Higher accuracy in robotics and laboratory equipment
Smooth, gradual movement for optical instruments
Gears stabilize torque at low speeds, which are traditionally a stepper motor weakness.
Geared Stepper Motors can replace:
Larger stepper motors
Servo motors in low-speed, high-torque applications
Simple gear design
Cost-effective
Used for light-duty applications
Multiple gears engage simultaneously
High torque capacity
Low backlash options available
Best choice for robotics and precision automation
High reduction ratios
Self-locking capability
Suitable for vertical drives and lift mechanisms
Non-contact gear alternative
Smooth motion and adjustable ratio selection
Widely used in 3D printers and gantry CNC machines
Gear ratio determines mechanical advantage.
| Gear Ratio | Effect |
|---|---|
| 2:1 | Slight torque boost, minimal speed loss |
| 5:1 | Good balance of torque and precision |
| 10:1+ | High torque systems, slow output speed |
Higher reduction = more torque, slower output motion, increased precision
A geared stepper is ideal when:
| Requirement | Decision |
|---|---|
| High torque at low speed | ✅ Geared stepper |
| Micro-positioning required | ✅ Geared stepper |
| High-speed rotation needed | ❌ Use direct-drive stepper |
| Very high dynamic motion | ❌ Consider servo motor |
| Industry | Use Case | Benefit |
|---|---|---|
| 3D Printing | Extruder drive | Smooth filament feeding |
| CNC Machines | Rotary axis / threading | High torque, fine resolution |
| Robotics | Joint actuation | Compact high-torque motion |
| Medical Devices | Precision pumps | Accurate dosing and control |
| Optics & Imaging | Positioning systems | Ultra-fine motion control |
| Automation Systems | Linear actuators | Strong low-speed drive performance |
Not all stepper motor systems require gears. In fact, a large percentage of stepper-driven machines run perfectly well using direct-drive operation, where the motor shaft connects directly to the load. Stepper motors already provide high precision, strong low-speed torque, and predictable motion, so many applications don't gain enough benefit from gears to justify the added cost or mechanical complexity.
A stepper motor alone is typically sufficient when:
The load is relatively light
High rotational speed is required
The mechanical system has low friction
Direct, responsive motion is preferred
Positioning accuracy is handled by electronics or microstepping
Examples include:
3D printer X/Y motion systems
Small CNC routers and plotters
Laser cutter gantry drives
Camera sliders and automation rails
In these systems, gears could reduce speed unnecessarily, add mechanical play (backlash), and increase wear — offering little strategic payoff.
A geared stepper becomes advantageous when:
High torque is required to move the load
Very fine movement resolution is needed
The motion must be slow and controlled under load
Vertical lifting is involved (prevents back-drive)
Space constraints prevent using a larger motor
Examples include:
Robotic arms and precision joints
Extruder mechanisms in 3D printers
Conveyor and indexing tables
Valve actuators and fluid dosing units
Medical and lab automation equipment
In these situations, a gear reduction magnifies torque and positioning accuracy, helping the motor operate efficiently without stalling or overheating.
| Scenario | Best Choice |
|---|---|
| Fast, lightweight motion | Direct-drive stepper |
| Slow, heavy, or ultra-precise motion | Geared stepper |
In simple terms: use gears only when needed for mechanical leverage or precision. Otherwise, a direct-drive stepper keeps your system simpler, cheaper, and more responsive.
Backlash — tiny mechanical play between gears — affects accuracy in reverse-direction motion.
Use precision planetary gearboxes
Select low-backlash gear models
Ensure proper alignment and lubrication
If gears are not ideal, consider:
Improves resolution electronically
Higher torque without gearing

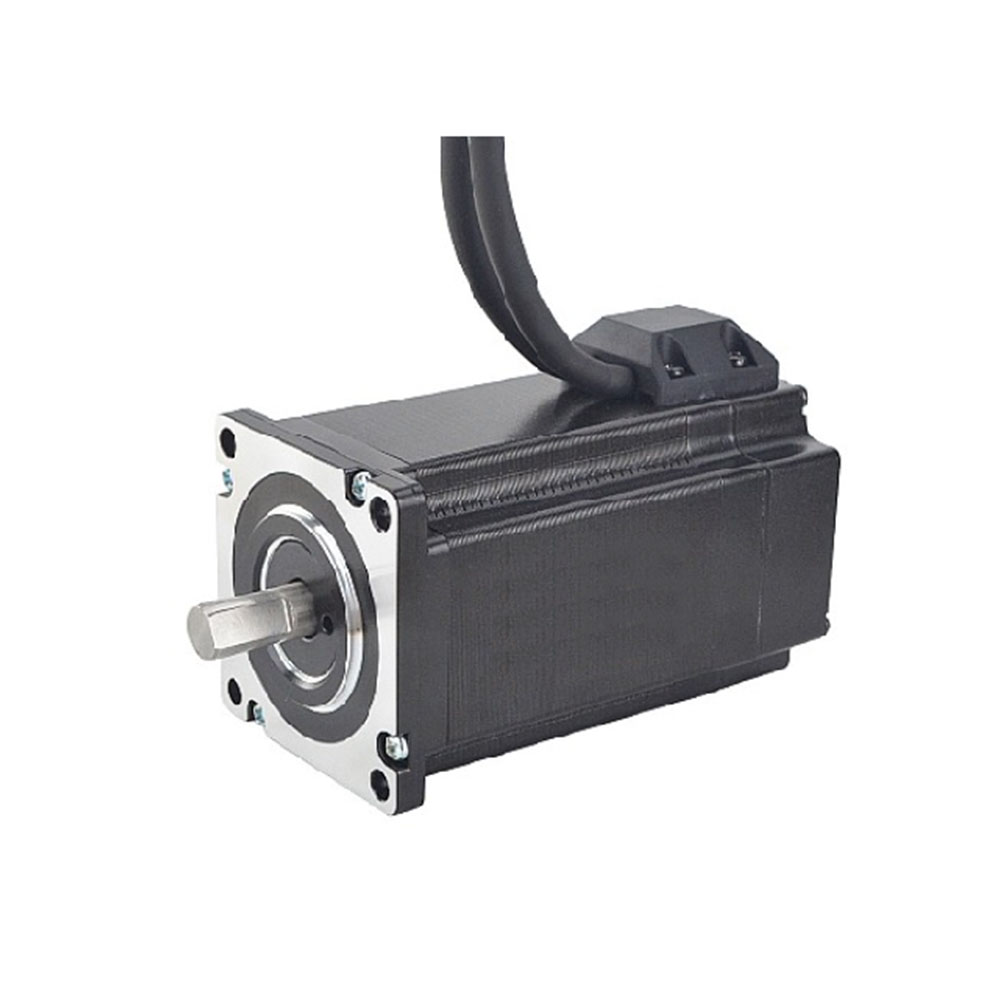

Servo-like performance with encoder feedback
| Factor | Recommendation |
|---|---|
| Load torque requirement | Choose gear ratio based on force needed |
| Speed target | Lower speed works well with gear reduction |
| Precision requirement | Select planetary gearbox for minimal backlash |
| Budget | Spur or belt-drive for lower cost |
| Duty cycle | Ensure gearbox supports required operating hours |
Stepper motors do not normally include gears by default, but geared stepper motors are widely available and highly useful. When properly selected, gears unlock enhanced torque, higher resolution, and improved low-speed performance — making stepper systems more versatile across industrial and precision engineering applications.
Whether you're designing automation equipment, robotics, or precision machinery, understanding the role of gears in stepper systems ensures that you choose the optimal drive solution for performance, efficiency, and reliability.
