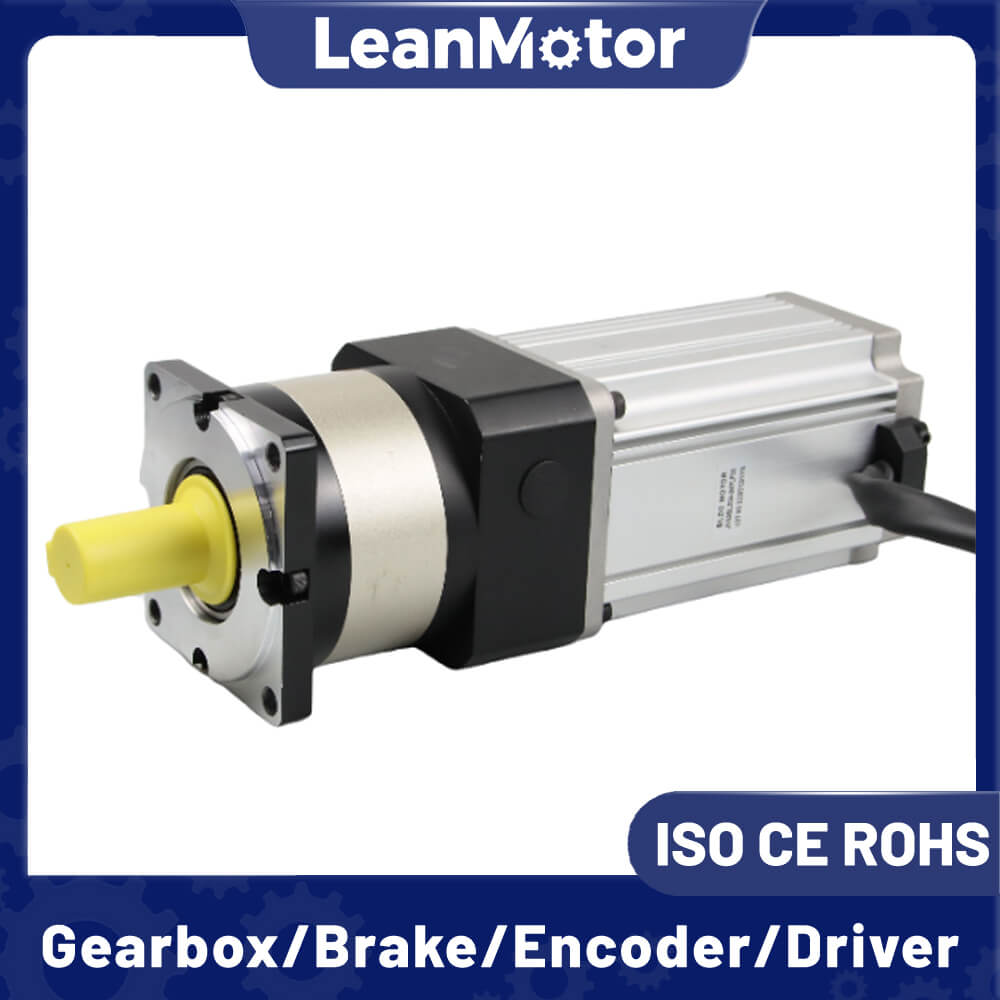

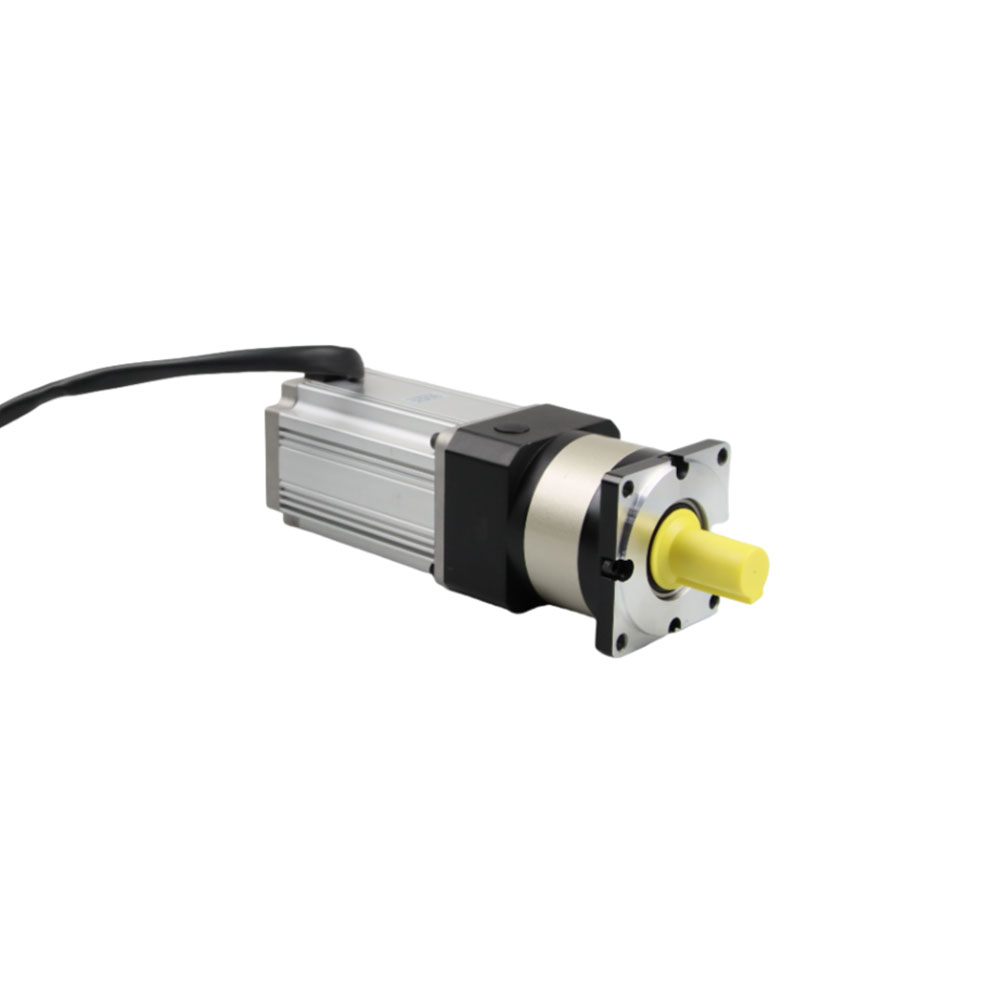

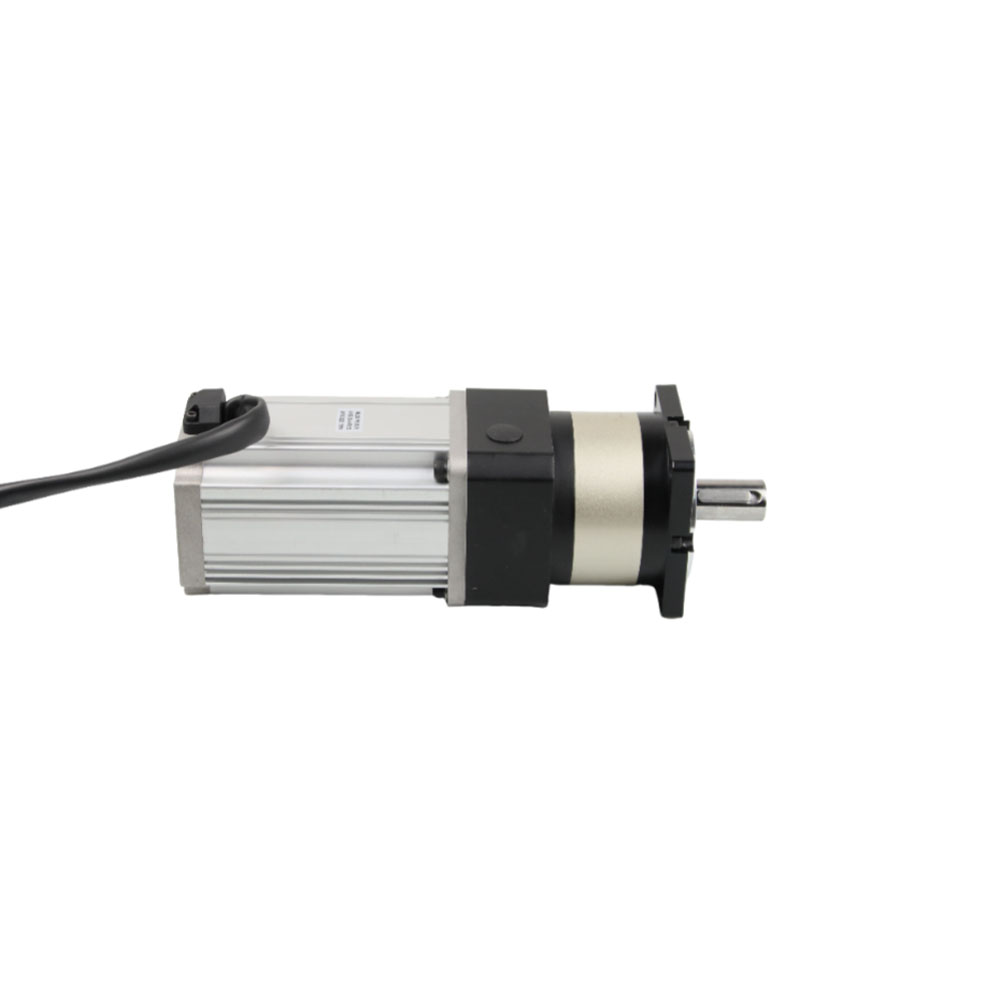

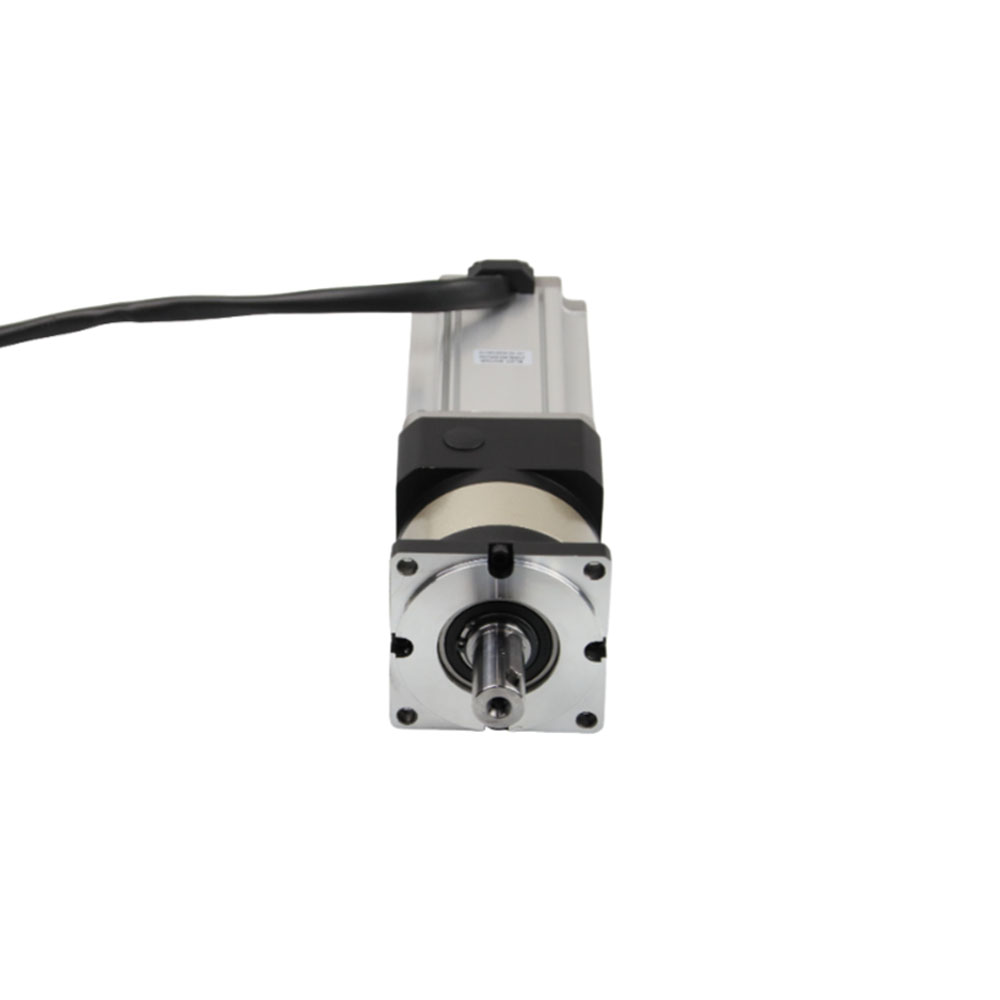

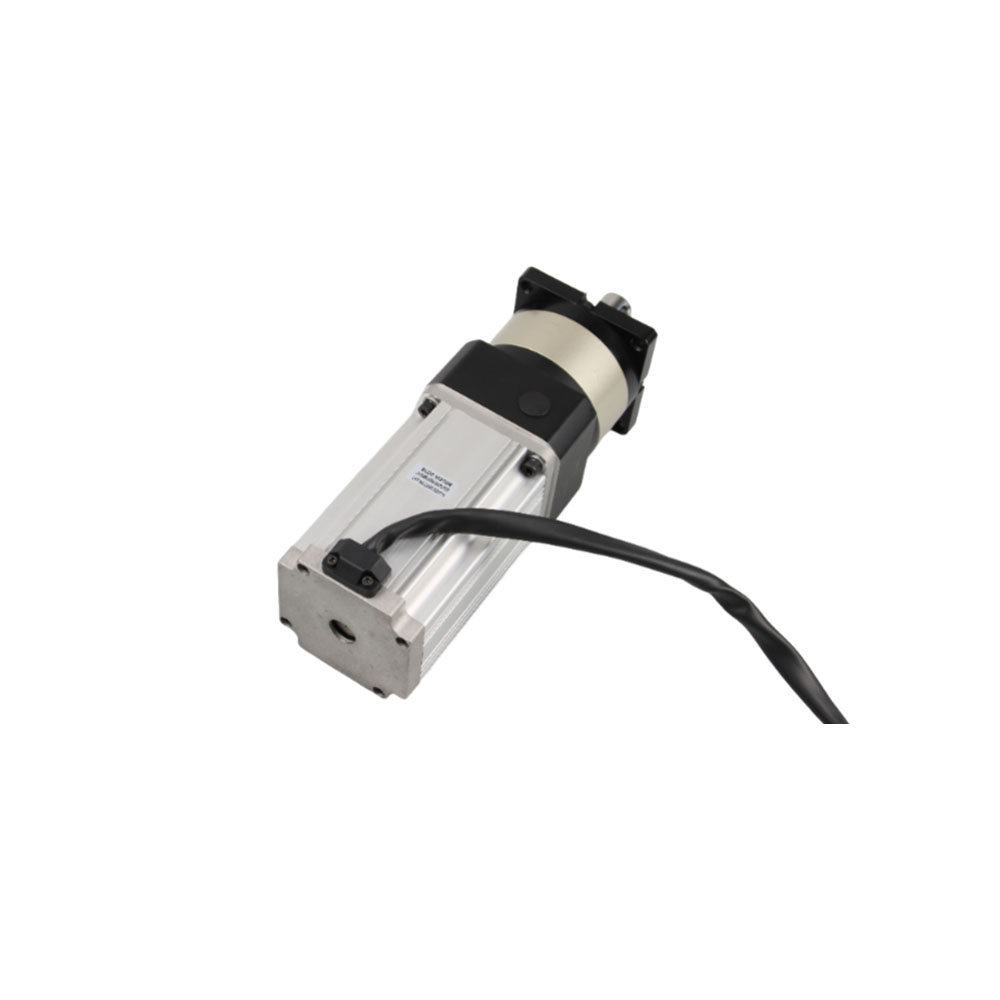

Leanmotor 80BLS Geared Round Head BLDC Motor with High Precision Planetary Gearbox 3000rpm 80x80mm 48V 3 Phase

Type: 80BLS Geared Square Head BLDC Motor with High Precision Planetary Gearbox

Motor Length: 78mm / 98mm / 118mm /138mm

Rated voltage：48V

Availability:
Quantity:
Inquire Add to Basket

  • 80BLS High Precision Planetary Geared Square Head BLDC Motor

  • LeanMotor

  • 80mm

  • 3 Phase

  • 48V

  • 10 Pcs

80BLS 80mm Brushless Dc Motor General Specifications:

General Specifications

ItemSpecification
Winding typeStar
Hall effect angle120 degree electrical angle
Shaft run out0.025mm
Radial play0.02mm@450g
End play0.08mm@450g
Max.radial force115N@10mm from the flange
Max. axial force45N
Insulation classClass B
Dielectric Strength500VDC for one minute
Insulation Resistance100MΩ Min., 500VDC


Electrical Specifications:

Model No.Rated voltageMotor LengthCurrentRated powerRotor InertiaRated torqueRated speedWeight
VDC(L)mmAWg.cm²N.m

Rpm

kg
LM80BLS01487831102100.3530001.4
LM80BLS0248985.52204200.730002
LM80BLS03481188330630
1.0530002.6
LM80BLS044813810.54408401.430003.2


Wires Connection:

Bldc Motors WiresHall Sensor Wires
UVW+5VDC
GNDHu
HvHw
YellowGreenBlueRedBlackYello
GreenBlue


80BLS 48V Bldc Motor Dimension:

80BLS


Hybrid Stepper Motor Optional Parts：

Connectors, Gearbox, Encoder, Brake, Integrated Driver...


Customized Service:

Metal Pulleys

Metal Pulleys

plastic pulley

Plastic Pulley

gear

Gear

shaft pin

Shaft Pin

threaded shaft

Threaded Shaft

panel mount

Panel Mount

Hollow shaft

Hollow Shaft

lead screw

Lead Screw

panel mount

Panel Mount

single flat

Single Flat

dual flat

Dual Flat

key shaft

Key Shaft


Hybrid Stepper Motor Customized Service:

stepper motor





Cables

stepper motorsCovers
stepper motorShaft
lead screw stepper motorLead Screw Rod
closed loop stepper motorEncoders
brake stepper motor Brakes
Gared Stepper motor Gearboxes
linear guideLinear Module
Integrated stepper motor Integrated Drivers
stepper motor with worm gearboxWorm Gearbox


48V 80mm Brushless Dc Motor Drawing:
