Motor Length: 78mm / 98mm / 118mm /138mm
Rated voltage：48V
| Quantity: | |
|---|---|

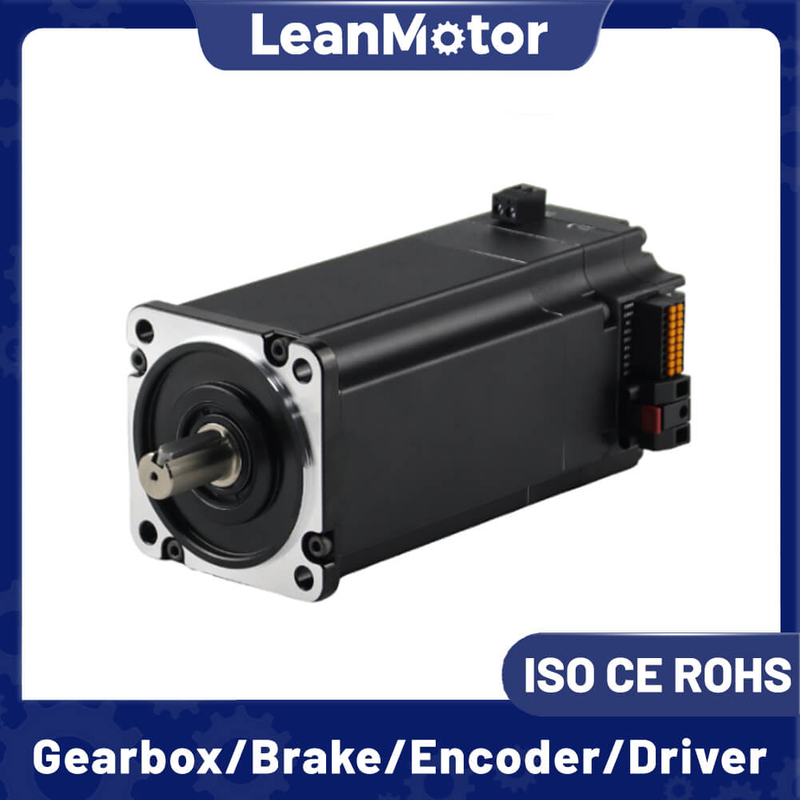

80BLS Brake Brushless BLDC DC Motor
LeanMotor
80mm
3 Phase
48V
10 Pcs
General Specifications | |
| Item | Specification |
| Winding type | Star |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm@450g |
| End play | 0.08mm@450g |
| Max.radial force | 115N@10mm from the flange |
| Max. axial force | 45N |
| Insulation class | Class B |
| Dielectric Strength | 500VDC for one minute |
| Insulation Resistance | 100MΩ Min., 500VDC |
| Model No. | Rated voltage | Motor Length | Current | Rated power | Rotor Inertia | Rated torque | Rated speed | Weight |
| VDC | (L)mm | A | W | g.cm² | N.m | Rpm | kg | |
| LM80BLS01 | 48 | 78 | 3 | 110 | 210 | 0.35 | 3000 | 1.4 |
| LM80BLS02 | 48 | 98 | 5.5 | 220 | 420 | 0.7 | 3000 | 2 |
| LM80BLS03 | 48 | 118 | 8 | 330 | 630 | 1.05 | 3000 | 2.6 |
| LM08BLS04 | 48 | 138 | 10.5 | 440 | 840 | 1.4 | 3000 | 3.2 |
| Bldc Motors Wires | Hall Sensor Wires | ||||||
| U | V | W | +5VDC | GND | Hu | Hv | Hw |
| Yellow | Green | Blue | Red | Black | Yello | Green | Blue |
