Motor Length: 83mm / 113mm / 143mm / 173mm
Rated voltage：310V
| Quantity: | |
|---|---|

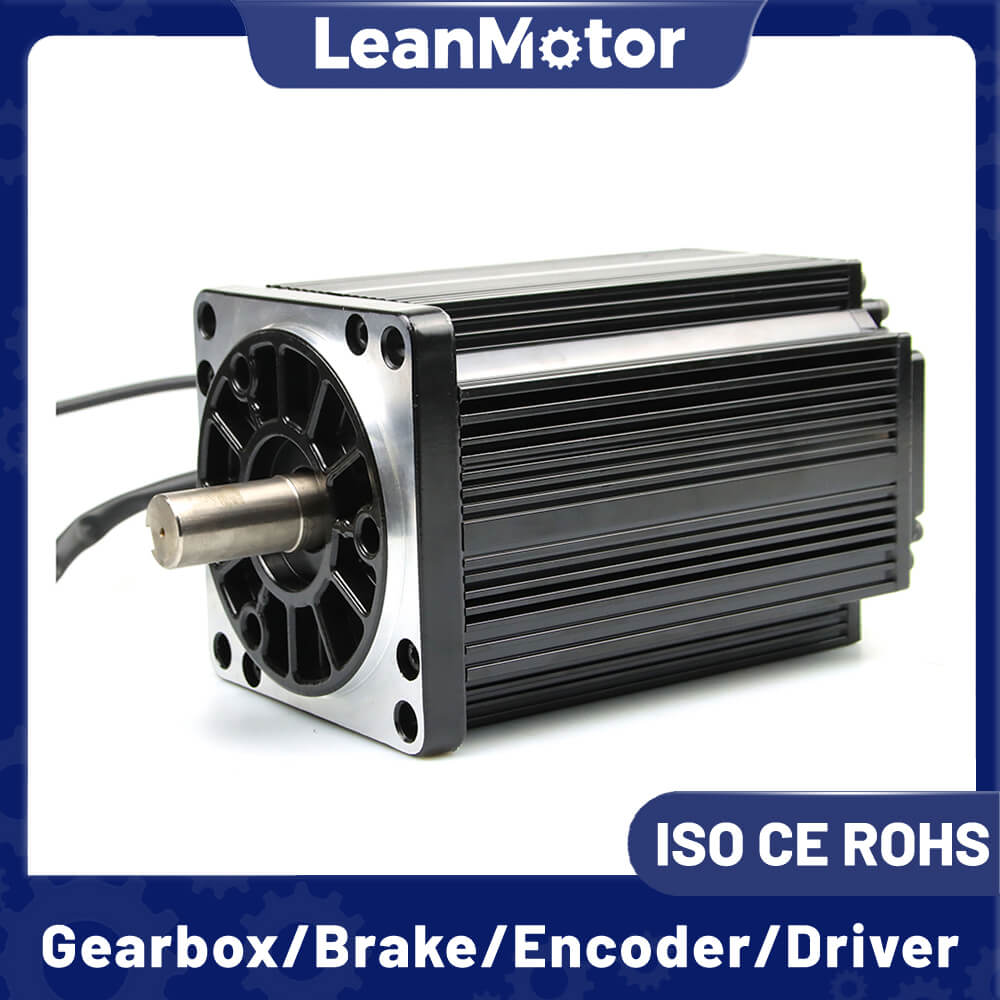

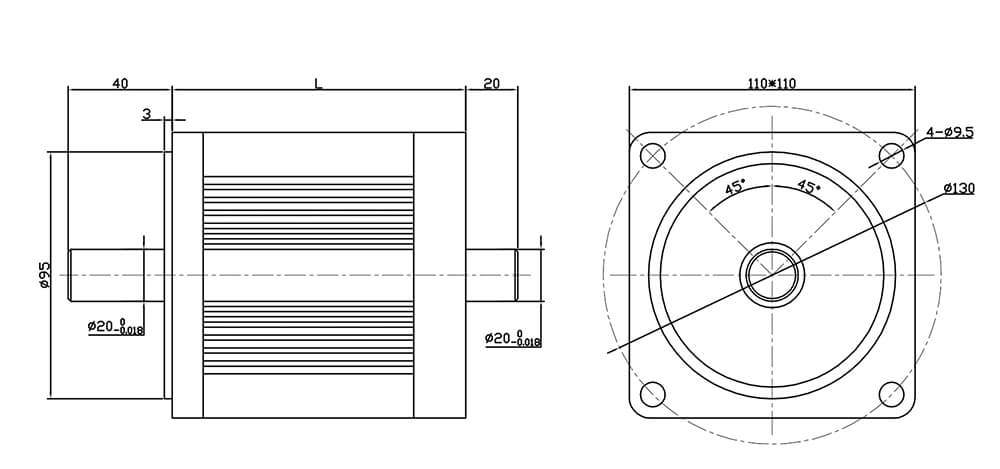

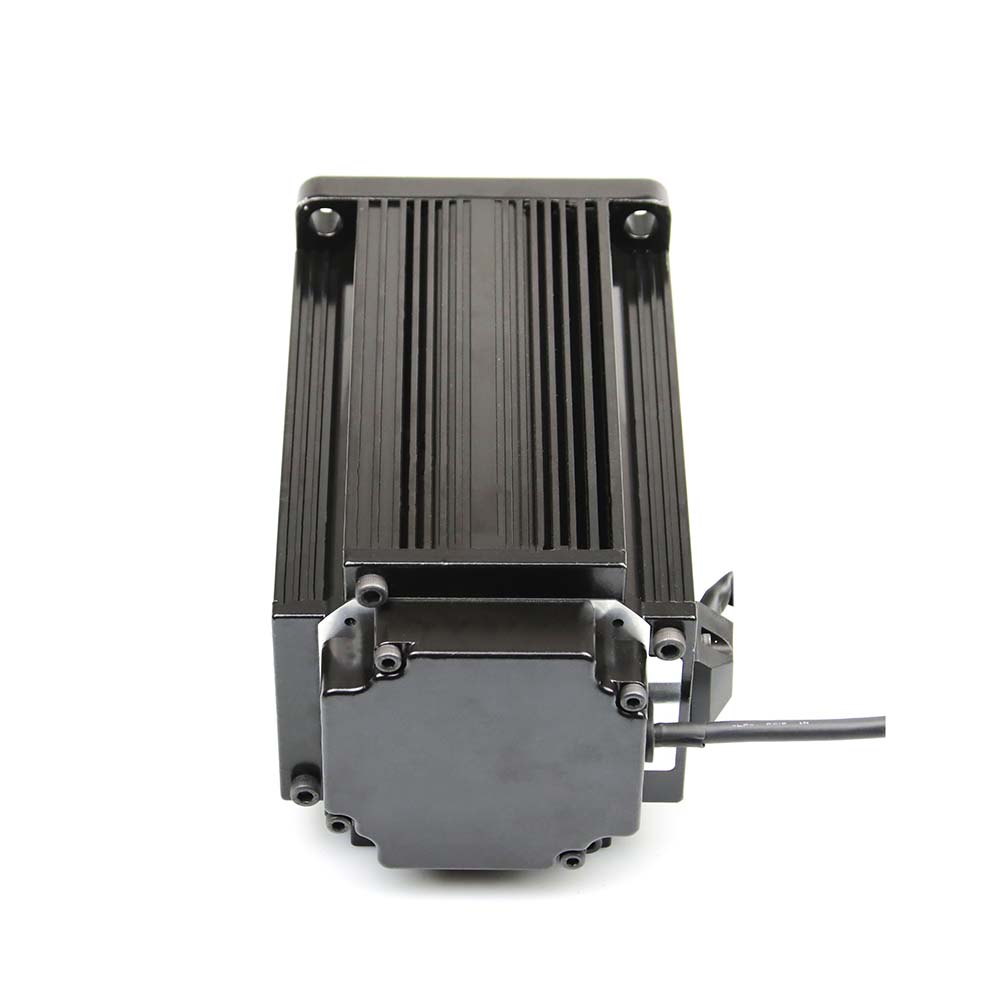

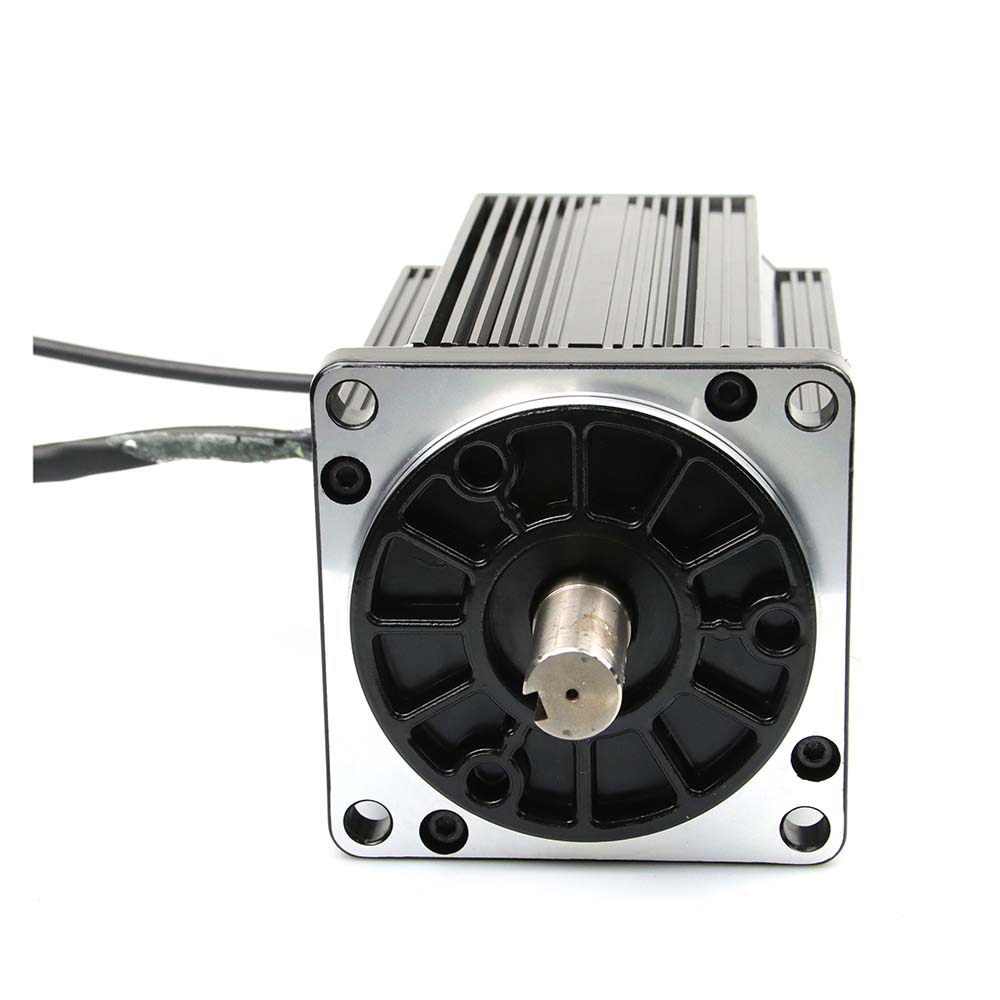

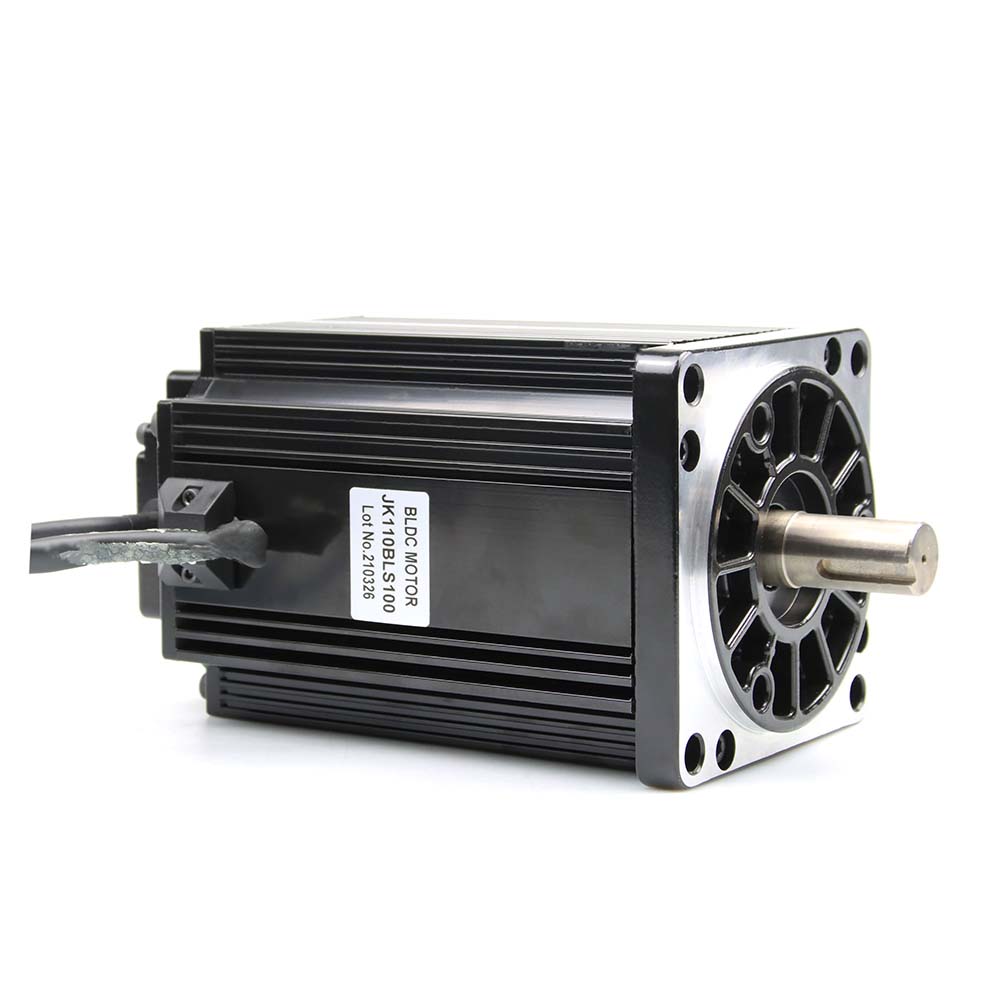

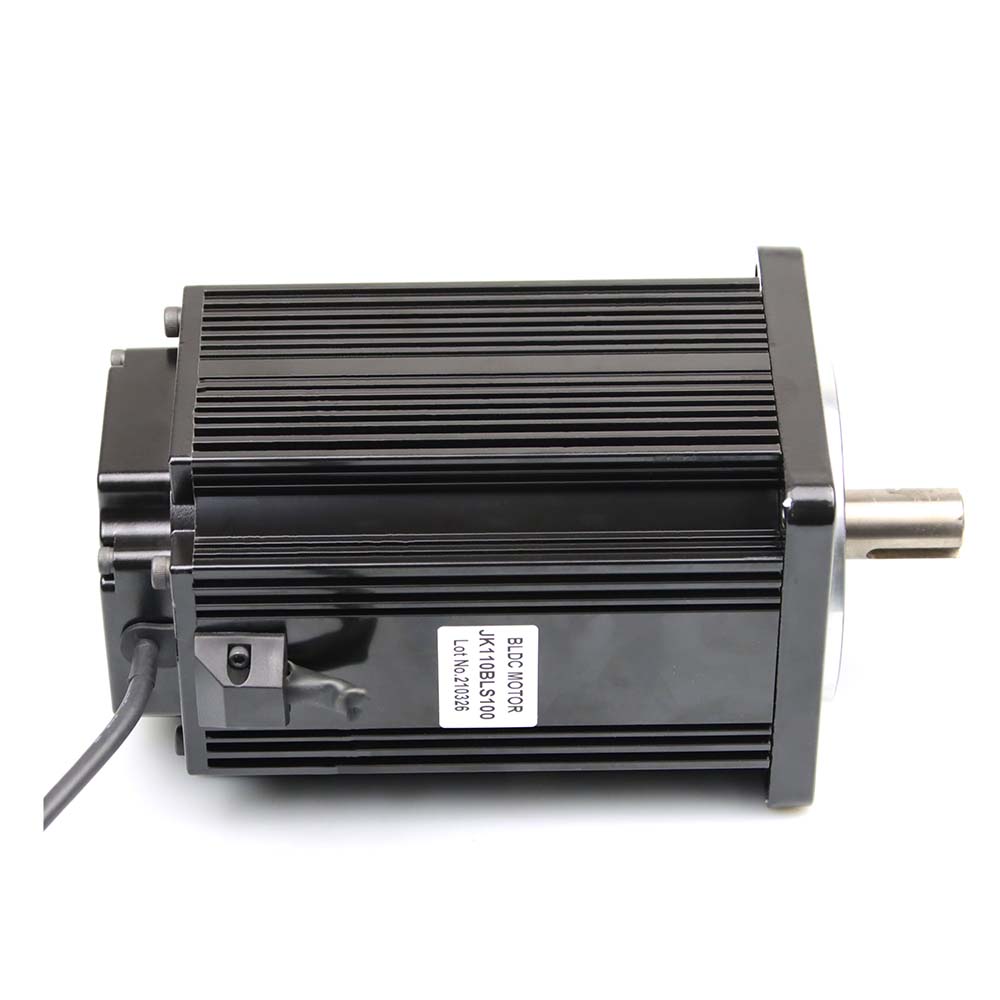

Nema 42 110BLS Square Head Brushless BLDC DC Motor
LeanMotor
Nema 42(110mm)
3 Phase
310V
10 Pcs
General Specifications | |
| Item | Specification |
| Winding type | Star |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm@450g |
| End play | 0.08mm@450g |
| Max.radial force | 300N@20mm from the flange |
| Max. axial force | 70N |
| Insulation class | Class B |
| Dielectric Strength | 1200VDC for one minute |
| Insulation Resistance | 100MΩ Min., 500VDC |
| Model No. | Rated voltage | Motor Length | Current | Rated power | Rotor Inertia | Rated torque | Rated speed | Weight |
| VDC | (L)mm | A | W | kg.cm² | N.m | Rpm | kg | |
| LM110BLS01 | 310 | 83 | 1.5 | 518 | 1.5 | 1.65 | 3000 | 3.3 |
| LM110BLS02 | 310 | 113 | 3.7 | 1036 | 3 | 3.3 | 3000 | 4.5 |
| LM110BLS03 | 310 | 143 | 5.6 | 1570 | 4.5 | 5 | 3000 | 5.8 |
| LM110BLS04 | 310 | 173 | 7.5 | 2073 | 6 | 6.6 | 3000 | 7 |
| Bldc Motors Wires | Hall Sensor Wires | ||||||
| U | V | W | +5VDC | GND | Hu | Hv | Hw |
| Yellow | Green | Blue | Red | Black | Yello | Green | Blue |
