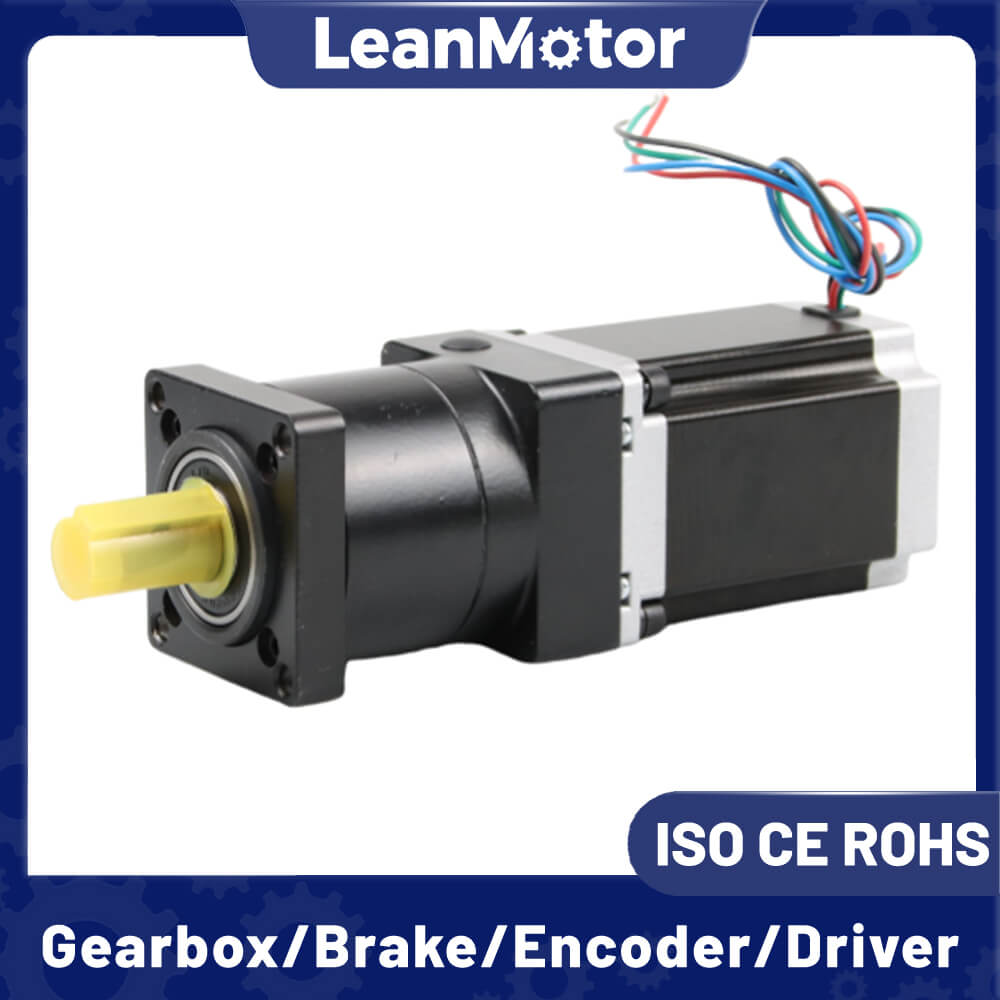

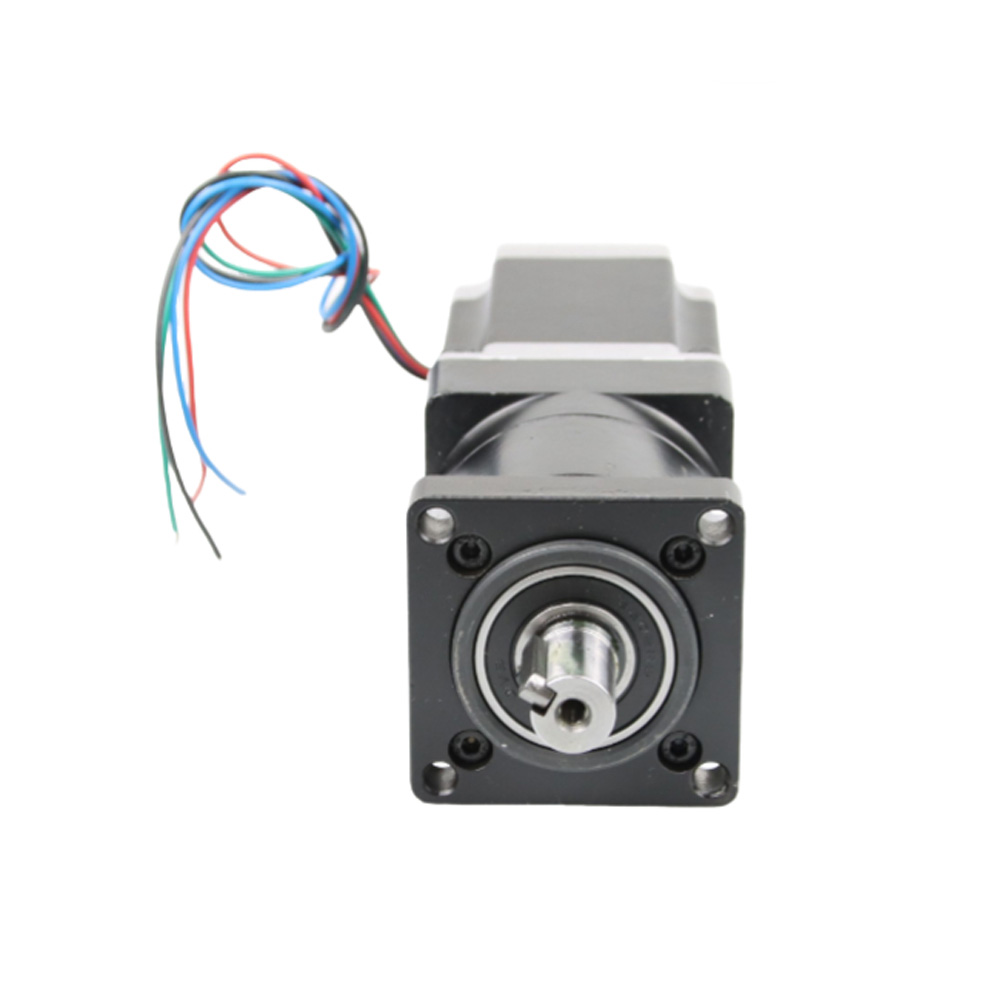

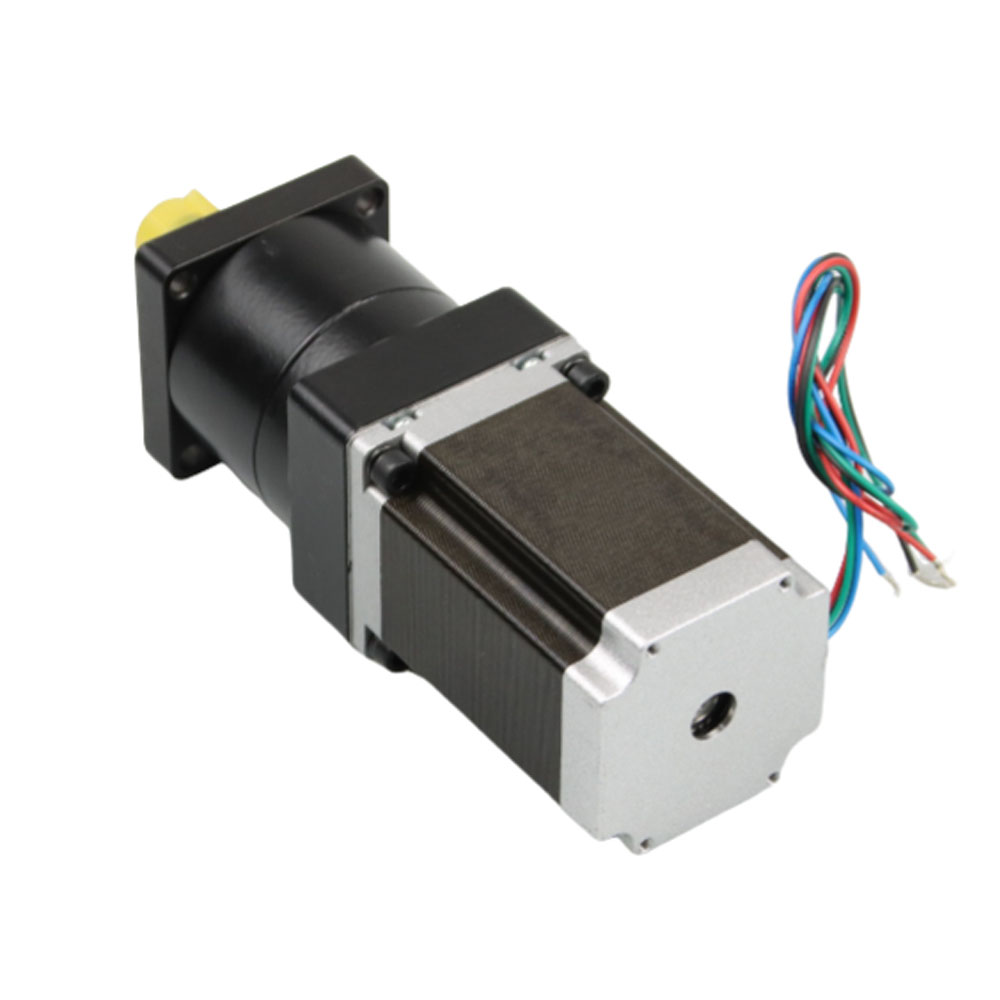

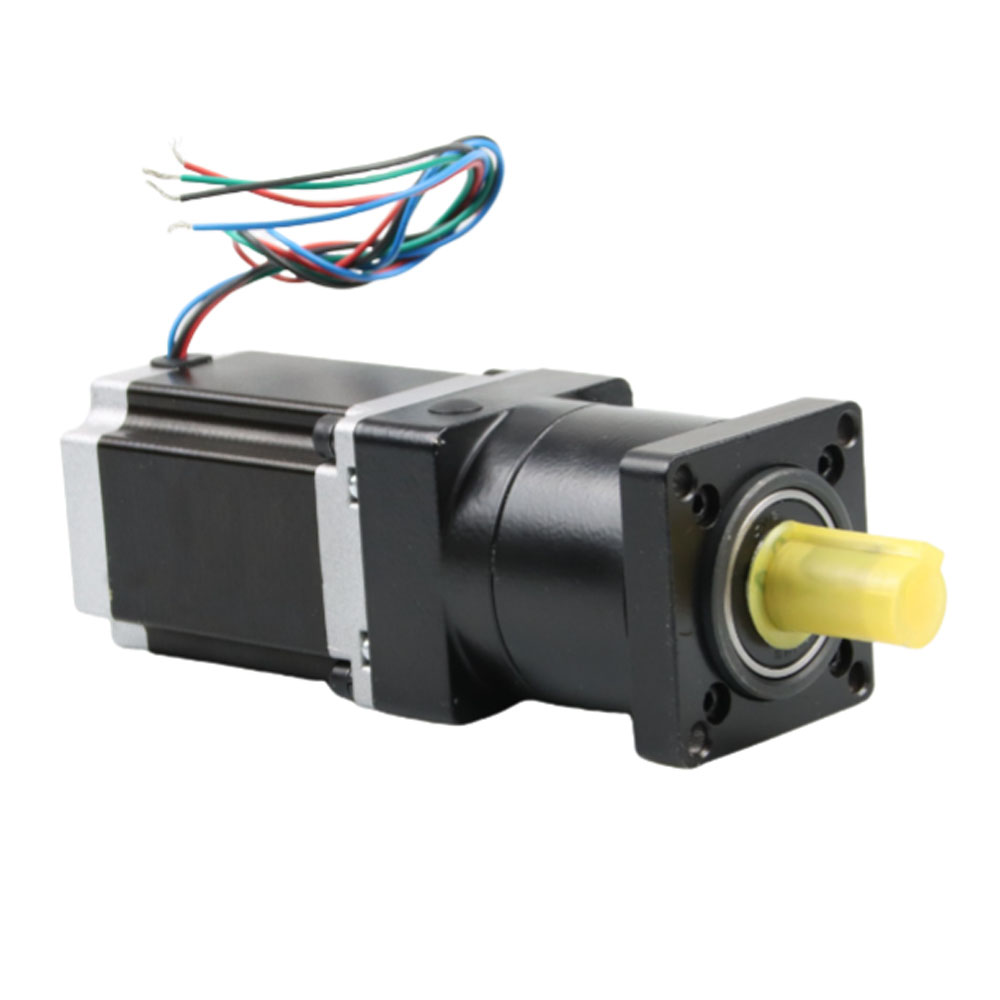

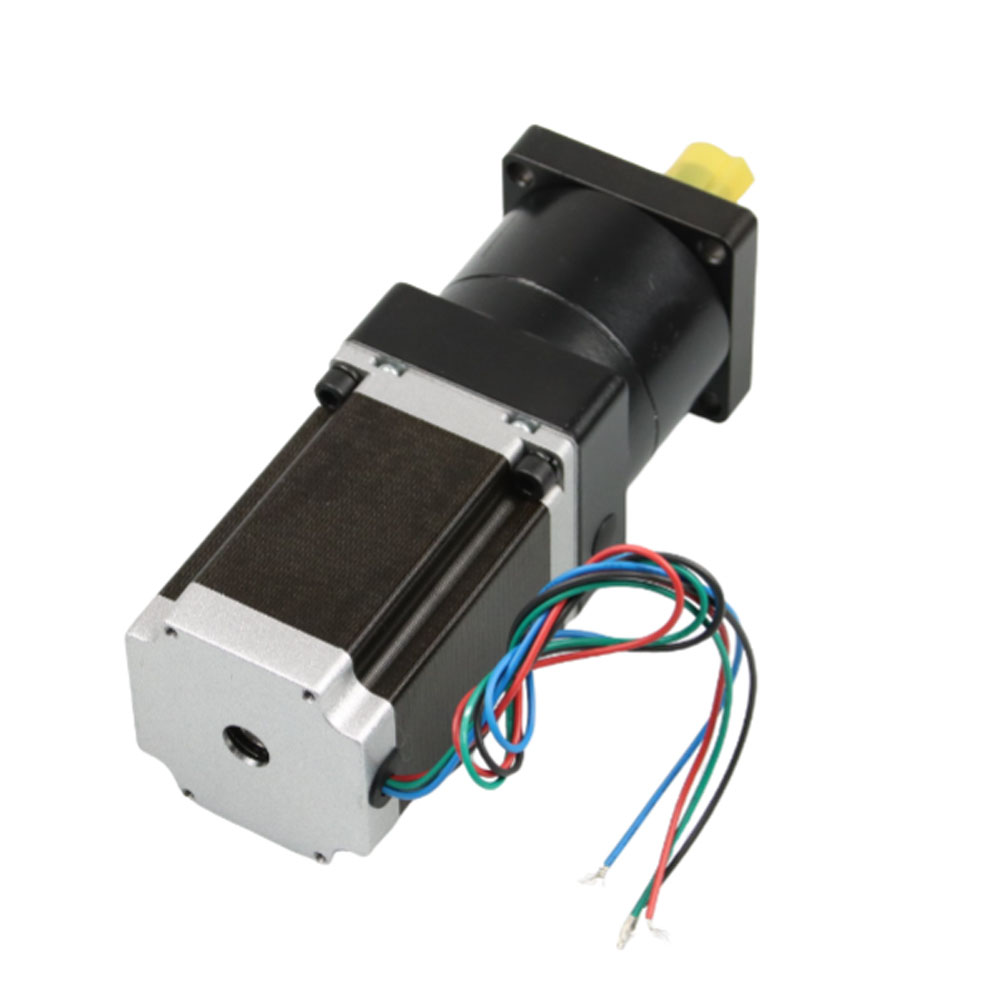

Leanmotor Nema 24 Common Planetary Geared Stepper Motor 1.8 Degree 60x60mm 4 Wires

Type: Nema24 Common Planetary Geared Stepper Motor

Current: 2.8A

Resistance: 0.9 -2.2Ω

Rated Torque: 700-1200 g.cm

Availability:
Quantity:
Inquire Add to Basket

  • Nema 24 Common Planetary Geared Stepper Motor

  • LeanMotor

  • Gearbox Motors

  • Nema24 (60mm)

  • 4wires

  • 2 Phase

  • 1.8°

  • 10 Pcs

General Specifications：

ItemSpecifications
Step Angle1.8°
Temperature Rise80℃max
Ambient Temperature-20℃~+50℃
Insulation Resistance100 MΩ Min. ,500VDC
Dielectric Strength500VAC for 1minute
Shaft Radial Play0.02Max. (450g-load)
Shaft Axial Play0.08Max. (450g-load)
Max. radial force75N (20mm from the flange)
Max. axial force15N


Nema 24 Step Motor Electrical Specifications:

Model No.Step AngleMotor LengthCurrentResistanceInductanceHolding Torque# of LeadsDetent TorqueRotor InertiaMass
(L)mmAΩmHN.mNo.g.cmg.cm2Kg
LM60HS56-28041.8562.80.93.61.6547003000.77
LM60HS67-28041.8672.81.24.62.149005701.2
LM60HS88-28041.8882.81.56.83.1410008401.4
LM60HS100-28041.81002.81.66.44411009801.7
LM60HS111-28041.81112.82.28.34.54120011201.9


Wires Connection:

A+
A-B+B-
BlackGreenRedBlue


LM-PX57-L Series Common Planetary Gearbox Specification:

Number of gear trains/123
Reduction ratio/3456710162024303640506496100144216
Lengthmm7286100
Rated loadN.m153040
Max LoadN.m254050
Efficiency%959085
Backlash at no-loadarcmin≤15≤30≤50
WeightKg0.91.21.4
NoisedB≤60≤65≤75
Rated Input Speedrpm≤3000
Degree of protectionIPIP65
Working hoursH20000
Install Methods/Flange


Nema 24 Stepper Motor Dimension:

nema 24 stepper motor dimension

Nema 24 LM-PX57-L Planetary Gearbox Dimension:

nema 23 px gearbox


Hybrid Stepper Motor Optional Parts：

Connectors, Gearbox, Encoder, Brake, Integrated Driver...


Customized Service:

Metal Pulleys

Metal Pulleys

plastic pulley

Plastic Pulley

gear

Gear

shaft pin

Shaft Pin

threaded shaft

Threaded Shaft

panel mount

Panel Mount

Hollow shaft

Hollow Shaft

lead screw

Lead Screw

panel mount

Panel Mount

single flat

Single Flat

dual flat

Dual Flat

key shaft

Key Shaft


Hybrid Stepper Motor Customized Service:

stepper motor





Cables

stepper motorsCovers
stepper motorShaft
lead screw stepper motorLead Screw Rod
closed loop stepper motorEncoders
brake stepper motor Brakes
Gared Stepper motor Gearboxes
linear guideLinear Module
Integrated stepper motor Integrated Drivers
stepper motor with worm gearboxWorm Gearbox
