Current: 0.6A
Resistance: 6.5/9.0Ω
Rated Torque: 180/220g.cm
| Quantity: | |
|---|---|

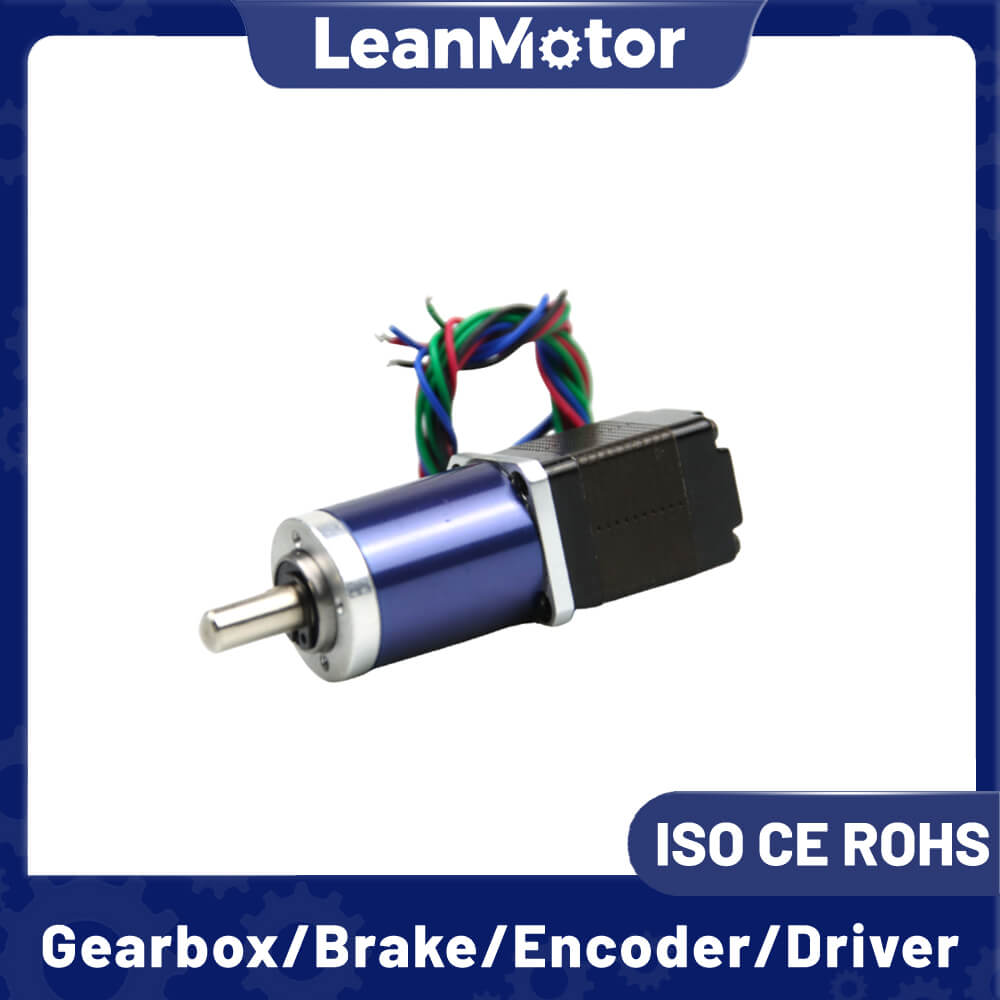

Nema 8 Common Planetary Geared Stepper Motor
LeanMotor
Gearbox Motors
Nema8 (20mm)
4wires
2 Phase
1.8°
10 Pcs
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm2 | Kg | |
| LM20HS30-0604 | 1.8 | 30 | 0.6 | 6.5 | 1.7 | 180 | 4 | 2 | 0.05 |
| LM20HS38-0604 | 1.8 | 38 | 0.6 | 9 | 3.0 | 220 | 4 | 3 | 0.08 |
Note: Above only for representative products, products of special request can be made according to the customer request.
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm2 | Kg | |
| LM20HS30-0604 | 1.8 | 30 | 0.6 | 6.5 | 1.7 | 180 | 4 | 2 | 0.05 |
| LM20HS38-0604 | 1.8 | 38 | 0.6 | 9 | 3.0 | 220 | 4 | 3 | 0.08 |
Note: Above only for representative products, products of special request can be made according to the customer request.
