Current: 3A - 8A
Motor Length: 99mm - 285mm
Customized: Connectors, Gearbox, Encoder, Brake, Lead Screw...
| Quantity: | |
|---|---|

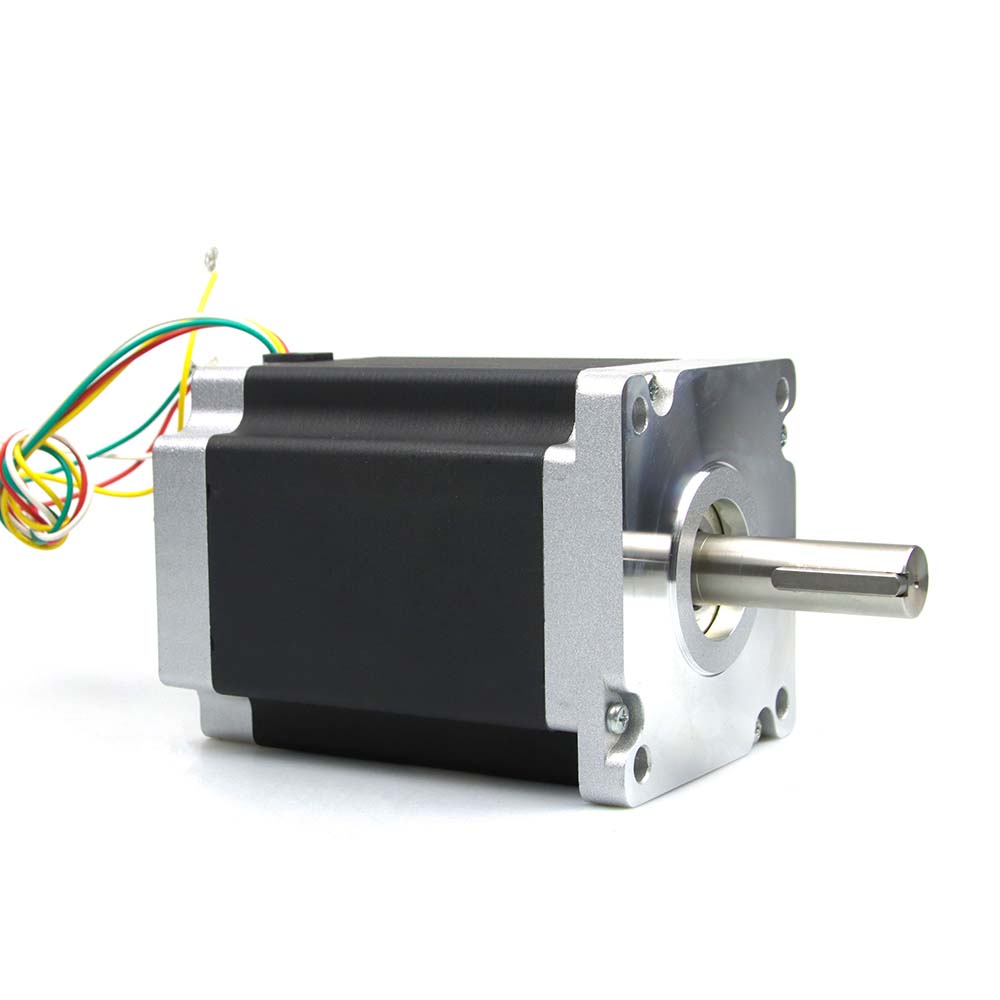

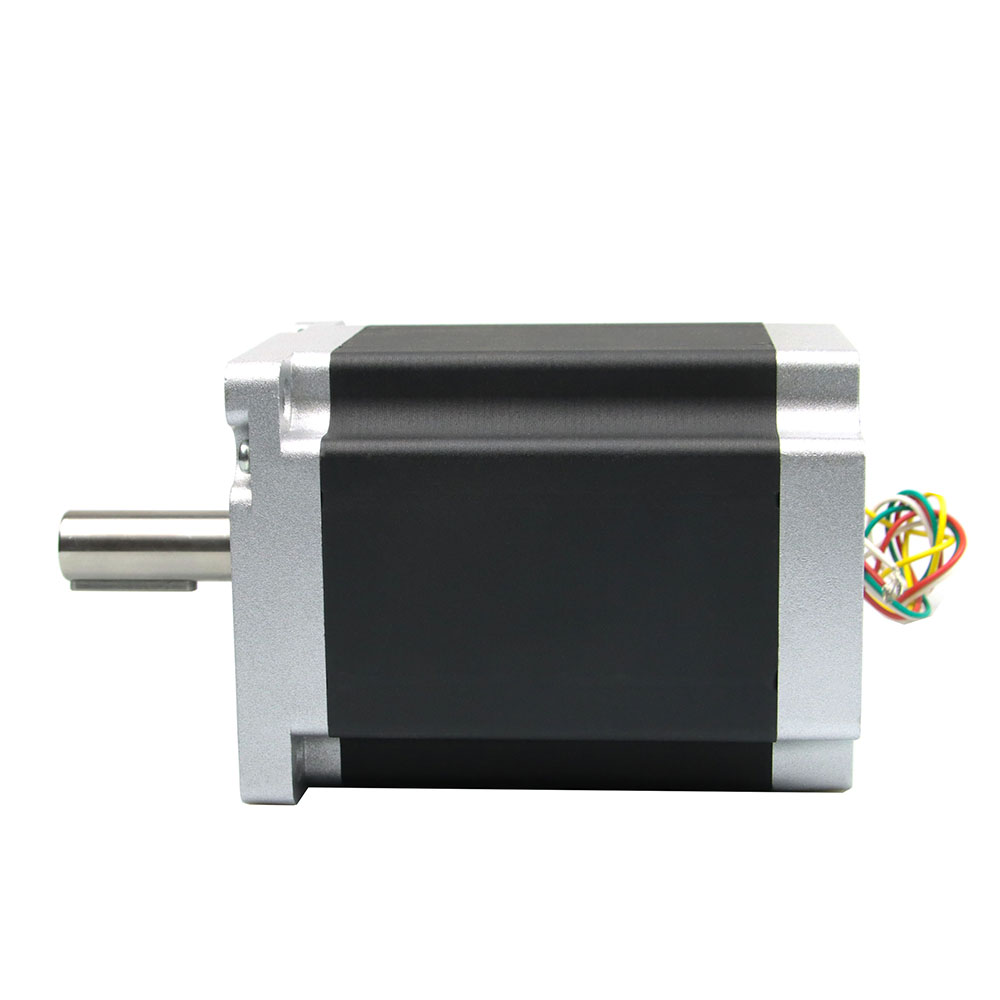

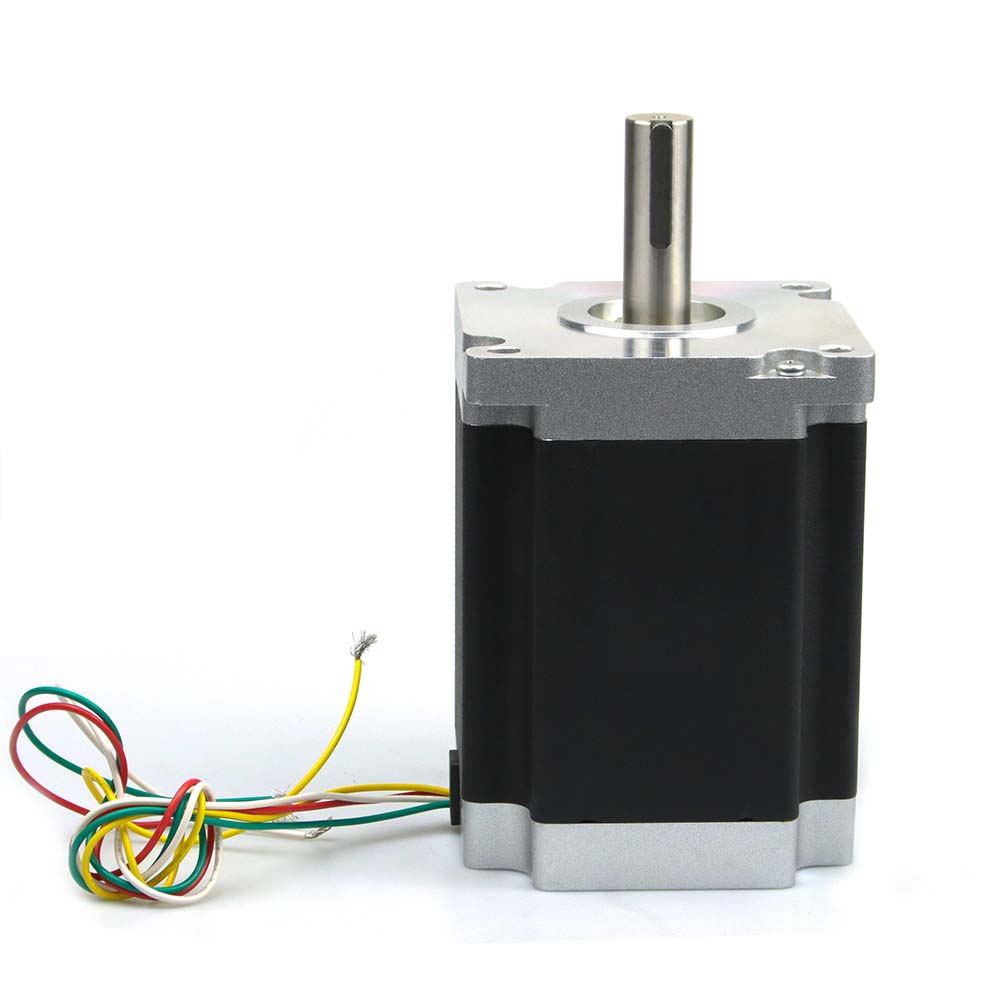

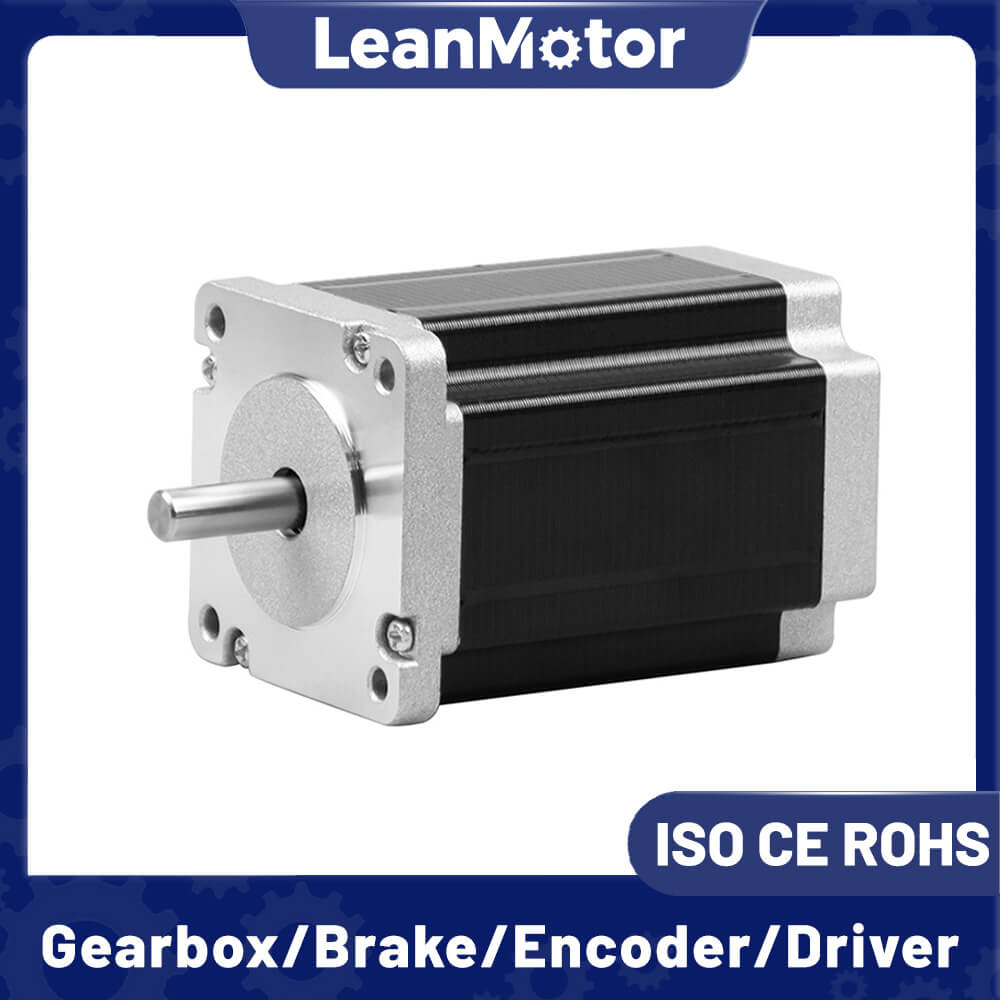

Nema 42 Hybrid Stepper Motor
LeanMotor
Open Loop Motors
Nema42 (110mm)
3wires, 4wires
2 Phase, 3 Phase
1.2°, 1.8°
10 Pcs

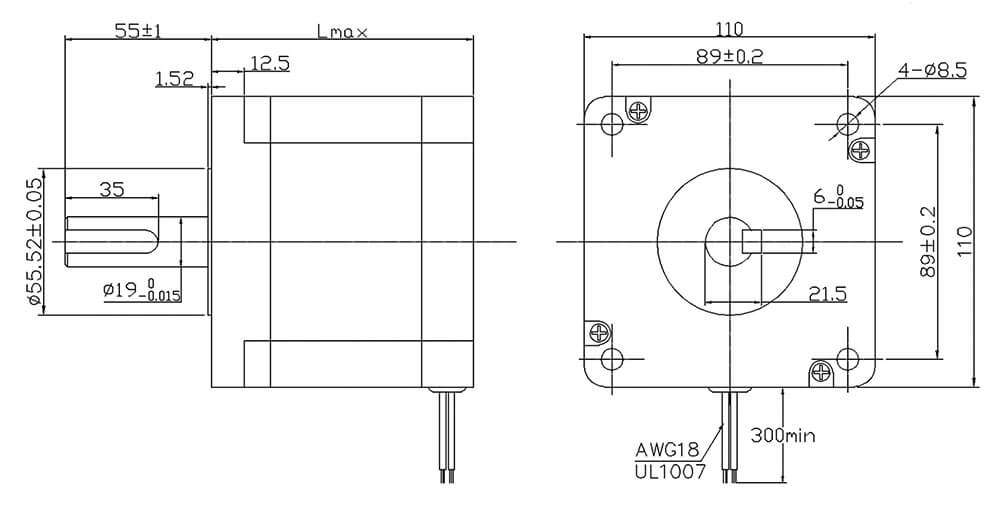

| Item | Specifications |
| Step Angle | 1.8° or 1.2° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 820VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 220N (20mm from the flange) |
| Max. axial force | 60N |
| Model | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | kg.cm | g.cm2 | Kg | |
| LM110HS99-5504 | 1.8 | 99 | 5.5 | 0.9 | 12 | 11.2 | 4 | 3 | 5500 | 5 |
| LM110HS115-6004 | 1.8 | 115 | 6 | 0.48 | 7 | 12 | 4 | 4 | 7100 | 6 |
| LM110HS150-6504 | 1.8 | 150 | 6.5 | 0.8 | 15 | 21 | 4 | 5.9 | 10900 | 8.4 |
| LM110HS165-6004 | 1.8 | 165 | 6 | 0.9 | 14 | 24 | 4 | 6.6 | 12800 | 9.1 |
| LM110HS201-8004 | 1.8 | 201 | 8 | 0.67 | 12 | 28 | 4 | 7.5 | 16200 | 11.8 |
Note: Above only for representative products, products of special request can be made according to the customer request.
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | Rotoer inertia | Leads | Motor |
| ( °) | (L)mm | A | Ω | mH | N.m | g.cm2 | No. | Kg | |
| LM110H3P134-3003 | 1.2 | 134 | 3 | 3.15 | 17 | 8 | 9750 | 3 | 7.8 |
| LM110H3P162-3003 | 1.2 | 162 | 3 | 4.2 | 22 | 13 | 12100 | 3 | 8.3 |
| LM110H3P194-5003 | 1.2 | 194 | 5 | 2.14 | 17.5 | 16 | 15300 | 3 | 10.5 |
| LM110H3P233-5003 | 1.2 | 233 | 5 | 1.93 | 23 | 20 | 18600 | 3 | 12.6 |
| LM110H3P253-5003 | 1.2 | 253 | 5 | 2.4 | 24.4 | 22 | 21000 | 3 | 13.1 |
| LM110H3P285-5003 | 1.2 | 285 | 5 | 2.9 | 27 | 25 | 24300 | 3 | 14.8 |
Note: Above only for representative products, products of special request can be made according to the customer request.
| U | V | W |
| Red | Yellow | Green |
| Item | Specifications |
| Step Angle | 1.8° or 1.2° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 820VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 220N (20mm from the flange) |
| Max. axial force | 60N |
| Model | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | kg.cm | g.cm2 | Kg | |
| LM110HS99-5504 | 1.8 | 99 | 5.5 | 0.9 | 12 | 11.2 | 4 | 3 | 5500 | 5 |
| LM110HS115-6004 | 1.8 | 115 | 6 | 0.48 | 7 | 12 | 4 | 4 | 7100 | 6 |
| LM110HS150-6504 | 1.8 | 150 | 6.5 | 0.8 | 15 | 21 | 4 | 5.9 | 10900 | 8.4 |
| LM110HS165-6004 | 1.8 | 165 | 6 | 0.9 | 14 | 24 | 4 | 6.6 | 12800 | 9.1 |
| LM110HS201-8004 | 1.8 | 201 | 8 | 0.67 | 12 | 28 | 4 | 7.5 | 16200 | 11.8 |
Note: Above only for representative products, products of special request can be made according to the customer request.
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | Rotoer inertia | Leads | Motor |
| ( °) | (L)mm | A | Ω | mH | N.m | g.cm2 | No. | Kg | |
| LM110H3P134-3003 | 1.2 | 134 | 3 | 3.15 | 17 | 8 | 9750 | 3 | 7.8 |
| LM110H3P162-3003 | 1.2 | 162 | 3 | 4.2 | 22 | 13 | 12100 | 3 | 8.3 |
| LM110H3P194-5003 | 1.2 | 194 | 5 | 2.14 | 17.5 | 16 | 15300 | 3 | 10.5 |
| LM110H3P233-5003 | 1.2 | 233 | 5 | 1.93 | 23 | 20 | 18600 | 3 | 12.6 |
| LM110H3P253-5003 | 1.2 | 253 | 5 | 2.4 | 24.4 | 22 | 21000 | 3 | 13.1 |
| LM110H3P285-5003 | 1.2 | 285 | 5 | 2.9 | 27 | 25 | 24300 | 3 | 14.8 |
Note: Above only for representative products, products of special request can be made according to the customer request.
| U | V | W |
| Red | Yellow | Green |
