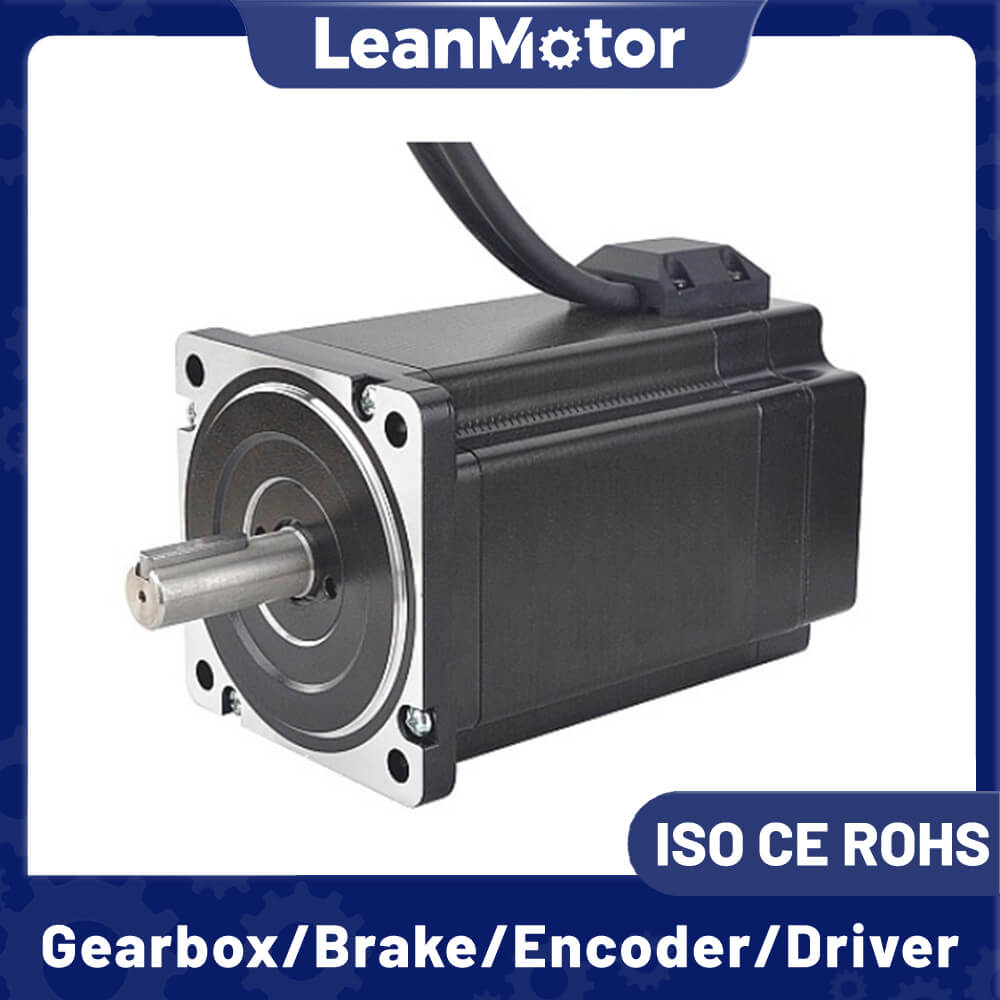

Leanmotor Nema 34 2-Phase Hybrid Close Loop Stepper Motor 1.8 Degree 86x86mm 6.0A 4-Wires

Type: Nema34 Hybrid Bipolar Closed Loop Stepper Motor

Current: 6.0A

Resistance: 0.27/0.36/0.44Ω

Rated Torque: 4.5/8.5/12N.m

Availability:
Quantity:
Inquire Add to Basket

  • Nema 34 Hybrid Close Loop Stepper Motor

  • LeanMotor

  • Closed Loop Motors

  • Nema34 (86mm)

  • 4wires

  • 2 Phase

  • 1.8°

  • 10 Pcs

General Specifications：

ItemSpecifications
Step Angle1.8°
Temperature Rise80℃max
Ambient Temperature-20℃~+50℃
Insulation Resistance100 MΩ Min. ,500VDC
Dielectric Strength1500VAC for 1minute
Shaft Radial Play0.02Max. (450g-load)
Shaft Axial Play0.08Max. (450g-load)
Max. radial force220N (20mm from the flange)
Max. axial force60N


Electrical Specifications:

Model No.Step AngleMotor LengthCurrentResistanceInductanceHolding Torque# of LeadsRotor InertiaMass
( °)(L)mmAΩmHN.mNo.g.cm2Kg
LM86HSN451.87860.2724.5414002.5
LM86HSN651.810060.27
2.2
6.8
41400
3.0
LM86HSN851.811560.363.88.5427003.0
LM86HSN1201.815560.443.812440005.5

Note: Above only for representative products, products of special request can be made according to the customer request.


Wires Connection:

Bipolar:

A+
A-B+B-
BlackGreenRedBlue

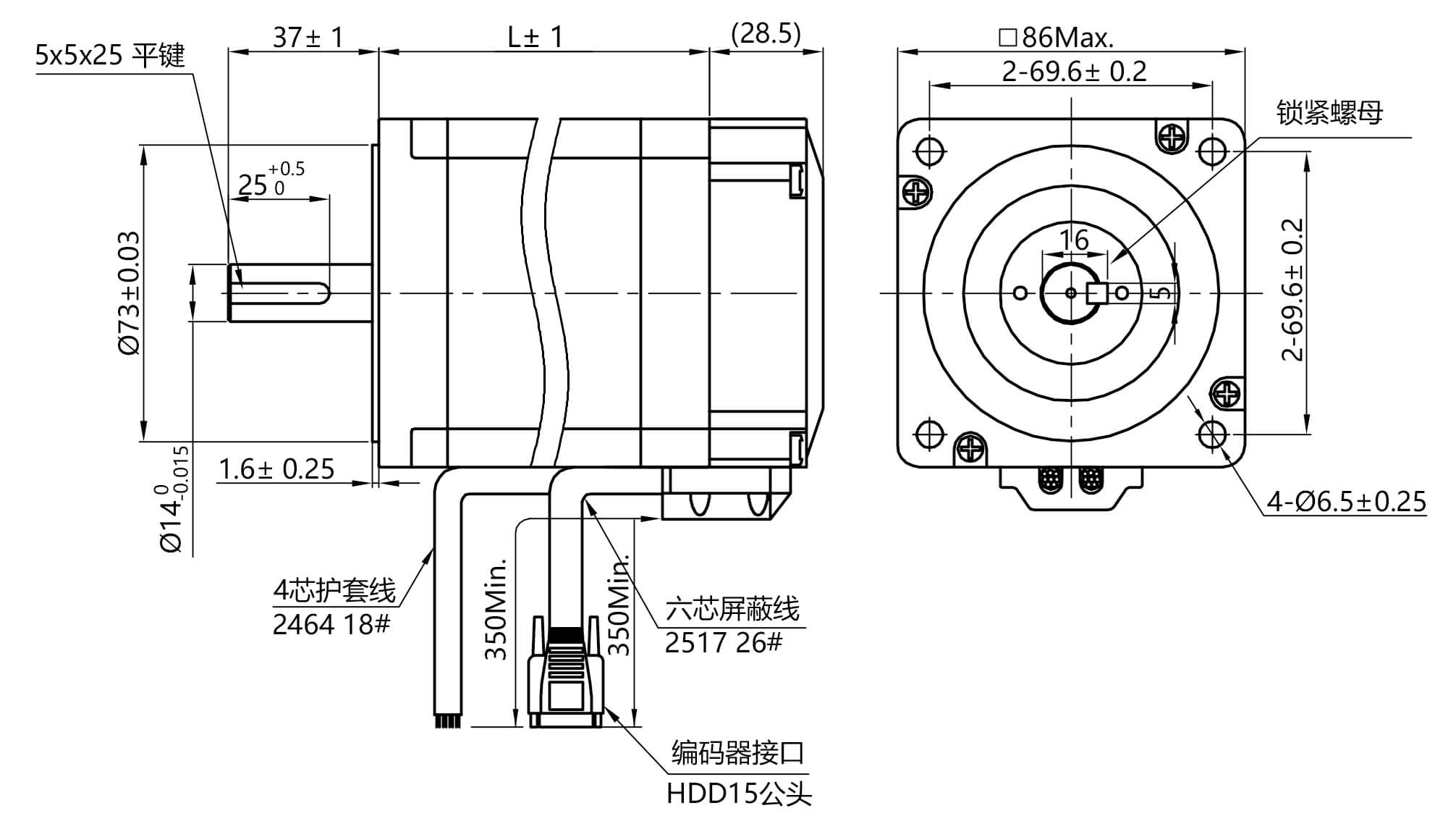

Nema 34 Closed Loop Stepper Motor Dimension:

nema 34 closed loop stepper motor


Hybrid Stepper Motor Optional Parts：

Connectors, Gearbox, Encoder, Brake, Integrated Driver...


Customized Service:

Metal Pulleys

Metal Pulleys

plastic pulley

Plastic Pulley

gear

Gear

shaft pin

Shaft Pin

threaded shaft

Threaded Shaft

panel mount

Panel Mount

Hollow shaft

Hollow Shaft

lead screw

Lead Screw

panel mount

Panel Mount

single flat

Single Flat

dual flat

Dual Flat

key shaft

Key Shaft


Hybrid Stepper Motor Customized Service:

stepper motor





Cables

stepper motorsCovers
stepper motorShaft
lead screw stepper motorLead Screw Rod
closed loop stepper motorEncoders
brake stepper motor Brakes
Gared Stepper motor Gearboxes
linear guideLinear Module
Integrated stepper motor Integrated Drivers
stepper motor with worm gearboxWorm Gearbox
