Current: 2.8A
Motor Length: 56mm - 111mm
Customized: Connectors, Gearbox, Encoder, Brake, Lead Screw, Integrated Driver...
| Quantity: | |
|---|---|

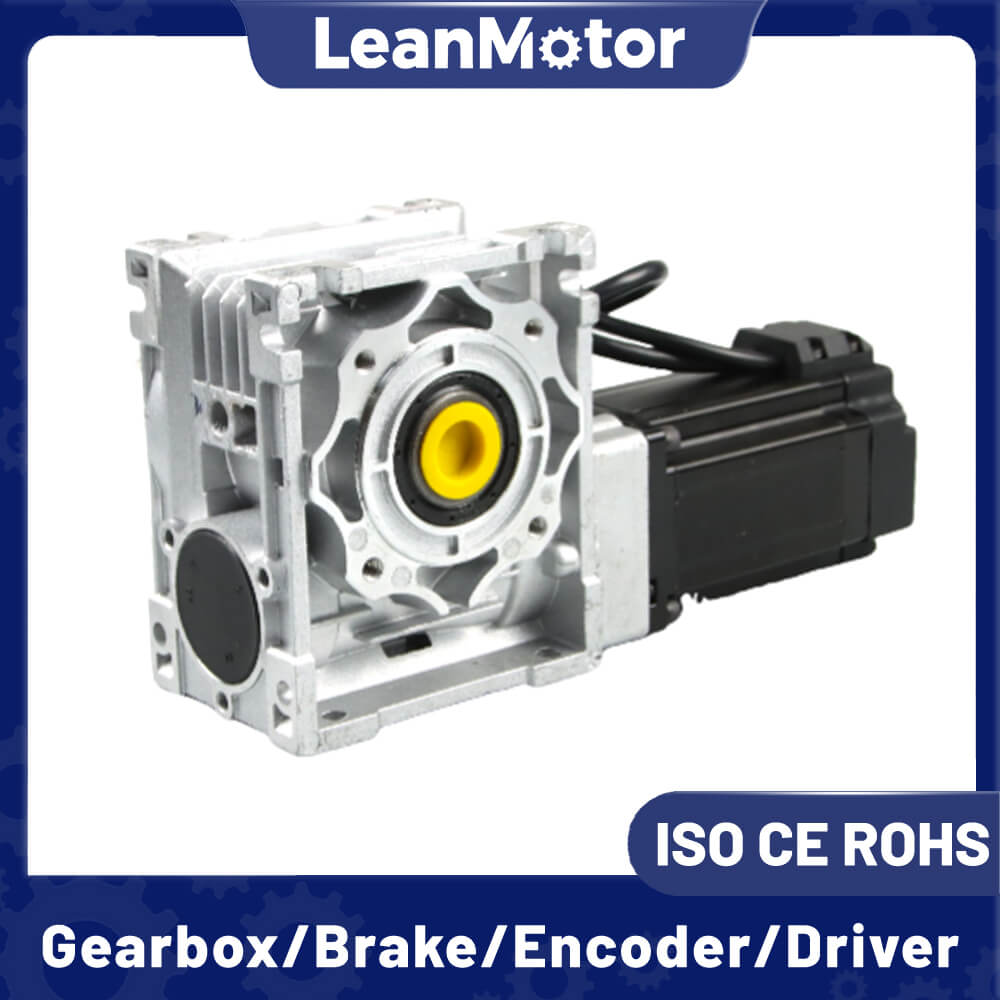

Nema 24 Worm Geared Stepper Motor
LeanMotor
Gearbox Motors
Nema23 (57mm)
4wires, 6wires
2 Phase, 3 Phase
0.9°, 1.2°, 1.8°
10 Pcs
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 75N (20mm from the flange) |
| Max. axial force | 15N |
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm2 | Kg | ||
| JK60HS56-2804 | 1.8 | 56 | 2.8 | 0.9 | 3.6 | 1.65 | 4 | 700 | 300 | 0.77 |
| JK60HS67-2804 | 1.8 | 67 | 2.8 | 1.2 | 4.6 | 2.1 | 4 | 900 | 570 | 1.2 |
| JK60HS88-2804 | 1.8 | 88 | 2.8 | 1.5 | 6.8 | 3.1 | 4 | 1000 | 840 | 1.4 |
| JK60HS100-2804 | 1.8 | 100 | 2.8 | 1.6 | 6.4 | 4 | 4 | 1100 | 980 | 1.7 |
| JK60HS111-2804 | 1.8 | 111 | 2.8 | 2.2 | 8.3 | 4.5 | 4 | 1200 | 1120 | 1.9 |
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 75N (20mm from the flange) |
| Max. axial force | 15N |
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm2 | Kg | ||
| JK60HS56-2804 | 1.8 | 56 | 2.8 | 0.9 | 3.6 | 1.65 | 4 | 700 | 300 | 0.77 |
| JK60HS67-2804 | 1.8 | 67 | 2.8 | 1.2 | 4.6 | 2.1 | 4 | 900 | 570 | 1.2 |
| JK60HS88-2804 | 1.8 | 88 | 2.8 | 1.5 | 6.8 | 3.1 | 4 | 1000 | 840 | 1.4 |
| JK60HS100-2804 | 1.8 | 100 | 2.8 | 1.6 | 6.4 | 4 | 4 | 1100 | 980 | 1.7 |
| JK60HS111-2804 | 1.8 | 111 | 2.8 | 2.2 | 8.3 | 4.5 | 4 | 1200 | 1120 | 1.9 |
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
