FAQs About NEMA 24 60BLS Geared Brushless DC Motor
I. Product Perspective: Performance, Design & Applications

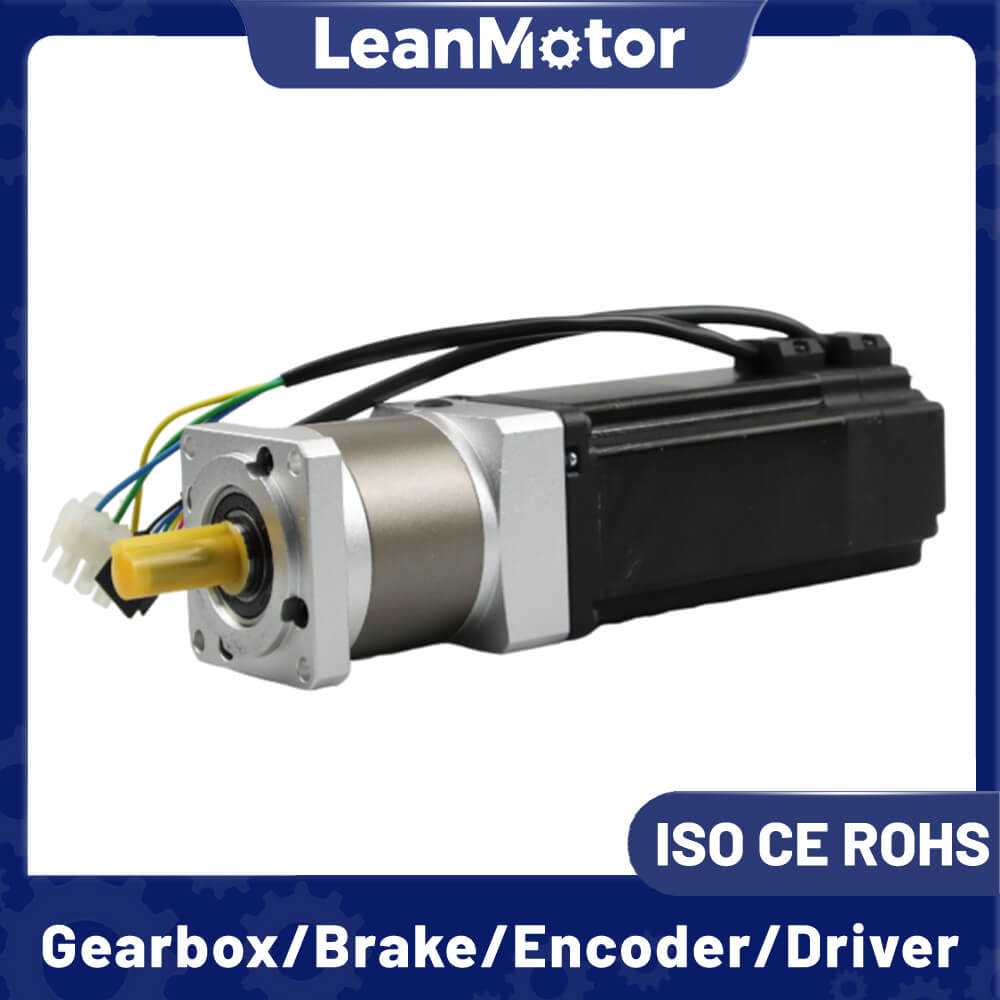

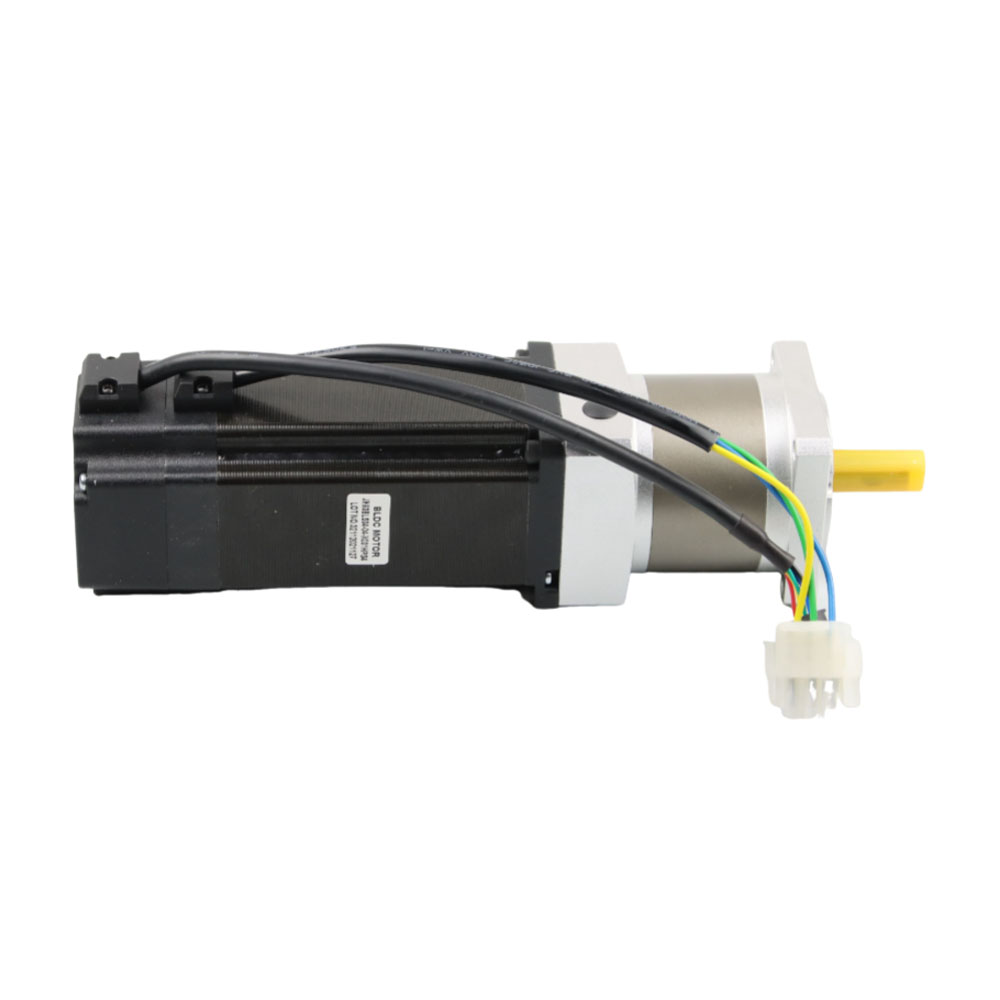

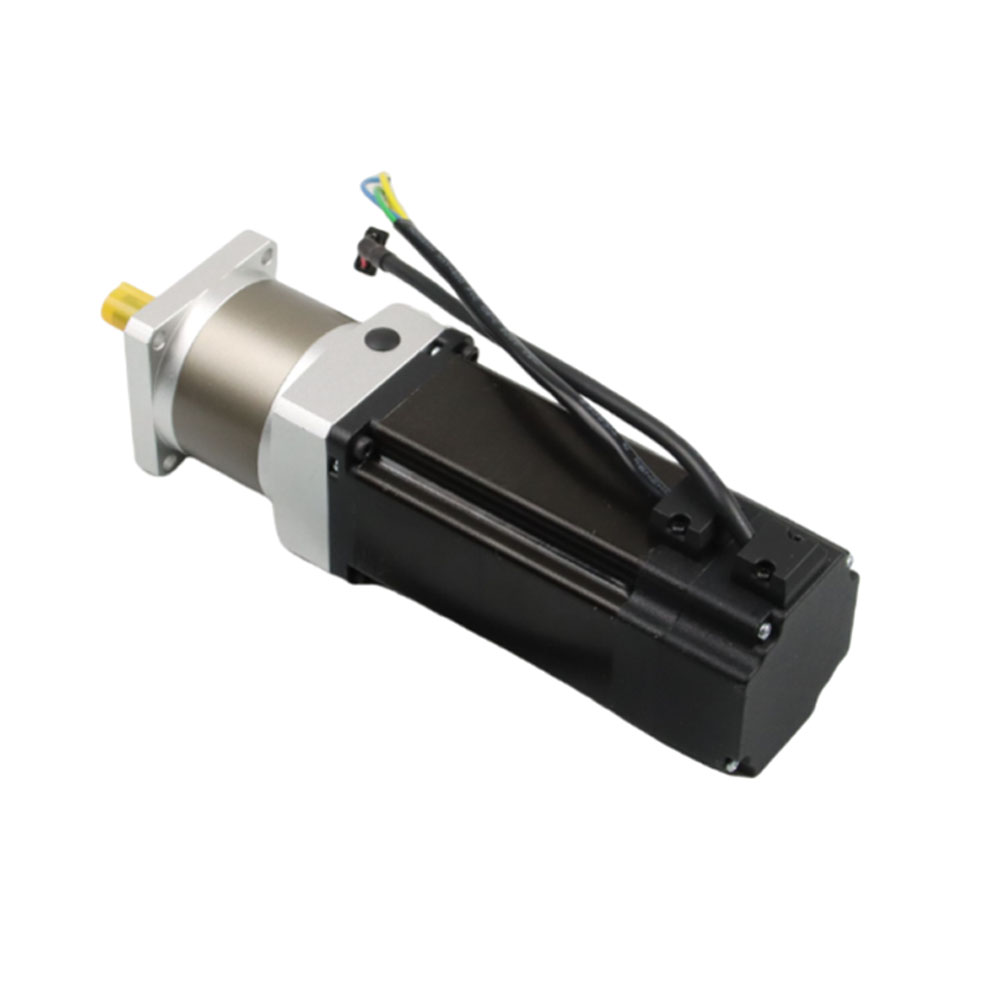

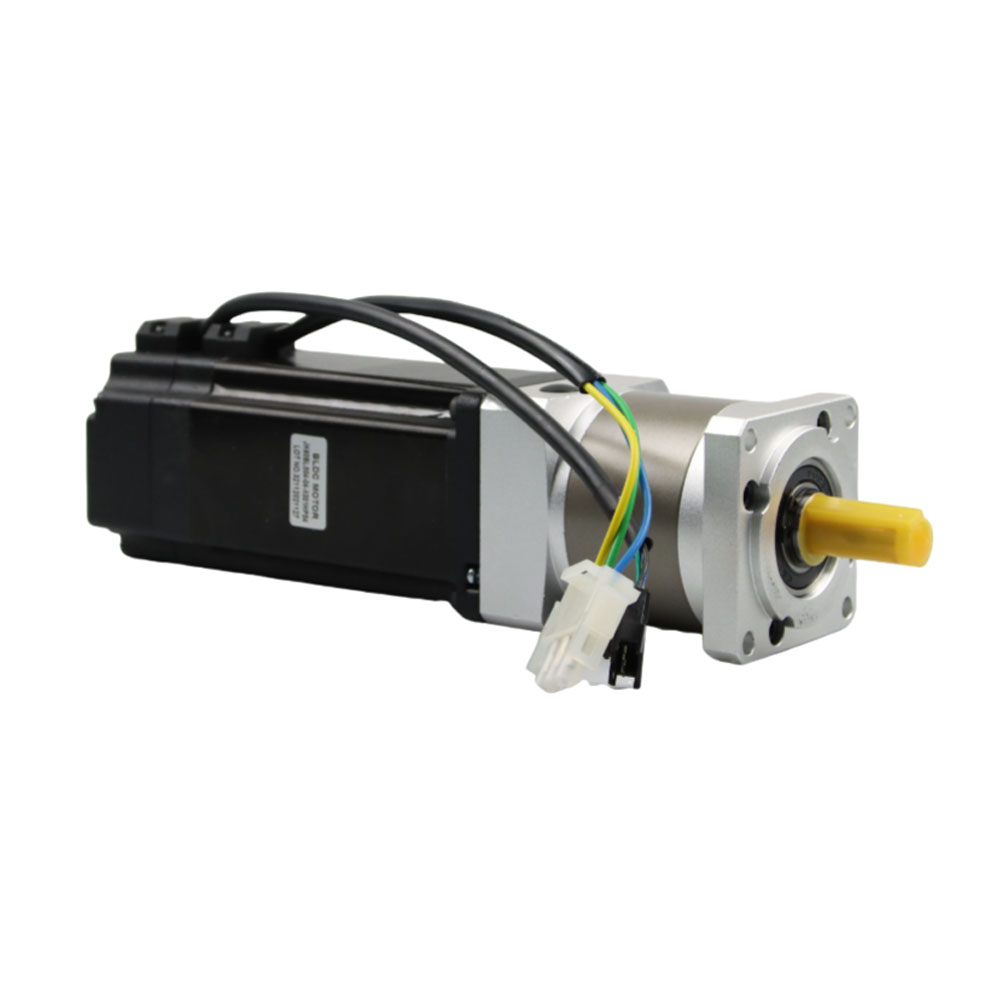

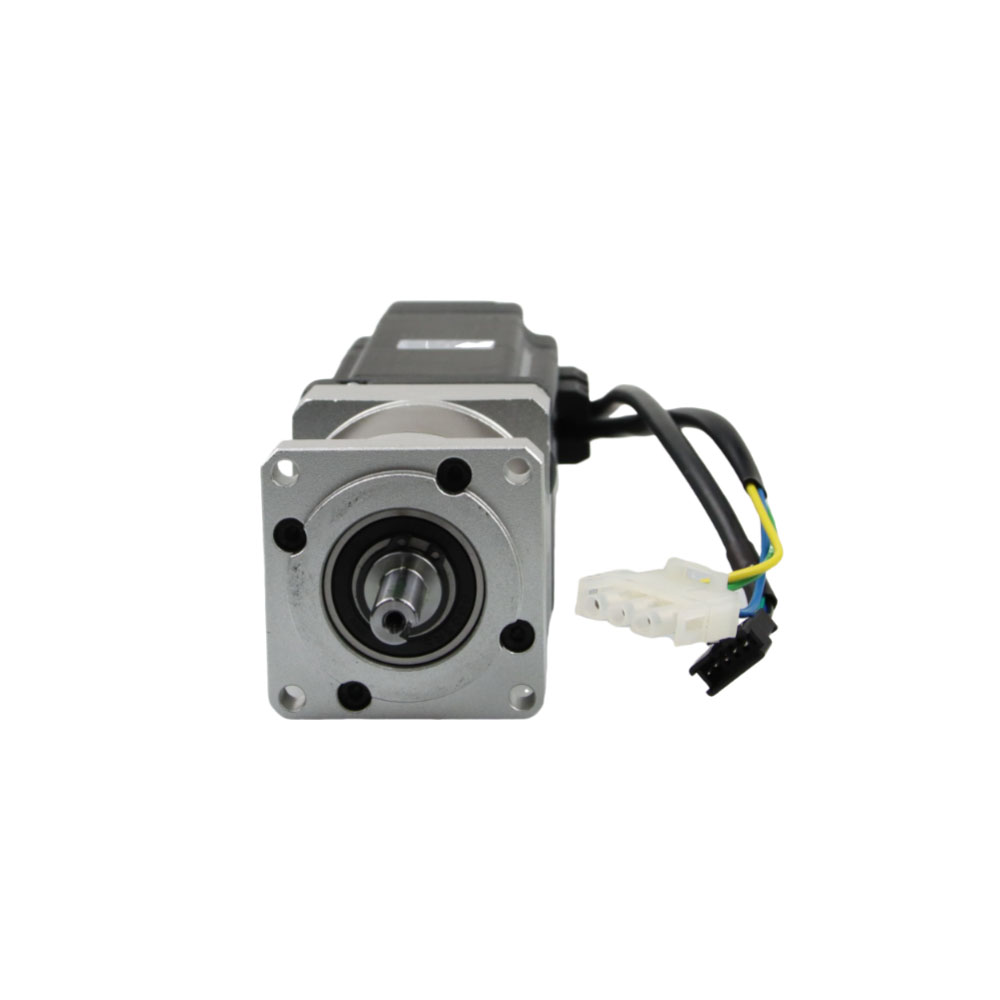

1. What is a NEMA 24 60BLS geared brushless DC motor?
The 60BLS motor is a compact BLDC motor with a NEMA 24 (60 mm) frame size and integrated gearbox, designed for higher torque and precise speed control.
2. What are the main advantages of a geared BLDC motor?
Geared BLDC motors provide high torque at low speeds, improved positioning accuracy, smoother motion, and reduced load on the motor shaft.
3. What types of gearboxes are available for the 60BLS motor?
Planetary, spur, and worm gearboxes are available, depending on required torque, speed, and precision.
4. How does a planetary gearbox compare to a spur or worm gearbox?
Planetary gearboxes offer compact design and high efficiency, spur gearboxes are cost-effective, and worm gearboxes provide high torque with self-locking capability.
5. What voltage and current options are available?
Common voltage options include 12V, 24V, and 48V, with custom designs available for specific applications.
6. What torque can the NEMA 24 60BLS motor deliver?
Torque depends on motor winding and gearbox ratio, suitable for medium-load industrial applications requiring precision and reliability.
7. Can the motor operate continuously?
Yes, it is designed for continuous operation under proper driver control and thermal management.
8. What is the speed range of the 60BLS geared BLDC motor?
Speed depends on gearbox ratio and driver control, allowing precise low-speed motion or faster operation at reduced torque.
9. What industries commonly use the 60BLS motor?
Applications include robotics, CNC machinery, packaging equipment, conveyor systems, medical devices, and automation systems.
10. Can this motor replace a servo motor in some applications?
Yes, in medium- to high-torque, low- to medium-speed applications, it can be a cost-effective alternative to servo motors.
II. Factory Customization Capability: Manufacturing & OEM Solutions
11. Can the NEMA 24 60BLS motor be customized?
Yes, manufacturers can tailor voltage, speed, torque, motor length, and gearbox type to specific application requirements.
12. Are different gearbox ratios available?
Yes, a wide range of ratios can be selected for planetary, spur, or worm gearboxes to match torque and speed requirements.
13. Can encoders or sensors be added?
Yes, Hall sensors or optical encoders can be integrated for closed-loop speed or position control.
14. Can the motor be supplied with a matched BLDC driver?
Yes, compatible BLDC drivers can be provided for plug-and-play operation.
15. Are low-noise or low-vibration versions available?
Yes, optimized windings, precision bearings, and high-quality gears reduce noise and vibration.
16. Can the motor be customized for harsh environments?
Yes, IP-rated housings and coatings can protect against dust, moisture, and corrosive environments.
17. What shaft types are available?
Options include solid shafts, hollow shafts, keyed shafts, or custom-machined shafts.
18. What quality control tests are performed?
Testing includes torque verification, efficiency testing, vibration analysis, thermal testing, and long-term endurance testing.
19. What is the typical lead time for custom 60BLS motors?
Prototype samples typically take 2–4 weeks, while mass production usually requires 4–8 weeks.
20. How does factory-level customization improve performance?
Customization ensures the motor, gearbox, and load are perfectly matched, improving efficiency, precision, reliability, and service life.
