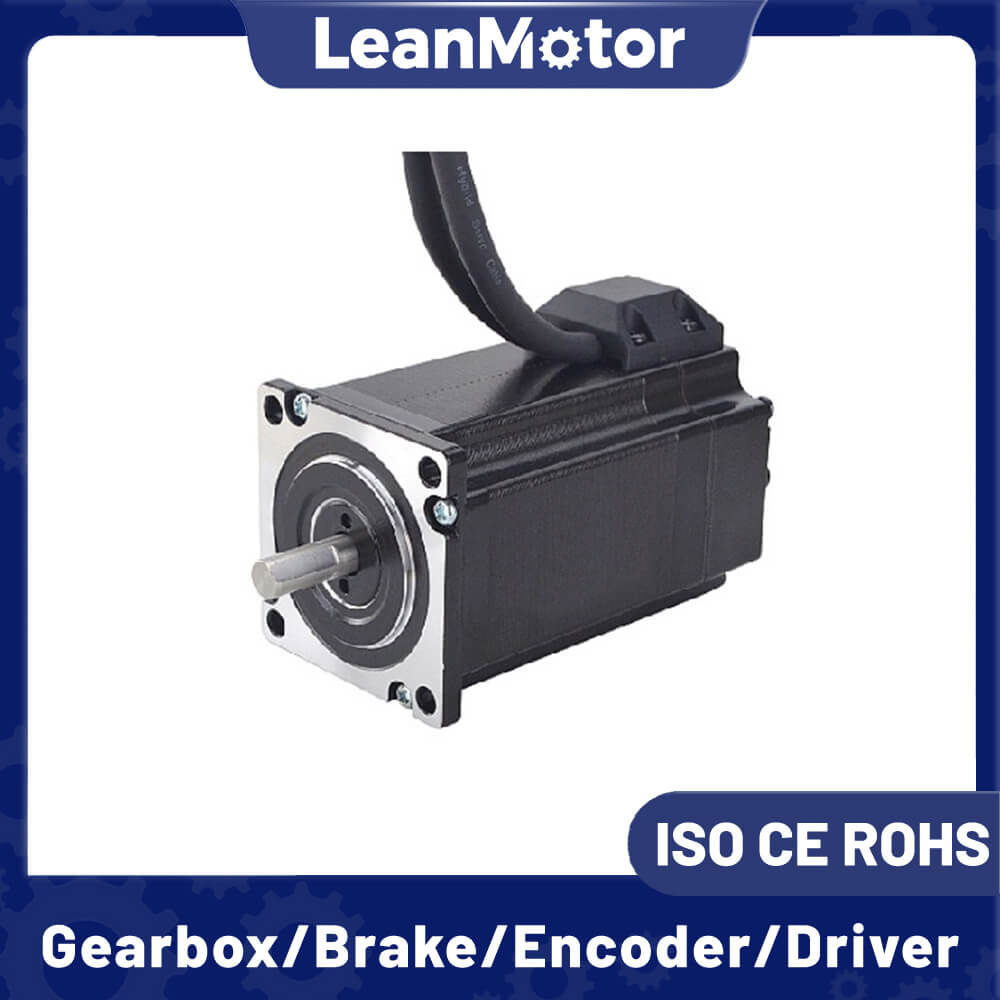

Leanmotor Nema 23 2-Phase Hybrid Close Loop Stepper Motor 1.8 Degree 57x57mm 4.2A 4-Wires

Type: Nema23 2Phase Bipolar Closed Loop Servo Stepper Motor

Current: 4.2A

Resistance: 0.4/0.6/0.9Ω

Rated Torque: 1.2/2.1/3N.m

Availability:
Quantity:
Inquire Add to Basket

  • Nema 23 Hybrid Close Loop Stepper Motor

  • LeanMotor

  • Closed Loop Motors

  • Nema23 (57mm)

  • 4wires

  • 2 Phase

  • 1.8°

  • 10 Pcs

General Specifications：

ItemSpecifications
Step Angle1.8°
Temperature Rise80℃max
Ambient Temperature-20℃~+50℃
Insulation Resistance100 MΩ Min. ,500VDC
Dielectric Strength1500VAC for 1minute
Shaft Radial Play0.02Max. (450g-load)
Shaft Axial Play0.08Max. (450g-load)
Max. radial force75N (20mm from the flange)
Max. axial force15N


Electrical Specifications:

Model No.Step AngleMotor LengthCurrentResistanceInductanceHolding Torque# of LeadsRotor InertiaMass
( °)(L)mmAΩmHkg.cmNo.g.cm2Kg
LM57HSN121.8564.20.41.51.242800.68
LM57HSN211.8764.20.62.02.144401.1
LM57HSN301.81124.20.94.03.048001.4

Note: Above only for representative products, products of special request can be made according to the customer request.


Wires Connection:

Bipolar:

A+
A-B+B-
BlackGreenRedBlue


Nema 23 Closed Loop Stepper Motor Dimension:

nema23 closed loop stepper motor


Hybrid Stepper Motor Optional Parts：

Connectors, Gearbox, Encoder, Brake, Integrated Driver...


Customized Service:

Metal Pulleys

Metal Pulleys

plastic pulley

Plastic Pulley

gear

Gear

shaft pin

Shaft Pin

threaded shaft

Threaded Shaft

panel mount

Panel Mount

Hollow shaft

Hollow Shaft

lead screw

Lead Screw

panel mount

Panel Mount

single flat

Single Flat

dual flat

Dual Flat

key shaft

Key Shaft


Hybrid Stepper Motor Customized Service:

stepper motor





Cables

stepper motorsCovers
stepper motorShaft
lead screw stepper motorLead Screw Rod
closed loop stepper motorEncoders
brake stepper motor Brakes
Gared Stepper motor Gearboxes
linear guideLinear Module
Integrated stepper motor Integrated Drivers
stepper motor with worm gearboxWorm Gearbox


Previous:
Next:
nema 23 servo motor nema 23 closed loop stepper motor​ nema 23 closed loop closed loop nema 23 closed loop stepper motor nema 23 closed loop stepper nema 23 clearpath servo nema 23​ cnc nema 23 dual shaft stepper motor nema 23​ nema 23 bipolar stepper motor​

Related Products

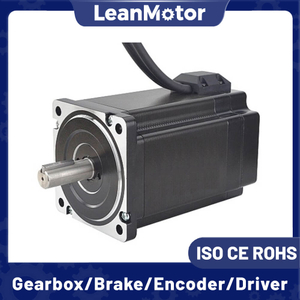

Leanmotor Nema 34 2-Phase Hybrid Close Loop Stepper Motor 1.8 Degree 86x86mm 6.0A 4-Wires
Leanmotor Nema 34 2-Phase Hybrid Close Loop Stepper Motor 1.8 Degree 86x86mm 6.0A 4-Wires
nema 24 closed loop stepper motor​

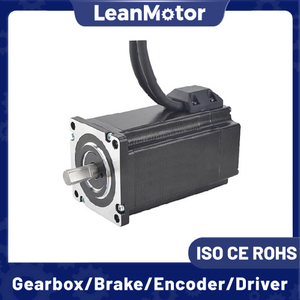

Leanmotor Nema 24 2-Phase Hybrid Close Loop Stepper Motor 1.8 Degree 60x60mm 4.0A 4-Wires
nema 17 closed loop stepper motor

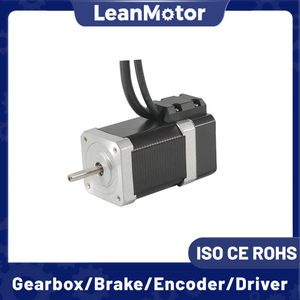

Leanmotor Nema 17 2-Phase Hybrid Close Loop Stepper Motor 1.8 Degree 42x42mm 1.68A/1.7A 4-Wires
nema 11 stepper motor​

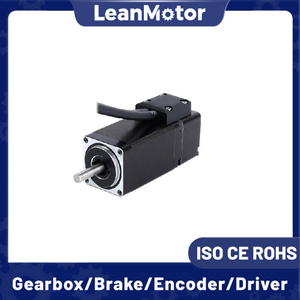

Leanmotor Nema 11 2-Phase Hybrid Close Loop Stepper Motor 1.8 Degree 28x28mm 0.67A 4-Wires
