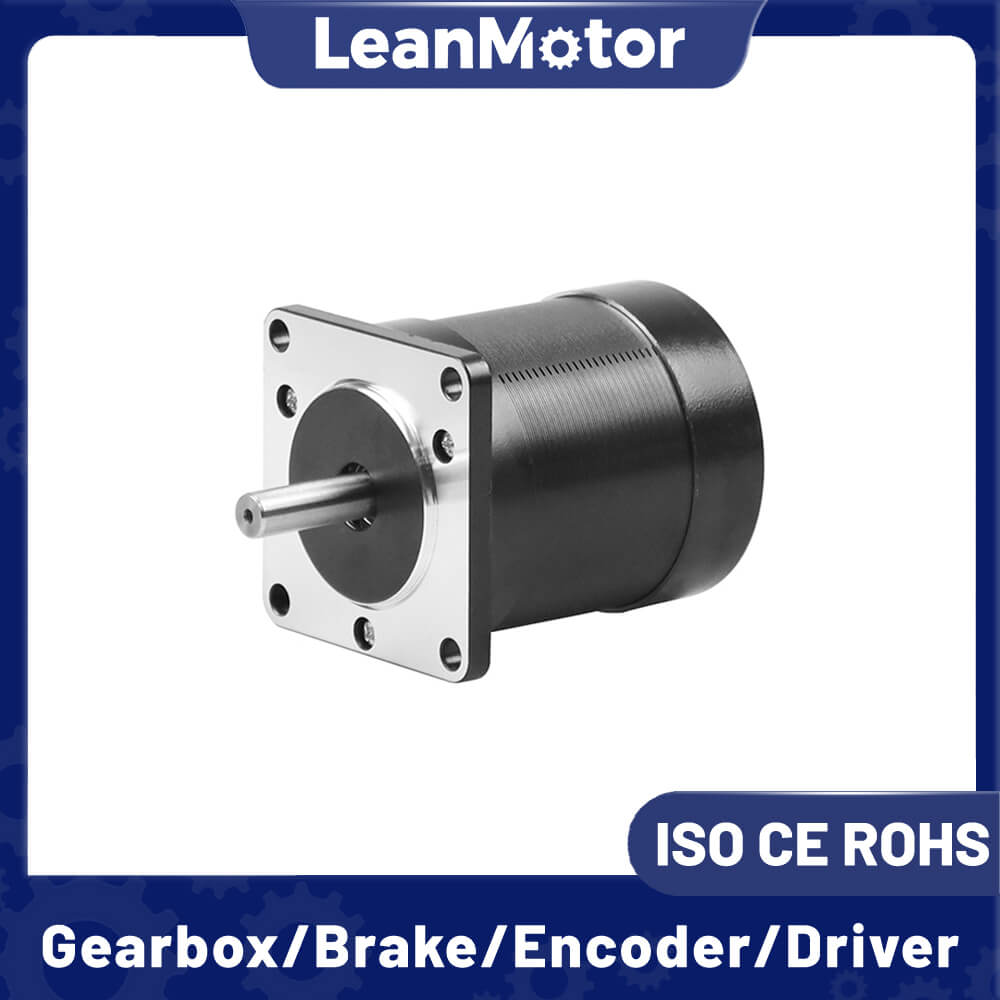

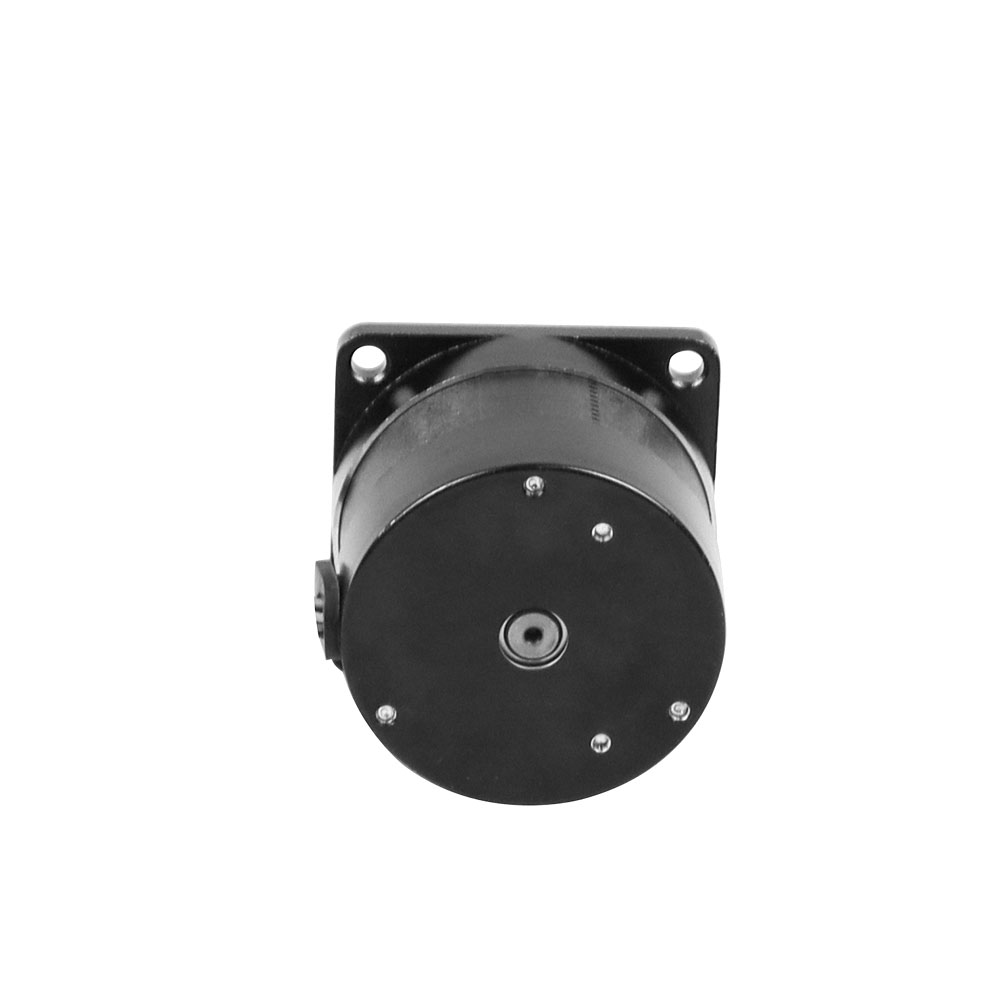

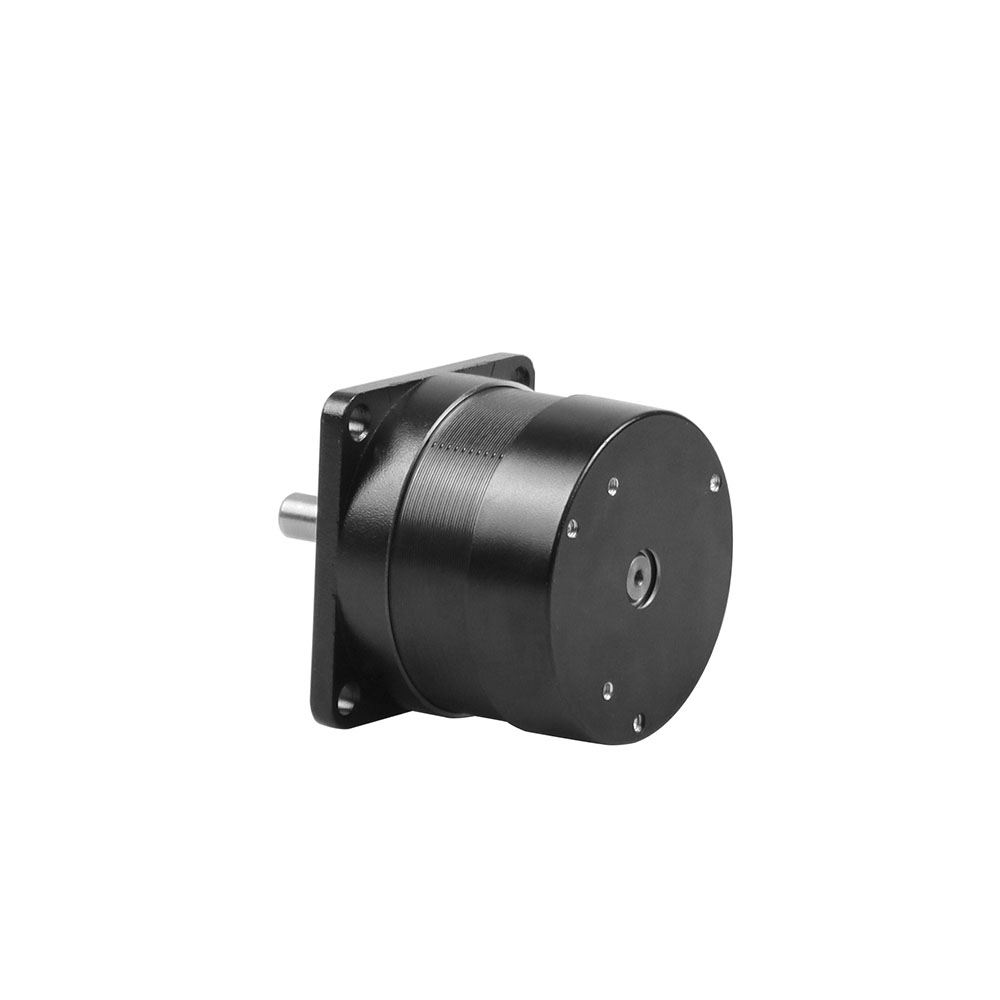

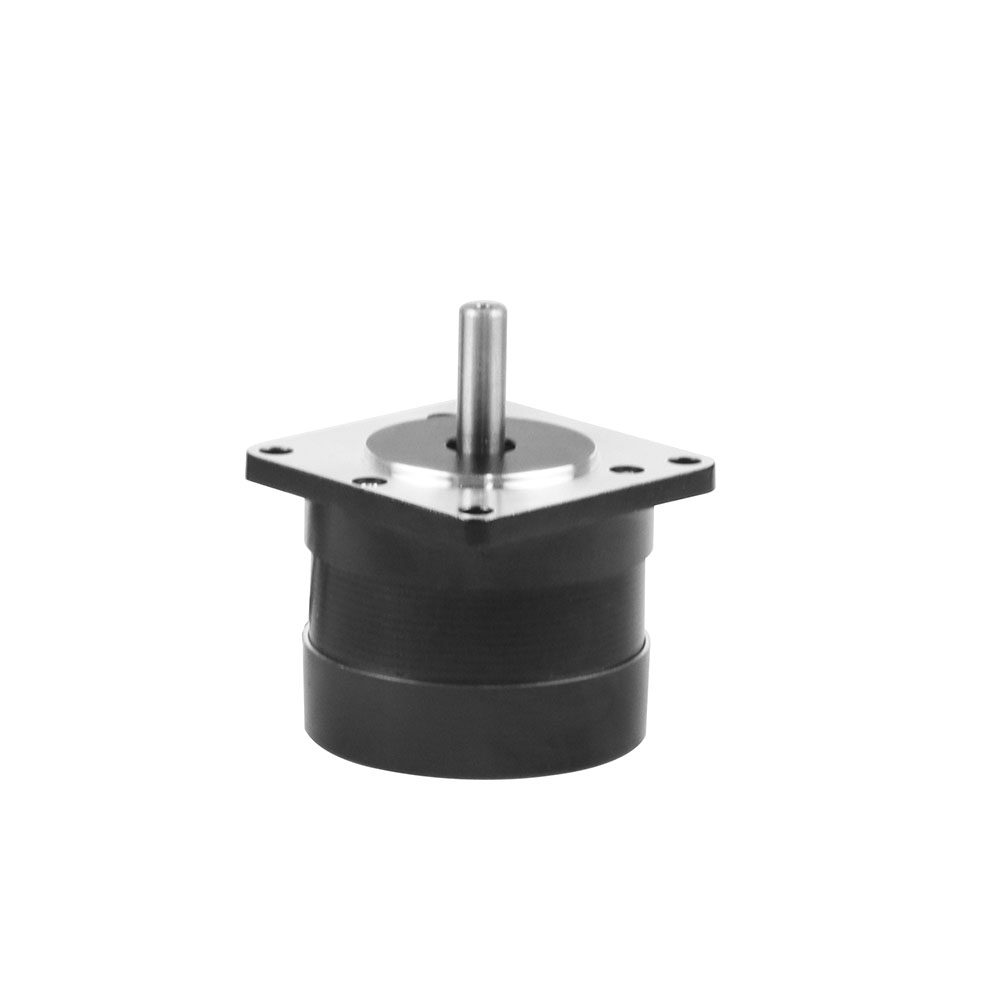

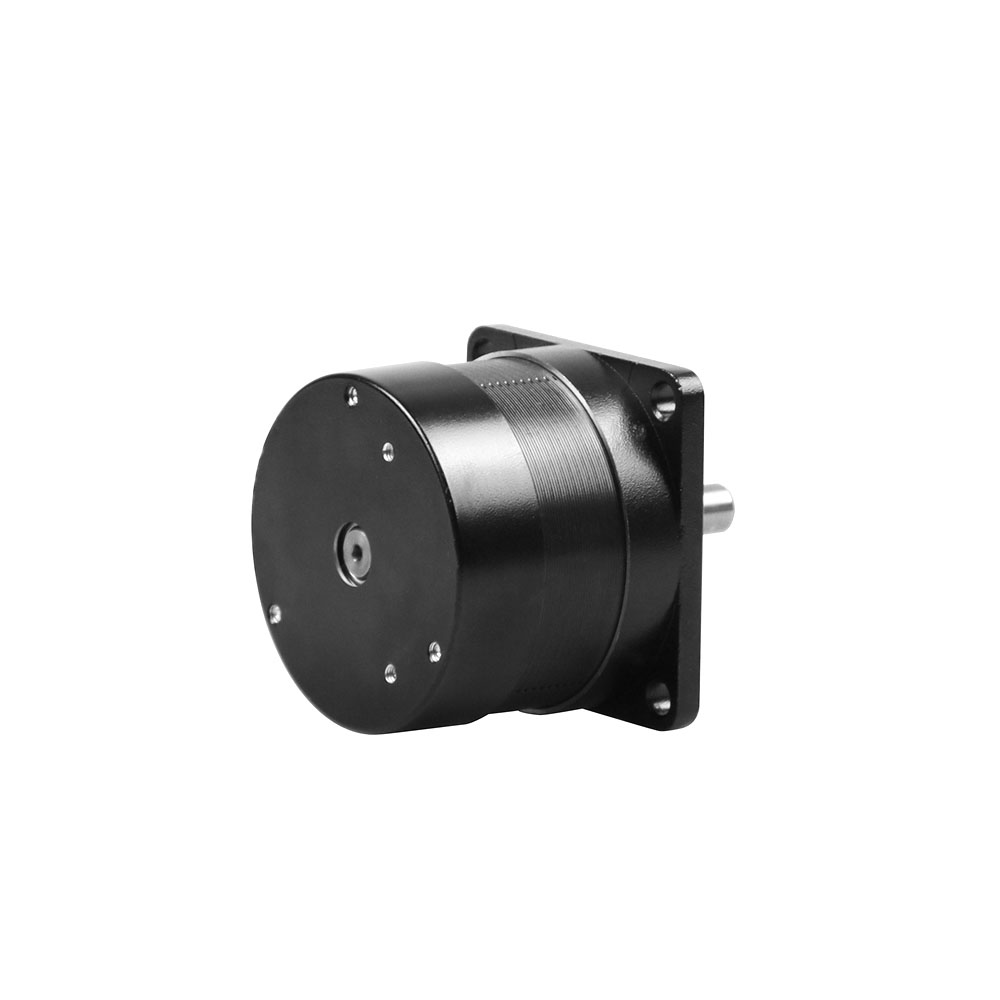

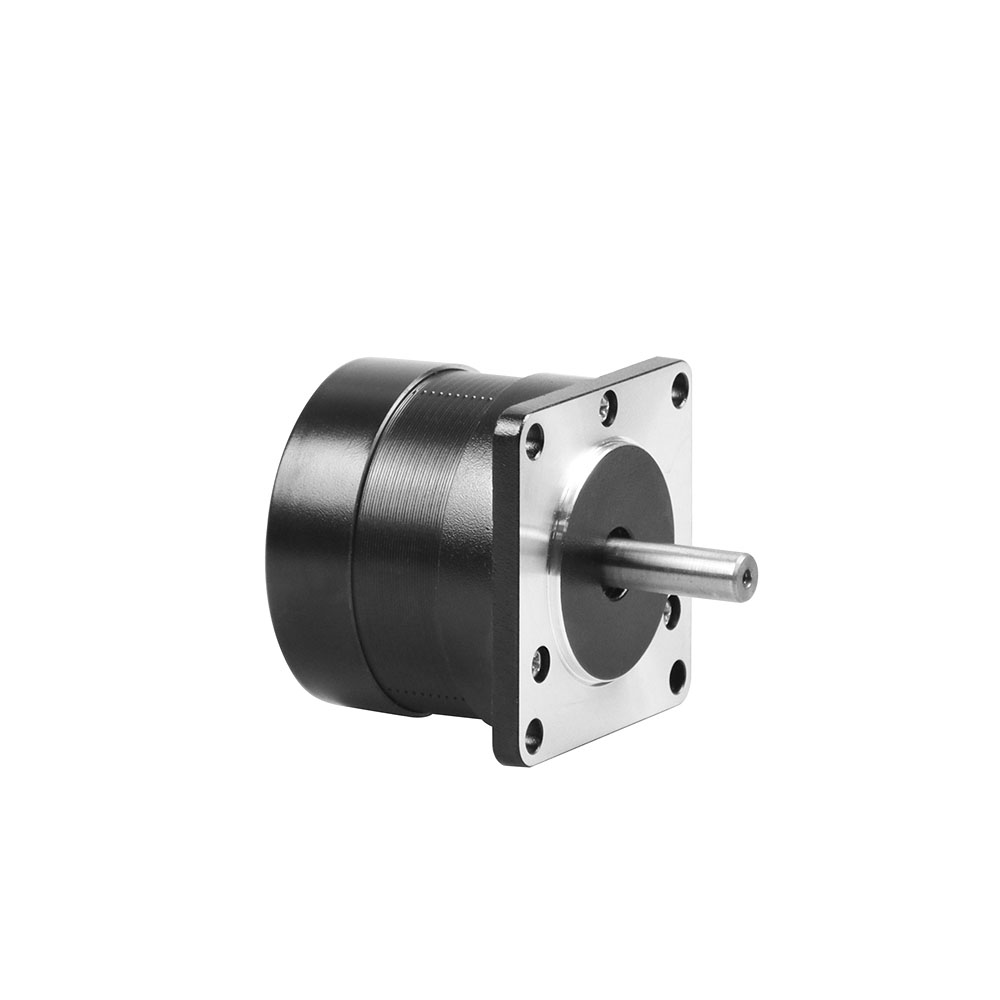

LeanMotor Nema 23 57BLF Square Head Brushless BLDC DC Motor 57x57mm 36V 3 Phase

Nema23 36V Square Head Bldc Motor Dimension:

Hybrid Stepper Motor Optional Parts：

Connectors, Gearbox, Encoder, Brake, Integrated Driver...

Customized Service:

Metal Pulleys

Plastic Pulley

Gear

Shaft Pin

Threaded Shaft

Panel Mount

Hollow Shaft

Lead Screw

Panel Mount

Single Flat

Dual Flat

Key Shaft

Hybrid Stepper Motor Customized Service:

Cables

Covers

Shaft

Lead Screw Rod

Encoders

Brakes

Gearboxes

Linear Module

Integrated Drivers

Worm Gearbox

FAQs About NEMA 23 57BLF Square Head Brushless DC Motor

I. Product Perspective: Performance, Design & Applications

1. What is a NEMA 23 57BLF square head brushless DC motor?
A NEMA 23 57BLF motor is a compact brushless DC motor with a 57 mm frame size and a square front flange for secure mounting, designed for high efficiency and precision.

2. What are the main advantages of a brushless DC motor compared to a brushed motor?
Brushless DC motors provide higher efficiency, longer service life, lower noise, reduced maintenance, and precise speed control.

3. What does “square head” mean in this motor?
The square head refers to the motor’s front flange shape, allowing stable mounting and easier alignment in machinery.

4. What voltage options are available for the 57BLF motor?
Common options include 12V, 24V, and 48V, with custom voltages available upon request.

5. What is the typical speed range of this motor?
The speed depends on winding design and driver control, typically suitable for low- to medium-speed industrial applications.

6. Can the 57BLF brushless DC motor operate continuously?
Yes, it is designed for continuous operation with proper cooling and driver management.

7. What torque output can the NEMA 23 57BLF motor deliver?
Torque depends on the winding and motor length; it provides reliable torque for medium-load industrial applications.

8. Can the motor be combined with a gearbox?
Yes, planetary or spur gearboxes can be integrated to increase torque or reduce speed.

9. What industries commonly use the NEMA 23 57BLF motor?
Applications include robotics, CNC machinery, medical devices, automation systems, pumps, and fans.

10. How is the motor speed controlled?
Speed is controlled via a compatible BLDC motor driver using PWM signals or analog control inputs.

II. Factory Customization Capability: Manufacturing & OEM Solutions

11. Can the NEMA 23 57BLF motor be customized?
Yes, factories can customize voltage, speed, torque, motor length, and winding parameters to match specific applications.

12. Are different shaft types available?
Yes, options include round shafts, D-shafts, keyed shafts, or custom machined shafts.

13. Can encoders or Hall sensors be integrated?
Yes, Hall sensors or optical encoders can be added for precise speed and position feedback.

14. Are gearbox-integrated versions available?
Yes, planetary or spur gearboxes can be supplied together with the motor for high-torque or reduced-speed applications.

15. Can the motor be customized for low-noise or low-vibration operation?
Yes, precision bearings, optimized windings, and high-quality materials reduce noise and vibration.

16. Are waterproof or dustproof versions available?
Yes, IP-rated designs such as IP54 or IP65 can be customized for harsh environments.

17. Can the motor be adapted for high-temperature applications?
Yes, high-temperature windings and insulation can be applied for elevated-temperature environments.

18. What quality control tests are performed?
Testing includes torque testing, speed and efficiency verification, vibration analysis, thermal testing, and long-term endurance testing.

19. What is the typical lead time for custom NEMA 23 57BLF motors?
Prototype samples usually take 2–4 weeks, while mass production typically requires 4–8 weeks.

20. How does factory-level customization improve motor performance?
Customization ensures the motor is perfectly matched to application requirements, improving efficiency, reliability, and service life.
