Current: 1.68A/1.7A
Resistance: 1.65/3Ω
Rated Torque: 4.4/7.3kg.cm
| Quantity: | |
|---|---|

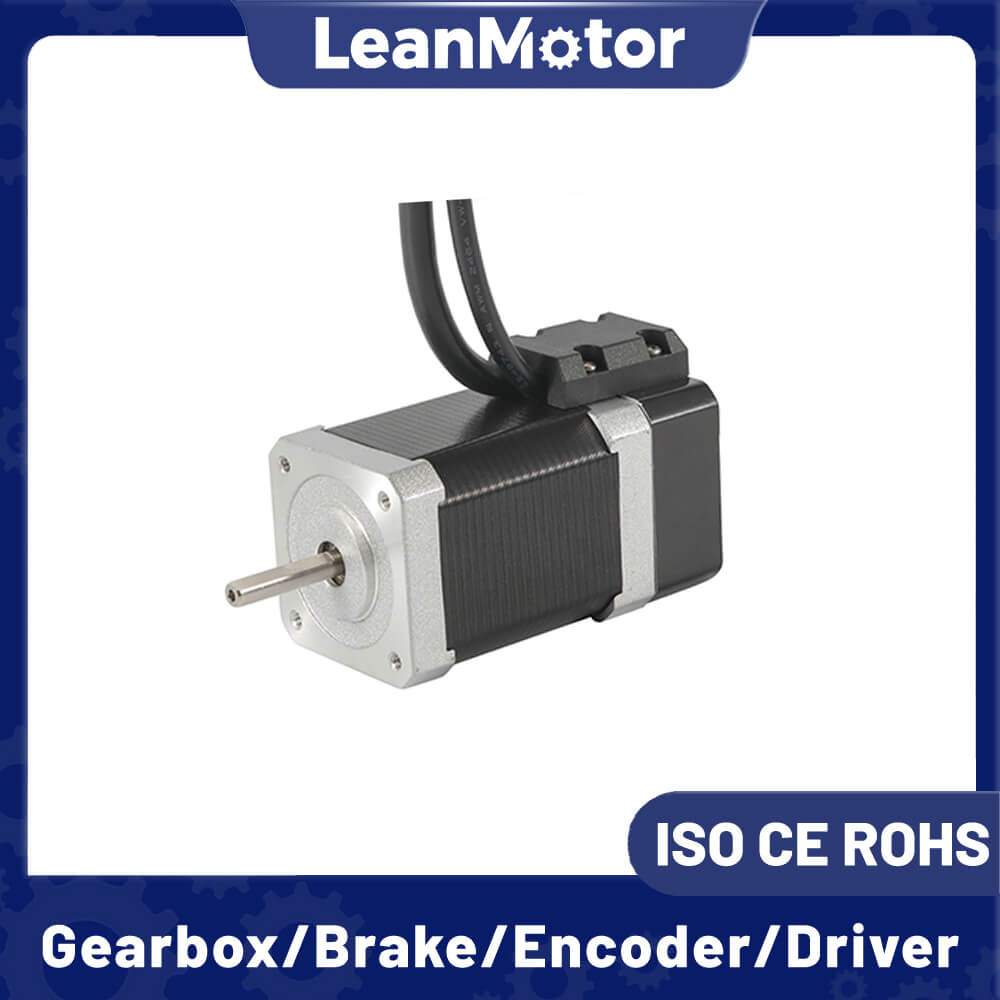

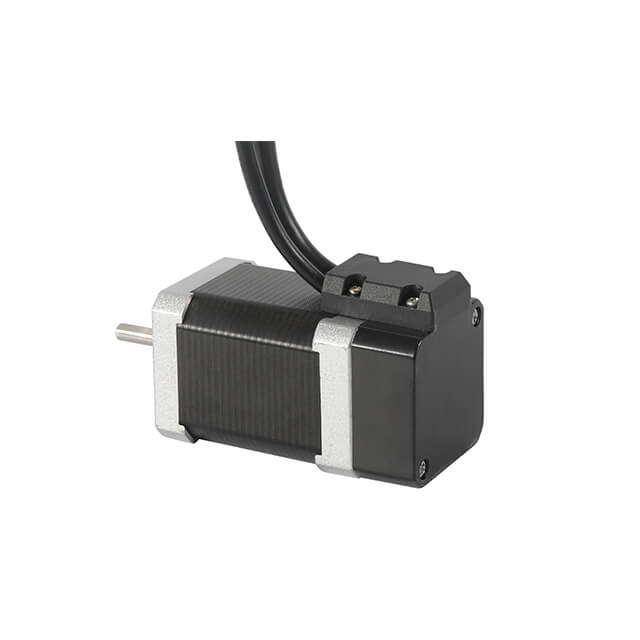

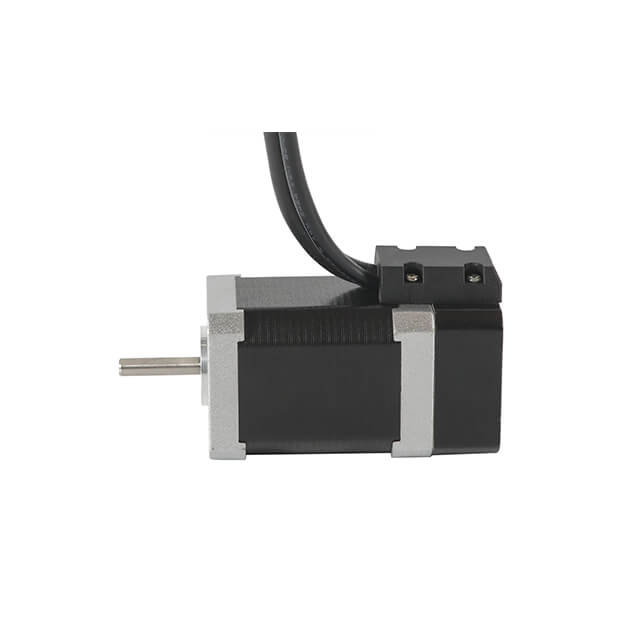

Nema 17 Hybrid Close Loop Stepper Motor
LeanMotor
Closed Loop Motors
Nema17 (42mm)
4wires
2 Phase
1.8°
10 Pcs
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | kg.cm | No. | g.cm2 | Kg | |
| LM42HSN05 | 1.8 | 48 | 1.68 | 1.65 | 2.8 | 4.4 | 4 | 68 | 0.38 |
| LM42HSN07 | 1.8 | 60 | 1.70 | 3.0 | 6.2 | 7.3 | 4 | 102 | 0.55 |
Note: Above only for representative products, products of special request can be made according to the customer request.
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | kg.cm | No. | g.cm2 | Kg | |
| LM42HSN05 | 1.8 | 48 | 1.68 | 1.65 | 2.8 | 4.4 | 4 | 68 | 0.38 |
| LM42HSN07 | 1.8 | 60 | 1.70 | 3.0 | 6.2 | 7.3 | 4 | 102 | 0.55 |
Note: Above only for representative products, products of special request can be made according to the customer request.
