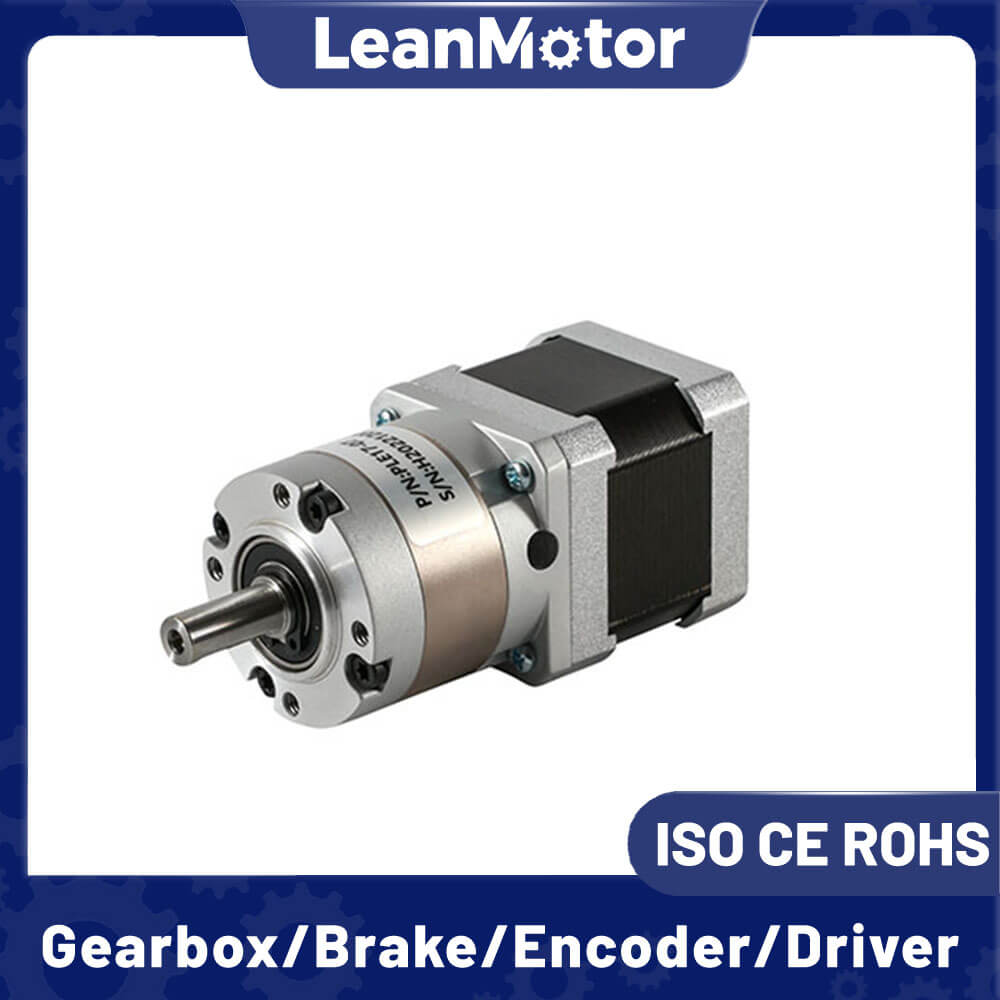

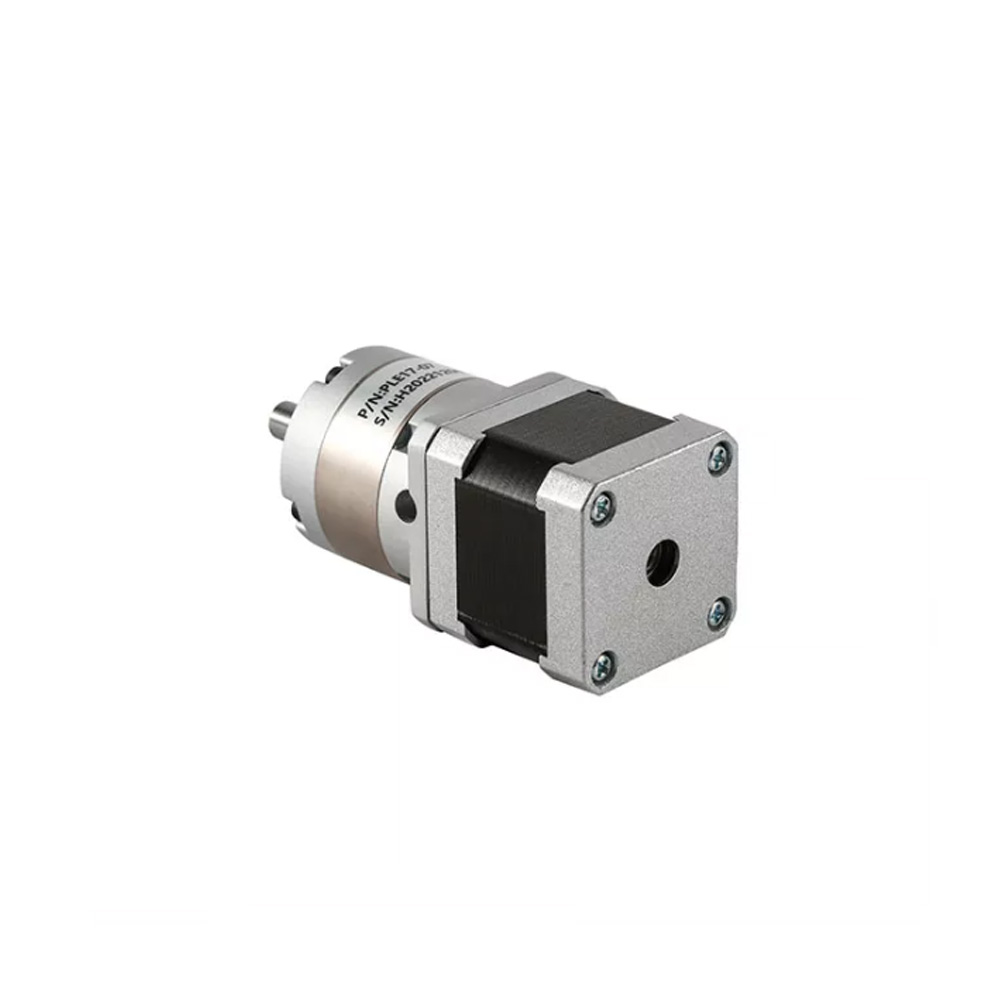

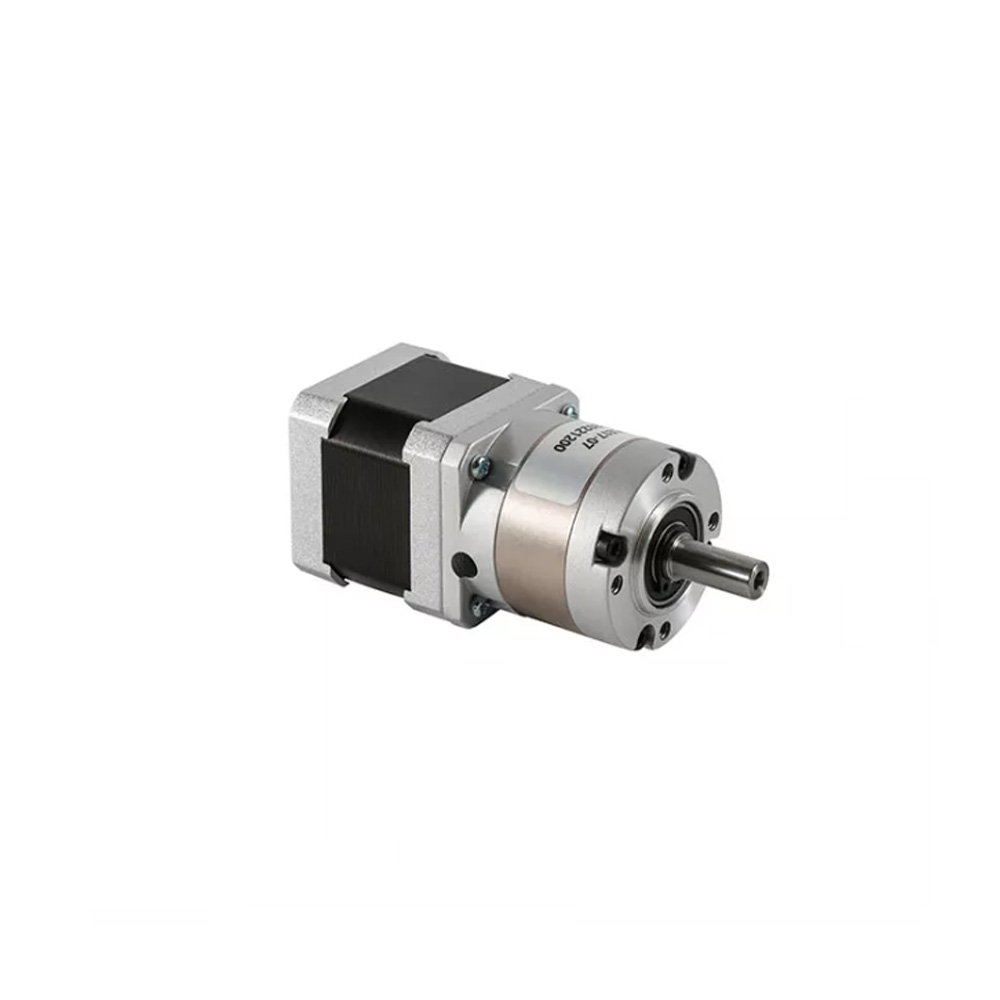

LeanMotor Nema 17 High Precision Planetary Geared Stepper Motor 0.9 /1.8 Degree 4 Wires / 6 Wires

Type: Nema17 2 Phase High Precision Planetary Geared Stepper Motor

Current: 0.4A-1.7A

Customized: Connectors, Gearbox, Encoder, Brake, Lead Screw, Integrated Driver...

Availability:
Quantity:
Inquire Add to Basket

  • Nema 17 High Precision Planetary Geared Stepper Motor

  • LeanMotor

  • Gearbox Motors

  • Nema17 (42mm)

  • 4wires, 6wires

  • 2 Phase

  • 0.9°, 1.8°

  • 10 Pcs

General Specifications：

Item Specifications
Step Angle 1.8° or 0.9°
Temperature Rise 80℃max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100 MΩ Min. ,500VDC
Dielectric Strength 500VAC for 1minute
Shaft Radial Play 0.02Max. (450g-load)
Shaft Axial Play 0.08Max. (450g-load)
Max. radial force 28N (20mm from the flange)
Max. axial force 10N


0.9 Degree Nema 17 42mm Stepping Motor Electrical Specifications:

Model No. Step Angle Motor Length Current Resistance Inductance Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH Kg.cm No. g.cm g.cm2 Kg
LM42HM34-1334 0.9 34 1.33 2.1 4.2 2.2 4 200 35 0.22
LM42HM40-1684 0.9 40 1.68 1.65 3.2 3.3 4 220 54 0.28
LM42HM48-1684 0.9 48 1.68 1.65 4.1 4.4 4 250 68 0.38
LM42HM60-1684 0.9 60 1.68 1.65 5 5.5 4 270 106 0.55

Note: Above only for representative products, products of special request can be made according to the customer request.


1.8 Degree Nema 17 42BYG Step Motor Electrical Specifications:

Model No. Step Angle Motor Length Current Resistance Inductance Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH Kg.cm No. g.cm g.cm2 Kg
LM42HS25-0404 1.8 25 0.4 24 36 1.5 4 75 20 0.15
LM42HS28-0504 1.8 28 0.5 20 21 1.8 4 85 24 0.22
LM42HS34-1334
 1.8 34 1.33 2.1 2.5 2.6 4 120 34 0.22
LM42HS34-0956 1.8 34 0.95 4.2 2.5 2.2 6 120 34 0.22
LM42HS40-1704 1.8 40 1.7 1.5 2.3 4.2 4 150 54 0.28
LM42HS40-1206 1.8 40 1.2 3 2.7 3.2 6 150 54 0.28
LM42HS48-1684 1.8 48 1.68 1.65 2.8 5.5 4 260 68 0.38
LM42HS48-1206
 1.8 48 1.2 3.3 2.8 4 6 260 68 0.38
LM42HS60-1704 1.8 60 1.7 3 6.2 7.3 4 280 102 0.55
LM42HS60-1206 1.8 60 1.2 6 7 5.6 6 280 102 0.55

Note: Above only for representative products, products of special request can be made according to the customer request.


Wires Connection:

Bipolar:

A+
 A- B+ B-
Black Green Red Blue


Unipolar:

A+
 O+ A- B+ O- B-
Black Yellow Green Red White Blue


LM-HPR42-L Series Planetary Gearbox Specification:

Model / LM-HPR42-L1 LM-HPR42-L2
Gear Ratio / 3 4 5 7 10 15 16 20 25 28 30 35 40 45 50 70 100
Gear Trains / 1 2
Gearbox Length mm 61.5 72.5
Rated Torque N.m 8 9 9 5 5 10 12 12 10 10 10 10 10 10 10 10 5
Sundden Stop Torque N.m 16 18 18 10 10 20 24 24 20 20 20 20 20 20 20 20 10
Back Lash arcmin ≤15 arcmin ≤20 arcmin
Efficiency % 96 94
Suitable Motor Dimension mm Φ5-10 / Φ22-2 / F31-M3 Φ5-10 / Φ22-2 / F31-M3
Rated Input Speed Rpm 3000 3000
Max Input Speed Rpm 6000 6000
Average Life Span h 20000 20000
Axial Force N 100 100
Radial Force N 300 300
Noise dB ≤55 ≤65
Protection Level IP IP54 IP54
Work Temp. ℃ -20 to +150 -20 to +150
Out Shaft Type / Key Shaft Type Key Shaft Type


LM-HPR42-LSW Series Planetary Gearbox Specification:

Model / LM-HPR42-L1SW LM-HPR42-L2SW
Gear Ratio / 3 4 5 7 10 15 16 20 25 28 30 35 40 50 70 100
Gear Trains / 1 2
Gearbox Length mm 76.5 87.5
Rated Torque N.m 8 9 9 5 5 10 12 12 10 10 12 10 10 10 10 5
Sundden Stop Torque N.m 16 18 18 10 10 20 24 24 20 20 24 20 20 20 20 10
Back Lash arcmin ≤15 arcmin ≤20 arcmin
Efficiency % 96 94
Suitable Motor Dimension mm Φ5-24 / Φ22-2 / F31-M3 Φ5-24 / Φ22-2 / F31-M3
Rated Input Speed Rpm 3000 3000
Max Input Speed Rpm 6000 6000
Average Life Span h 20000 20000
Axial Force N 100 100
Radial Force N 300 300
Noise dB ≤65 ≤65
Protection Level IP IP54 IP54
Work Temp. ℃ -20 to +150 -20 to +150
Out Shaft Type / Key Shaft Type Key Shaft Type



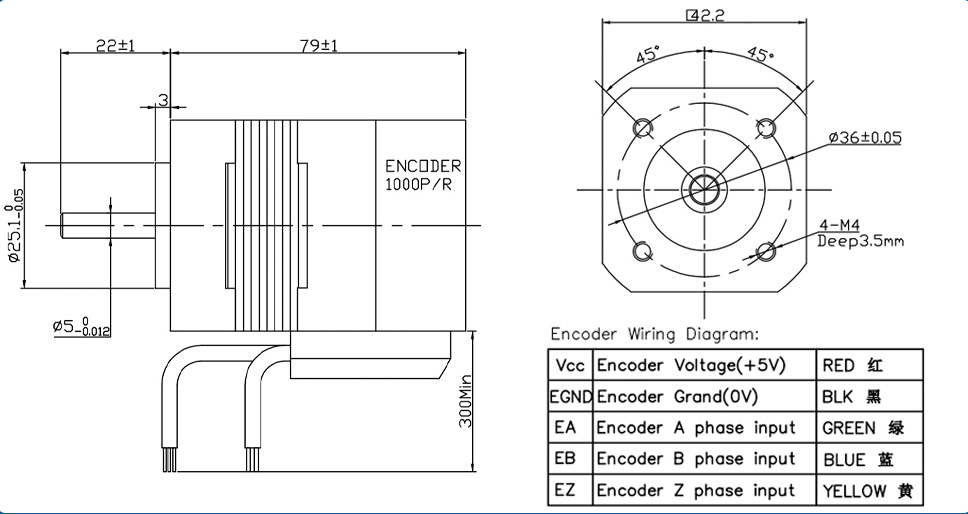

Nema 17 Stepper Motor Dimension:

24v dc servo motor

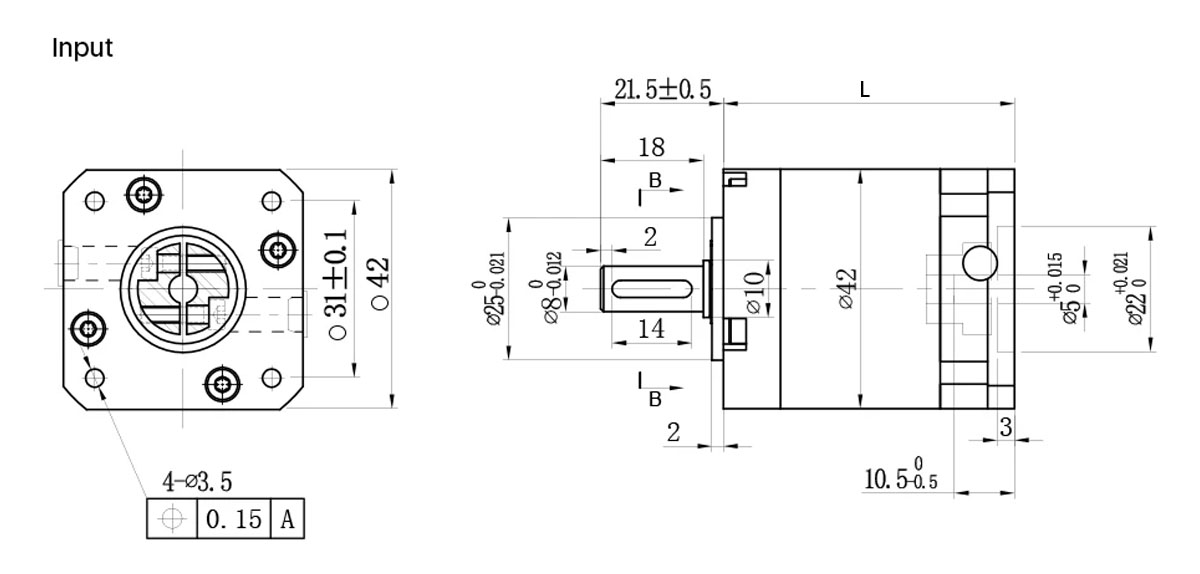

Nema 17 LM-HPR42-L Planetary Gearbox Dimension:

nema 17 gearbox


Hybrid Stepper Motor Optional Parts：

Connectors, Gearbox, Encoder, Brake, Integrated Driver...
