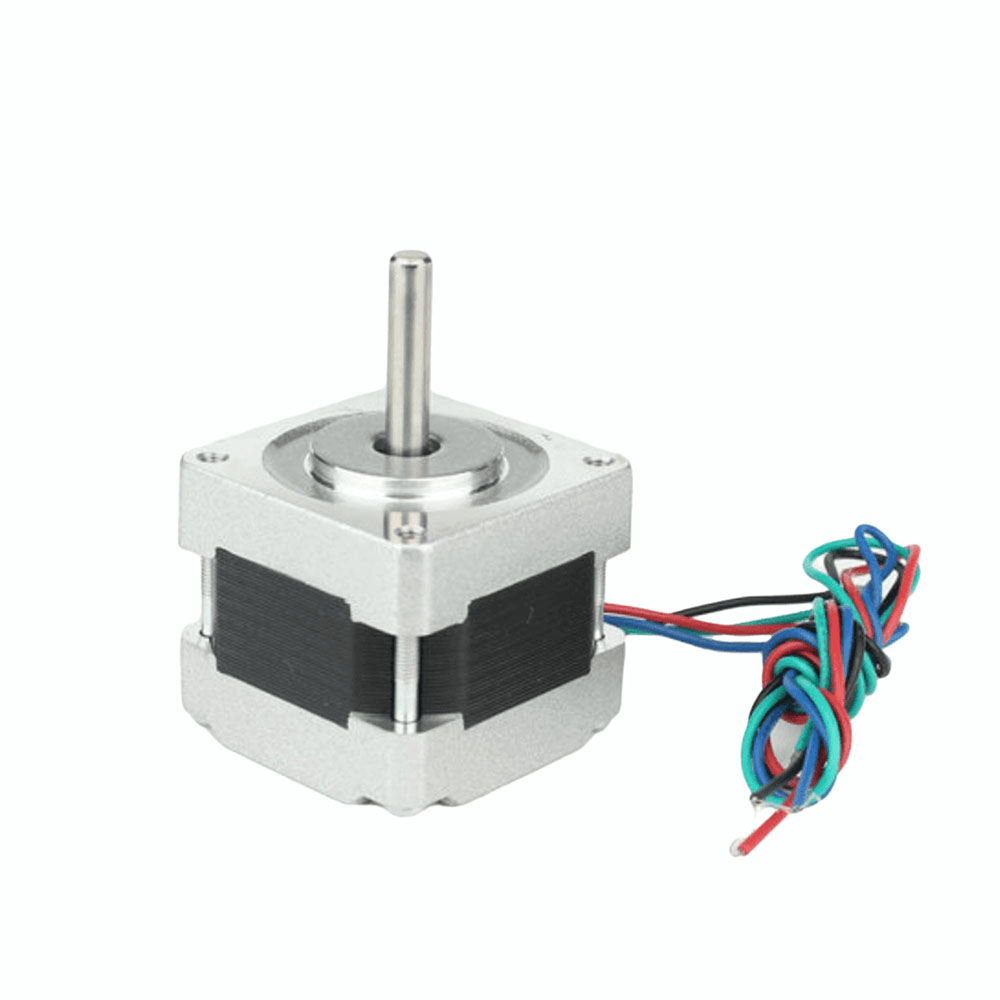

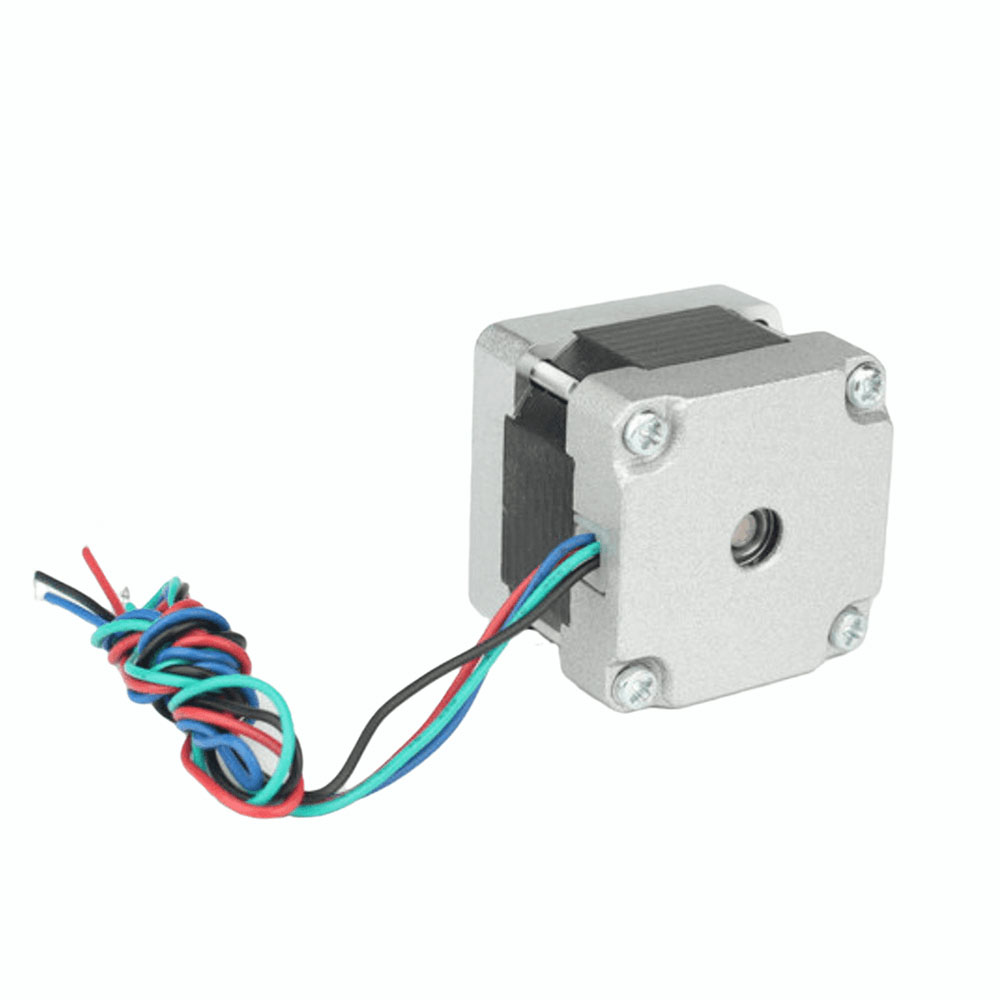

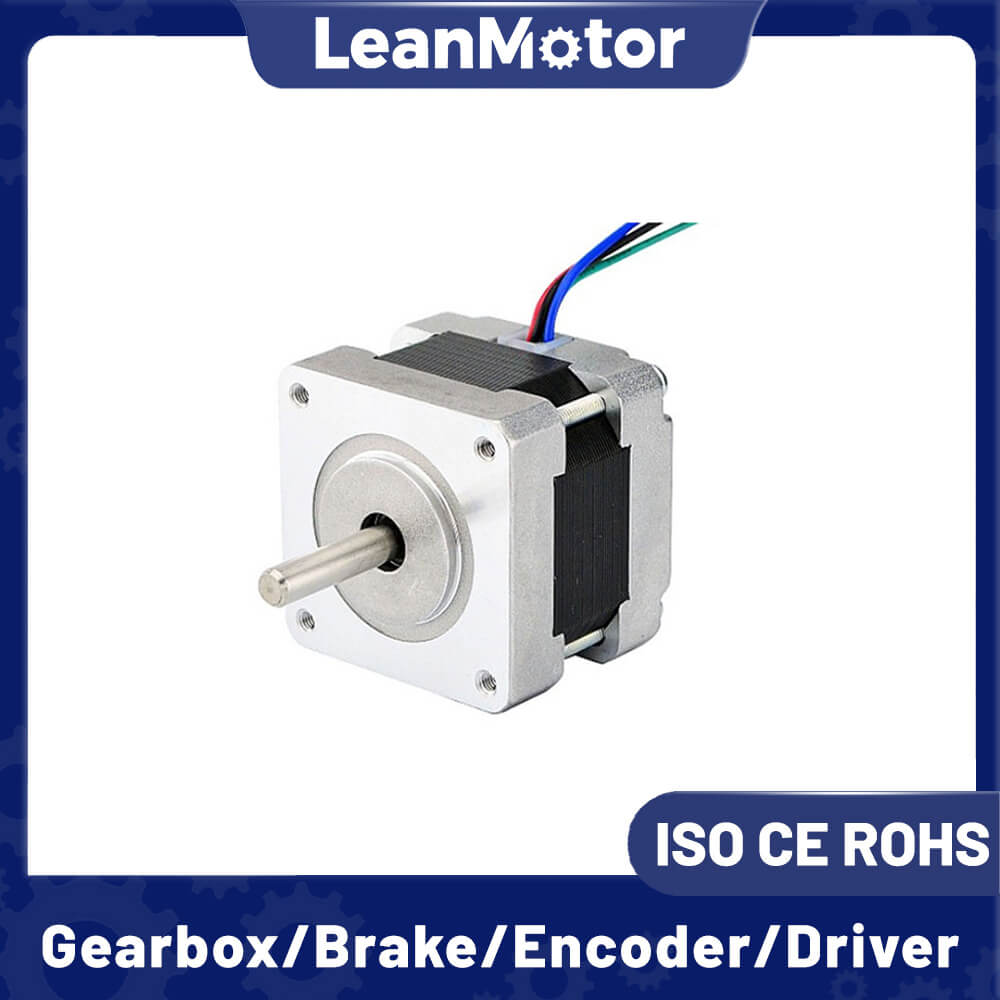

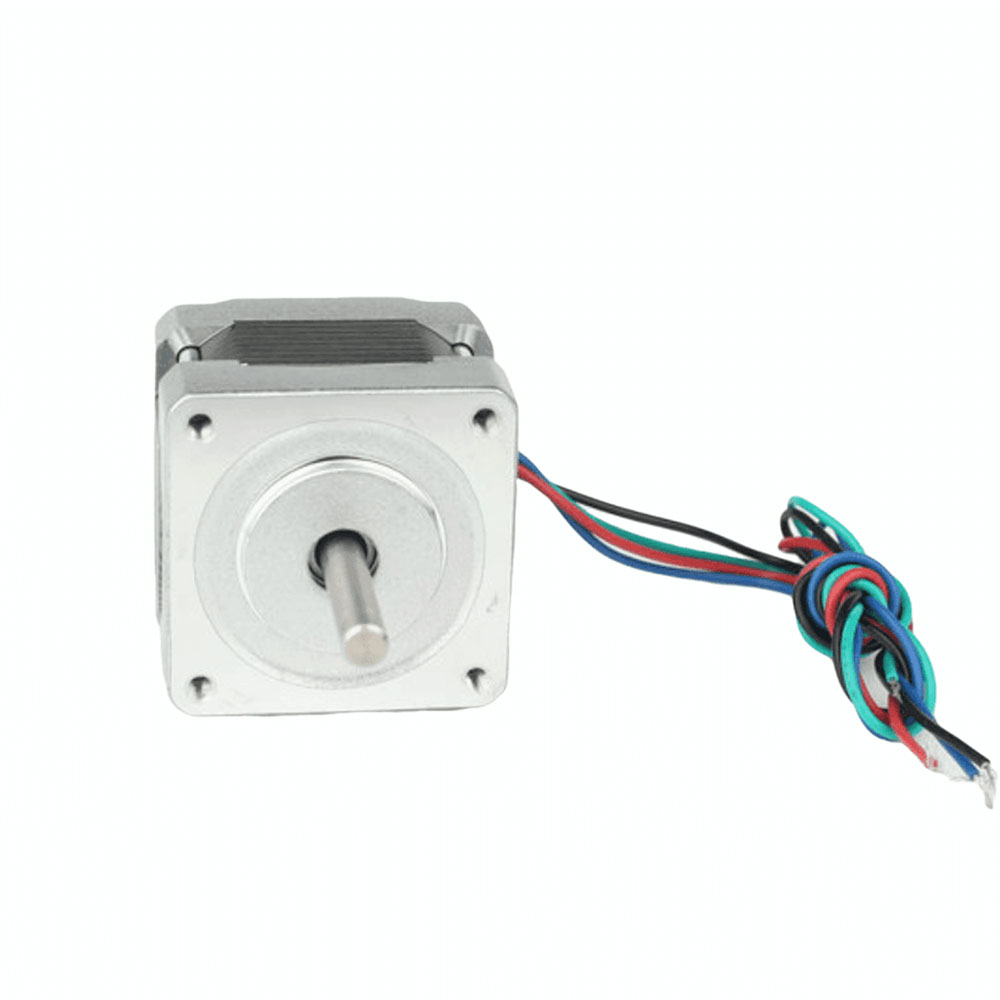

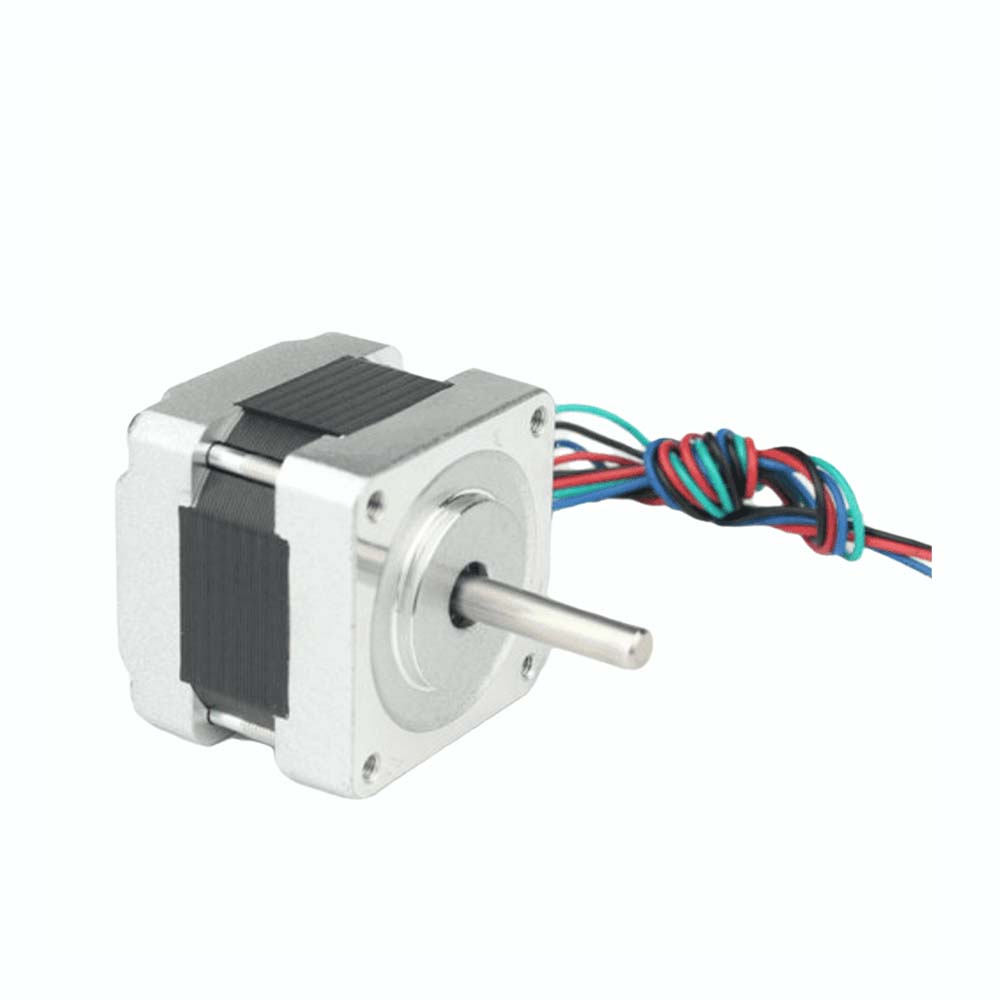

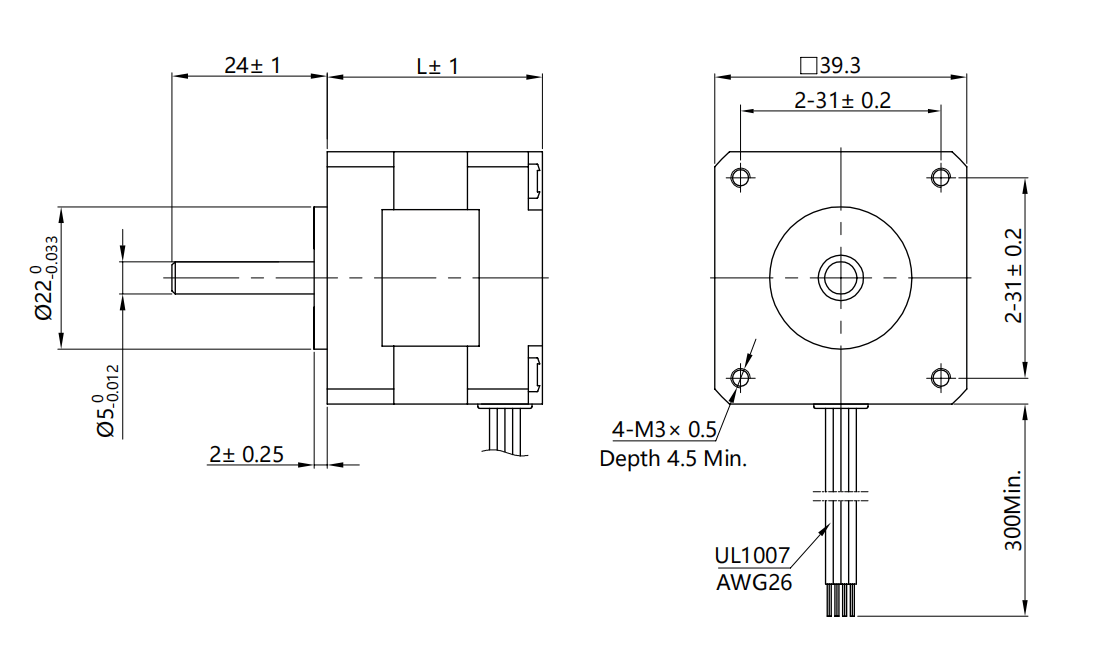

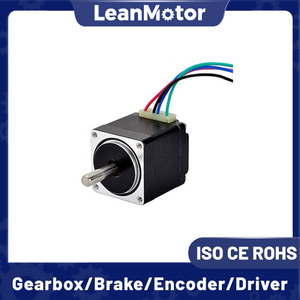

Leanmotor Nema 16 2-Phase Bipolar Or Unipolar Hybrid Stepping Motor 1.8 Degree 39x39mm 0.3A - 0.8A 4-Wires Or 6-Wires

Type: Nema16 2 Phase Bipolar or Unipolar Stepper Motor

Current: 0.3A - 0.8A

Motor Length: 20mm - 44mm

Customized: Connectors, Gearbox, Encoder, Brake, Lead Screw...

Availability:

Quantity:



Inquire Add to Basket

Model:
Nema 16 Hybrid Stepper Motor
Brand:
LeanMotor
Stepper Motor Kinds:
Open Loop Motors
Stepper Motor Size:
Nema16 (39mm)
Number of Leads:
4wires, 6wires
Phase:
2 Phase
Step Angle:
1.8°
MOQ:
10 Pcs

General Specifications：

Item	Specifications
Step Angle	1.8°
Temperature Rise	80℃max
Ambient Temperature	-20℃~+50℃
Insulation Resistance	100 MΩ Min. ,500VDC
Dielectric Strength	500VAC for 1minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	28N (20mm from the flange)
Max. axial force	10N

Electrical Specifications:

Model No.	Step Angle	Motor Length	Current	Resistance	Inductance	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	g.cm	No.	g.cm	g.cm2	Kg
LM39HY20-0404	1.8	20	0.4	6.6	7.5	650	4	50	11	0.12
LM39HY20-0506	1.8	20	0.5	13	7.5	800	6	50	11	0.12
LM39HY34-0404	1.8	34	0.4	30	32	2100	4	120	20	0.18
LM39HY34-0306	1.8	34	0.3	40	20	1300	6	120	20	0.18
LM39HY38-0504	1.8	38	0.5	24	45	2900	4	180	24	0.2
LM39HY38-0806	1.8	38	0.8	7.5	6	2000	6	180	24	0.2
LM39HY44-0304	1.8	44	0.3	40	100	2800	4	250	40	0.25

Note: Above only for representative products, products of special request can be made according to the customer request.

Wires Connection:

Bipolar:

A+	A-	B+	B-
Black	Green	Red	Blue

Unipolar:

A+	O+	A-	B+	O-	B-
Black	Yellow	Green	Red	White	Blue

FAQs About NEMA 16 Hybrid Stepping Motor Solutions

I. Product Perspective: NEMA 16 Hybrid Stepping Motor Features & Performance

1. What is a NEMA 16 hybrid stepping motor?

A NEMA 16 hybrid stepping motor is a compact stepper motor with a 1.6-inch (42 mm) frame size, combining permanent magnet and variable reluctance technologies for high precision and torque.

2. What are the main advantages of a NEMA 16 hybrid stepping motor?

Key advantages include precise positioning, compact size, stable torque output, low cost, and simple control without feedback in open-loop systems.

3. What is the typical step angle of a NEMA 16 hybrid stepping motor?

Most NEMA 16 hybrid stepping motors have a standard step angle of 1.8°, providing 200 steps per revolution.

4. Is a NEMA 16 hybrid stepping motor suitable for high-precision applications?

Yes, especially when paired with microstepping drivers, NEMA 16 hybrid stepping motors deliver smooth and accurate motion.

5. What torque range can a NEMA 16 hybrid stepping motor provide?

Torque output varies by model and winding design, making NEMA 16 hybrid stepping motors suitable for light to medium load applications.

6. Can NEMA 16 hybrid stepping motors operate continuously?

Yes, they are designed for continuous-duty operation when correctly driven and adequately cooled.

7. What voltage and current ratings are common for NEMA 16 hybrid stepping motors?

They are typically used with low-voltage, current-controlled drivers, with current ratings depending on winding configuration.

8. What applications commonly use NEMA 16 hybrid stepping motors?

Common applications include medical devices, office automation, 3D printers, laboratory instruments, and compact automation equipment.

9. Can a NEMA 16 hybrid stepping motor achieve smooth low-speed motion?

Yes, with microstepping and proper driver selection, smooth low-speed performance is easily achievable.

10. How reliable is a NEMA 16 hybrid stepping motor?

With a simple mechanical structure and no brushes, NEMA 16 hybrid stepping motors offer high reliability and long service life.

II. Factory Customization Capability: NEMA 16 Hybrid Stepping Motor Manufacturing

11. Can NEMA 16 hybrid stepping motors be customized for specific applications?

Yes, manufacturers can customize torque, winding parameters, shaft design, and mounting features.

12. Are different shaft types available for NEMA 16 hybrid stepping motors?

Yes, options include single shaft, double shaft, D-shaft, round shaft, and custom shaft designs.

13. Can gearboxes be integrated with NEMA 16 hybrid stepping motors?

Yes, NEMA 16 hybrid stepping motors can be combined with planetary gearboxes for higher torque and lower speed output.

14. Are encoders available for NEMA 16 hybrid stepping motors?

Yes, encoders can be added to create closed-loop stepper motor solutions.

15. Can NEMA 16 hybrid stepping motors be customized for low-noise operation?

Yes, optimized winding design, precision bearings, and advanced drivers help reduce noise and vibration.

16. Are waterproof or dustproof NEMA 16 hybrid stepping motors available?

Manufacturers can offer customized IP-rated designs for specific environmental conditions.

17. What quality control processes are used for NEMA 16 hybrid stepping motors?

Testing includes torque testing, step accuracy testing, insulation testing, thermal testing, and endurance testing.

18. Can NEMA 16 hybrid stepping motors be customized for compact or lightweight designs?

Yes, housing materials and motor length can be optimized to meet space and weight constraints.

19. What is the typical lead time for custom NEMA 16 hybrid stepping motors?

Prototype samples typically take 2–4 weeks, while mass production usually requires 4–8 weeks.

20. How does factory-level customization improve NEMA 16 hybrid stepping motor performance?

Customization ensures the motor is precisely matched to the application, improving efficiency, reliability, and overall system performance.
