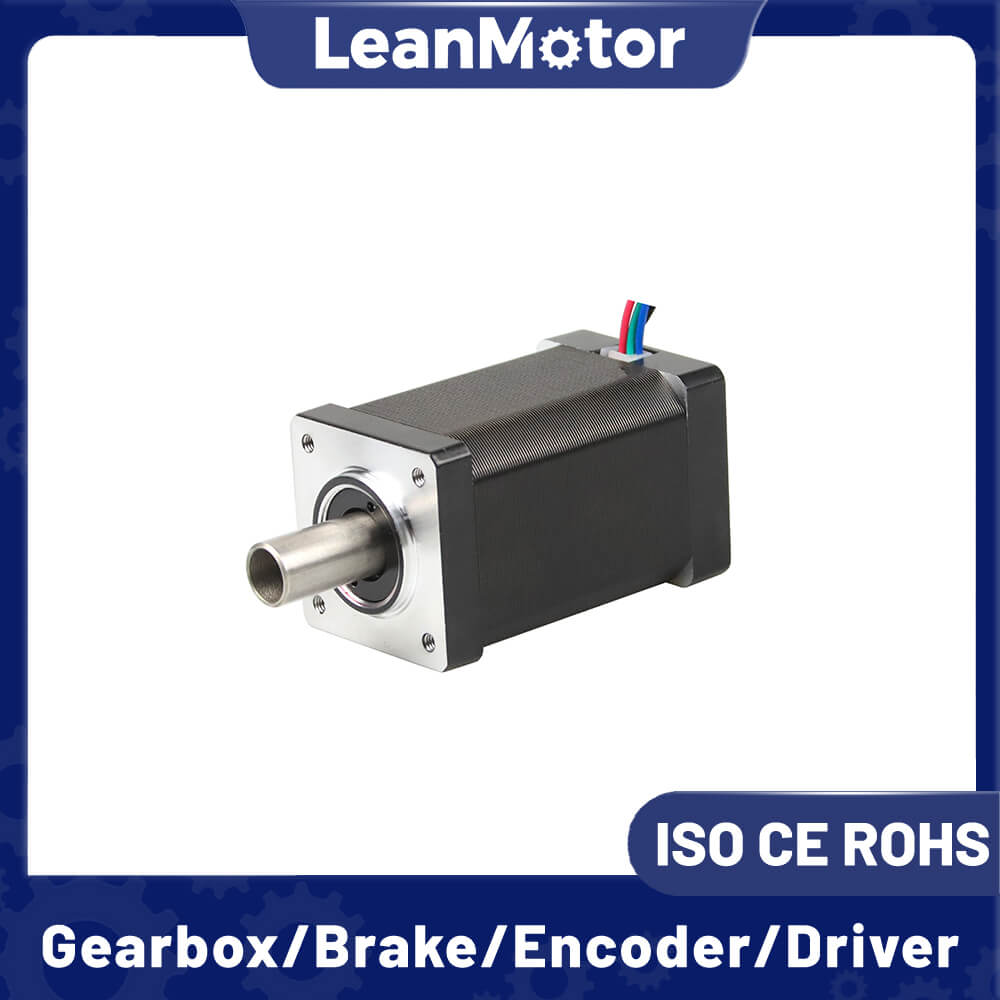

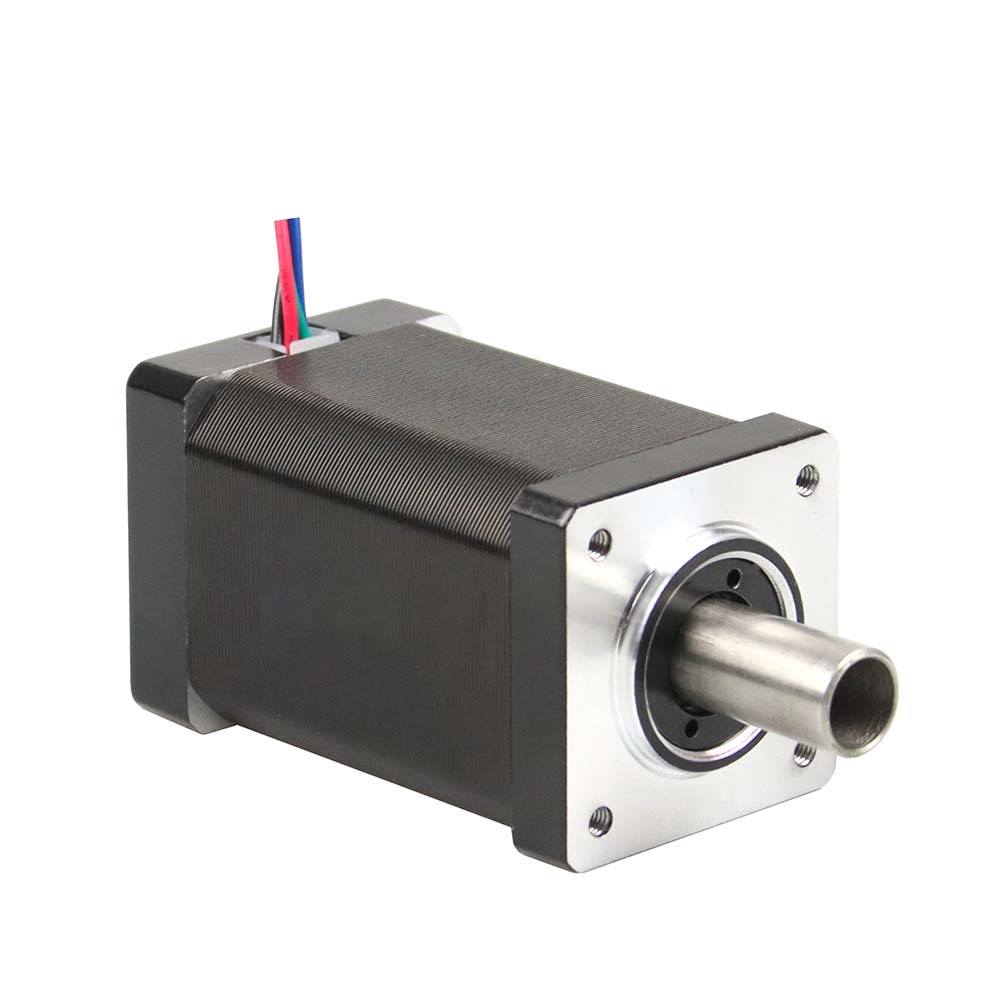

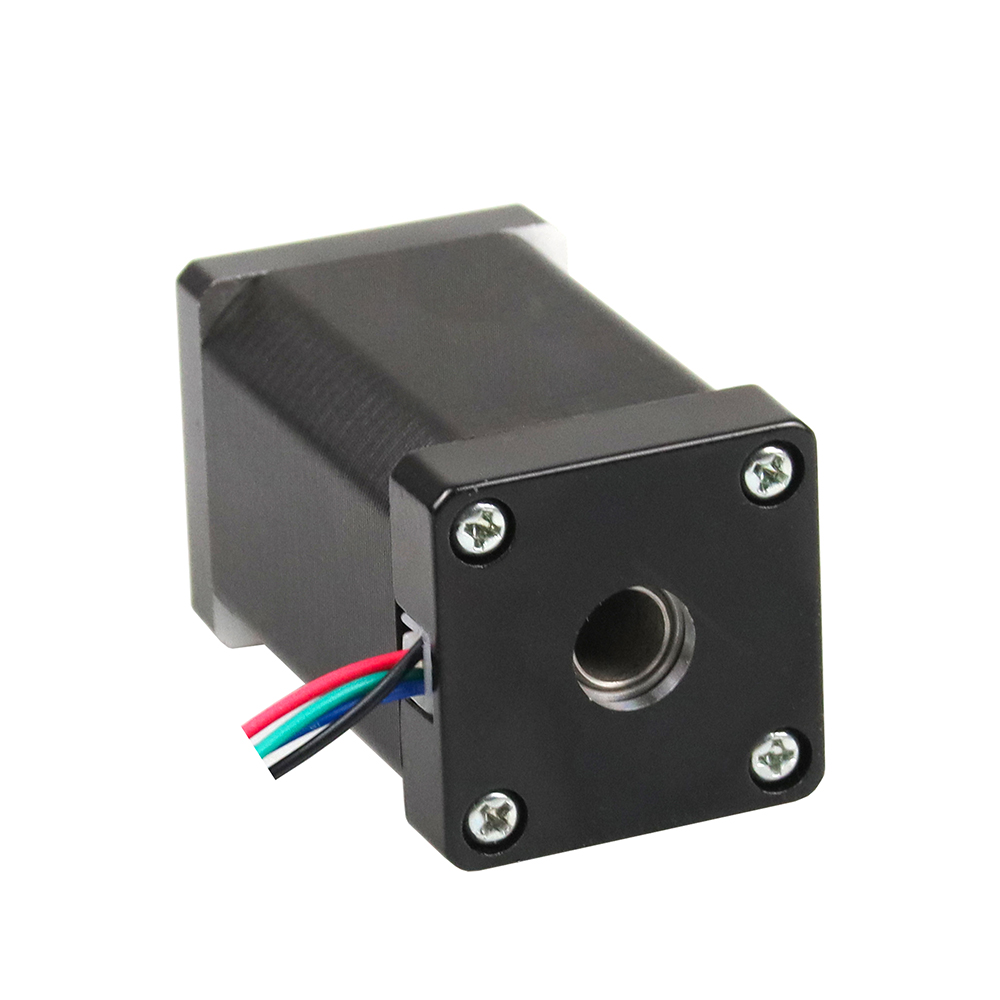

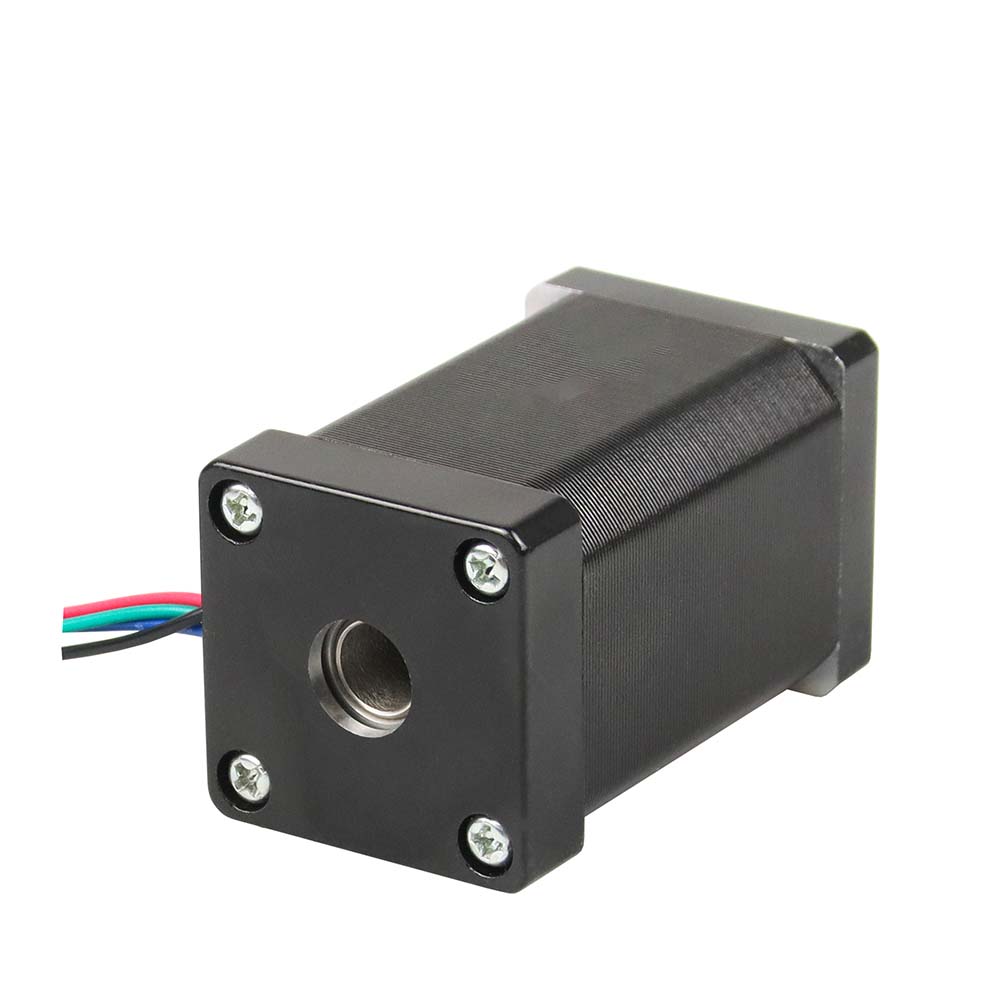

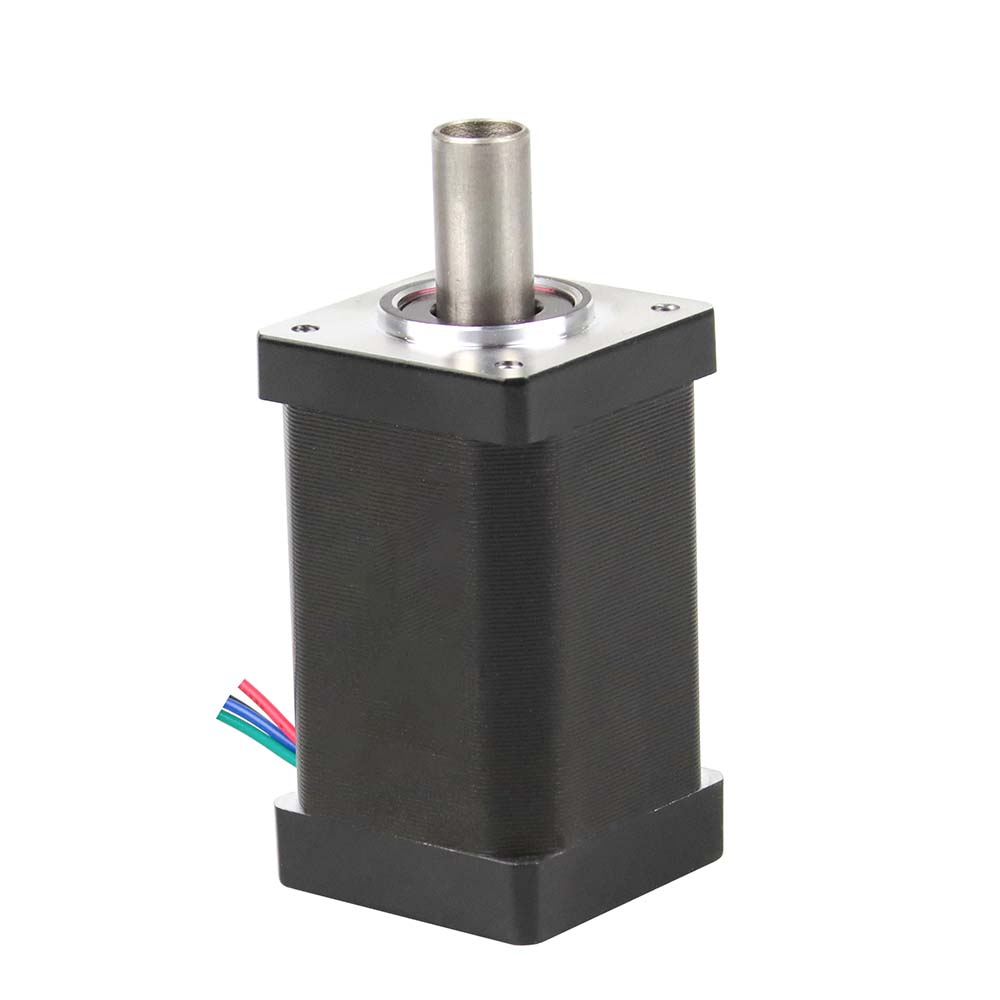

Nema 14 Hollow Shaft Stepper Motor
LEANMOTOR
Hollow Shaft Motors
Nema14 (35mm)
4wires
2 Phase
1.8°
10 Pcs
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |

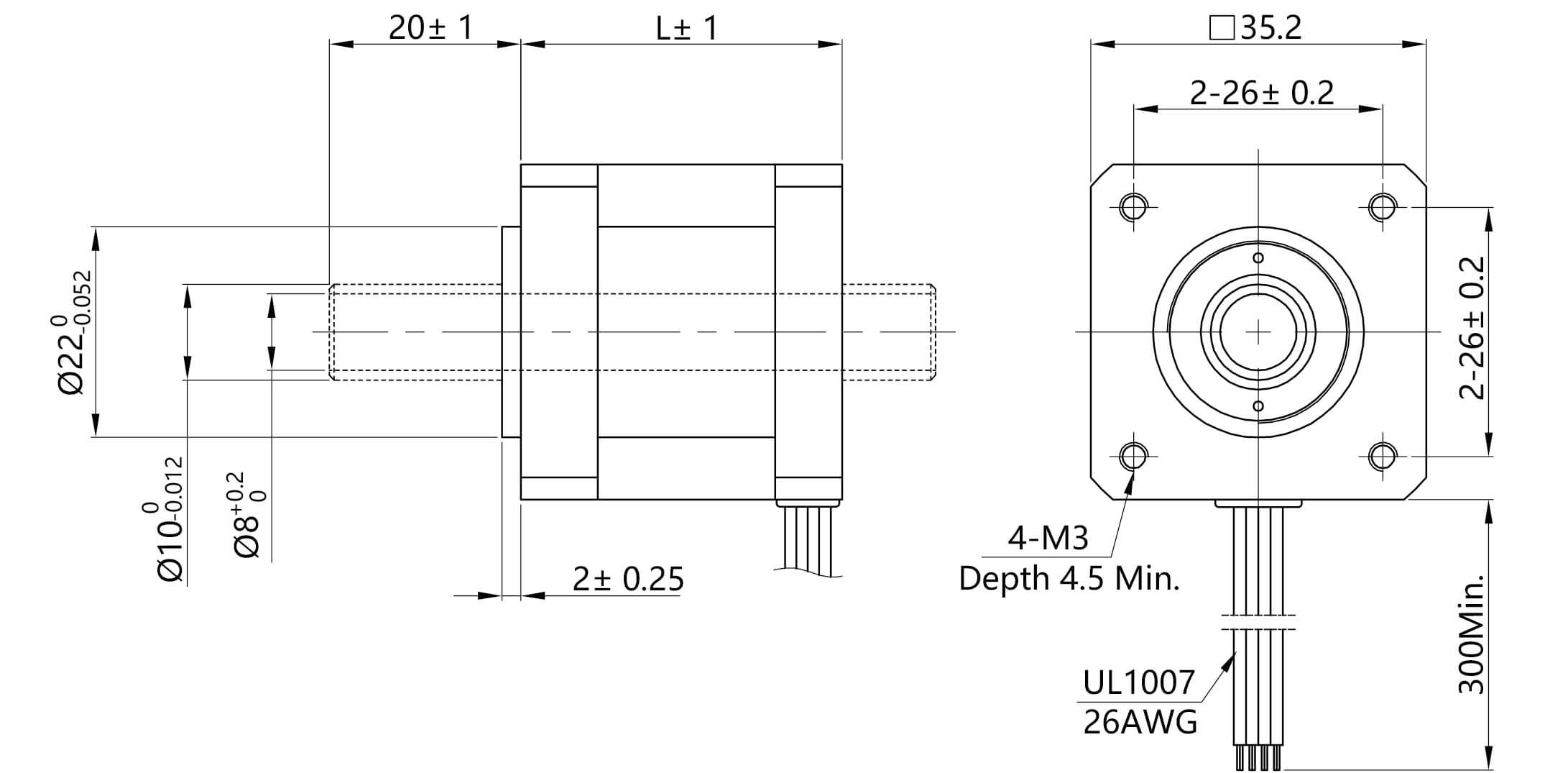

| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm² | kg | |
| LM35HSH28-0604 | 1.8 | 28 | 0.5 | 20 | 14 | 1000 | 4 | 11 | 0.13 |
| LM35HSH34-0604 | 1.8 | 34 | 1 | 2.7 | 4.3 | 1400 | 4 | 13 | 0.17 |
| LM35HSH42-0604 | 1.8 | 42 | 1 | 3.8 | 3.5 | 2000 | 4 | 23 | 0.22 |
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm² | kg | |
| LM35HSH28-0604 | 1.8 | 28 | 0.5 | 20 | 14 | 1000 | 4 | 11 | 0.13 |
| LM35HSH34-0604 | 1.8 | 34 | 1 | 2.7 | 4.3 | 1400 | 4 | 13 | 0.17 |
| LM35HSH42-0604 | 1.8 | 42 | 1 | 3.8 | 3.5 | 2000 | 4 | 23 | 0.22 |
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
