Current: 0.5A/1A
Resistance: 20/2.7/3.8/10/2Ω
Rated Torque: 1000/1200/1400/1500/2000g.cm (14.16oz.in)
| Quantity: | |
|---|---|

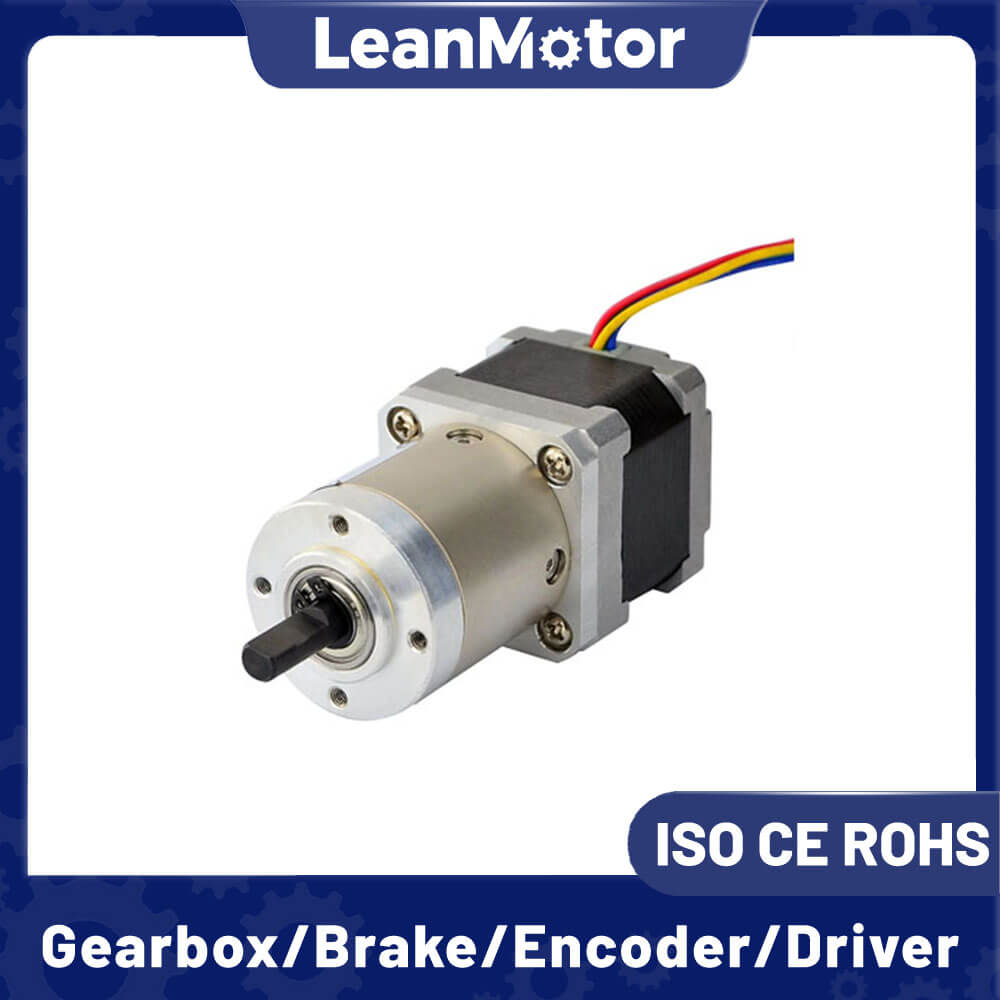

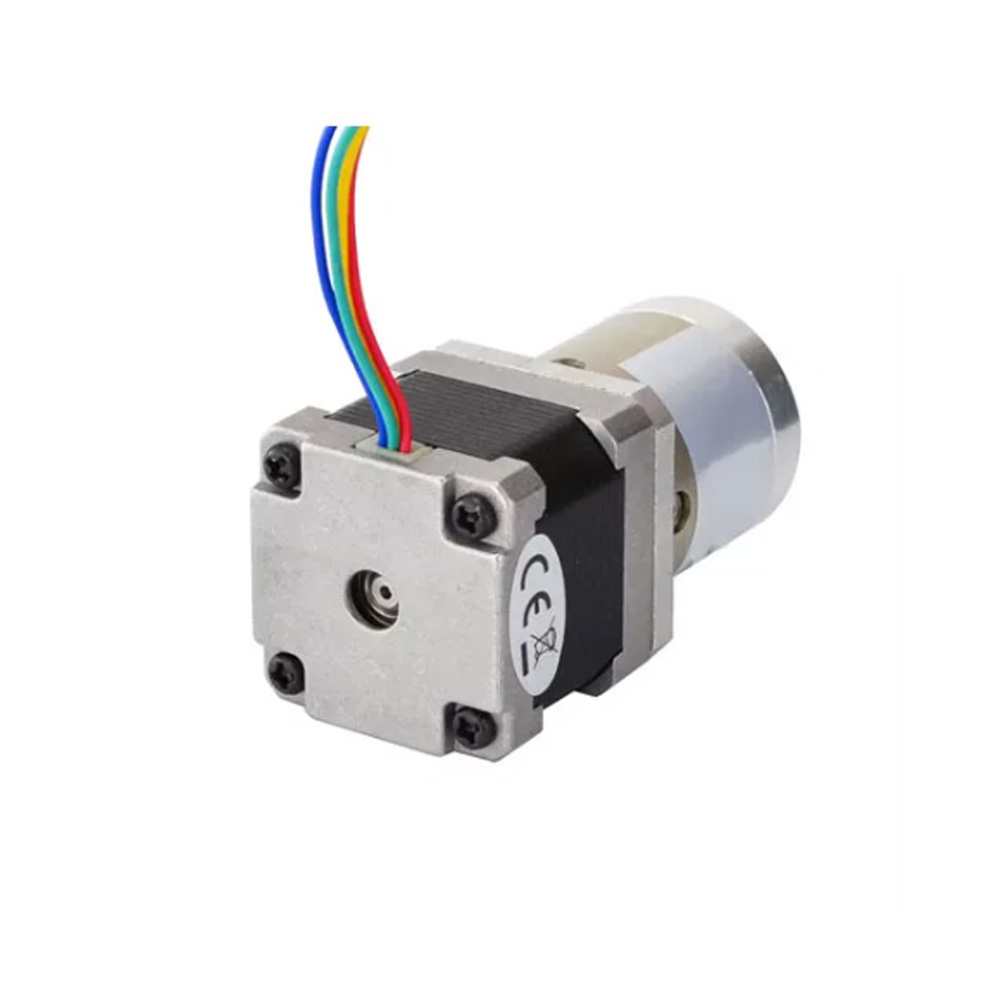

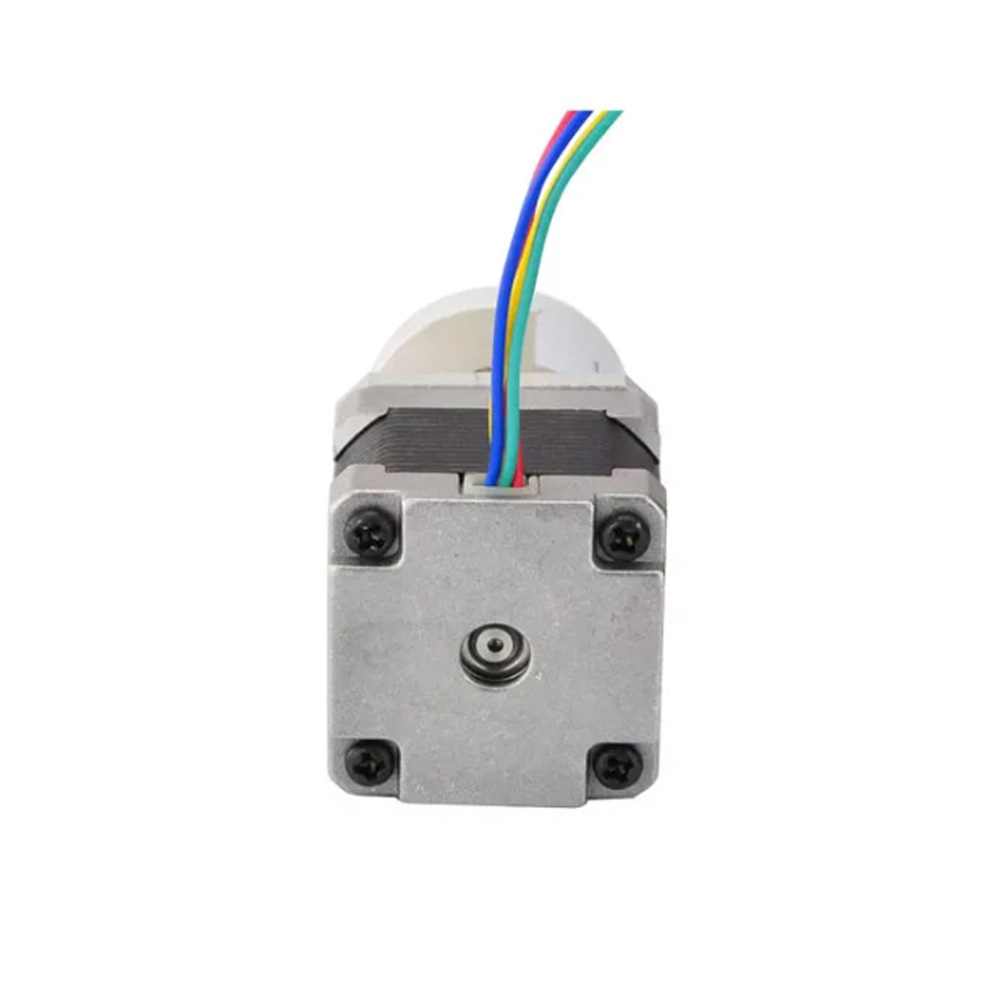

Nema 14 Common Planetary Geared Stepper Motor
LeanMotor
LM28HS32-0674
Gearbox Motors
Nema14 (35mm)
4wires
2 Phase
0.9°, 1.8°
10 Pcs

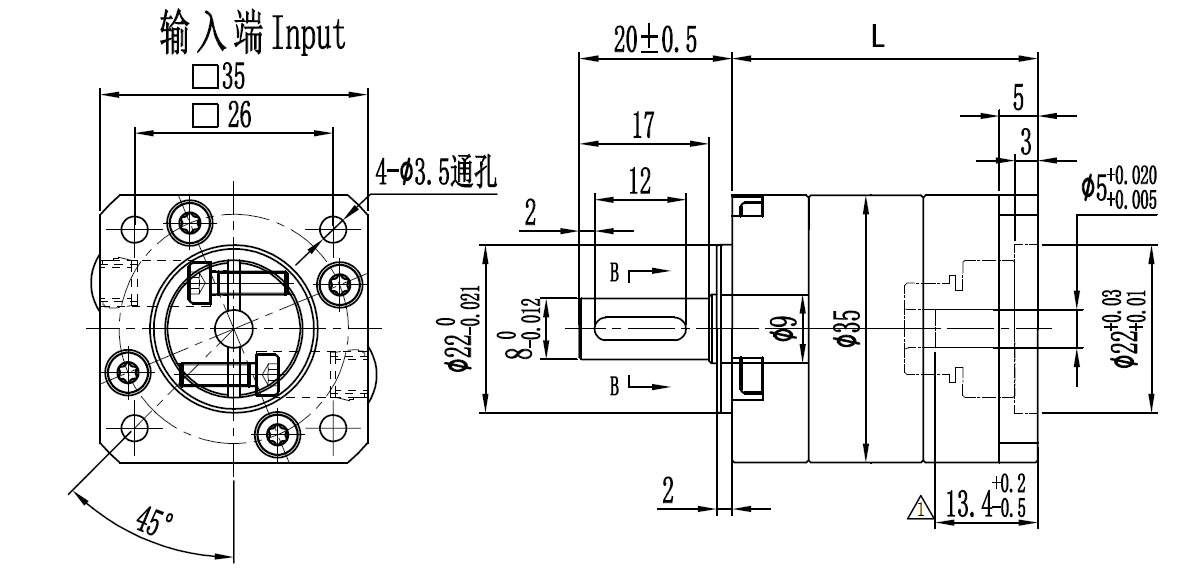

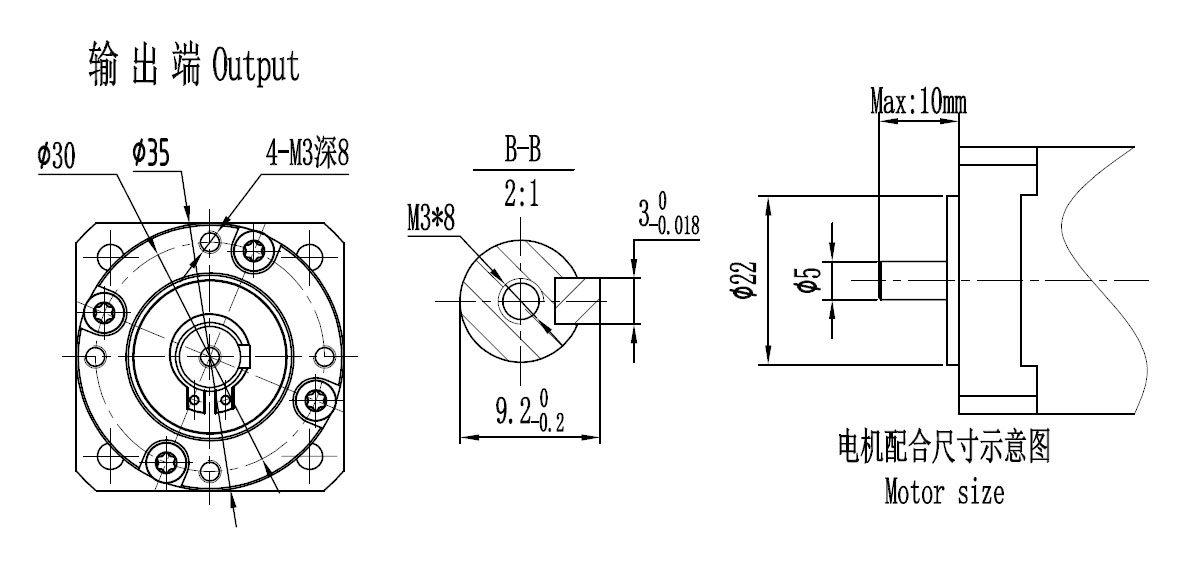

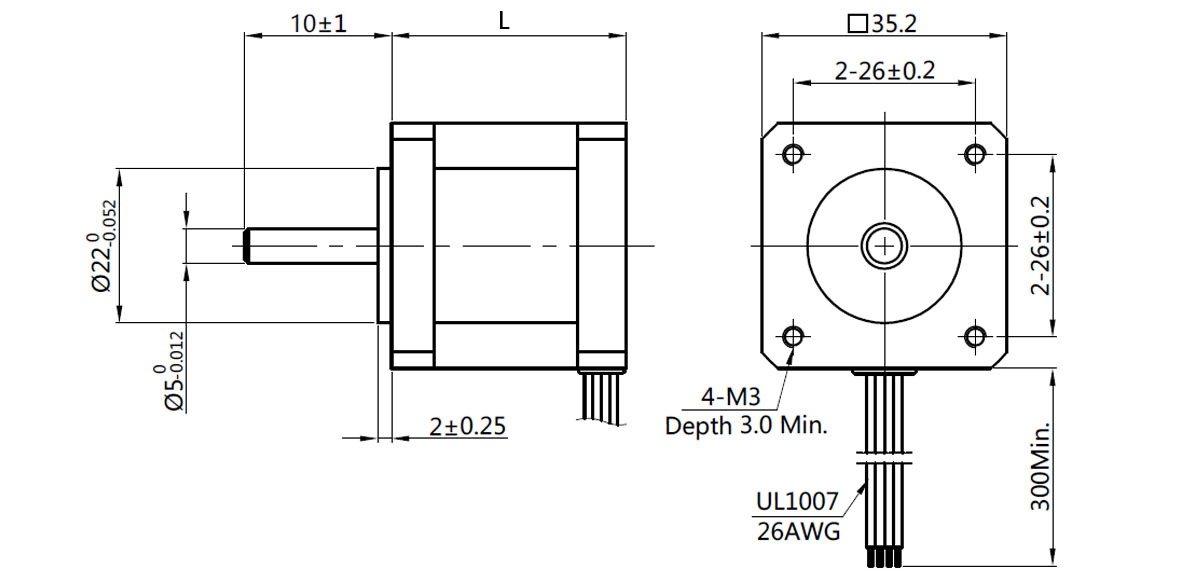

| Item | Specifications |
| Step Angle | 0.9° or 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm | g.cm2 | Kg | |
| LM35HM27-0504 | 0.9 | 27 | 0.5 | 10 | 14 | 1000 | 4 | 80 | 6 | 0.13 |
| LM35HM34-1004 | 0.9 | 34 | 1 | 2 | 3 | 1200 | 4 | 110 | 9 | 0.17 |
| LM35HM40-1004 | 0.9 | 40 | 1 | 2 | 4 | 1500 | 4 | 140 | 12 | 0.22 |
Note: Above only for representative products, products of special request can be made according to the customer request.
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm | g.cm2 | Kg | |
| LM35HS28-0504 | 1.8 | 28 | 0.5 | 20 | 14 | 1000 | 4 | 80 | 11 | 0.13 |
| LM35HS34-1004 | 1.8 | 34 | 1 | 2.7 | 4.3 | 1400 | 4 | 100 | 13 | 0.17 |
| LM35HS42-1004 | 1.8 | 42 | 1 | 3.8 | 3.5 | 2000 | 4 | 125 | 23 | 0.22 |
Note: Above only for representative products, products of special request can be made according to the customer request.
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
| Item | Specifications |
| Step Angle | 0.9° or 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm | g.cm2 | Kg | |
| LM35HM27-0504 | 0.9 | 27 | 0.5 | 10 | 14 | 1000 | 4 | 80 | 6 | 0.13 |
| LM35HM34-1004 | 0.9 | 34 | 1 | 2 | 3 | 1200 | 4 | 110 | 9 | 0.17 |
| LM35HM40-1004 | 0.9 | 40 | 1 | 2 | 4 | 1500 | 4 | 140 | 12 | 0.22 |
Note: Above only for representative products, products of special request can be made according to the customer request.
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm | g.cm2 | Kg | |
| LM35HS28-0504 | 1.8 | 28 | 0.5 | 20 | 14 | 1000 | 4 | 80 | 11 | 0.13 |
| LM35HS34-1004 | 1.8 | 34 | 1 | 2.7 | 4.3 | 1400 | 4 | 100 | 13 | 0.17 |
| LM35HS42-1004 | 1.8 | 42 | 1 | 3.8 | 3.5 | 2000 | 4 | 125 | 23 | 0.22 |
Note: Above only for representative products, products of special request can be made according to the customer request.
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
