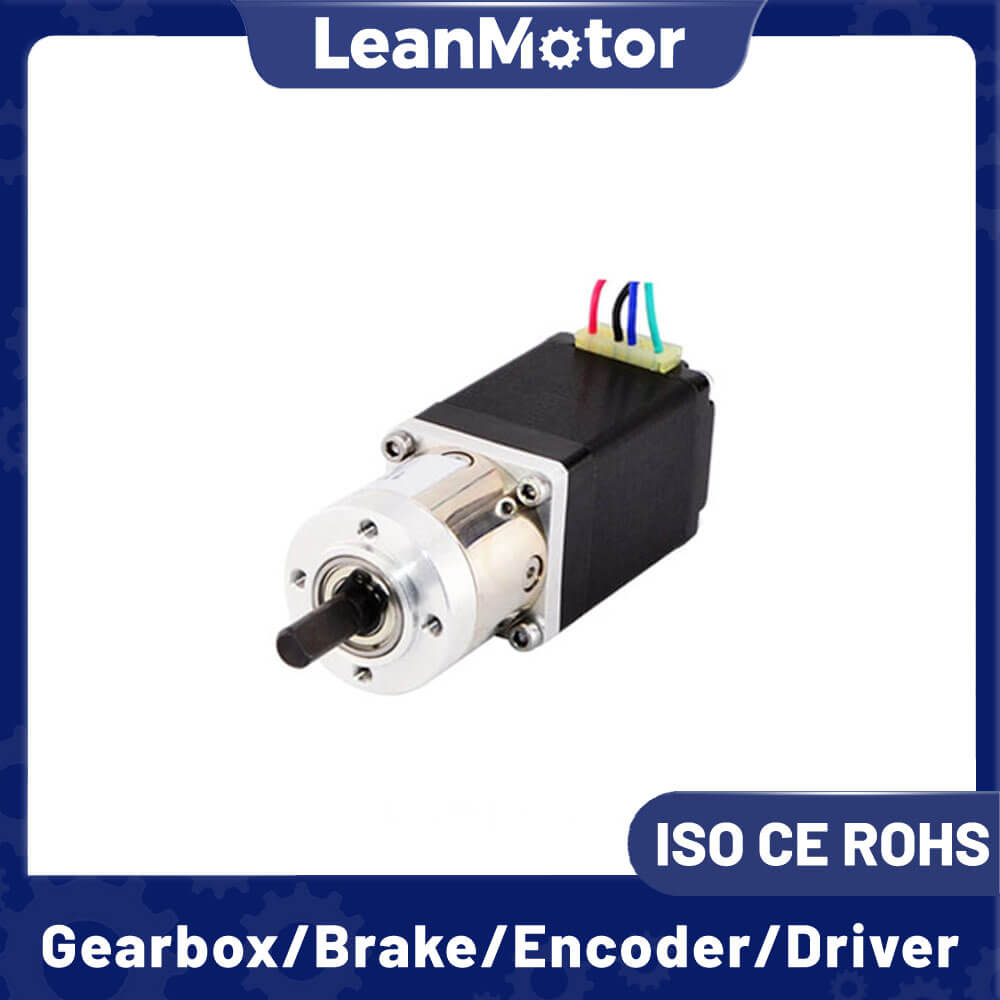

LeanMotor Nema 11 Common Planetary Geared Stepper Motor 28x28mm 1.8 Degree 4 Wires / 6 Wires

Type: Nema11 2 Phase Common Planetary Geared Stepper Motor

Current: 0.67A/0.95A

Resistance: 2.8/3.4/4.6/5.6/6.8/9.2Ω

Rated Torque: 430/600/750/900/950/1200g.cm

Availability:
Quantity:
Inquire Add to Basket

  • Nema 11 Common Planetary Geared Stepper Motor

  • LeanMotor

  • Gearbox Motors

  • Nema11 (28mm)

  • 4wires

  • 2 Phase

  • 1.8°

  • 10 Pcs

General Specifications：

ItemSpecifications
Step Angle1.8°
Temperature Rise80℃max
Ambient Temperature-20℃~+50℃
Insulation Resistance100 MΩ Min. ,500VDC
Dielectric Strength500VAC for 1minute
Shaft Radial Play0.02Max. (450g-load)
Shaft Axial Play0.08Max. (450g-load)
Max. radial force28N (20mm from the flange)
Max. axial force10N


Electrical Specifications:

Model No.Step AngleMotor LengthCurrentResistanceInductanceHolding Torque# of LeadsRotor InertiaMass
( °)(L)mmAΩmHg.cmNo.g.cm2Kg
LM28HS32-06741.8320.675.63.4600490.11
LM28HS32-09561.8320.952.80.8430690.11
LM28HS45-09561.8450.953.41.27506120.14
LM28HS45-06741.8450.676.84.99504120.14
LM28HS51-09561.8510.954.61.89006180.2
LM28HS51-06741.8510.679.27.212004180.2

Note: Above only for representative products, products of special request can be made according to the customer request.


Wires Connection:

Bipolar:

A+
A-B+B-
BlackGreenRedBlue


Unipolar:

A+
O+A-B+O-B-
BlackYellowGreenRedWhiteBlue



LM-HPR28-L1 Planetary Gearbox Specification:

Model/LM-HPR28-L1
Gear Ratio/45710
Gear Trains/1
Gearbox Lengthmm53
Rated TorqueN.m2221
Sundden Stop TorqueN.m4442
Back Lasharcmin≤15 arcmin
Efficiency%96%
Suitable Motor DimensionmmΦ5-10 / Φ22-2.5 / F23-M2.5
Rated Input SpeedRpm1000
Max Input SpeedRpm2000
Average Life Spanh20000
Axial ForceN100
Radial ForceN300
NoisedB≤55
Protection LevelIPIP54
Work Temp.℃-20 to +150
Out Shaft Type/D-cut Type


LM-HPR28-L2 Planetary Gearbox Specification:

Model/LM-HPR28-L2
Gear Ratio/16202528303540455070100
Gear Trains/2
Gearbox Lengthmm61
Rated TorqueN.m44444444333
Sundden Stop TorqueN.m88888888666
Back Lasharcmin≤20 arcmin
Efficiency%94%
Suitable Motor DimensionmmΦ5-10 / Φ22-2.5 / F23-M2.5
Rated Input SpeedRpm1000
Max Input SpeedRpm2000
Average Life Spanh20000
Axial ForceN100
Radial ForceN300
NoisedB≤55
Protection LevelIPIP54
Work Temp.℃-20 to +150
Out Shaft Type/D-cut Type


LM-HPR28-L3 Planetary Gearbox Specifications:

Model/LM-HPR28-L3
Gear Ratio/6480100125140175200
Gear Trains/3
Gearbox Lengthmm69
Rated TorqueN.m6666666
Sundden Stop TorqueN.m12121212121212
Back Lasharcmin≤25 arcmin
Efficiency%90%
Suitable Motor DimensionmmΦ5-10 / Φ22-2.5 / F23-M2.5
Rated Input SpeedRpm1000
Max Input SpeedRpm2000
Average Life Spanh20000
Axial ForceN100
Radial ForceN300
NoisedB≤55
Protection LevelIPIP54
Work Temp.℃-20 to +150
Out Shaft Type/D-cut Type

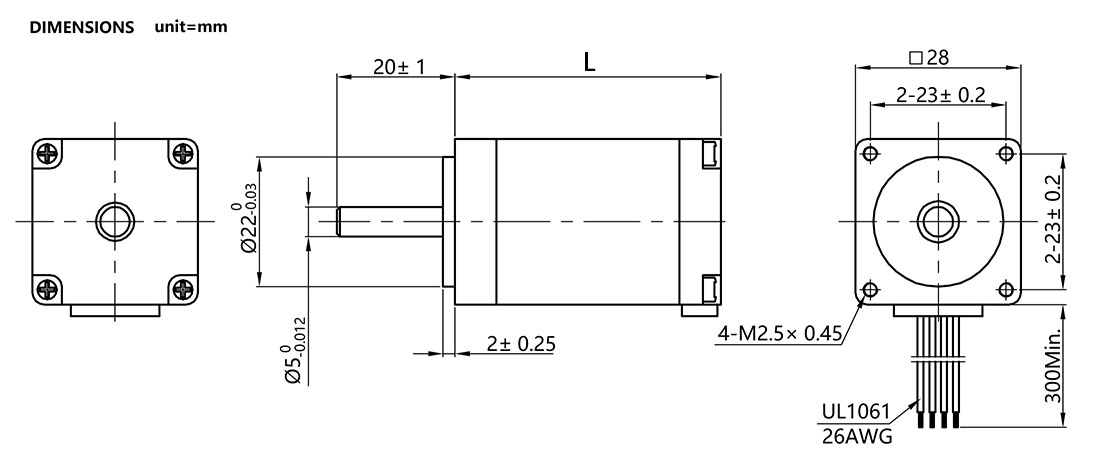

Nema 11 Bipolar Stepper Motor Dimension:

1

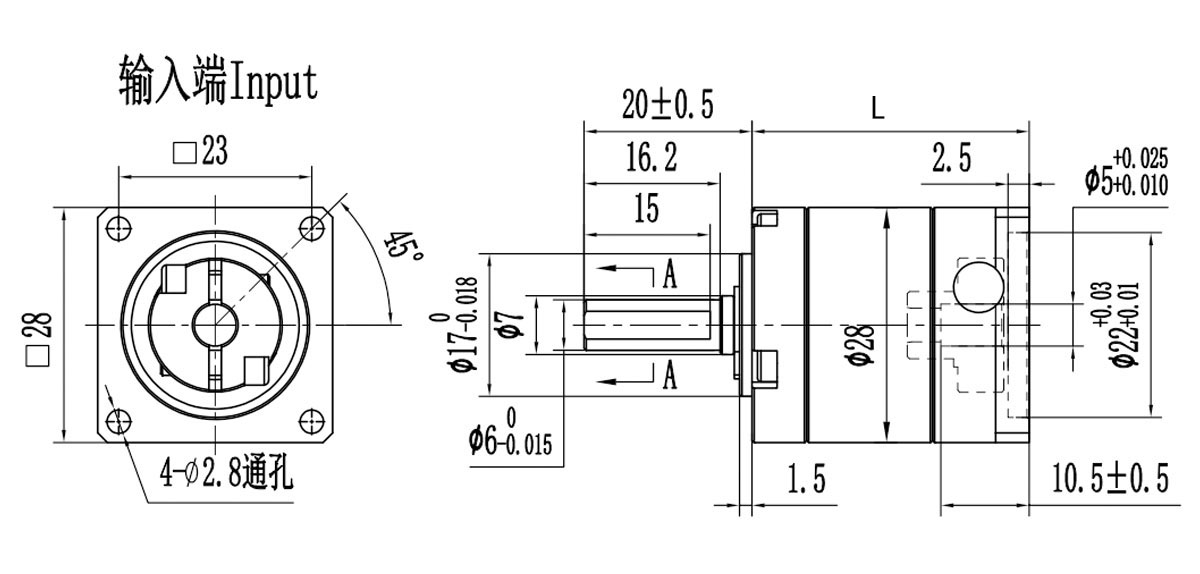

Nema 11 JK-HPR28-L1 Planetary Gearbox Dimension:

planetary gearbox dimension

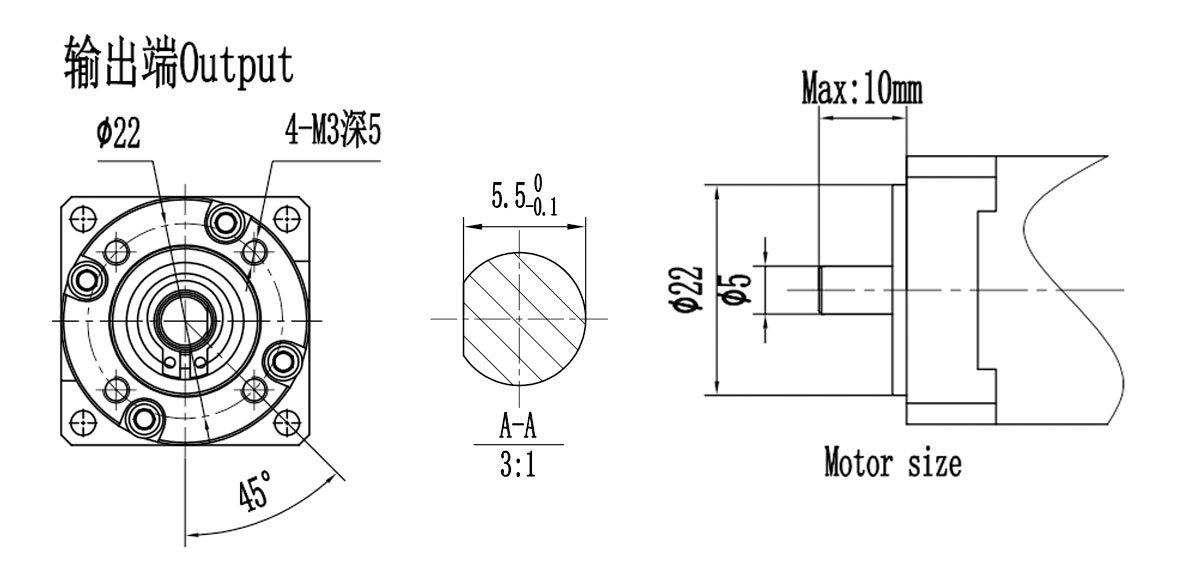

planetary gearbox for nema 11


Hybrid Stepper Motor Optional Parts：

Connectors, Gearbox, Encoder, Brake, Integrated Driver...


Customized Service:

Metal Pulleys

Metal Pulleys

plastic pulley

Plastic Pulley

gear

Gear

shaft pin

Shaft Pin

threaded shaft

Threaded Shaft

panel mount

Panel Mount

Hollow shaft

Hollow Shaft

lead screw

Lead Screw

panel mount

Panel Mount

single flat

Single Flat

dual flat

Dual Flat

key shaft

Key Shaft


Hybrid Stepper Motor Customized Service:

stepper motor





Cables

stepper motorsCovers
stepper motorShaft
lead screw stepper motorLead Screw Rod
closed loop stepper motorEncoders
brake stepper motor Brakes
Gared Stepper motor Gearboxes
linear guideLinear Module
Integrated stepper motor Integrated Drivers
stepper motor with worm gearboxWorm Gearbox


Previous:
Next:
