Rated Power: 750W/1000W
Rated Speed: 3000RPM
Rated Current: 19A/12A/17A
Rated Torque: 2.4Nm/3.2Nm
Encoder: 17Bit Absolute Encoder
Availability: | |
---|---|
Quantity: | |

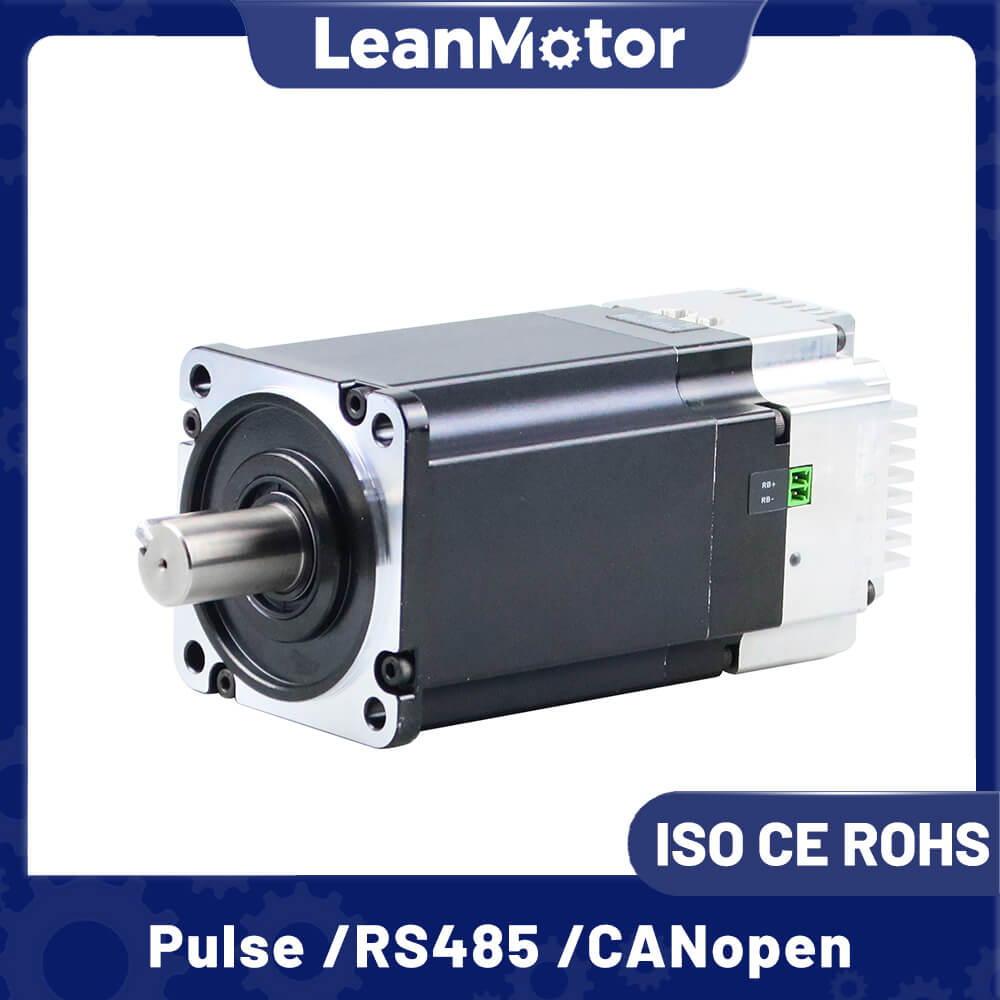

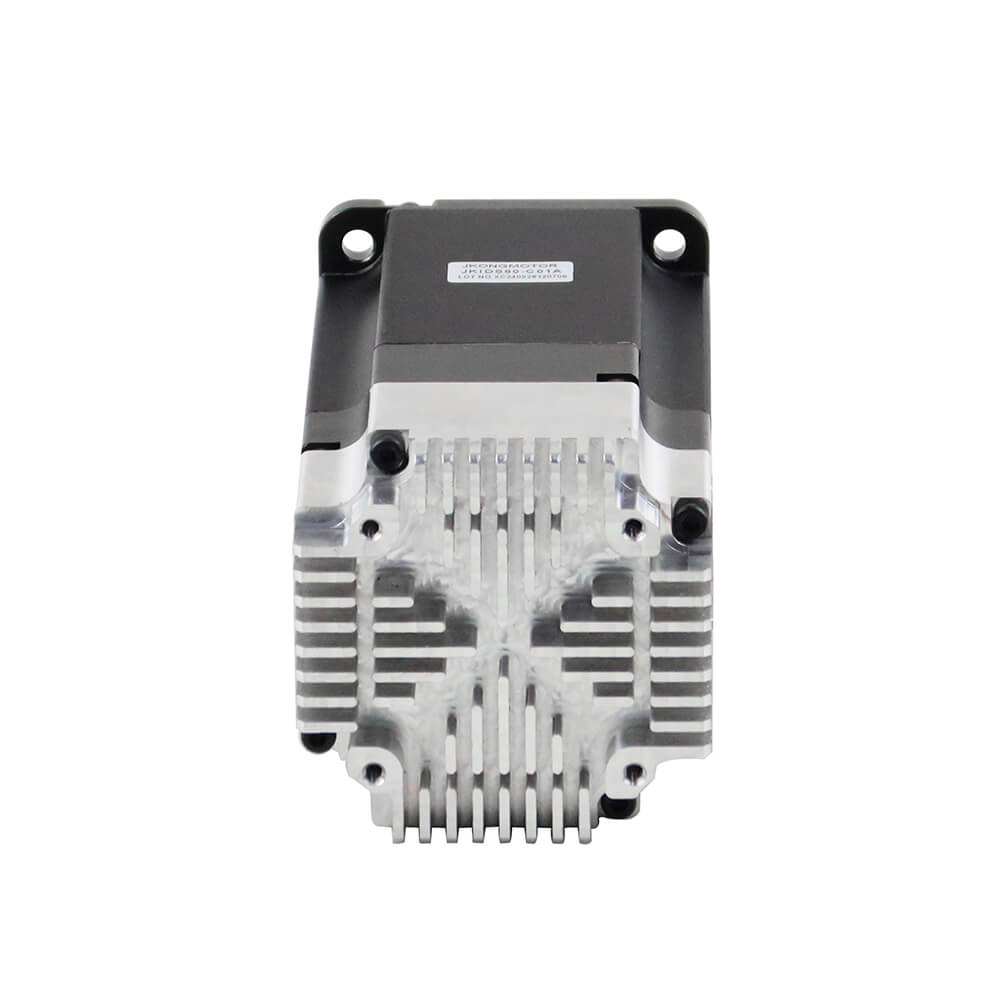

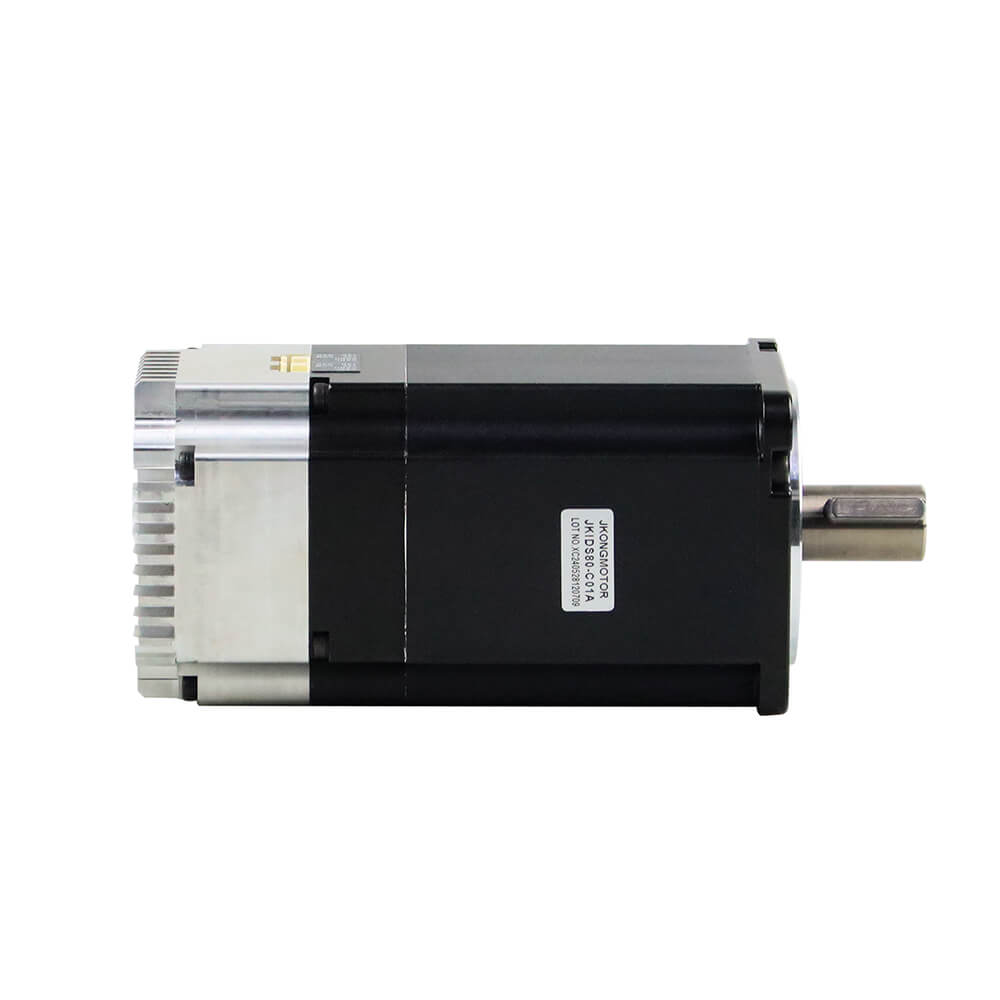

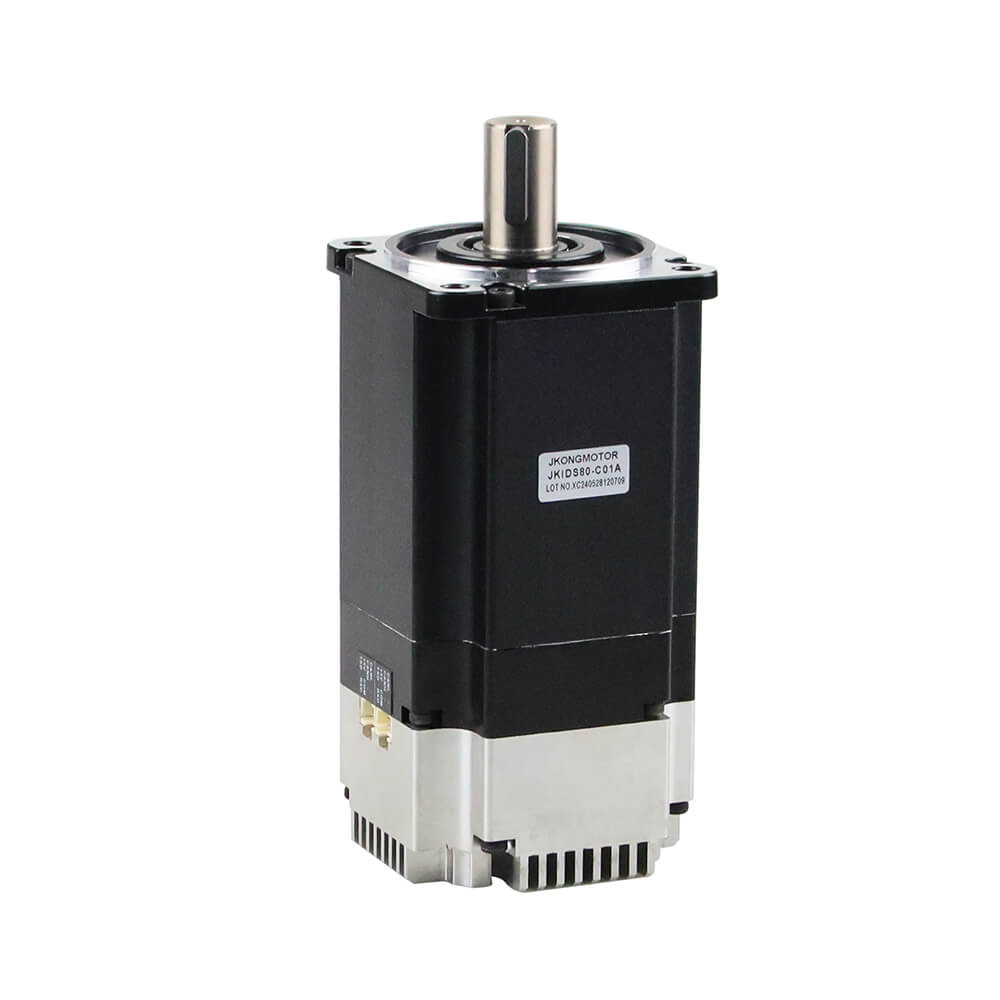

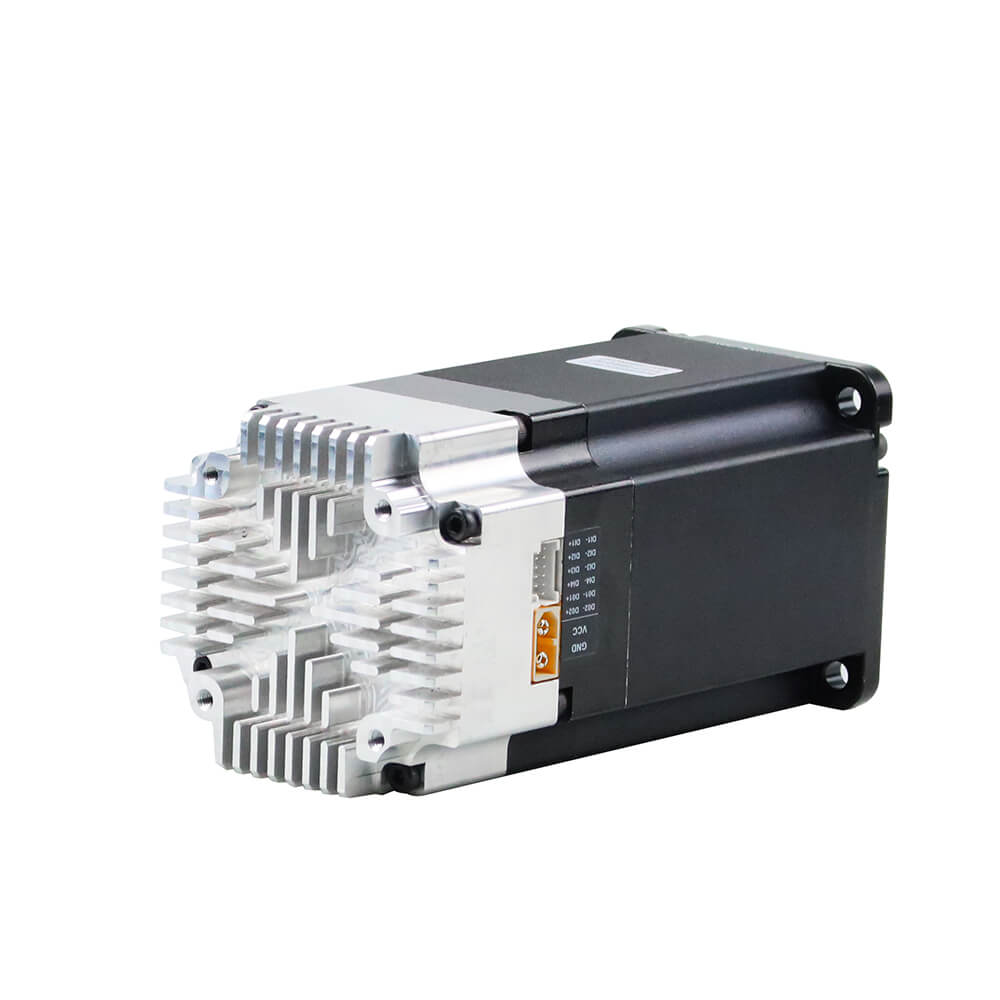

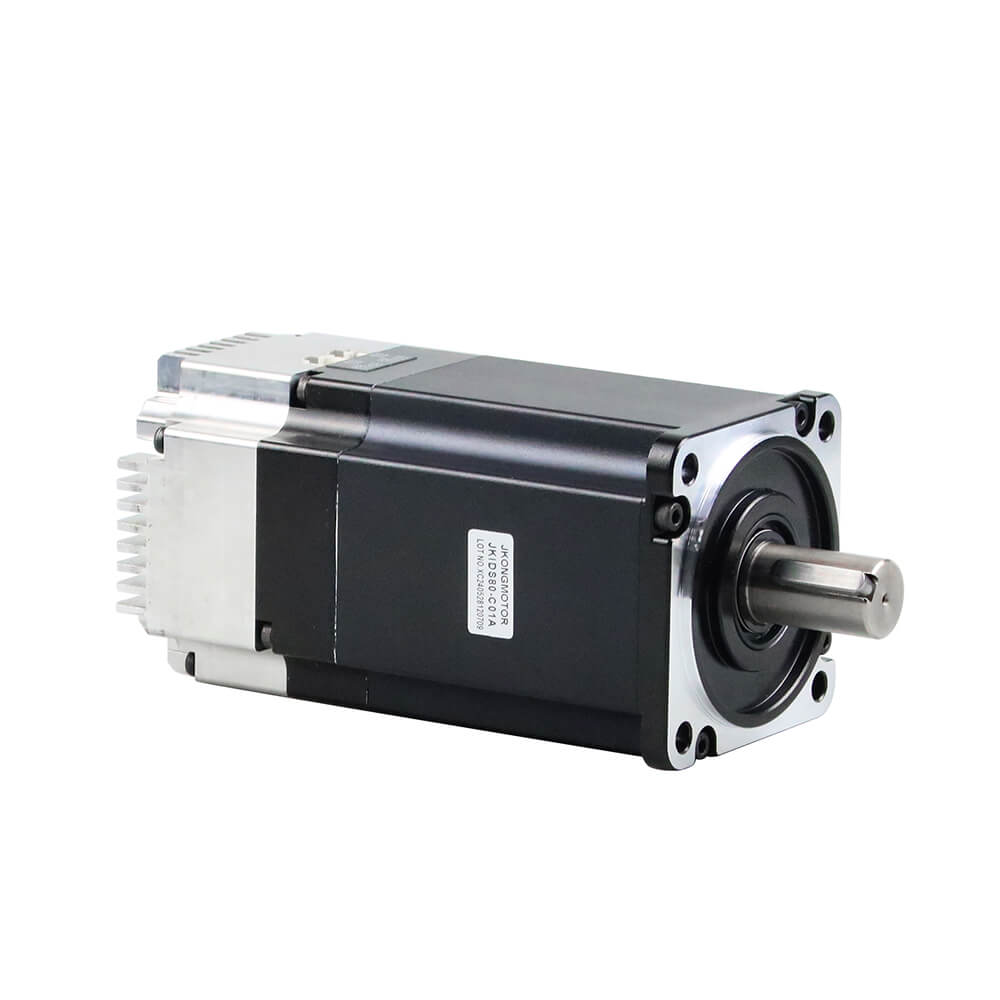

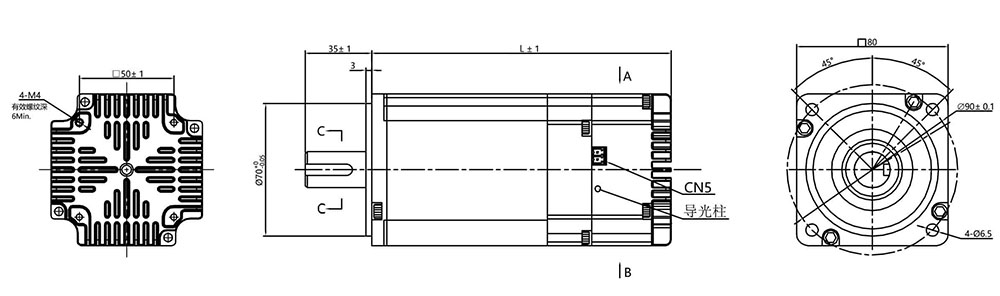

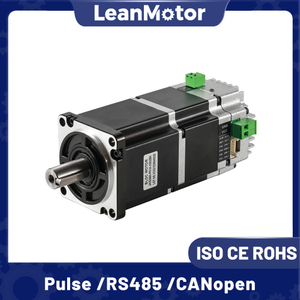

LMIDS80 Integrated Brushless Dc Servo Motor
LeanMotor
3000 rpm
48V, 72V
Pulse Type, RS485 ModBus, CANopen Network
10 Pcs
Integrated Bldc Servo Motor Electrical Specifications:
Model No. | Rated voltage | Motor Length | Current | Rated power | Rated Speed | Rated torque | Encoder | Communication protocol (choose) | |
VDC | (L)mm | A | W | RPM | N.m | / | / | ||
LMIDS80-P01A | 48/72 | 155 | 19 / 12 | 750 | 3000 | 2.4 | 17bit | Pulse/RS485 | CANopen |
LMIDS80-P02A | 72 | 175 | 17 | 1000 | 3000 | 3.2 | 17bit | Pulse/RS485 | CANopen |
Environment | Parameters |
Cooling Method | Natural or forced cooling |
Application | Avoid dust, oil and corrosive gases; keep away from other heat generating equipment; prohibit the presence of combustible gases and conductive dust. |
Operating Temperature | 0℃ ~ +50℃ |
Environmental humidity | ≤85%RH(no condensation) |
Vibrations | 5.9m/s² max |
Storage Temperature | -25℃ ~ +70℃ |
Color | Name | Function |
Green | PWR | Power indicator |
Red | ALM | Alarm indicator |
Ports | Pin | Port Name | Descriptions |
CN1 | 1 | - | undefined |
2 | - | undefined | |
3 | - | undefined | |
4 | - | undefined | |
5 | COM | Common Ports | |
6 | 5V | Serial Communication Power Supply | |
7 | RXD | Serial communications receiver | |
8 | TXD | Serial communications transmitter | |
CN2 | 1 | - | undefined |
2 | - | undefined | |
3 | - | undefined | |
4 | - | undefined | |
5 | COM | Common Ports | |
6 | 5V | Serial Communication Power Supply | |
7 | RXD | Serial communications receiver | |
8 | TXD | Serial communications transmitter | |
CN3 | 1 | ALM+ | Positive alarm signal |
2 | ALM- | Negative alarm signal | |
3 | READY+ | Positive signal in place | |
4 | READY- | Negative signal in place | |
5 | DIN+ | Positive input signal | |
6 | DIN- | Negative input signal | |
7 | ENA+ | Positive enable signal | |
8 | ENA- | Negative enable signal | |
9 | DIR+ | Positive direction signal | |
10 | DIR- | Negative direction signal | |
11 | PUL+ | Positive pulse signal | |
12 | PUL- | Negative pulse signal | |
CN4 | 1 | GND | Negative Power Wiring |
2 | VCC | Positive Power Wiring | |
CN5 | 1 | RB+ | Positive brake resistor wiring |
2 | RB- | Negative brake resistor wiring |
1The default subdivision of the motor is 1000, i.e. 1 revolution for every 1000 pulses received.
2It can be set via serial communication using the supporting host computer, and the corresponding register is 2035h.
Integrated Bldc Servo Motor Electrical Specifications:
Model No. | Rated voltage | Motor Length | Current | Rated power | Rated Speed | Rated torque | Encoder | Communication protocol (choose) | |
VDC | (L)mm | A | W | RPM | N.m | / | / | ||
LMIDS80-P01A | 48/72 | 155 | 19 / 12 | 750 | 3000 | 2.4 | 17bit | Pulse/RS485 | CANopen |
LMIDS80-P02A | 72 | 175 | 17 | 1000 | 3000 | 3.2 | 17bit | Pulse/RS485 | CANopen |
Environment | Parameters |
Cooling Method | Natural or forced cooling |
Application | Avoid dust, oil and corrosive gases; keep away from other heat generating equipment; prohibit the presence of combustible gases and conductive dust. |
Operating Temperature | 0℃ ~ +50℃ |
Environmental humidity | ≤85%RH(no condensation) |
Vibrations | 5.9m/s² max |
Storage Temperature | -25℃ ~ +70℃ |
Color | Name | Function |
Green | PWR | Power indicator |
Red | ALM | Alarm indicator |
Ports | Pin | Port Name | Descriptions |
CN1 | 1 | - | undefined |
2 | - | undefined | |
3 | - | undefined | |
4 | - | undefined | |
5 | COM | Common Ports | |
6 | 5V | Serial Communication Power Supply | |
7 | RXD | Serial communications receiver | |
8 | TXD | Serial communications transmitter | |
CN2 | 1 | - | undefined |
2 | - | undefined | |
3 | - | undefined | |
4 | - | undefined | |
5 | COM | Common Ports | |
6 | 5V | Serial Communication Power Supply | |
7 | RXD | Serial communications receiver | |
8 | TXD | Serial communications transmitter | |
CN3 | 1 | ALM+ | Positive alarm signal |
2 | ALM- | Negative alarm signal | |
3 | READY+ | Positive signal in place | |
4 | READY- | Negative signal in place | |
5 | DIN+ | Positive input signal | |
6 | DIN- | Negative input signal | |
7 | ENA+ | Positive enable signal | |
8 | ENA- | Negative enable signal | |
9 | DIR+ | Positive direction signal | |
10 | DIR- | Negative direction signal | |
11 | PUL+ | Positive pulse signal | |
12 | PUL- | Negative pulse signal | |
CN4 | 1 | GND | Negative Power Wiring |
2 | VCC | Positive Power Wiring | |
CN5 | 1 | RB+ | Positive brake resistor wiring |
2 | RB- | Negative brake resistor wiring |
1The default subdivision of the motor is 1000, i.e. 1 revolution for every 1000 pulses received.
2It can be set via serial communication using the supporting host computer, and the corresponding register is 2035h.
