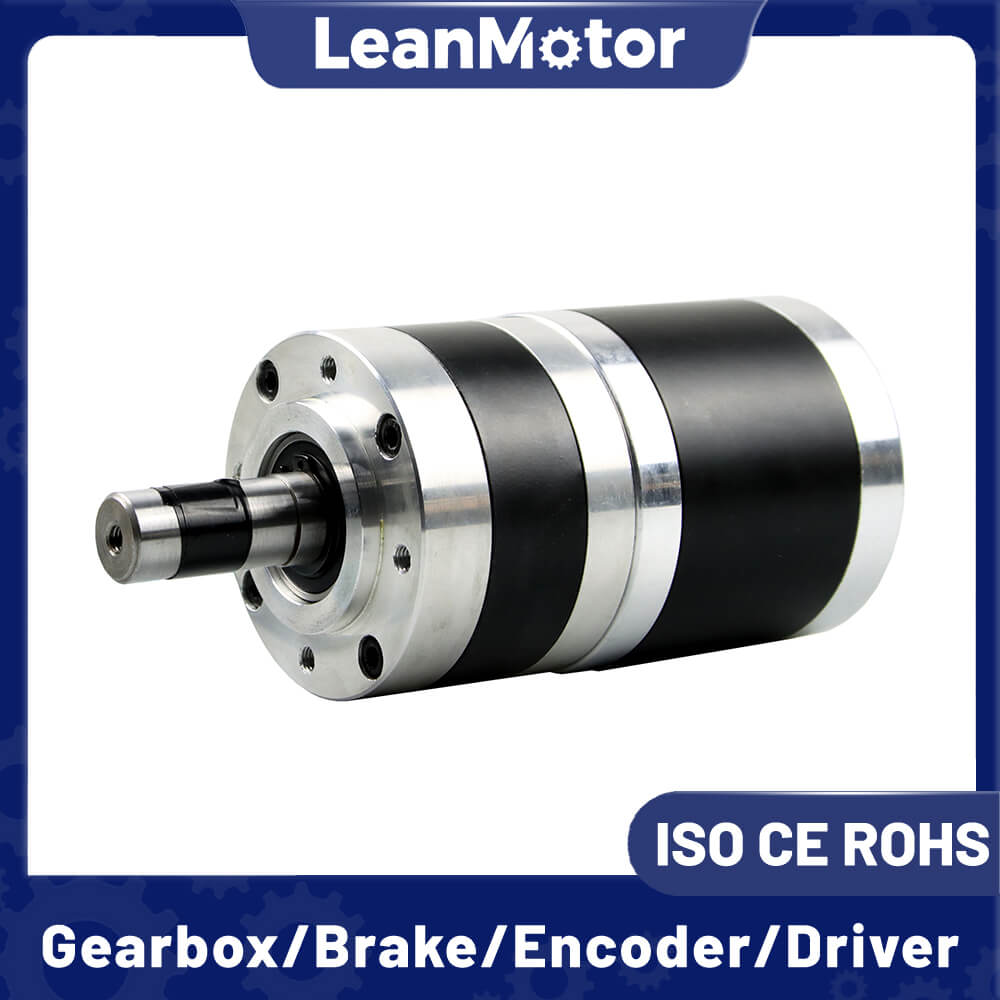

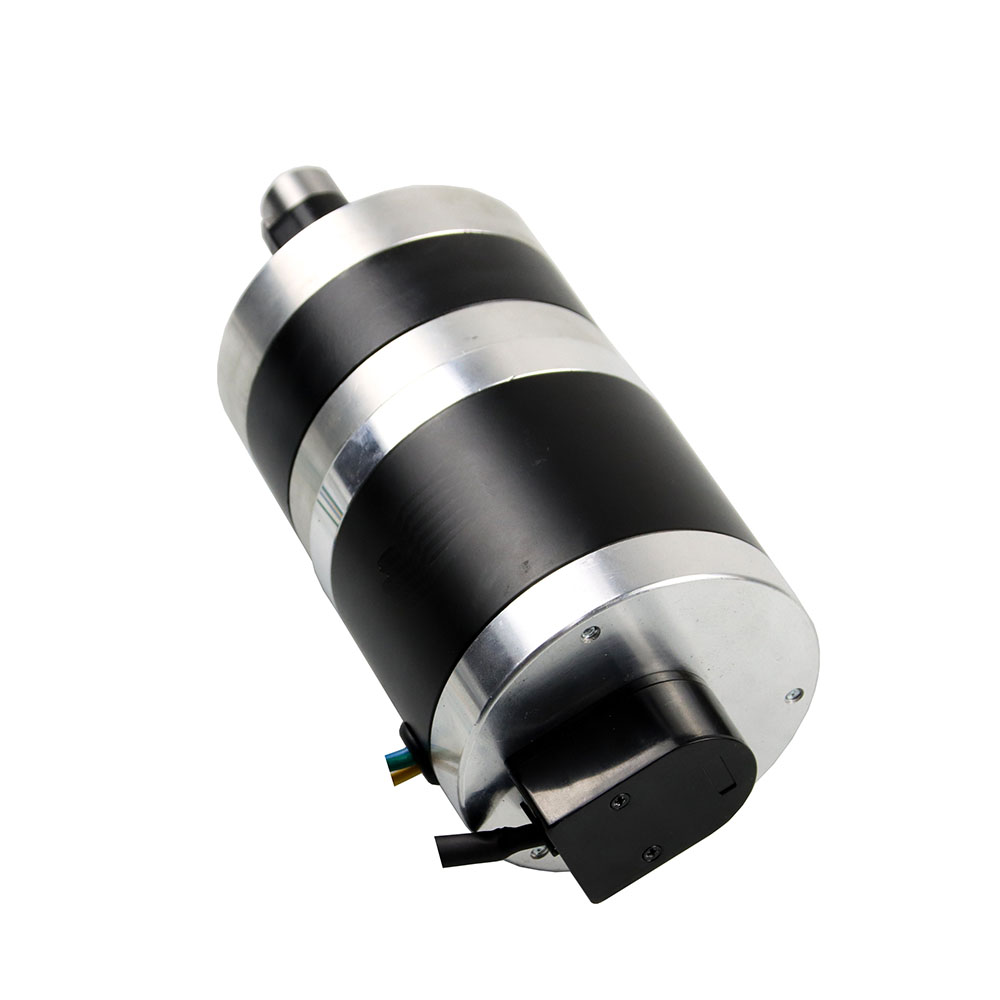

Leanmotor 80BLS Geared Round Head BLDC Motor with Common Planetary Gearbox 3000rpm 80x80mm 48V 3 Phase

brushless dc motor for rc plane

Share to:

Leanmotor 80BLS Geared Round Head BLDC Motor with Common Planetary Gearbox 3000rpm 80x80mm 48V 3 Phase

Type: 80BLS Common Planetary Geared Square Head BLDC Motor

Motor Length: 78mm / 98mm / 118mm /138mm

Rated voltage：48V

Availability:

Quantity:



Inquire Add to Basket

Model:
80BLS Common Planetary Geared Square Head BLDC Motor
Brand:
LeanMotor
Bldc Motor Size:
80mm
Phase:
3 Phase
Rated Voltage:
48V
MOQ:
10 Pcs

80BLS 80mm Brushless Dc Motor General Specifications:

General Specifications
Item	Specification
Winding type	Star
Hall effect angle	120 degree electrical angle
Shaft run out	0.025mm
Radial play	0.02mm@450g
End play	0.08mm@450g
Max.radial force	115N@10mm from the flange
Max. axial force	45N
Insulation class	Class B
Dielectric Strength	500VDC for one minute
Insulation Resistance	100MΩ Min., 500VDC

Electrical Specifications:

Model No.	Rated voltage	Motor Length	Current	Rated power	Rotor Inertia	Rated torque	Rated speed	Weight
Model No.	VDC	(L)mm	A	W	g.cm²	N.m	Rpm	kg
LM80BLS01	48	78	3	110	210	0.35	3000	1.4
LM80BLS02	48	98	5.5	220	420	0.7	3000	2
LM80BLS03	48	118	8	330	630	1.05	3000	2.6
LM80BLS04	48	138	10.5	440	840	1.4	3000	3.2

Wires Connection:

Bldc Motors Wires			Hall Sensor Wires
U	V	W	+5VDC	GND	Hu	Hv	Hw
Yellow	Green	Blue	Red	Black	Yello	Green	Blue
