Current: 0.3A - 0.425A
Motor Length: 12mm - 21mm
Customized: Connectors, Gearbox, Encoder, Brake, Lead Screw, Integrated Driver...
| Quantity: | |
|---|---|

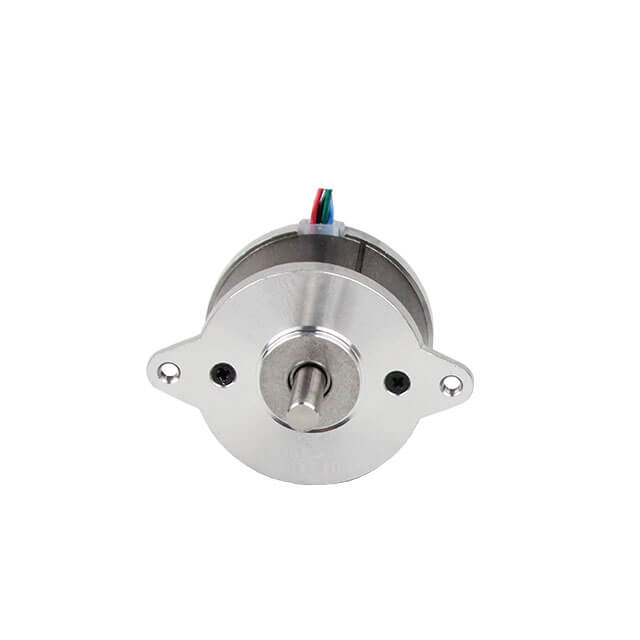

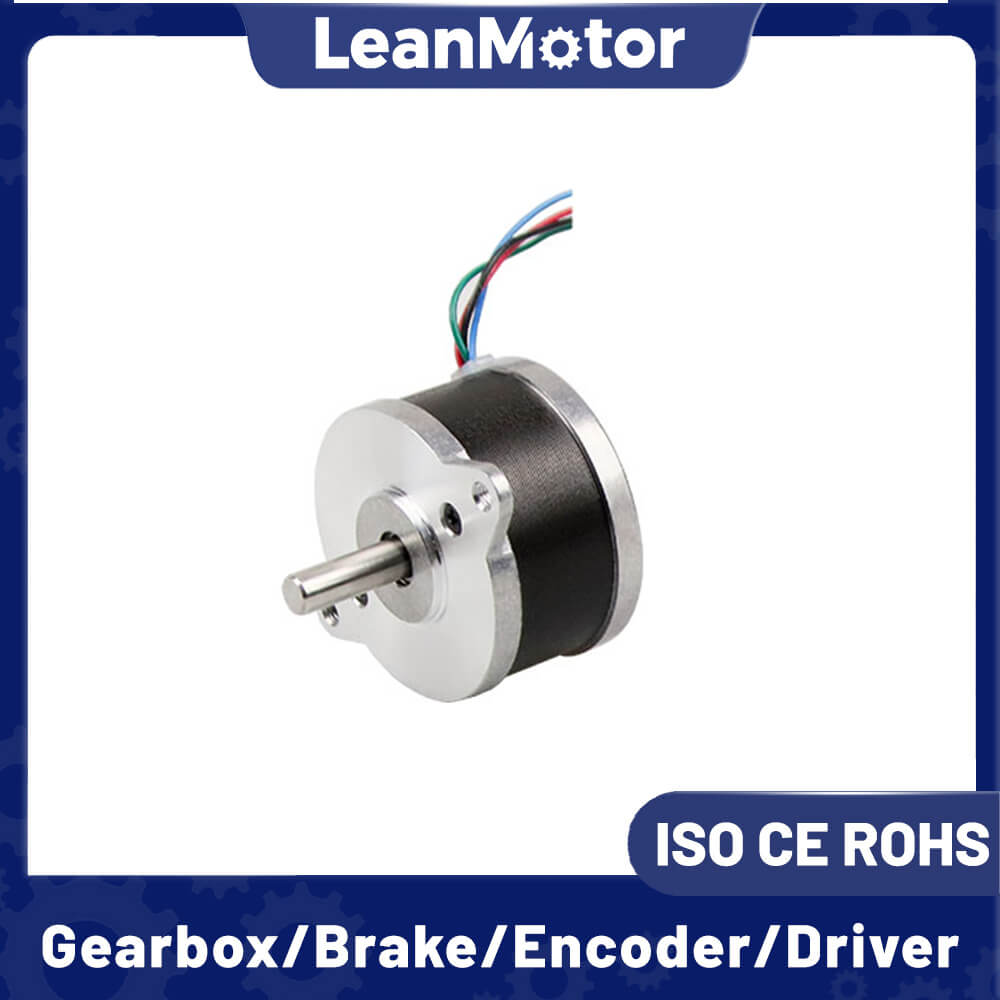

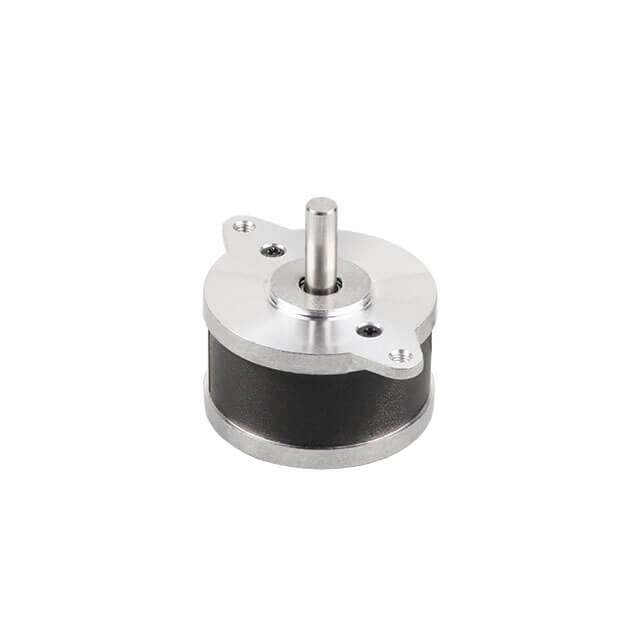

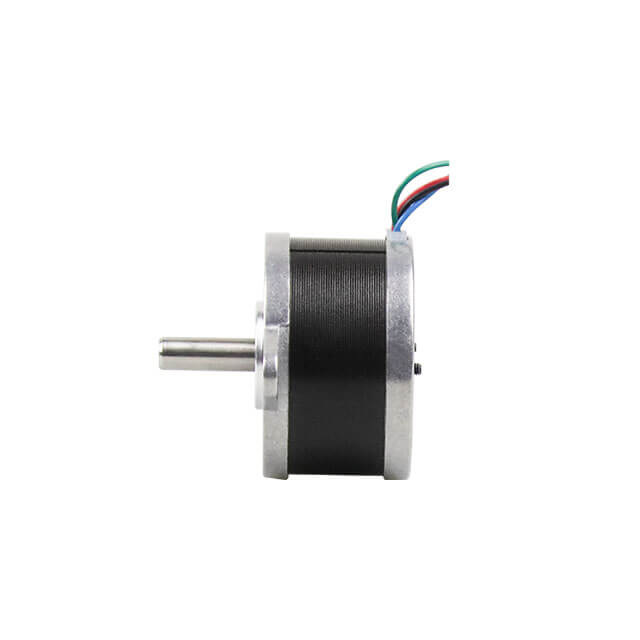

36mm Hybrid Stepper Motor
LeanMotor
Open Loop Motors
4wires
2 Phase
0.9°
10 Pcs

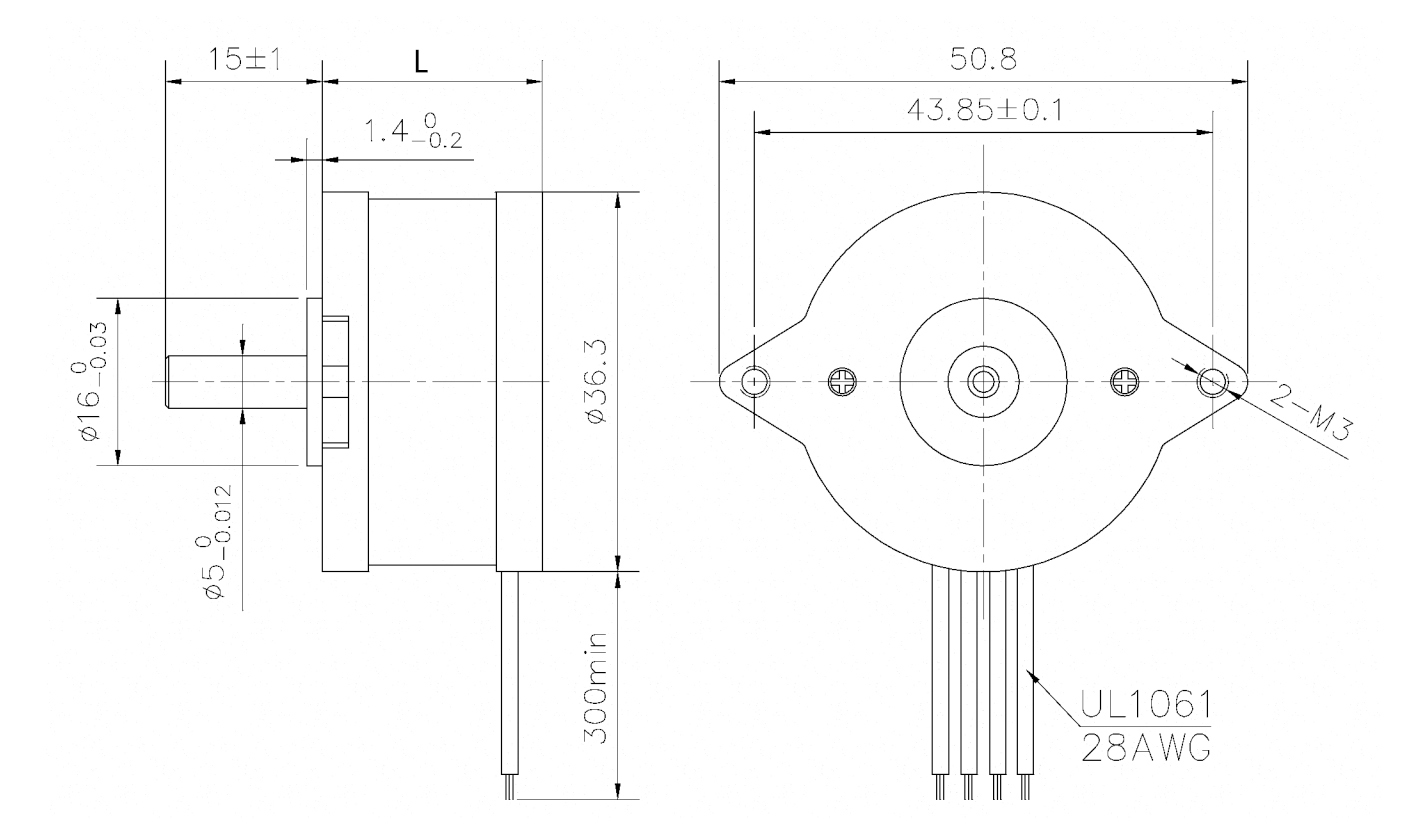

| Item | Specifications |
| Step Angle | 0.9° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm | g.cm2 | Kg | |
| LM36HM12-0304 | 0.9 | 12 | 0.3 | 16.8 | 8.5 | 420 | 4 | 80 | 4 | 0.06 |
| LM36HM18-0404 | 0.9 | 19 | 0.4 | 12 | 5 | 560 | 4 | 100 | 6 | 0.1 |
| LM36HM21-0404 | 0.9 | 21 | 0.425 | 9 | 5 | 810 | 4 | 125 | 7 | 0.13 |
Note: Above only for representative products, products of special request can be made according to the customer request.
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
| Item | Specifications |
| Step Angle | 0.9° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm | g.cm2 | Kg | |
| LM36HM12-0304 | 0.9 | 12 | 0.3 | 16.8 | 8.5 | 420 | 4 | 80 | 4 | 0.06 |
| LM36HM18-0404 | 0.9 | 19 | 0.4 | 12 | 5 | 560 | 4 | 100 | 6 | 0.1 |
| LM36HM21-0404 | 0.9 | 21 | 0.425 | 9 | 5 | 810 | 4 | 125 | 7 | 0.13 |
Note: Above only for representative products, products of special request can be made according to the customer request.
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
