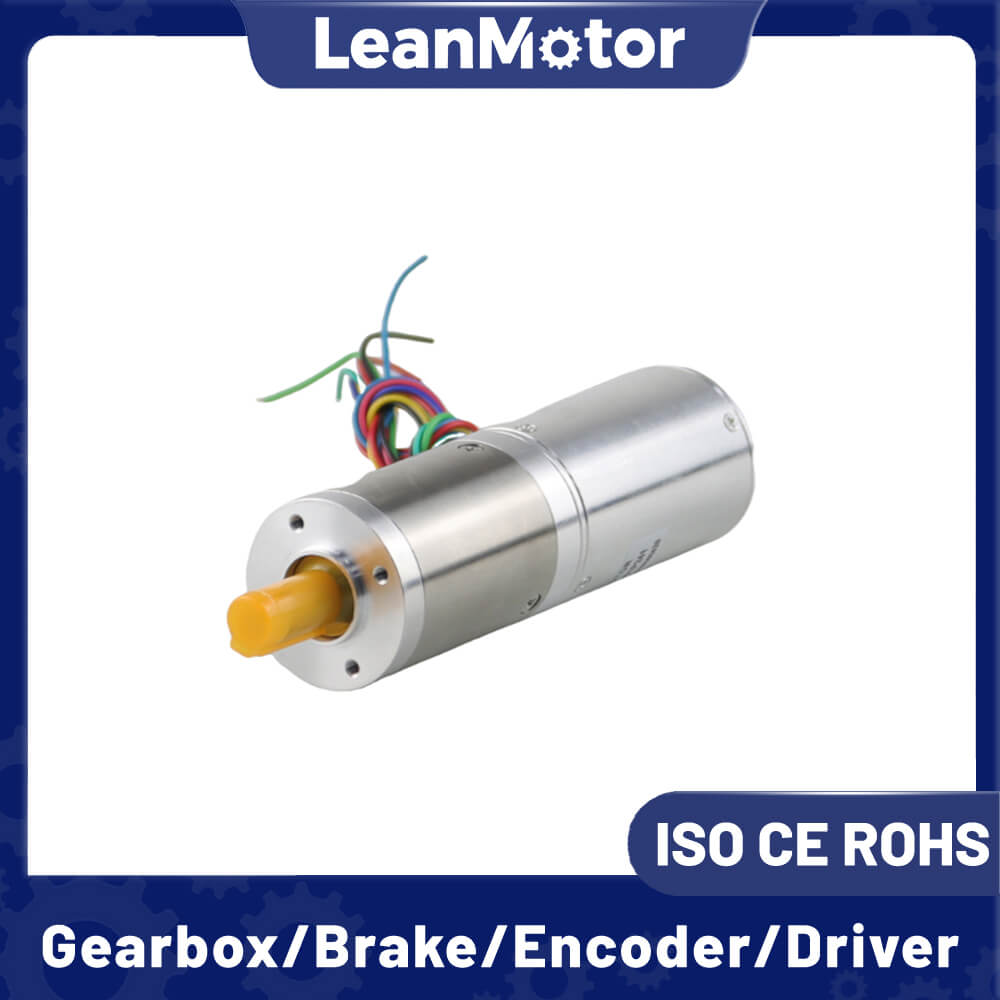

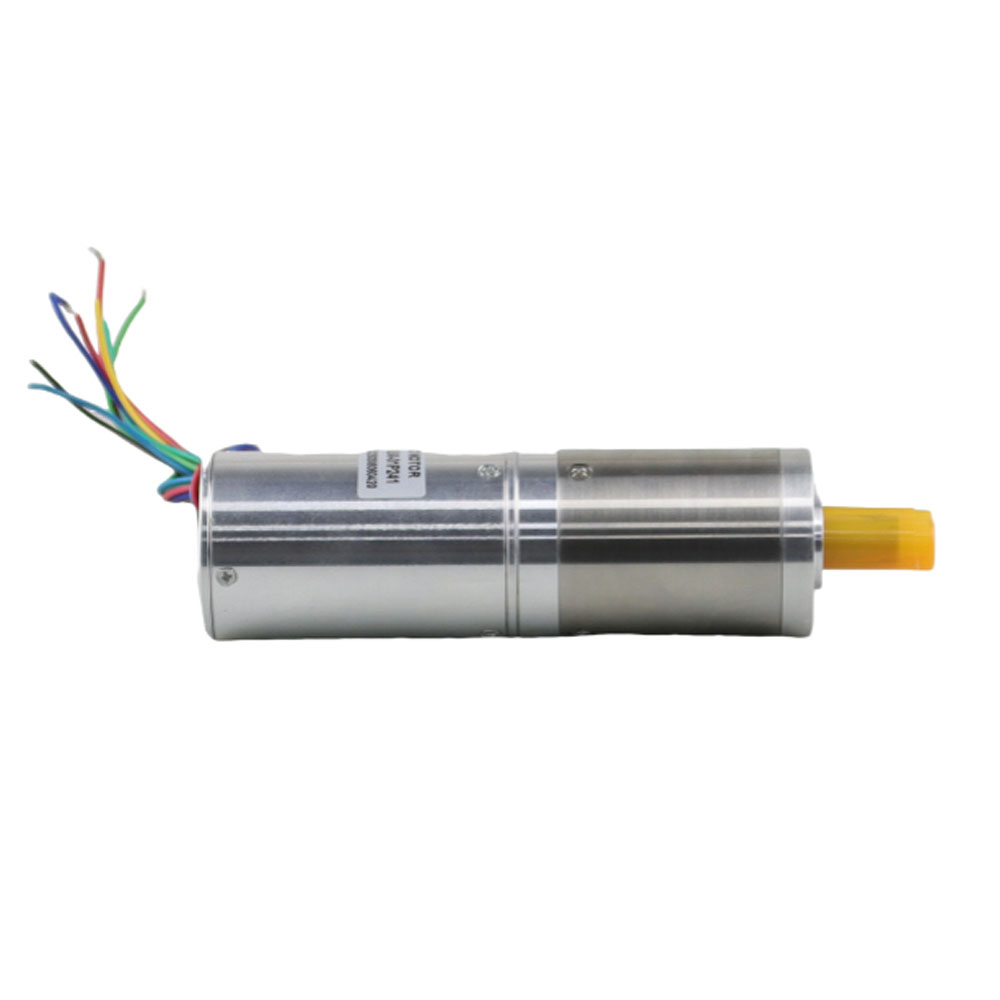

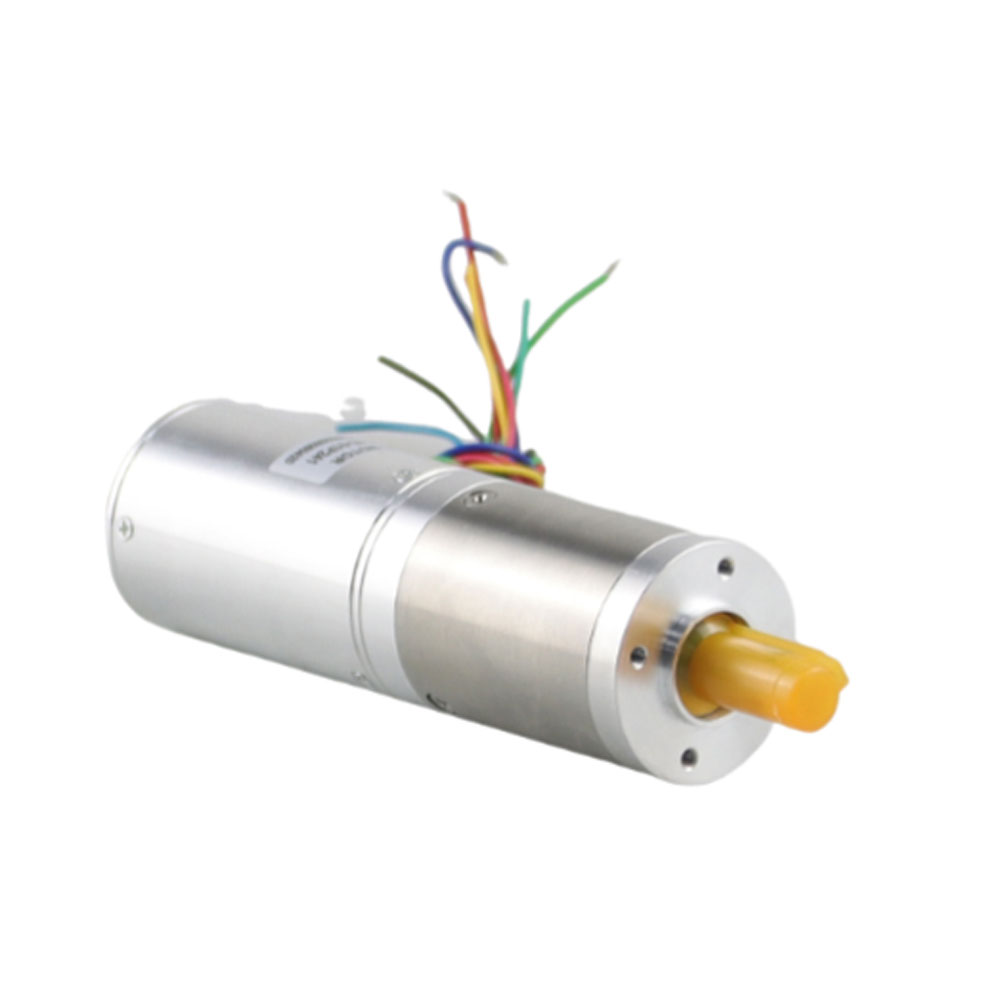

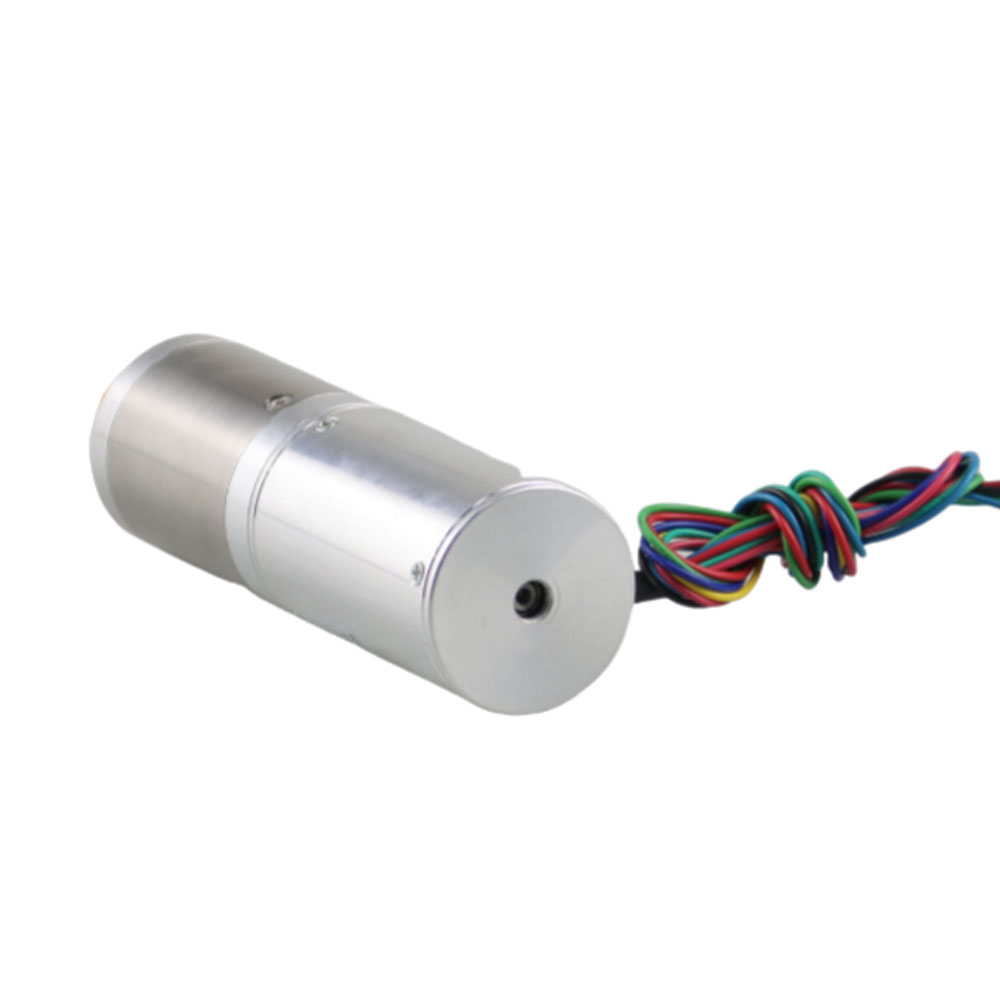

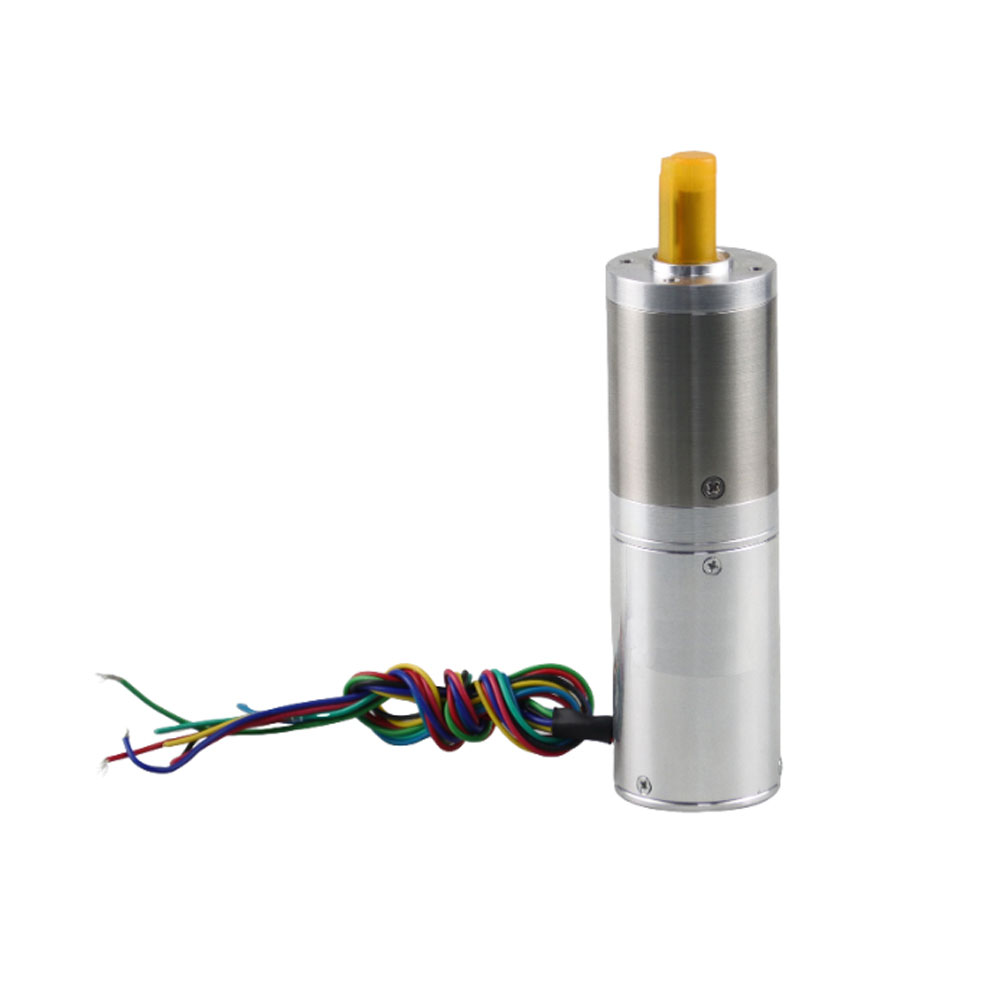

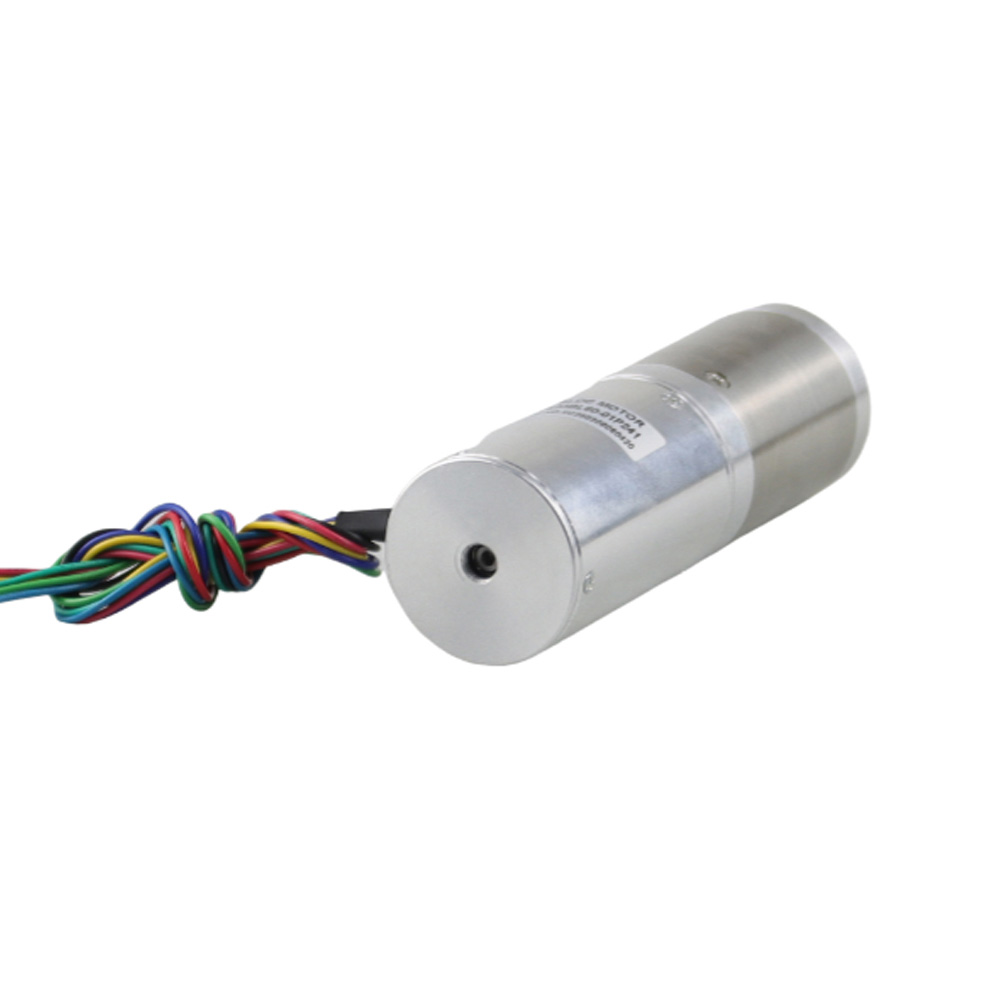

Leanmotor 33BL Geared Round Head BLDC Motor with Common Planetary Gearbox 33x33mm 3 Phase 4-Wires

24v bldc motor controller

Share to:

Leanmotor 33BL Geared Round Head BLDC Motor with Common Planetary Gearbox 33x33mm 3 Phase 4-Wires

Type: 33BL Common Planetary Geared Round Head BLDC Motor

Motor Length: 38mm / 80mm

Rated voltage：24V / 48V

Availability:

Quantity:



Inquire Add to Basket

Model:
33BL Common Planetary Geared Round Head BLDC Motor
Brand:
LeanMotor
Bldc Motor Size:
33mm
Phase:
3 Phase
Rated Voltage:
24V, 48V
MOQ:
10 Pcs

24V 33BL 33mm Brushless Dc Motor General Specifications:

Item	Specifications
Step Angle	1.8°
Temperature Rise	80℃max
Ambient Temperature	-20℃~+50℃
Insulation Resistance	100 MΩ Min. ,500VDC
Dielectric Strength	500VAC for 1minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	28N (20mm from the flange)
Max. axial force	10N

Electrical Specifications:

Model No.	Rated voltage	Motor Length	Current	Rated power	Inductance	Rated torque	Rated speed	Weight
Model No.	VDC	(L)mm	A	W	mH	mN.m	Rpm	kg
LM33BL30-24	24	30	1.5	7	7	22	3000	0.085
LM33BL80-24	24	80	5.6	40	0.55	50	7800	0.2
LM33BL80-48	48	80	2.9	40	1.45	40	10000	0.2

Wires Connection:

Bldc Motors Wires			Hall Sensor Wires
U	V	W	+5VDC	GND	Hu	Hv	Hw
Yellow	Green	Blue	Red	Black	Yello	Green	Blue
