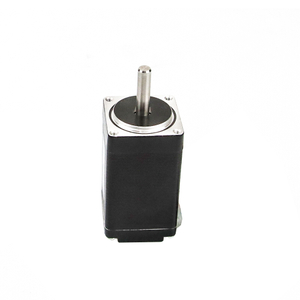

Nema 11 28BYG 2Phase Bipolar Stepper Motor 1.8deg 12Ncm (16.99oz.in) 0.67A 28x28x51mm 4 Wires LM28HS51-0674

This bipolar nema 11 stepper motor with step angle 1.8deg and size 28x28x51mm. It has 4 wires, each phase draws 0.67A at 6.2V, with holding torque 12Ncm (16.99oz.in). Planetary Gearbox / Encoder / Lead Screw is available for this model.

Electrical Specification

• Manufacturer Part Number: LM28HS51-0674

• Motor Type: 2Phase Hybrid Stepper Motor

• Step Angle: 1.8 degree

• Holding Torque: 12Ncm

• Rated Current/phase: 0.67A

• Phase Resistance: 9.2ohms

• Inductance: 7.2mH

Physical Specification

• Frame Size: 28 x 28mm

• Body Length: 51mm

• Shaft Diameter: Φ5mm with round shaft

• Number of Leads: 4-leads

• Lead Length: 300mm

• Weight: 200g
