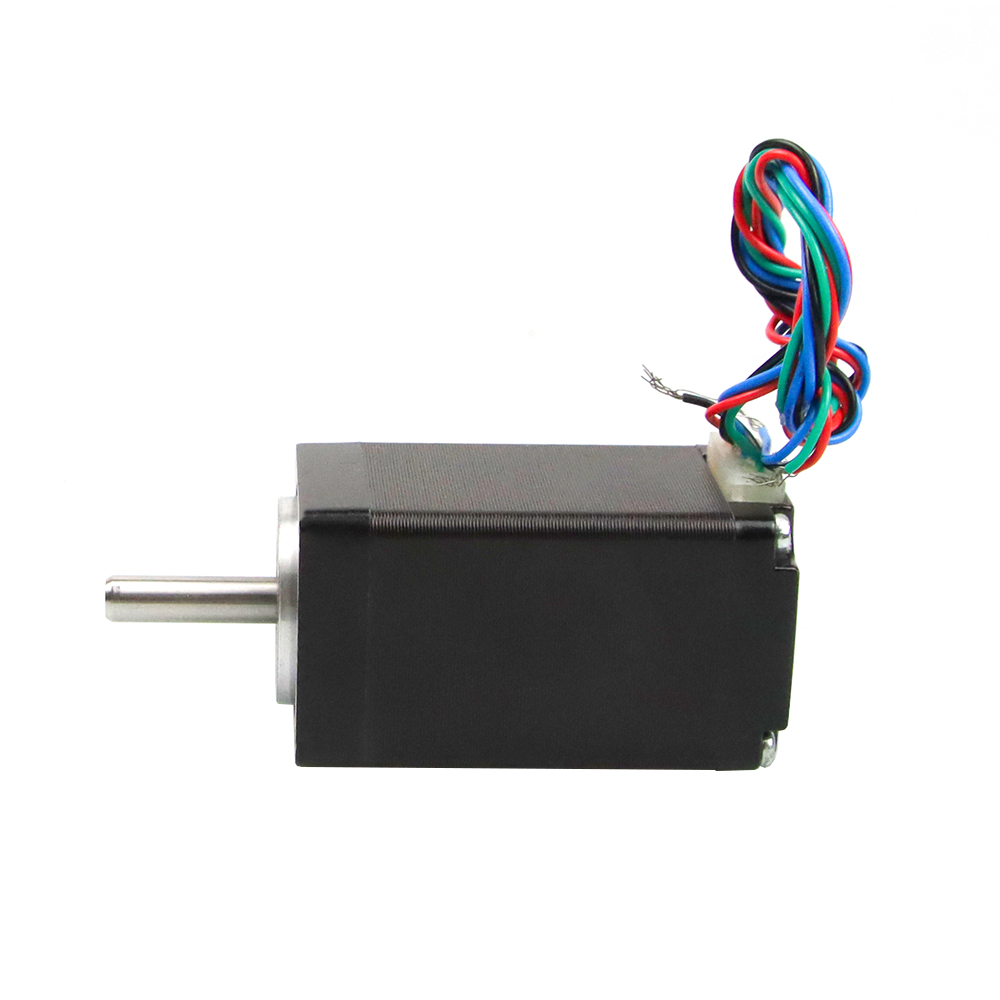

Single Shaft Nema 11 Bipolar Hybrid Stepper Motor 1.8deg 6Ncm 0.67A 28x28x32mm 4 Wires LM28HS32-0674

This model is single shaft Nema 11 Bipolar stepper motor,it with step angle 1.8deg and size 28x28x32mm. It has 4 wires, each phase draws 0.67A at 3.76V, with holding torque 6Ncm.

Electrical Specification

• Manufacturer Part Number: LM28HS32-0674

• Motor Type: 2Phase Hybrid Stepper Motor

• Step Angle: 1.8 degree

• Holding Torque: 6Ncm

• Rated Current/phase: 0.67A

• Phase Resistance: 5.6ohms

• Inductance: 3.4mH

Physical Specification

• Frame Size: 28 x 28mm

• Body Length: 32mm

• Shaft Diameter: Φ5mm with round shaft

• Number of Leads: 4-leads

• Lead Length: 300mm

• Weight: 110g
