LM42HS40-0404-02F Nema 17 42BYG250 Motor 1.8Degree 2Phase Hybrid 3d Printer Stepper Motor 12V 0.4A 42N.cm 40mm 17HS4401S Stepping Motor 4-lead

Model: LM42HS40-0404-02F
Holding Torque: 42N.cm
Current / Phase: 0.4A
Rated Voltage: 12V
Phase Resistance: 30Ω
Phase Inductance: 60mH
Shaft Diameter: 5mm with D-cut shaft
Number of leads: 4-leads
Weight: 0.3kg
Model:
LM42HS40-0404-02F
Availability:
Quantity:
Inquire Add to Basket

  • LM42HS40-0404-02F

  • LeanMotor

  • LM42HS40-0404-02F

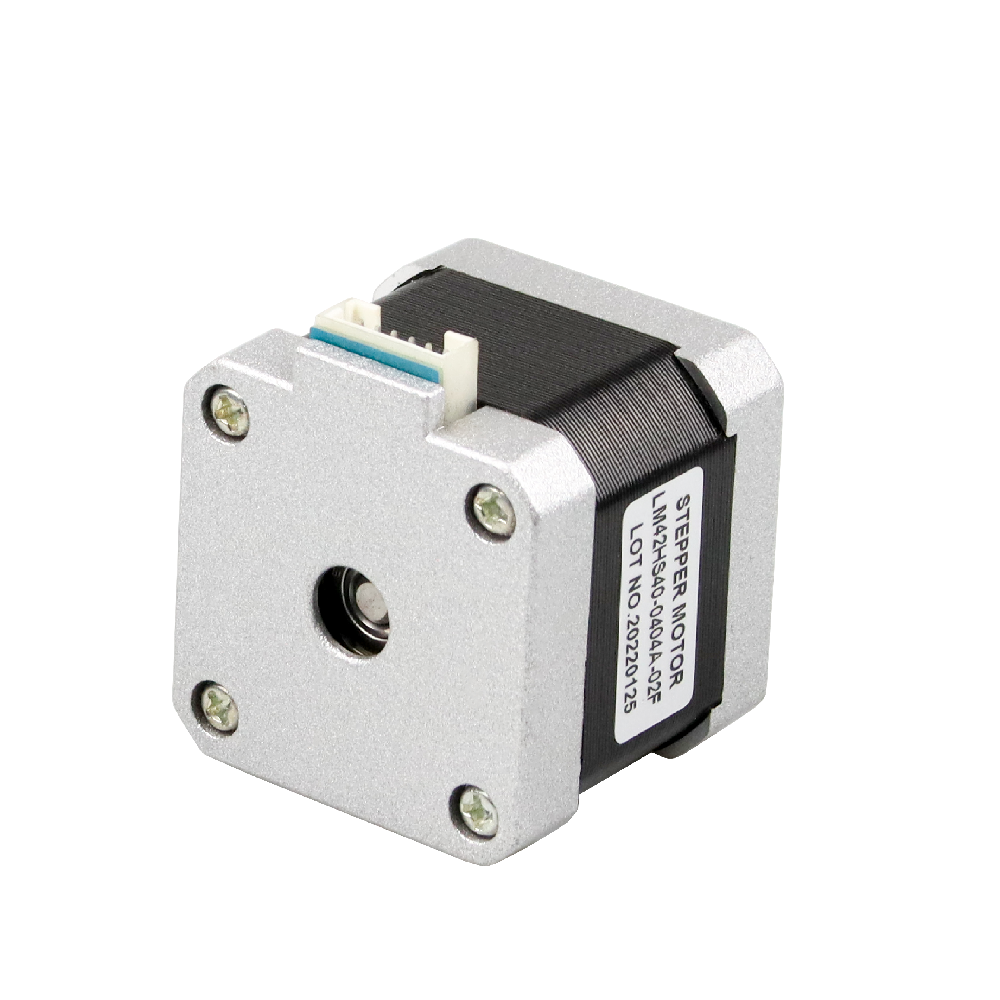

This mini LM42HS40-0404-02F 17HS4401S 42byg250 nema 17 hybrid 2 phase 12v stepper motor with step angle 1.8deg and size 42x42x40mm. It has 4 wires, each phase draws 0.4A at 12V, with holding torque 42Ncm.


Electrical Specification

  • Manufacturer Part Number: LM42HS40-0404-02F

  • Motor Type: 2 Phase Hybrid Step Motor for 3d printer

  • Step Angle: 1.8 degree stepping motor

  • Holding Torque: 42Ncm

  • Rated Current/phase: 0.4A

  • Phase Resistance: 30ohms

  • Inductance: 60mH


Physical Specification

  • Frame Size: 42x42mm

  • Body Length: 40mm

  • Shaft Diameter: Φ5mm with D-cut shaft

  • Number of Leads: 4-leads

  • Lead Length: 500mm

  • Weight: 300g

A+A-B+B-
BlackGreenRedBlue


3d printer motor

If this nema 17 42byg250 stepping motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.




Different Shaft Types You May Need


download LM42HS40-0404A-02F.pdf
