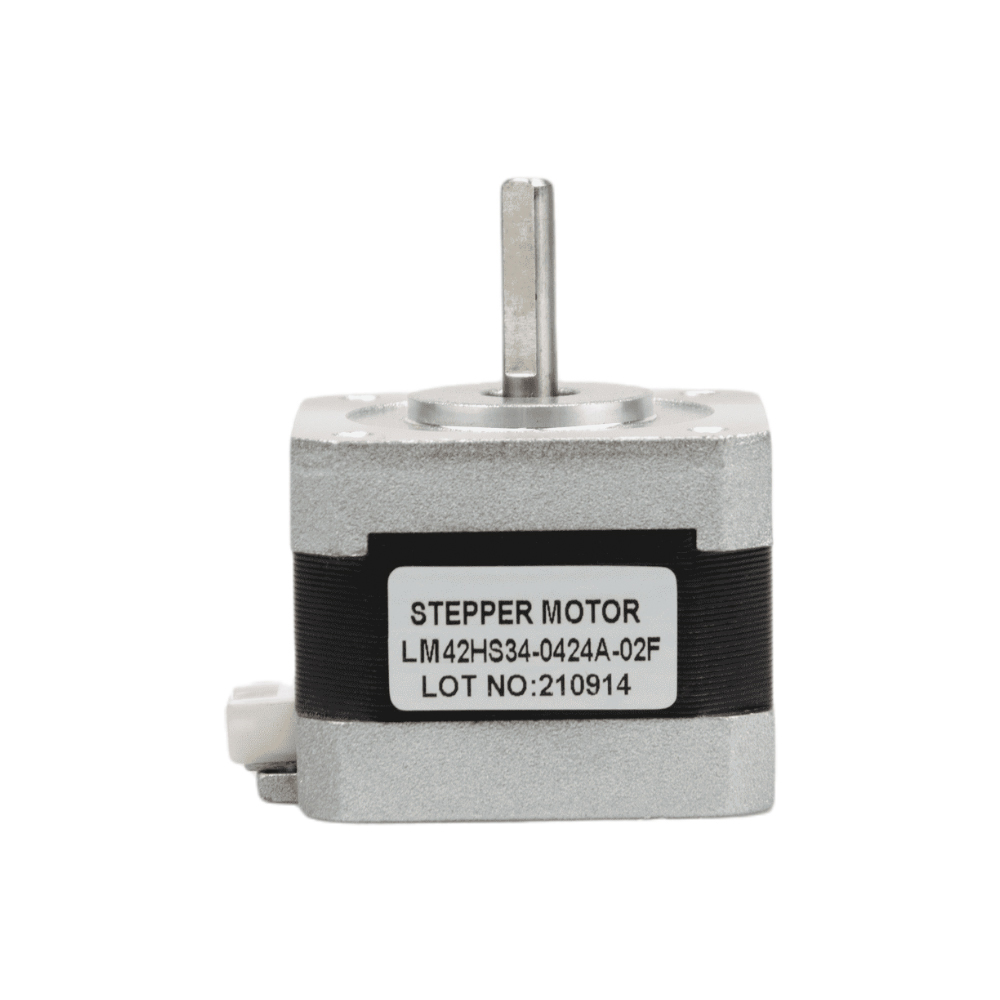

34mm Nema 17 Stepper Motor 23Ncm 0.42A 6.72V 17HS3401 Step Motor 42BYGH 4-lead CNC Reprap 3D Printer

Model: LM42HS34-0424A-02F
Holding Torque: 2.3kg.cm
Current / Phase: 0.42A
Rated Voltage: 6.72V
Phase Resistance: 16Ω
Phase Inductance: 24mH
Shaft Diameter: 5mm with D-cut shaft
Number of leads: 4-leads
Weight: 0.3kg
Model:
LM42HS34-0424A-02F
Availability:
Quantity:
Inquire Add to Basket

  • LM42HS34-0424A-02F

  • LeanMotor

  • LM42HS34-0424A-02F

This hybrid 42x42x34mm LM42HS34-0424A-02F nema 17 bipolar stepper motor with step angle 1.8deg and size 34mm. It has 4 wires, each phase draws 0.42A at 6.72V, with holding torque 23Ncm.


Electrical Specification

  • Manufacturer Part Number: LM42HS34-0424A-02F

  • Motor Type: 2 Phase Hybrid Stepping Motor

  • Step Angle: 1.8 degree step motor

  • Holding Torque: 23Ncm

  • Rated Current/phase: 0.42A

  • Phase Resistance: 16ohms

  • Inductance: 24mH


Physical Specification

  • Frame Size: 42x42mm

  • Body Length: 34mm

  • Shaft Diameter: Φ5mm with D-cut shaft

  • Number of Leads: 4-leads

  • Lead Length: 100mm

  • Weight: 300g

A+A-B+B-
BlackGreenRedBlue


nema 17

If this nema 17 stepping motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.




Different Shaft Types You May Need


download LM42HS34-0424A-02F.pdf
