LeanMotor Nema11 28x28x51mm Hollow Shaft Stepper Motor 6.164v 0.67A 2 Phase for Pick And Place Machine LM28HS51-0674-15SK5

Model: LM28HS51-0674-15SK5
Holding Torque: 80mN.m
Current / Phase: 0.67A
Rated Voltage: 6.164V
Phase Resistance: 9.2Ω
Phase Inductance: 5mH
Shaft Diameter: 5mm
Number of leads: 4-leads
Weight: 0.18kg
Availability:
Quantity:
Inquire Add to Basket

  • LM28HS51-0674-15SK5

  • LeanMotor

  • LM28HS51-0674-15SK5

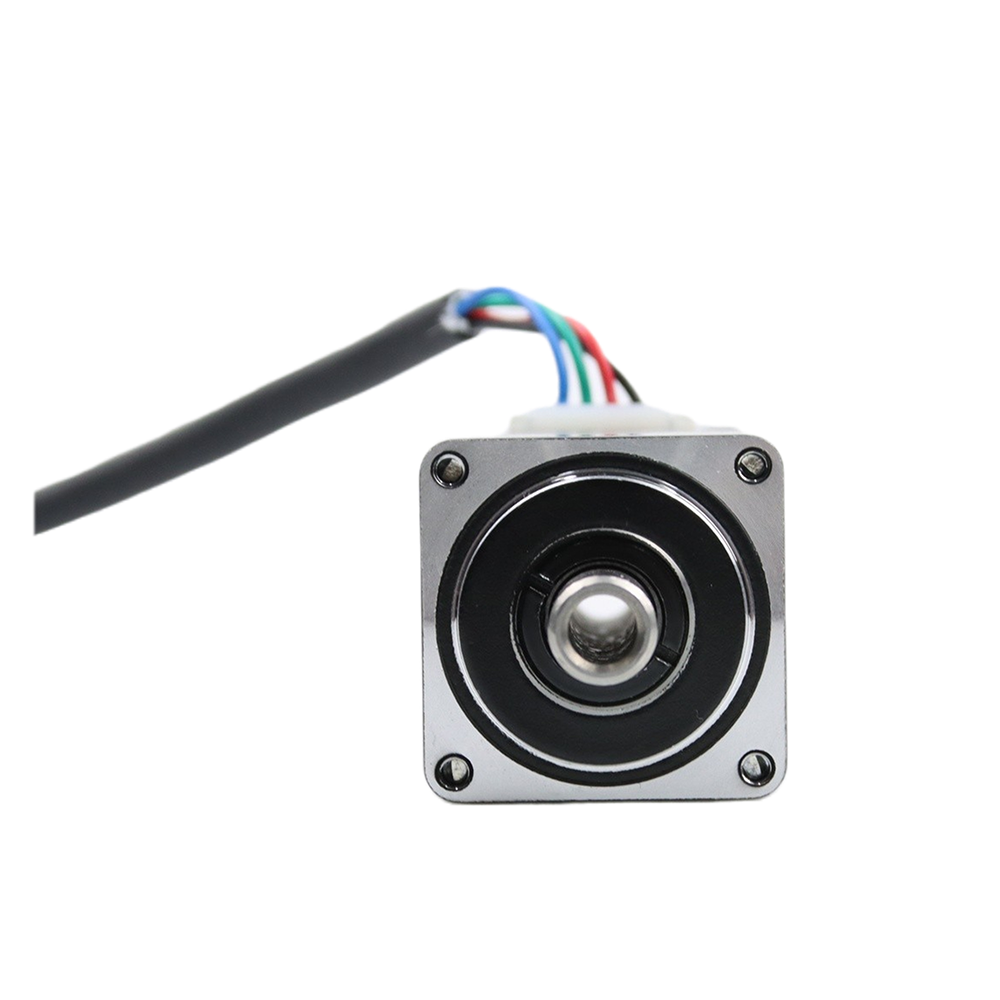

This mini LM28HS51-0674-15SK5 nema 11 hollow shaft stepper motor with step angle 1.8deg and size 28x28x51mm. It has 4 wires, each phase draws 0.67A at 6.164V, with holding torque 80mN.m

Electrical Specification

  • Manufacturer Part Number: LM28HS51-0674-15SK5

  • Motor Type: 2 Phase Nema 11 Hollow Shaft Stepper Motor

  • Step Angle: 1.8 degree stepping motor

  • Holding Torque: 80mN.m

  • Rated Current/phase: 0.67A

  • Phase Resistance: 9.2ohms

  • Inductance: 5mH


Physical Specification

  • Frame Size: 28x28mm

  • Body Length: 51mm

  • Shaft Diameter: Φ5mm

  • Number of Leads: 4-leads

  • Lead Length: 500mm

  • Weight: 180g

A+A-B+B-
BlackGreenRedBlue


nema 11 hollow shaft stepper motor

If this nema 11 hollow shaft stepper motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.




Different Shaft Types You May Need


download LM28HS51-0674-15SK5.pdf

Previous:
Next:
nema 11 hollow shaft stepper motor hollow shaft stepper motor hollow shaft stepper motor nema 34 hollow shaft stepper motor nema 8 hollow shaft stepper motor nema 17 hollow shaft stepper motor amazon hollow shaft stepper motor nema 23 hollow shaft stepper motor robotding hollow shaft stepper motor price buy hollow shaft stepper motor

Related Products

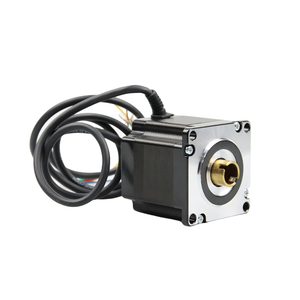

LeanMotor Nema 23 Stepper Motor Hollow Shaft Bipolar 1Nm 1.5A 57x57x56mm Stepping Motor 15mm Shaft for CNC Milling Engraving LM57HS56-3004-20SK15
